Velox Revolution II from Orion Models

Details

The company "Orion Models" was a Czech Republic company developing and producing acrobatic models.

The models were made in the classic way from wood and covered with foil. The advantage is that all parts are extremely light. It is not for nothing that the company has focused its advertisement on the fact that the weight of the Velox with a span of 2.56 m was significantly below 10 kg.

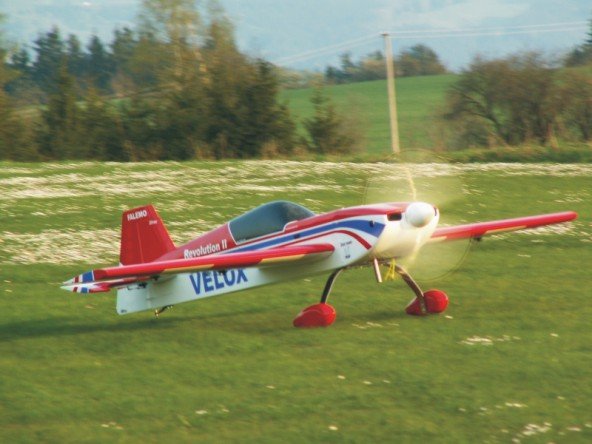

VELOX REVOLUTION II is a semi-scale model of a well-known aerobatic aircraft, its fuselage' shape differs from the Extra or CAP.

The Velox Revolutions was available with a wingspan of 2.56m or 2.20m

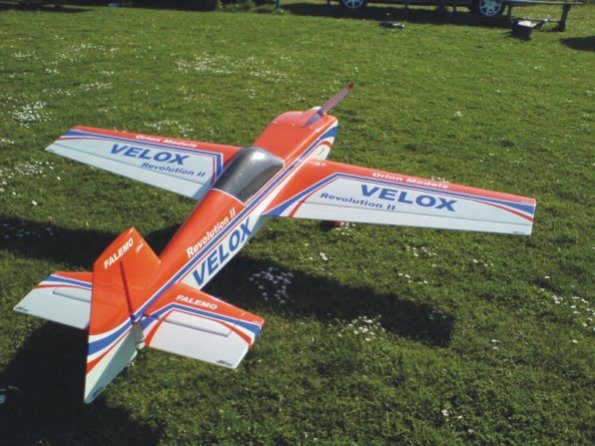

Pictures

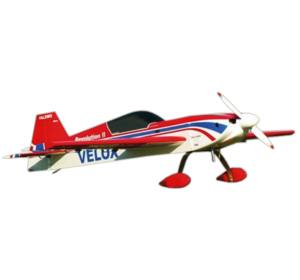

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Velox Revolution II in particular but at least we know they do distribute Orion Models.

Where to buy


Wingspan: 2200mm (86.6 in)
Length: 2065mm (81.3 in)

Weight: 6500 g (14.3 lbs)
  • Wingspan: 2560 mm
  • Length: 2390 mm
  • Weight without fuel: 9.6 kg
  • Wing Area: 114 dm²
  • Wing loading: 85 g / dm²
  • Propeller: 26 x 10
  • Center of gravity:
    • normal: 170-190 mm from the leading edge
    • 3D: 180-200 from leading edge

Travels (Normal / 3D)

  • Elevator: 20 degrees 45 degrees (20% / 55%)
  • Wings: 35 degrees 55 degrees (20% / 45%)
  • Rudder: 30 degrees 45 degrees (10% / 25%)

Variants

VlxRev2
Velox Revolution II (White Red Blue)
