Swift S1 from PLANEPRINT

Details

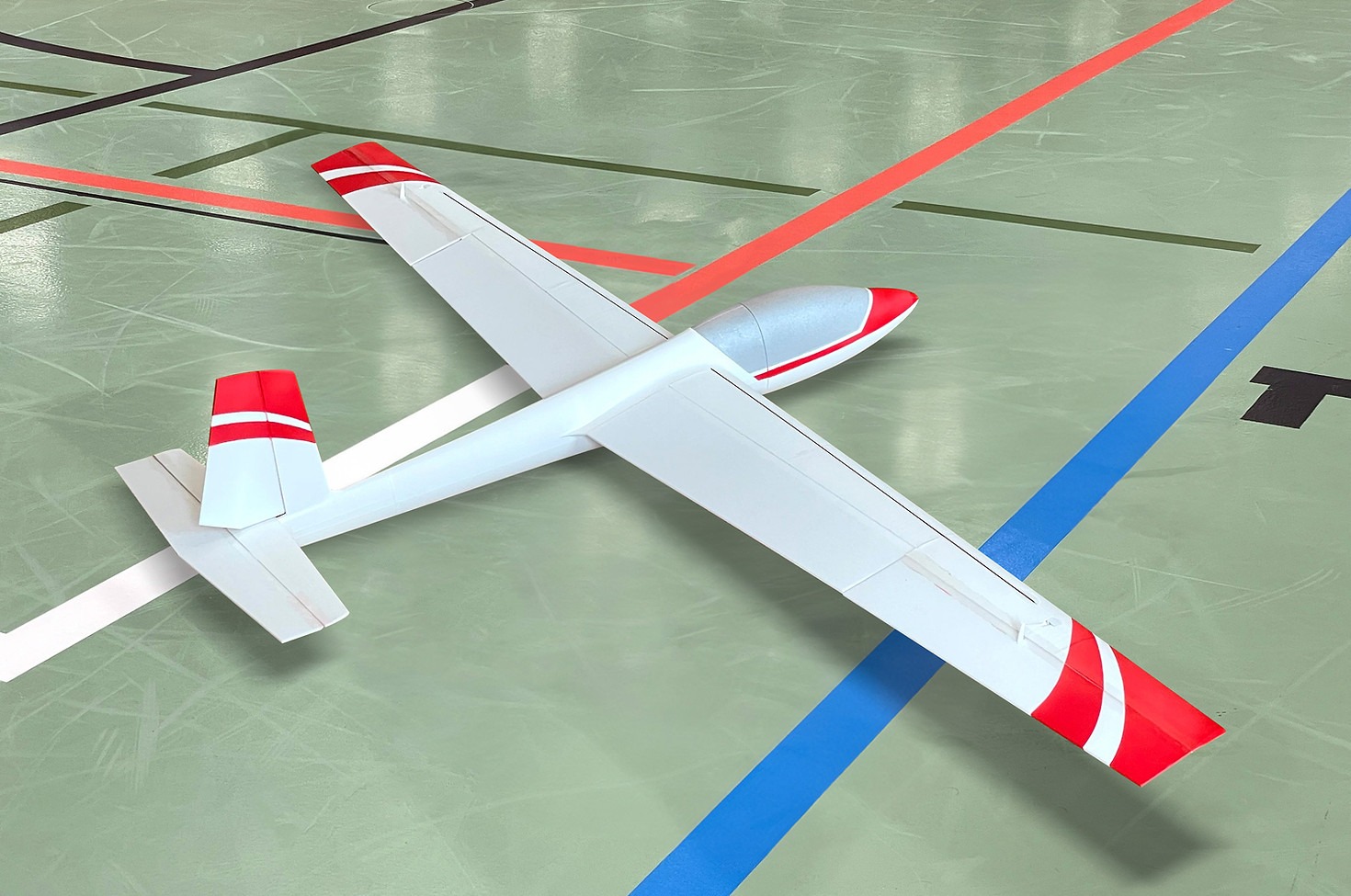

The Planeprint Swift S1 is the start of a series of super-lightweight scale models that are also suitable for larger indoor halls or small outdoor areas. To be suitable for indoor use, an extremely low wing loading is required, which cannot be achieved even with LW 3D printing filaments. But the combination with lightweight foam sheets (Depron, EPP, polystyrene) makes it possible.

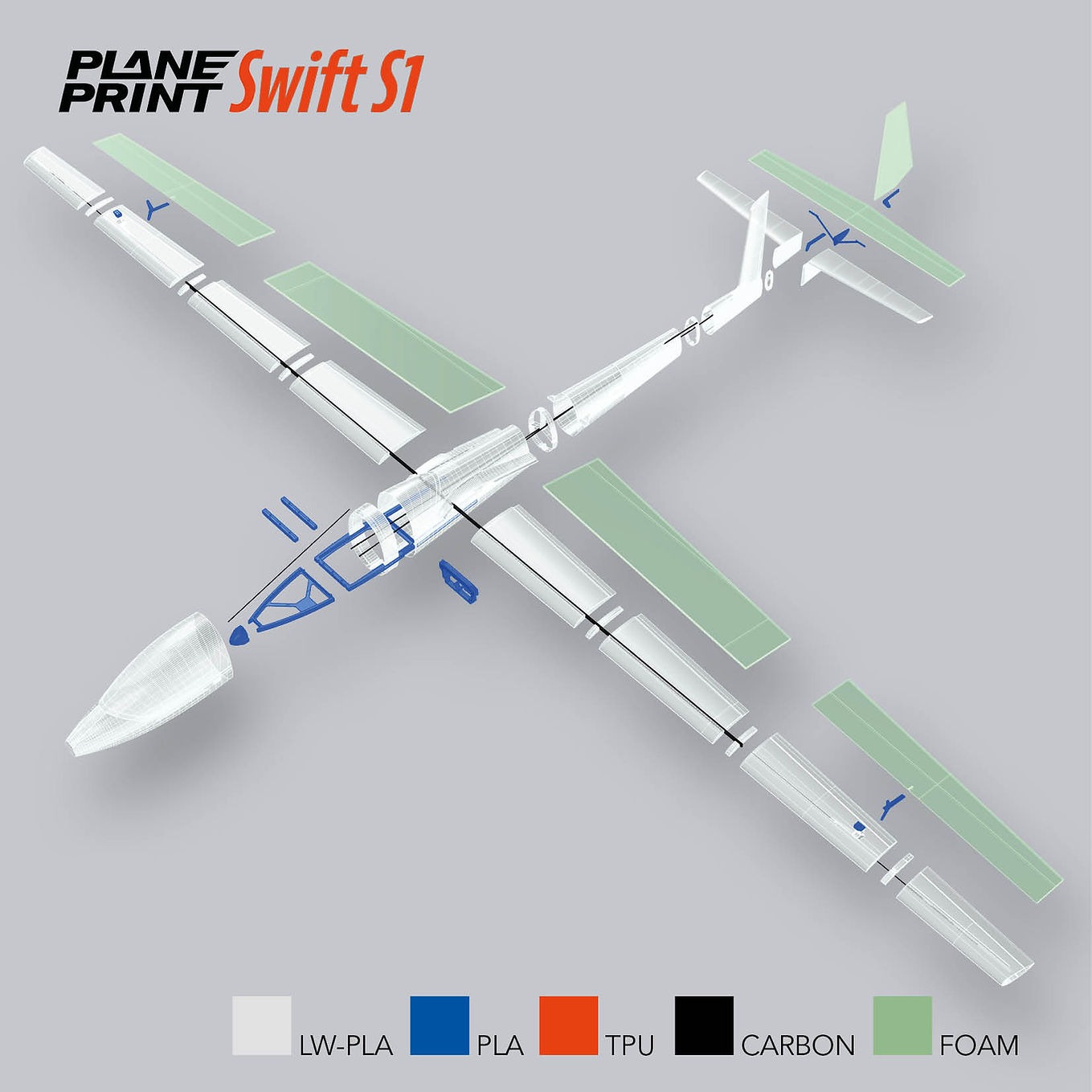

The fuselage and the D box of the wing are printed from LW PLA in Vase mode (Spiralize in Cura) without retract, reinforced with carbon and supplemented with foam plates. This enables very light models that still look like scale airplanes and not just glued panels. The flight characteristics of the Planeprint Swift S1 are very simple and slow.

The Swift S1 is only available in the tow release version and can be towed with any park or shock flyer, just hang a line on the motorized model and have fun!

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Swift S1 in particular but at least we know they do distribute PLANEPRINT.

Where to buy

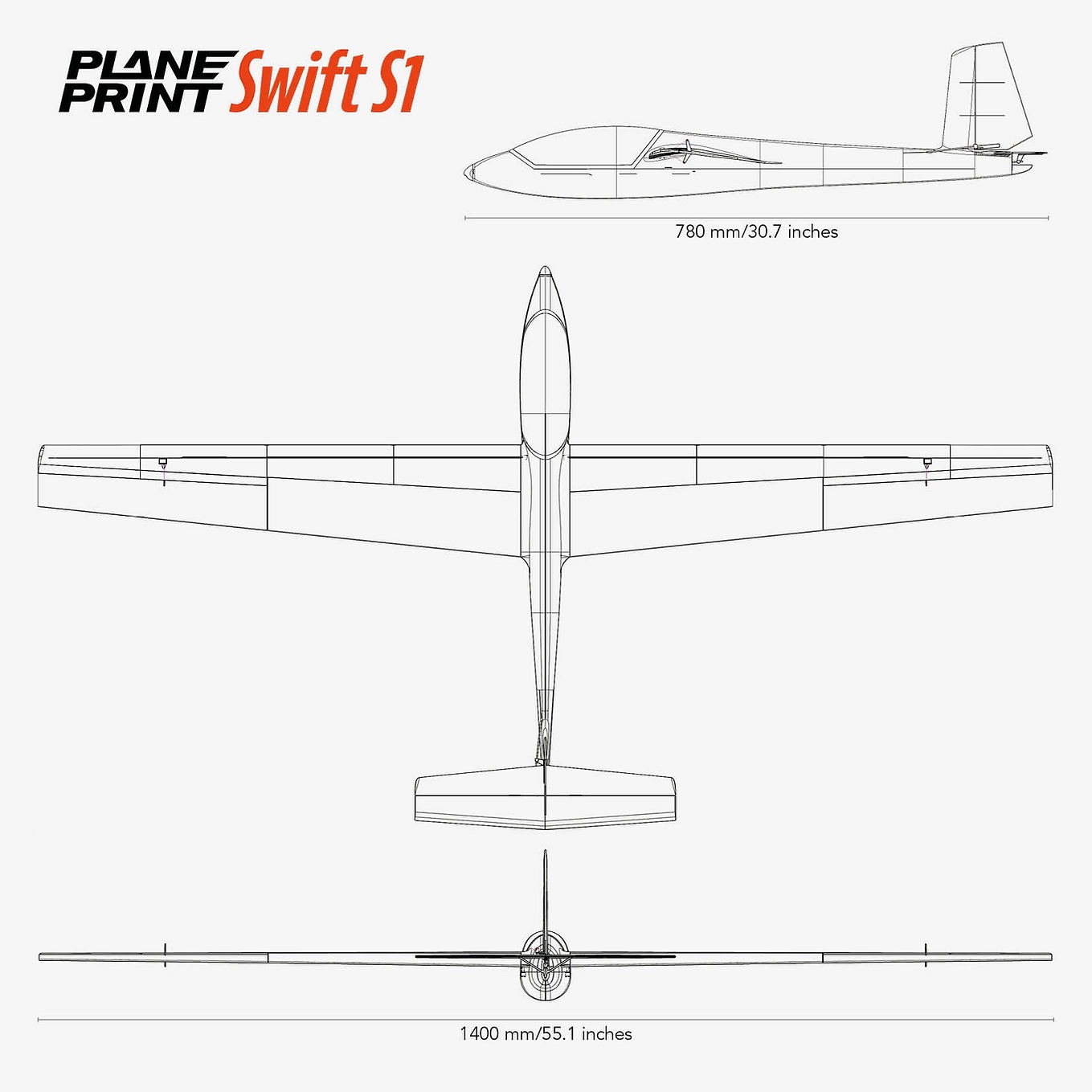

Wingspan: 1400mm (55.1 in)
Length: 780mm (30.7 in)

Weight: 190 g (6.7 oz)
  • Wingspan: 1400 mm (55.1 inches)
  • Flight weight: 190 grams
  • Wingload: 10g/dm2
  • 4 channel
  • Material: LW-PLA 100g/PLA 20g
  • Printer space of 200x200x200 mm (cube) needed!
