Sabre F-86D from Pilot RC

Details

Features:

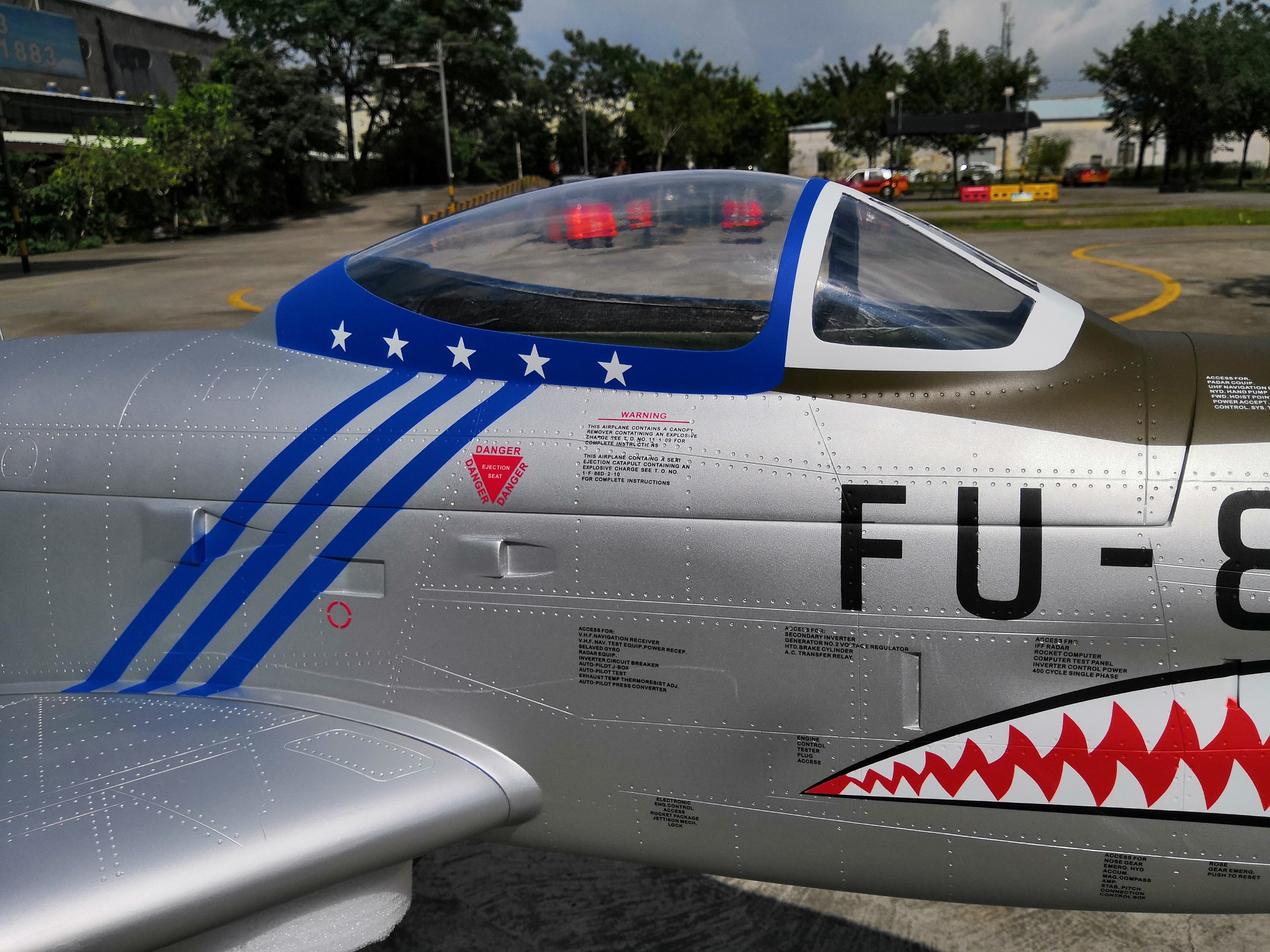

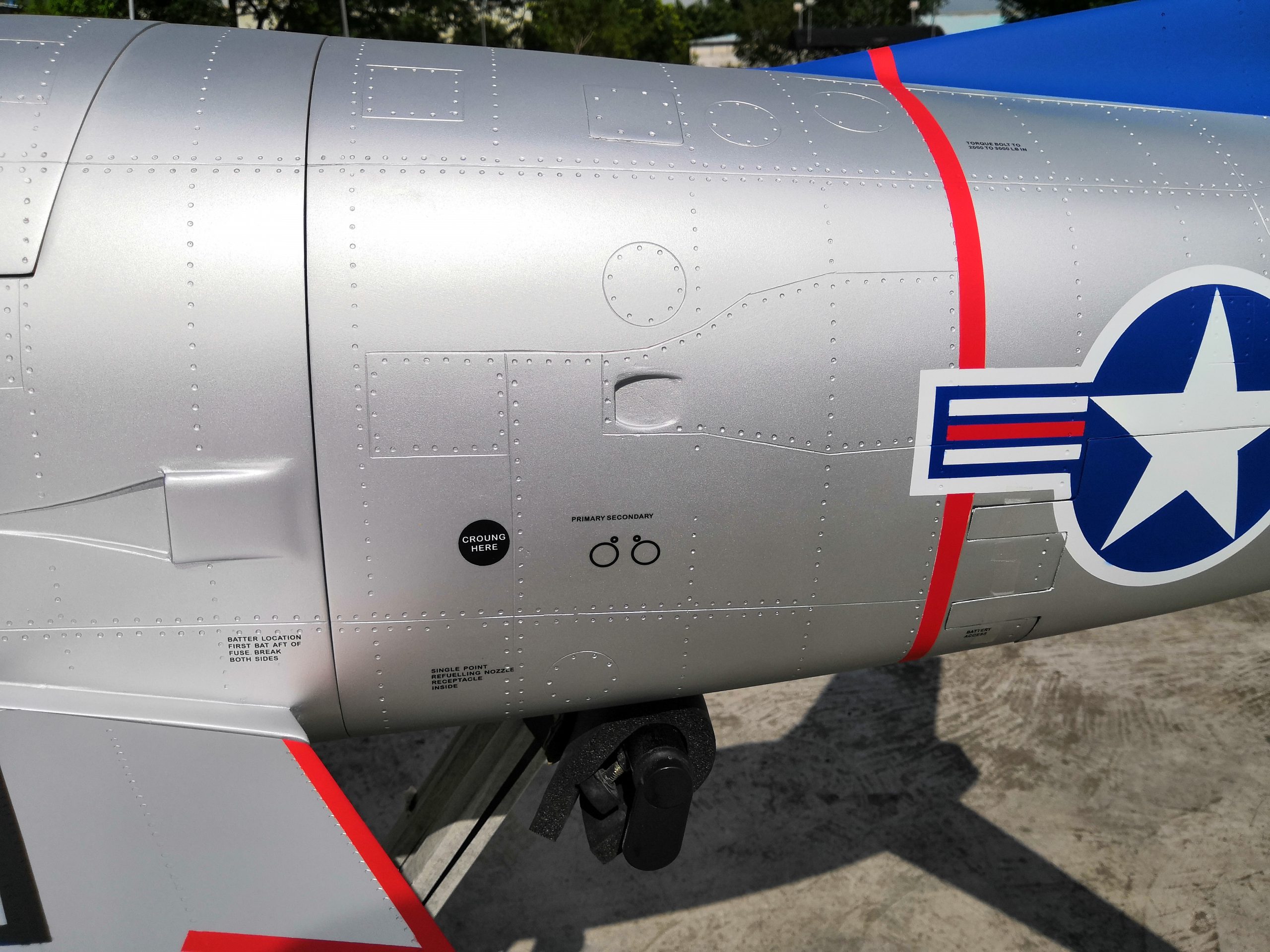

  • Full scale detail with rivets panel lines, simulated hatches, etc…
  • Full composite construction, lightweight and strong
  • Two piece wing and two piece full flying stabiliser, all for easy transport
  • Painted outside the mold so no seam lines
  • Fully hidden linkages, no horn, servo arm, ball links or pushrods exposed
  • Screwless detachabe nose / radar cover.

Included Hardware:

  • Complete air frame (including aluminium wing-tubes and fibreglass control horns)
  • Servo extension leads
  • Dual wall tail pipe (for 100-160N turbines)
  • Kevlar fuel tank (4200ml) and UAT (250ml)
  • Pre-prepared pushrods with ball links
  • Pre-glued control horns

Pictures

Radio icons

(Click on the icon you want to download)
Horus & T16 OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Sabre F-86D in particular but at least we know they do distribute Pilot RC.

Where to buy

Ireland
Model Heli Service
check web site
Ship to: Ireland
France
interModel
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
Belgium
Aerobertics
check web site
Ship to: Europe
Germany
FINAL-Modellbau
check web site
Ship to: Worldwide
Austria
DMT
check web site
Ship to: Europe

Wingspan: 1980mm (78 in)
Length: 2157mm (84.9 in)

Weight: 12700 g (28 lbs)
Wingspan: 77.9″ (1,980mm)
Length: 84.9″ (2,157mm)
Wing area:  1,310″2 (8,450cm2)
Weight: 27.9lbs (12.7kg) without speed brake, drop tank or cockpit

Basic Setup:

Aileron: 15mm – Rudder: 23mm

Elevator: 45mm up / 60mm down
Measured from the front of the leading edge of the elevator.

Take-off Flap: 30mm
Landing Flap: 75mm

Speed brake 1: 100mm
Speed brake 2: 190mm
Measured from the back of the speed brake plate.

The CG is 270mm from the front leading edge on the root of the wing

Variants

F86D-CS1
Sabre F-86D (Silver Blue)
