Step 2 from RC Factory

Details

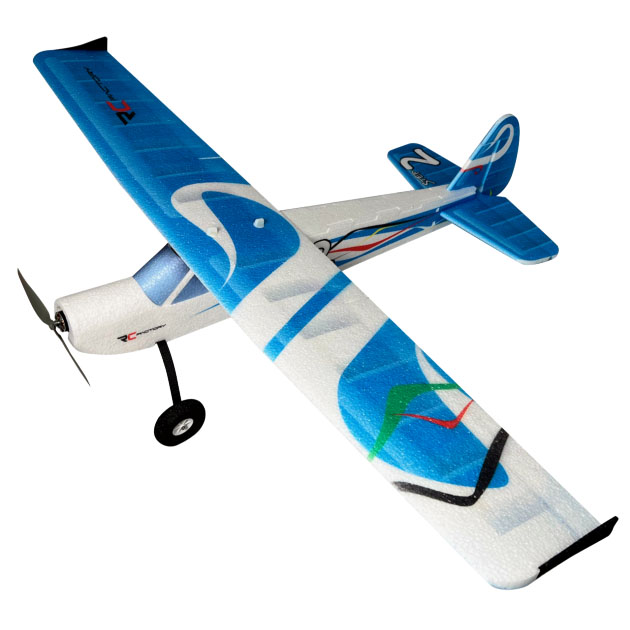

The Step 2 model was designed by Jan Sedláček as a successor to the Step One model, especially for beginners of RC flying, but also for the fun of the more experienced ones.

The construction is in standard EPP thickness, so Step Two is durable and almost unbreakable. We have tried to simplify the assembly of the model as much as possible, so that even an inexperienced modeler can build the model correctly and without complications. This is also the basis for the very detailed instructions.

If the recommended settings are followed, Step 2 is easy to operate. The model is calm and stable in the air, but choose a windless air for the first launches.

The easily removable wing makes transport easy even when travelling for example on holiday. The Step Two comes with a carbon landing gear, so you can practice take-offs and landings from the ground. Due to the large wheels, you can also take off from mown grass. Take-offs and landings should always be made into the wind, as the airspeed relative to the ground will be reduced and you will therefore need less space for take-off and landing. Avoid flying near high tension wires and always remember that even with such a simple model, damage to property or health can easily occur.

The equipment for the model is selected so that the complete equipment from the Step One can be used, only two Volta D6M aileron servos are needed

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1140mm (44.9 in)
Length: 860mm (33.9 in)

Weight: 350 g (12.3 oz)
  • Wingspan: 1140 mm
  • Length: 830 mm
  • AUW: 350 g
  • Motor: 2204 - 2206
  • ESC: 15A
  • Servo: 4 x 6g
  • Battery: 450 3S, 600 2S (25C)
  • Propeller: 8x4.1

Other Variant(s)
