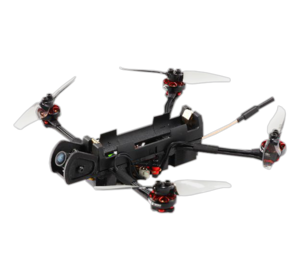

Rekon3 Nano LR from Rekon FPV

Details

The Rekon3 is all about simplicity and convenience! This tiny quad is designed around a single, standard 18650 Lithium-Ion cell. You insert the battery just like you would in a TV remote and immediately you are ready to fly for over 15 minutes. This means you can fit enough batteries to fly for several hours in your pocket! The Rekon3 is also extremely quiet and small; Perfect for flying in your back yard or a public park without bothering anyone, exploring an epic mountain landscape or simply cruising along wherever you want.

Despite its small size and simplicity, do not underestimate the Rekon3: The cruising speed is higher than you probably expect and since it is equipped with a powerful 350mW VTX the Rekon3 has several kilometers of video signal range.



Key Features:

  • Running on a standard 18650 battery (high c rated cell required, we recommend Sony VTC6 or similar)
  • Specific Rekon 1202.5 11600kV motors running 3” props
  • Small and light (62.5g without battery, 140mm motor to motor)
  • Supports WiFi tuning via Speedy Bee on your mobile phone
  • Powerful 350mW video transmitter for several kilometers of video range
  • TPU parts available online for FREE. Click here to check.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Rekon3 Nano LR in particular but at least we know they do distribute Rekon FPV.

Where to buy


Wingspan: 140mm (5.5 in)
Length: 140mm (5.5 in)

Weight: 63 g (2.2 oz)
  • Weight: 62.5g (without receiver)
  • Rekon3 Long Range Frame
    • Wheelbase:140mm
    • Max prop size:3 Inch
  • Zeus5 AIO 1-2S flight controller
    • Input voltage:1-2S
    • Flight control firmware:Betaflight HGLRC411 (HGLR)
    • ESC firmware:BLHeli_S
    • Size:41.5*41.5mm
  • Zeus nano VTX 350mW
    • Output power:PIT/25/100/200/350mW
    • Input voltage:DC 5V
  • CADDX nano ANT FPV Camera
    • Image sensor:1/3 1000TVL CMOS
    • Input voltage:DC 5V
    • Size:14mm * 14mm
  • Rekon 1202.5 KV11600 brushless motor
    • Input voltage:3.8V (1S)
    • Recommended propeller:3 Inch
  • GEMFAN 3018 3 inch 2-blade propeller
    • Quantity:4 CW & 4 CCW
