Goblin Raw 420 from Sab Avio

Details

Features:

Direct Drive Motor (Competition motor included)
New S Line blades (420mm and 70mm included)

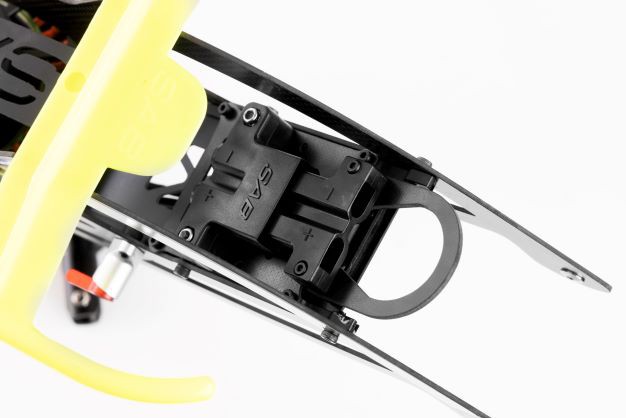

Quick release battery tray with built-in connectors
10mm one way bearing integrated into the motor
Zytel HTN resin blade grip arms (sacrificial)
The canopy does not need to be removed to replace batteries
Neon yellow color for best visibility (available initially in yellow only)
Carbon fiber molded boom as an option also available

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Goblin Raw 420 in particular but at least we know they do distribute Sab Avio.

Where to buy

USA
Helidirect
check web site
Ship to: USA

United Kingdom
Jettstreamuk
check web site
Ship to: United Kingdom

USA
BK Hobbies
check web site
Ship to: USA

France
Turbines RC
check web site
Ship to: Worldwide

UAE
Gonzo Hobbies
check web site
Ship to: UAE

Wingspan: 935mm (36.8 in)
	Length: 935mm (36.8 in)
Weight: 1000 g (2.2 lbs)

See more Details

Airframe weight: 1000 grams (with motor and blades)
Main rotor diameter: 935mm (with 420mm blades)
Main blade length: 380 to 420mm
Tail rotor diameter: 190mm (with 70mm tail blades)
Tail blade length: 60 to 70mm
Cyclic servos: Micro size 23mm
Tail servo: Mini size 35mm
Maximum battery size: 40x54x135mm
Recommended battery: 6s 2200/2700 mAh
Recommended battery weight: 350-420 grams
Recommended ESC: 60 ( 70-80A is required only for hard 3D flight with temperatures above 30°C)
Tail rotor ratio: 4:1
Main shaft: 8mm
Tail shaft: 5mm

Other Variant(s)

5,061 models

(60,732 icons in the database)

ASK FOR A NEW MODEL TO BE ADDED

Although I do my best to complete this library, you may not find the model you are looking for.

In this case, do not hesitate to ask me to add it : You're not bothering me. Please be patient, depending on my workload, I may take a few days to work on your model and gather information.

I'm sometime asked to add a non flying model to this library but unfortunately, it's not the focus of this website

Ask for a new model

RANDOMIZER

Squirt V2

Toy 2m V-tail

SZD-24 Foka 4

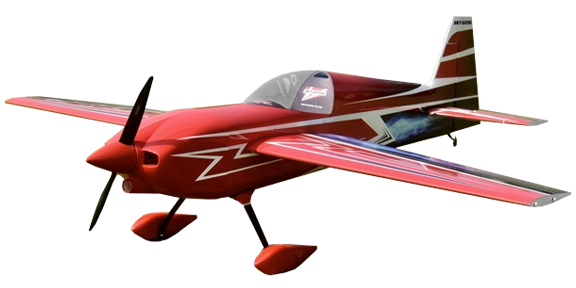

Edge 540 V3 104'
