Aika from Silence Model

Details

Performance glider for the little weather goes everywhere, equipped with quadro-flap for precision landings.
Its versatile profile will make it the companion of many flying sessions.
The kit is almost ready to fly and is designed to be very light and extremely strong.

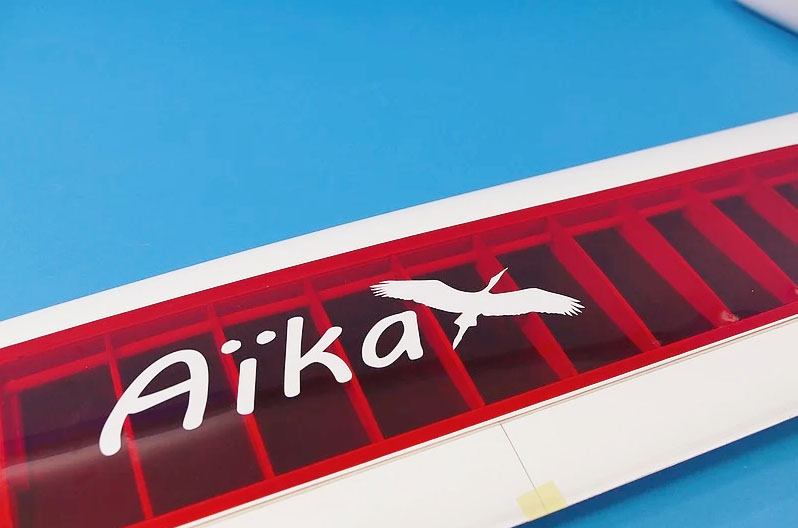

The wing is equipped with a molded D-box which is carbon reinforced as well as the trailing edges with very rigid control surfaces.
The hollow parts are lined with oracover, a molded closure lip ensures the continuity of the profile even with the steered control surfaces.
Flaps and flaps are also reinforced with carbon.
The wing key is an 8mm carbon rod and the balsa ribs are CNC milled.

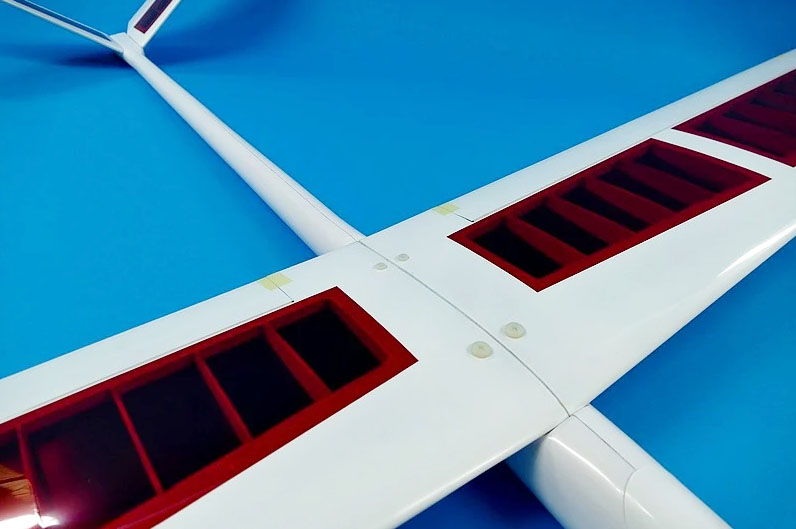

The wing is secured by 4 nylon screws on the fuselage.

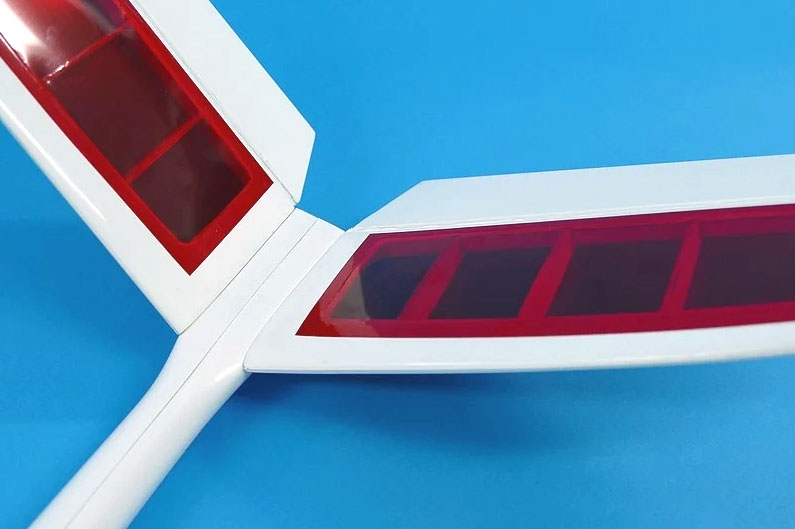

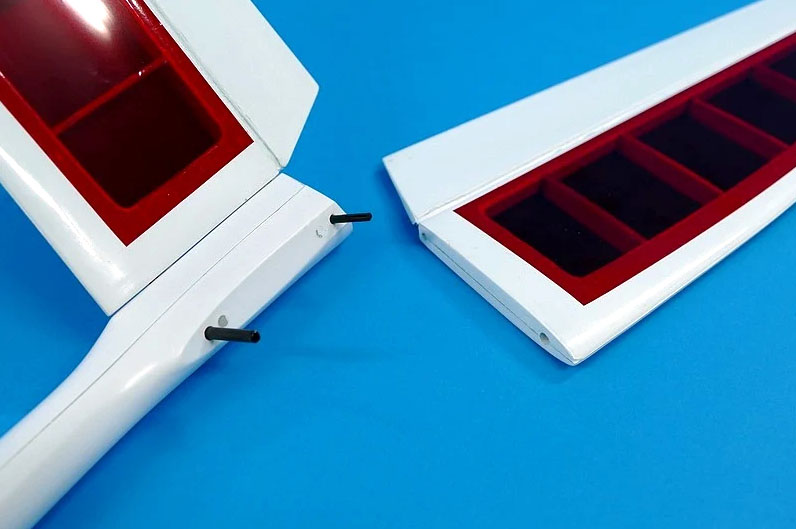

The V-shaped tail is also molded and interfaced with the articulated control surfaces. It can be dismantled via a carbon key and a centering stud.
The fuselage is molded in glass reinforced with carbon ribbons at strategic locations.
Crossing of the wing and empennages is done in the factory, the depth and drift controls are installed in place.
The assembly will consist of just the radio installation with the supplied accessories and will only take a few hours.

Thanks to its spacious fuselage with a perfectly circular nose, this elegant glider is easily motorized (designed for a 40 mm cone)

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos
(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Aika in particular but at least we know they do distribute Silence Model.

Where to buy

France
Silence Model
check web site
Ship to: France
Wingspan: 2500mm (98.4 in)
Length: 1310mm (51.6 in)

Weight: 1200 g (2.6 lbs)

Wingspan : 2500 mm
Length: 1310 mm
Profile: RG15
Weight (empty): 750 g
Weight (fly) : 1200 g
Wing Surface: 43dm²

Recommended motor configuration
Motor : 2220/1100
ESC: 30A
Battery: Lipo 3S 1800 mAh to 2200 mAh
Propeller Cone : 40 mm (3mm axis)
Fold. propeller: 10x6

Variants

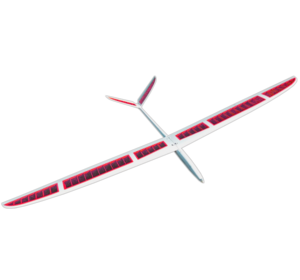

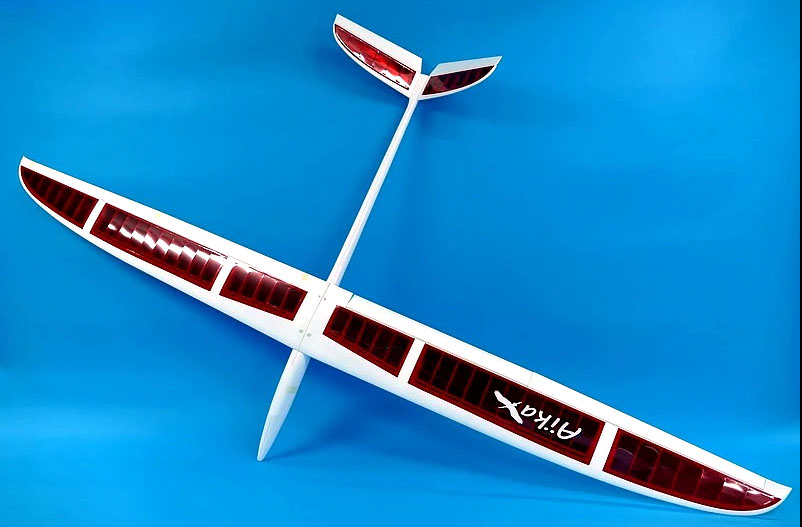

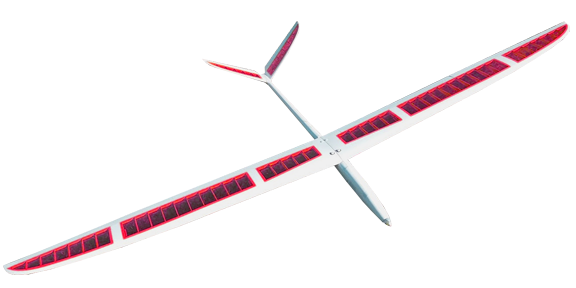

Aika_R
Aika (Red)

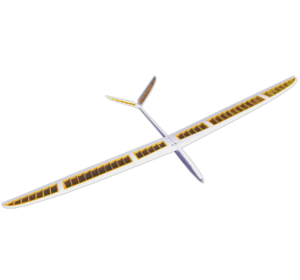

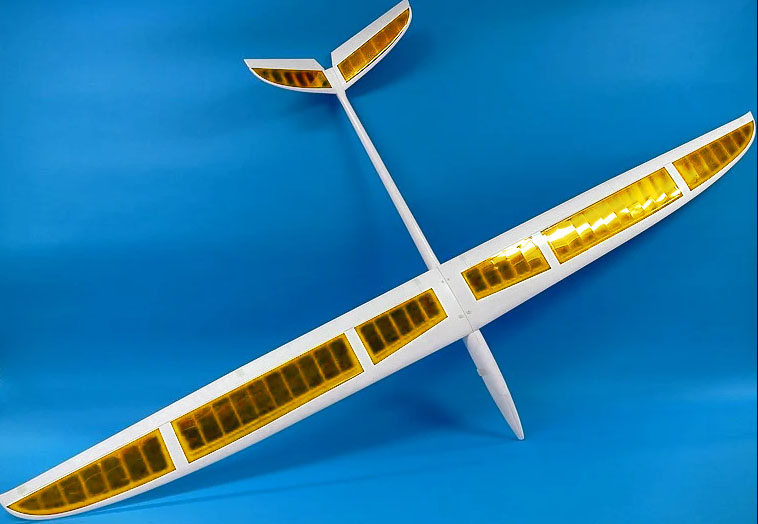

AikaY
Aika (Yellow)
