These files are large, so be patient during the download. Please read the readme.txt included in the ZIP

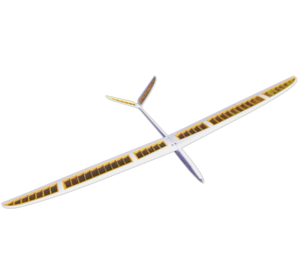

Performance glider for the little weather goes everywhere, equipped with quadro-flap for precision landings. Its versatile profile will make it the companion of many flying sessions. The kit is almost ready to fly and is designed to be very light and extremely strong. The wing is equipped with a molded D-box which is carbon reinforced as well as the trailing edges with very rigid control surfaces. The hollow parts are lined with oracover, a molded closure lip ensures the continuity of the profile even with the steered control surfaces. Flaps and flaps are also reinforced with carbon. The wing key is an 8mm carbon rod and the balsa ribs are CNC milled. The wing is secured by 4 nylon screws on the fuselage. The V-shaped tail is also molded and interfaced with the articulated control surfaces. It can be dismantled via a carbon key and a centering stud. The fuselage is molded in glass reinforced with carbon ribbons at strategic locations. Crossing of the wing and empennages is done in the factory, the depth and drift controls are installed in place. The assembly will consist of just the radio installation with the supplied accessories and will only take a few hours.
Thanks to its spacious fuselage with a perfectly circular nose, this elegant glider is easily motorized (designed for a 40 mm cone)
FrSky X20
FrSky XE
PNG (300x280)
BMP Recommended (300x280)
FrSky X18
FrSky Twin
PNG (180x166)
BMP Recommended (180x166)
FrSky X10
FrSky X12s
PNG (180x160)
BMP Recommended (180x160)
PNG (192x114)
FrSky X9D
FrSky X9E
BMP (64x32)
JPG (155x100)
Some content in menu 2.
Wingspan : 2500 mm Length: 1310 mm Profile: RG15 Weight (empty): 750 g Weight (fly) : 1200 g Wing Surface: 43dm²
Recommended motor configuration Motor : 2220/1100 ESC: 30A Battery: Lipo 3S 1800 mAh to 2200 mAh Propeller Cone : 40 mm (3mm axis) Fold. propeller: 10x6
