Nano Goblin from Strix RC

Details

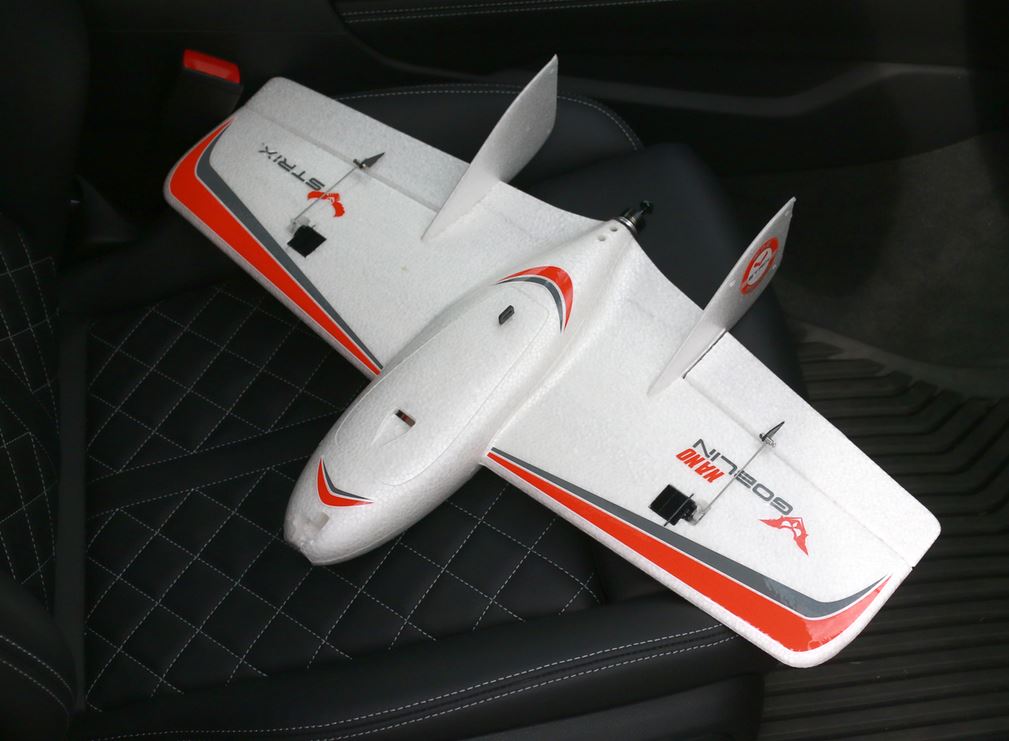

Extraordinarily Efficient - Does this sound like a dream? Out of the box flight times over 60 minutes possible with a wingspan that will not require a special trailer to transport it to the field, but instead fits on the front seat of your compact car. Add the STRIX Stix 3200mAH Li-ion battery to your order and these times are possible right out of the box. As much as 92 minutes and 40.2 miles of flight time and distance has been achieved with this design and the lightest gear possible!

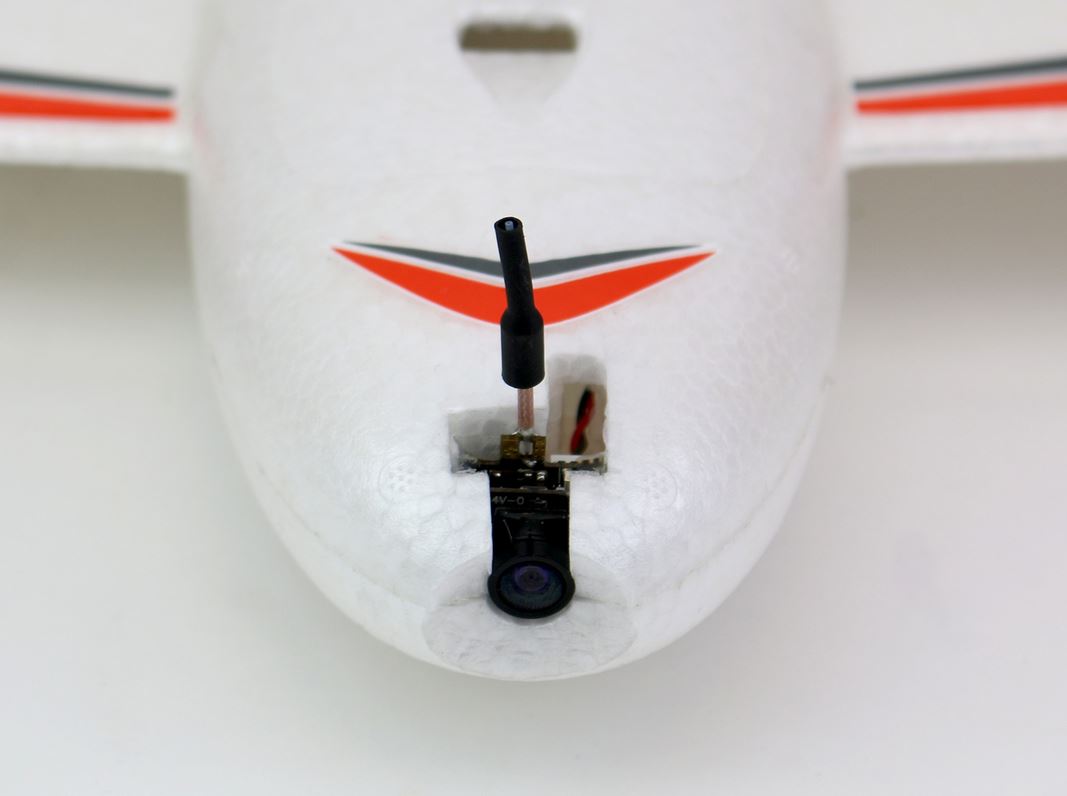

250 Grams - Actually, the Nano Goblin weighs in around 225g with battery and an all-in-one camera! That means that you still have room for more equipment before your plane has exceeded the dreaded "2 sticks of butter" requirement that will probably be making a comeback in the future. Just ask our Canadian friends.

Tired of Building? - The Nano Goblin PNP comes completely built, right out of the box! Simply add your receiver, charge up your battery, and complete your pre-flight check before you toss it in the air for the maiden flight. Your box includes a handle as well as extra internal compartments so it can be reused for safe travel.

Non-intimidating - Buzzing the tower sounds like fun, but sometimes the neighbors don't appreciate the loud screams coming from your fly-bys in your 60" 12s wing. The Nano Goblin cruises at practically a whisper. If you have been uneasy about launching pusher planes in the past because you value your digits, the Nano Goblin can be easily launched with a light, discus-style toss.

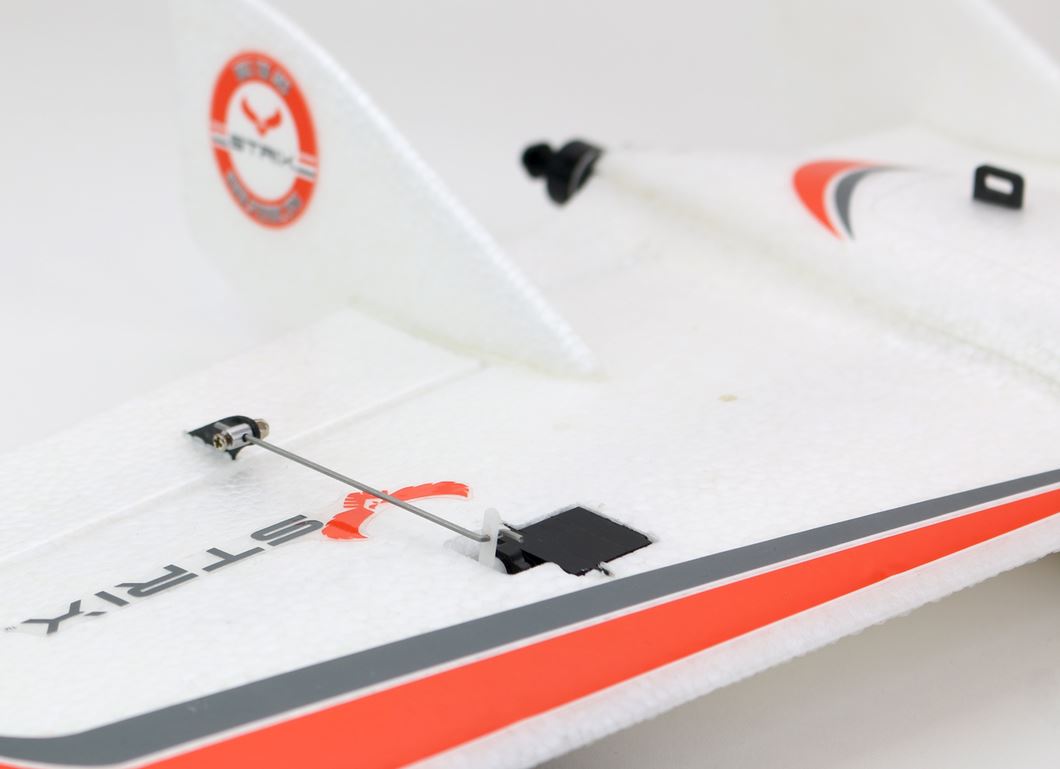

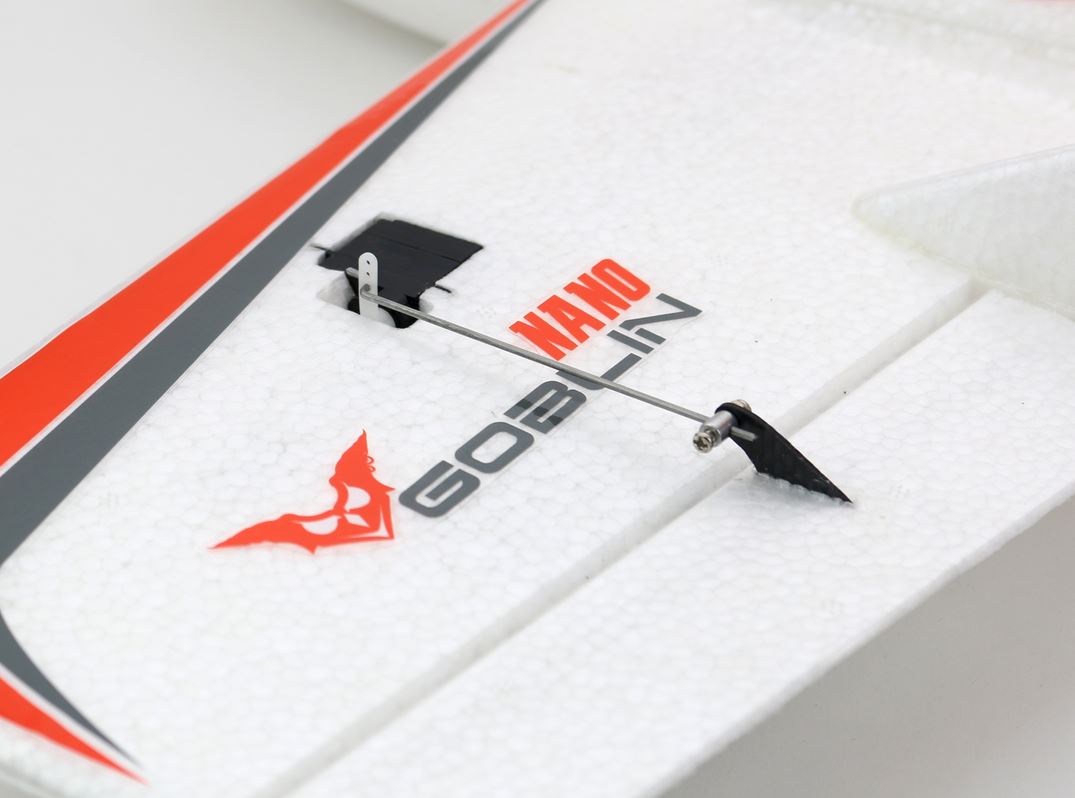

Tenacity - The Nano Goblin comes back for more! We all know that EPP is king when it comes to durability. The STRIX team sacrificed over 50 original Nano Goblins in a quest to find the perfect molding temperature in order to ensure that each plane going forward is properly formed for the best durability. The main spar is 3mm square and travels down the wing well past the servos to give sufficient support. In addition to the main spar, additional carbon fiber is located in each elevon as well as the main body, forward of the motor. Just like with your flat EPP foamies, take a tube of Welders or Foam-Tac and fly all day with reckless abandon!

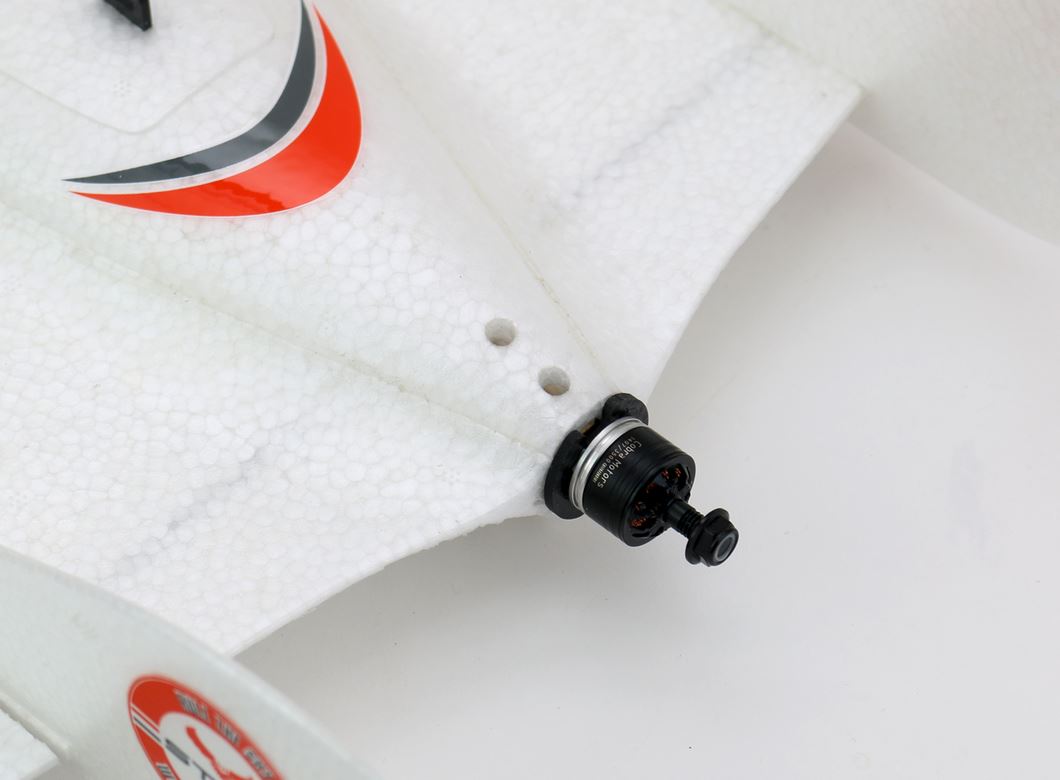

Quality Components - STRIX RC has teamed up again with Cobra to give you the best power system possible. The 1407 3500kv motor provides efficiency, reliability, and performance to get your Nano Goblin moving! The 10 Amp ESC was designed specifically for this plane with light weight in mind. Cobra also gave it a 2 Amp switching BEC so you can comfortably power more than just your servos and receiver.

Unparalleled Flight - Flying the Nano Goblin has been likened to a micro fighter jet. It has no tendency to keep rolling after a control input and prefers to keep going where it was last pointed without the nose wandering over the horizon. As we said above, this aircraft stalls gracefully and simply dips its nose. Rolls are on the center axis and it can practically turn onto itself when you need to avoid the next tree line. The Nano Goblin also does not need absolutely perfect conditions to fly well and remains stable with very little wing wag.

Pictures

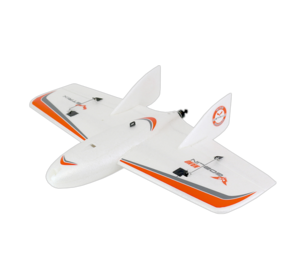

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Nano Goblin in particular but at least we know they do distribute Strix RC.

Wingspan: 580mm (22.8 in)
Length: 390mm (15.4 in)

Weight: 250 g (8.8 oz)
  • Wingspan: 580mm
  • Wing Area: ~140" sq
  • Length: 390mm
  • Weight: 200-250g (Ready to fly with FPV and battery)
  • Motor: STRIX Cobra 1407 3500KV
  • ESC: STRIX Cobra 10A with 2A UBEC
  • Servos: STRIX Emax ES9051 Digital
  • Prop: Gemfan Flash 3 Blade 3052 (

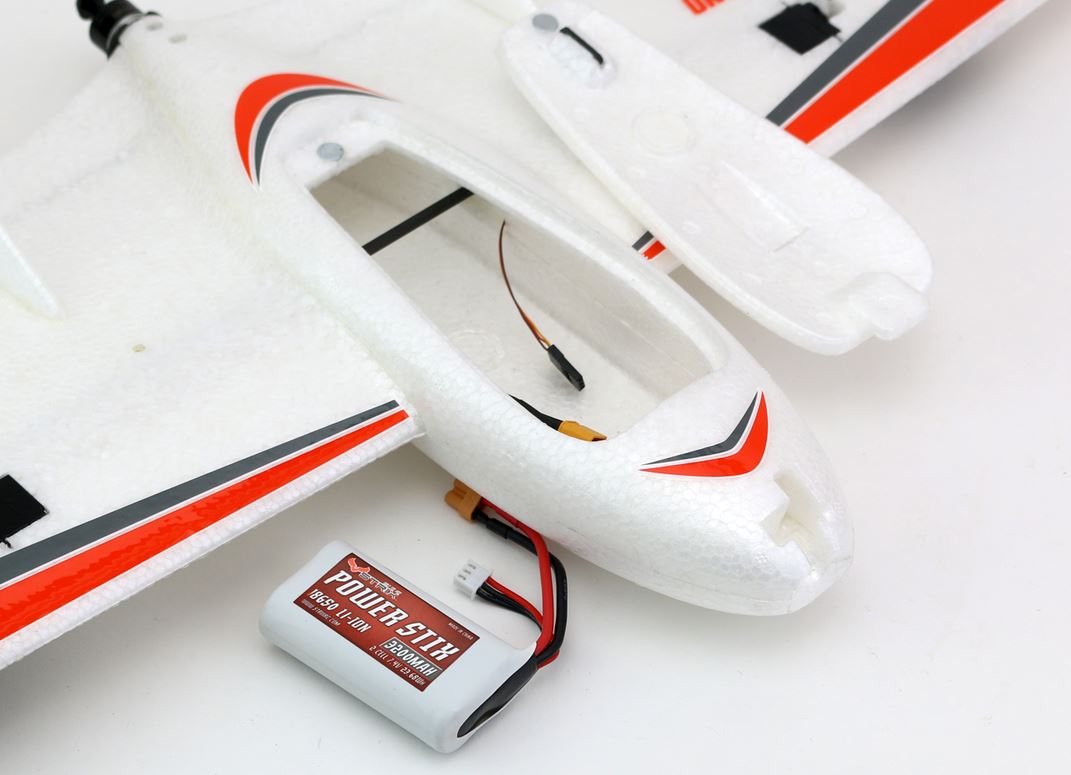

  • Battery: Li-ion 2s 3200mAH or Li-Po 1500-1800mAH 2s
  • Top Speed: 60mph on stock propeller or 70mph with APC 4.1x4.1(2s li-ion, verified by radar on several passes)
  • Flight time - Varies with battery, but we typically see 40-50 minutes when having fun using the Li-ion packs, and over 60 is easily possible.
