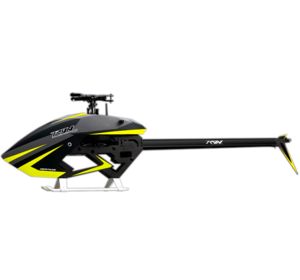

Tron 5.8 Heritage from TRON Helicopters

Details

The Tron 5.8 Heritage RC Helicopter is a high quality 580 class electric heli that provides an extensive feature list, flight envelope, and simplicity in design. The 5.8 features many design elements that are shared within the family of helicopters from the 5.5, NiTron, and 7.0. Features such as the octo-boom that is free of boom supports, elegant and simple battery tray system, optimized servo and rotor head geometry, and simple wiring for your electronic components.

The 5.8 Heritage delivers newly found features that are standard in the kits. A boost in aesthetics is delivered thanks to the additional Fusion design, that adds high visibility color matched stickers to the side frames, and tail fin. In addition to that, canopy installation and removal couldn't be any easier thanks to the supersonic rear style canopy mounts. In addition, two color styles are available - Orange/White/Black, and Grey/Yellow/Black. Pick your style above.

The 5.8 is purpose built to deliver incredible performance for pilots who are looking to equip the heli with either 580mm or 610mm main blades. All up weight of the model (airframe only) comes in around 1530 grams (~3.4lbs). Due to the lightweight design, and wide acceptance of 6s through 12s power systems, the performance and feel is up to your preference as a pilot and components that are installed.  Pair this with the ability to use either full size or mini size servos for the rotor head, you can further enhance the performance through the wide choice of components.

Features:

  • Optimized servo and rotorhead geometry
  • Accepts full size & mini size cyclic servos
  • Adjustable dampened gyro mounting tray
  • Bearing supported motor pinion system
  • Octo boom without boom supports
  • High visibility canopy & fusion style decals
  • Supersonic rear canopy mounts

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Tron 5.8 Heritage in particular but at least we know they do distribute TRON Helicopters.

Wingspan: 1250mm (49.2 in)
Length: 1250mm (49.2 in)

Weight: 1530 g (3.4 lbs)
  • Main Blade Length: 580-610mm
  • Tail Blade Length: 85-96mm
  • Motor Drive Gear: 16T
  • Main Drive Gear: 137T
  • Autorotation Tail Drive Gear: 80T
  • Tail Drive Gear: 19T
  • Drive Gear Ratio: 8.563:1:4.21
  • Weight (Airframe Only): 1530g
