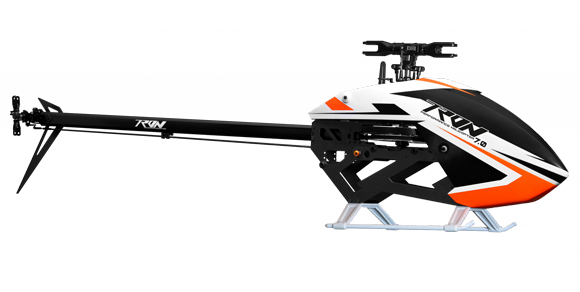

Tron 7.0 from TRON Helicopters

Details

Wide battery compartment with quick lock and release system. Light, yet very stiff and robust. Innovative FBL tray. ( adjustable dampening hardness) Dry weight= 2190 grams without blades and electronics. 12mm hollow main shaft. 10mm feathering shaft. Main gear =155 T mod. 1 / tail drive front pulley = 127 T and 27 T on tail assembly

  • Wide battery compartment with quick lock and release system.
  • Light, yet very stiff and robust.
  • Innovative FBL tray. ( adjustable dampening hardness)
  • Real full carbon mainframe.
  • Motor mounting features a bearing block supported pinion, reducing overall wear on the power system and drive train.
  • Compatible with  a wide range of motor sizes, 4030, 4035, 4525, 4530, 4535 (6mm shaft required min. lenght = 20mm) 520 - 560kv.
  • 16 T motor pinion included in kit. (6mm bore diameter)
  • Octa boom design with oval side shapes, no boom supports needed.
  • Capable to use a wide range of lipo batteries. 6S - 14S . (12S - 5000mAh to 5500mAh recommended).
  • Perfectly thought-out servo layout in conjunction with the FBL system and ESC.
  • Easy cable routing with various options to ensure a clean setup. Modern, sporty and functional design.
  • High visibility canopy for perfect orientation in flight.
  • Sustainably produced.

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Tron 7.0 in particular but at least we know they do distribute TRON Helicopters.

Where to buy


Wingspan: 1400mm (55.1 in)
Length: 1400mm (55.1 in)

Weight: unknown
  • Dry weight= 2190 grams without blades and electronics (without battery tray).
  • Recommended main blade size 685 - 720 mm. Tail blade size 95 - 115 mm.
  • 12mm hollow main shaft.
  • 10mm feathering shaft.
  • Main gear =155 T mod. 1 / tail drive front pulley = 127 T and 25 T on tail assembly.

Variants

TRON7
Tron 7.0 (White Black Orange)
