Avenger VTOL from Titan Dynamics

Details

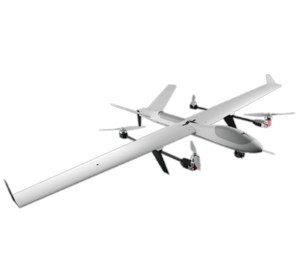

The Avenger is one of our most popular models. We are excited to officially release the VTOL kit which turns the Avenger into a 2+2 Tiltrotor VTOL. The front two motors can tilt while the rear are stationary. It also features many optional noses as well as landing legs if using an underslung gimbal or payload. The kit includes STLs for the new wings and all necessary mounting points for the VTOL booms and optional legs. As a bonus, we’ve also included a new wingtip which gives it an aggressive look. You’ll need to already have purchased an Avenger to use this add-on kit. Existing Avenger customers need only to reprint the wings in order to get full VTOL functionality.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Avenger VTOL in particular but at least we know they do distribute Titan Dynamics.

Where to buy


Wingspan: 2224mm (87.6 in)
Length: unknown

Weight: 4500 g (9.9 lbs)
  • Wingspan: 2224mm
  • Wing area: 3783cm2
  • Maximum take-off Weight: 4.5kg
  • Cruise speed: 40-55kph
  • Recommended prop diameter: 12-14 inches
  • Root airfoil: NACA 6414
  • Tip airfoil: NACA 2410
  • Root chord: 220mm
  • Tip chord: 124mm
  • Average Chord: 172mm
  • Root incidence: 2°
  • Tip incidence:
  • Aspect ratio: 12.8
  • Max L/D: 15
  • Dihedral: 0°
  • Sweep: 3°
