These files are large, so be patient during the download. Please read the readme.txt included in the ZIP
Features:
Receiver Option:
Package Included:
FrSky X20
FrSky XE
PNG (300x280)
BMP Recommended (300x280)
FrSky X18
FrSky Twin
PNG (180x166)
BMP Recommended (180x166)
FrSky X10
FrSky X12s
PNG (180x160)
BMP Recommended (180x160)
PNG (192x114)
FrSky X9D
FrSky X9E
BMP (64x32)
JPG (155x100)
Some content in menu 2.

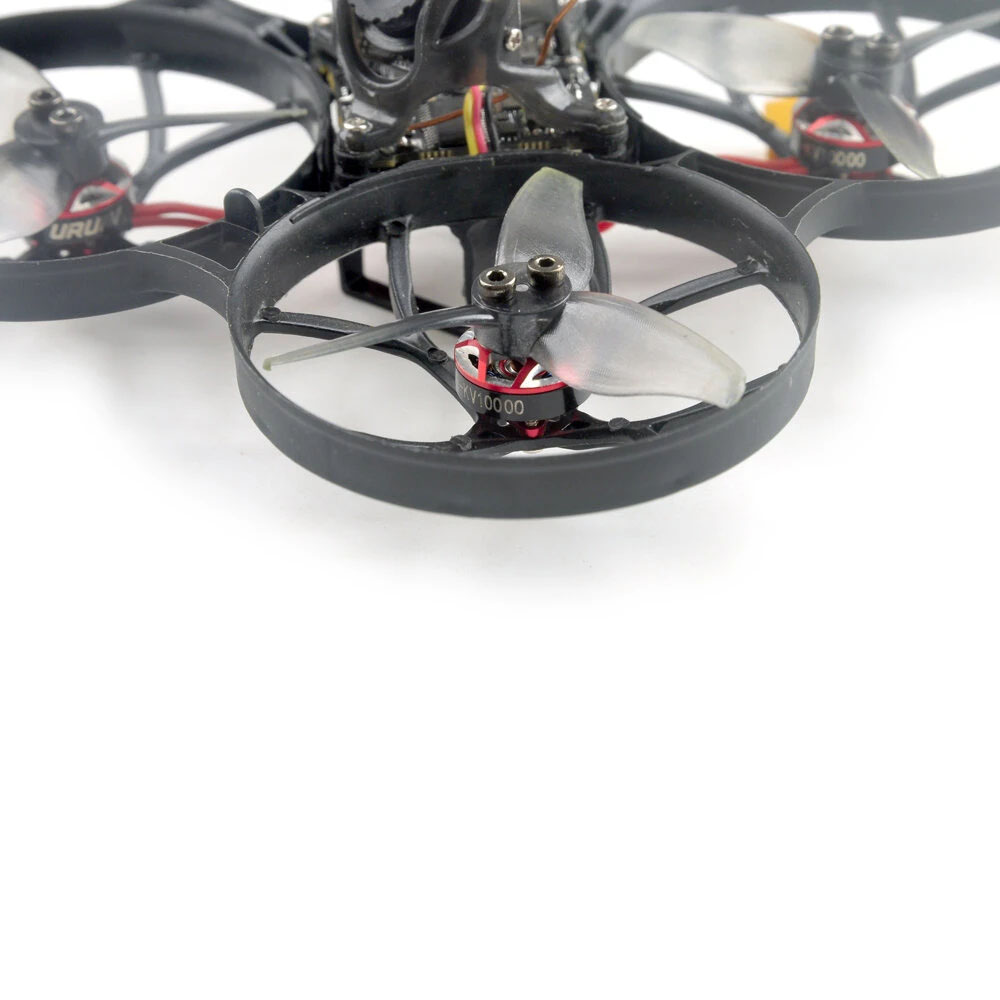

Motor
Mode: 1102 10000KV Configu-ration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1.5mm Dimension(Dia.*Len):Φ13.5mm*16mm Weight(g):2.8g No.of Cells(Lipo):1-2S
Propellers
Blades:3 Material:PC Pitch:2.3Inch Prop Disk Diameter:52.17mm Center Thickness:5mm Center Hole Inner diameter:1/1.5mm 3 Holes Max Prop Width:8.94mm Weight:0.88g
Flight controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board Size: 28.5 * 28.5MM Power Supply: 1-2S Battery Input (DC 2.9V-8.7V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 Ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky Receiver or No Receiver Built-in 5V 1A BEC Built-in Voltage Detection
Onboard 4in1 ESC
MCU upgraded to EFM8BB21 Power Supply: 1S LiPo/LiPo HV Current: 5A Continuous, Peak 6A (3 seconds) Support BLHeliSuite Programmable Factory Firmware: S_H_50_REV16_7.HEX Default Protocol: DSHOT600
Onboard Frsky SPI D8 receiver Version
Compatible SPI BUS Receiver Frsky D8 Compatible Non EU transmitter D8 model Channels: 8CH Failsafe Support No Ground Interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Onboard Flysky SPI receiver Version
Compatible SPI BUS Receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8CH(AFHDS) or 14CH(AFHDS-2A) Failsafe Support No Gound Interference ( Transmitter and receiver 1 m from the ground): 100~200m
No receiver version
Support sbus/ibus/spectrum/tbs crsf receiver
Onboard 5.8g VTX
Output Power: 25mw Frequency: 40CH Input Voltage: 3.3V 5.5V Current Consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race Band
Smartaudio Ready

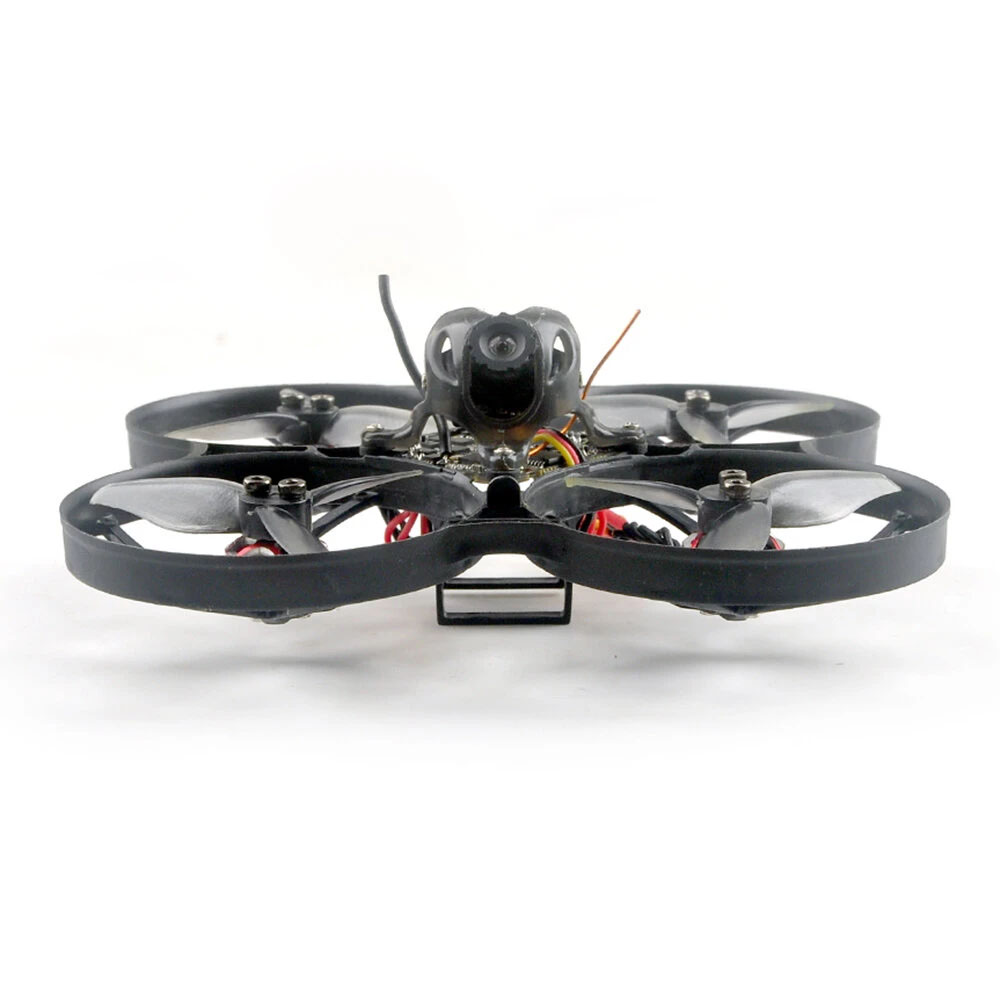

Caddx ANT lite 1200tvl Camera
Image Sensor: 1/3" CMOS Sensor Horizontal Resolution 1200 TVL TV System NTSC/PAL switchable MENU SUPPORT IMAGE: 16:9 Synchronization Internal Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio >52dB (AGC OFF) Video Output: CVBS Lens: 2.1mm Min. Illumination [email protected] Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 2 DNR Dimensions 14mm*14mm Wide Power Input: DC 3.7-18V Work Temperature: -20℃~+60℃ Work Humidity: 20%~80% Weight: 1.5g (N.W.)
