Ray X from Valenta model

Details

The Ray X is produced in several material versions. It is produced mainly for the F5J and F3J category. In 2013 Mr. Vojtech Valenta senior won first place in the International F5J competition in England with Carbon Spread tow 3.8m version.

As a sport or competition model it has great flight characteristics, especially in flat field thermal conditions, but also preforms very well as a slope glider. The Ray X has a slim fuselage, with a 30mm spinner size for electric motors. The model is made with a wingspan of 3820mm and 4000mm and with X tail full floating elevator.

Material versions: Special very light carbon spread tow version – model is good for F5J competition flying. Producing models between 1300 to 1650 Grams all up flying weight

Standard glass (GFK) version – model is for sport and thermic flying, NOT for competition flying F5J.

D-box version (the wing is strengthened by carbon D-box/70gr) – is good for slope flying or flat field aerobatics with electric motor.

Full carbon version (the wing is all strengthened by carbon/70gr) – the model is good for aggressive slope flying with powerful electric motor.

The model has three-piece wing, so for transport it can be packed in a box 180x10x40 cm. For this model you can buy a wing and tail protection bags made from lined silver foil, as well as for transport these can help protect your wings and elevator against the heat produced by the sun.

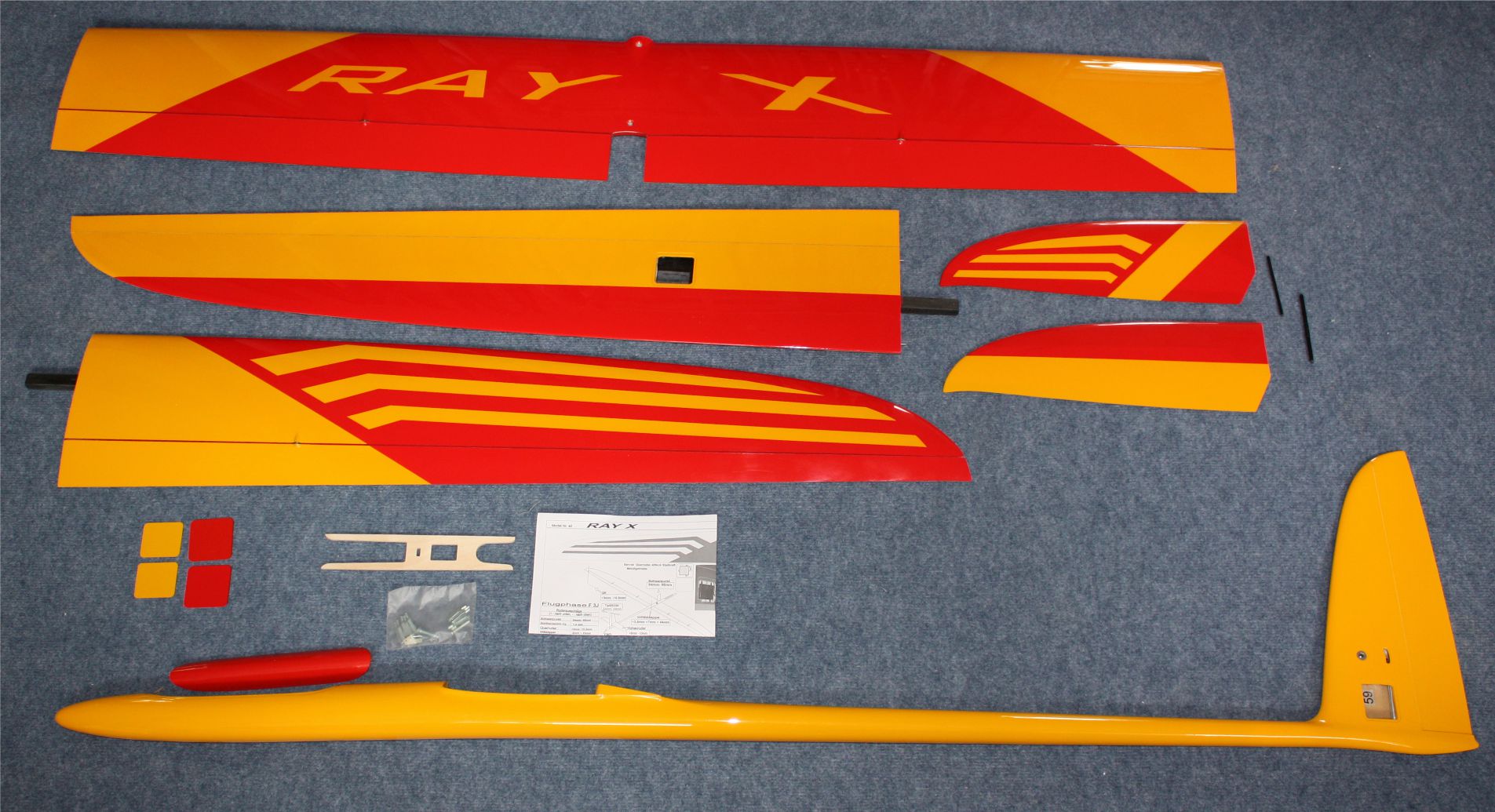

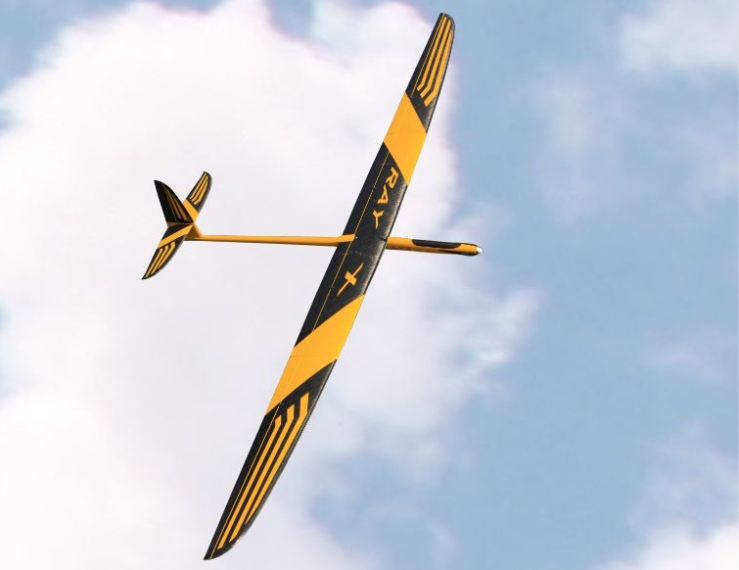

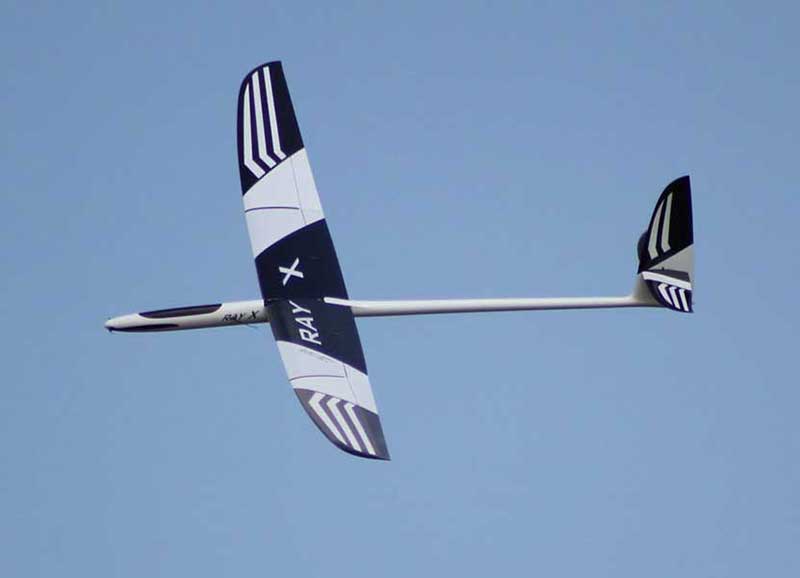

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 4000mm (157.5 in)
Length: 1575mm (62 in)

Weight: 1500 g (3.3 lbs)

Wing Span: 3820-4000
Aerofoil: HQ 2.4/8
Wing Area: 79.9 dm2
Flying Weight: from 1500 to 2700g
Center of Gravity: 92/96mm
