Lilienthal 40 RC from aero-naut

Details

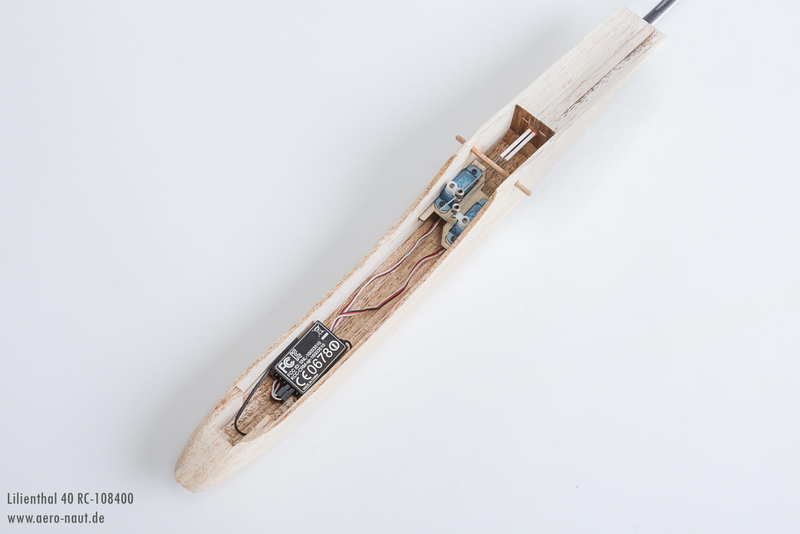

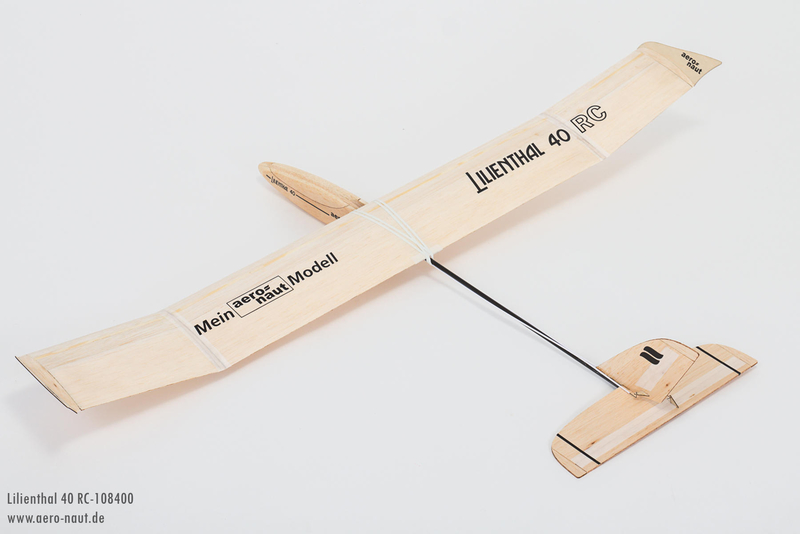

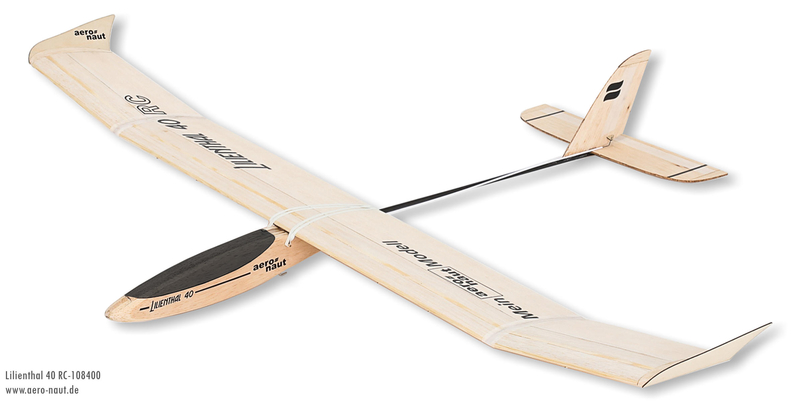

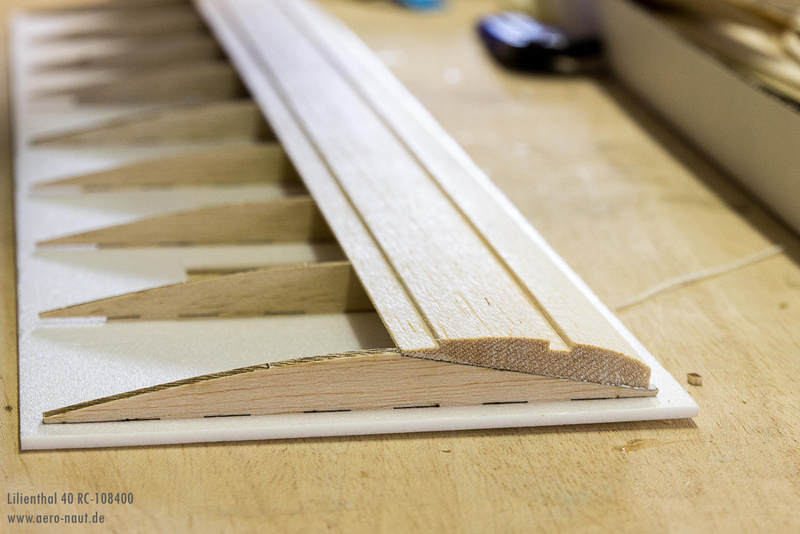

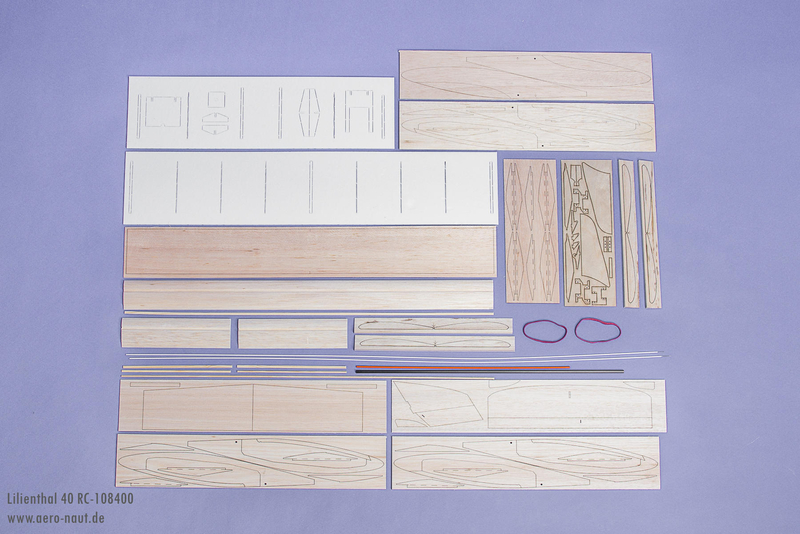

The model is a further development of the popular free-flight model Lilienthal 32, which has always achieved very good placements in the youth competitions. With the Lilienthal 40 RC, expansion with remote control is no longer a problem. The fuselage offers enough space for 2 micro servos, receiver and battery. A suitable servo board, linkages and Bowden cables are already included in the kit. The model can also be built as a pure free-flight model and the RC components can be retrofitted at a later date. A high start hook is also included in the kit. As usual from aero-naut, all parts are precisely laser-cut. The leading edge of the model is already milled into shape - no grinding work is necessary here. The wing is glued together with pre-formed balsa pieces with the help of support ribs. The ears of the surfaces are already made with the appropriate V-shape, which then no longer has to be sanded to size. With a wingspan of 1,190mm, a take-off weight of 190-220g is achieved, with or without RC components, depending on the configuration. The construction of the model is accompanied by the unique and youth-friendly construction instructions in 3D style, known from aero-naut models, which ensure quick construction success. The model is approved and ideally suited for the youth competitions in the model flying associations.

A suitable motor attachment with order no. 7126/01 available.

Pictures

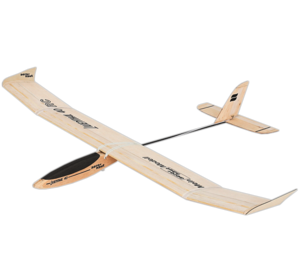

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1190mm (46.9 in)
Length: 830mm (32.7 in)

Weight: 220 g (7.8 oz)
Span 1190 mm
Length 830 mm
Weight 190-220 g
Wing area 19.6 dm²
Wing loading 9.7 g/dm²
