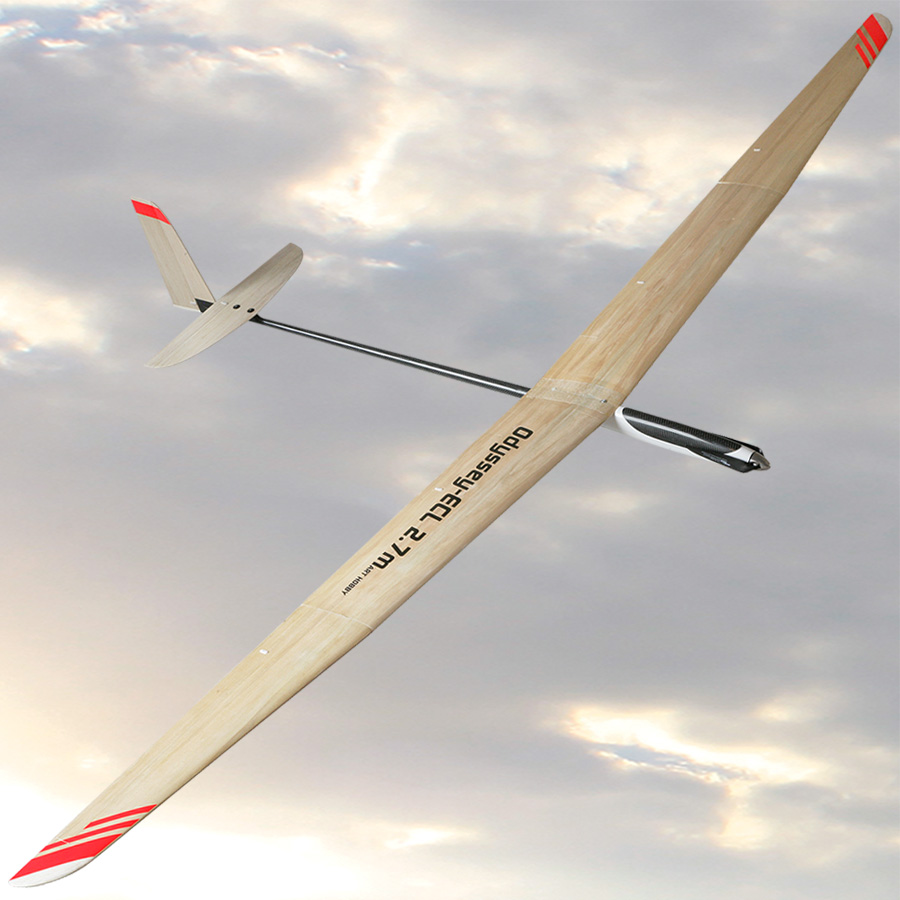

Odyssey-ECL from art Hobby

Details

New Light weight version The Odyssey-EC flying weight is approx. 900 grams (31 oz.). It features SD7080 airfoil that was specially modified for this sailplane, the benefits of that are extended thermal duration time in very low lift conditions and wide range of speed. Odyssey wing could be built flat-with center dihedral or with polyhedral bends if desired by the builder.

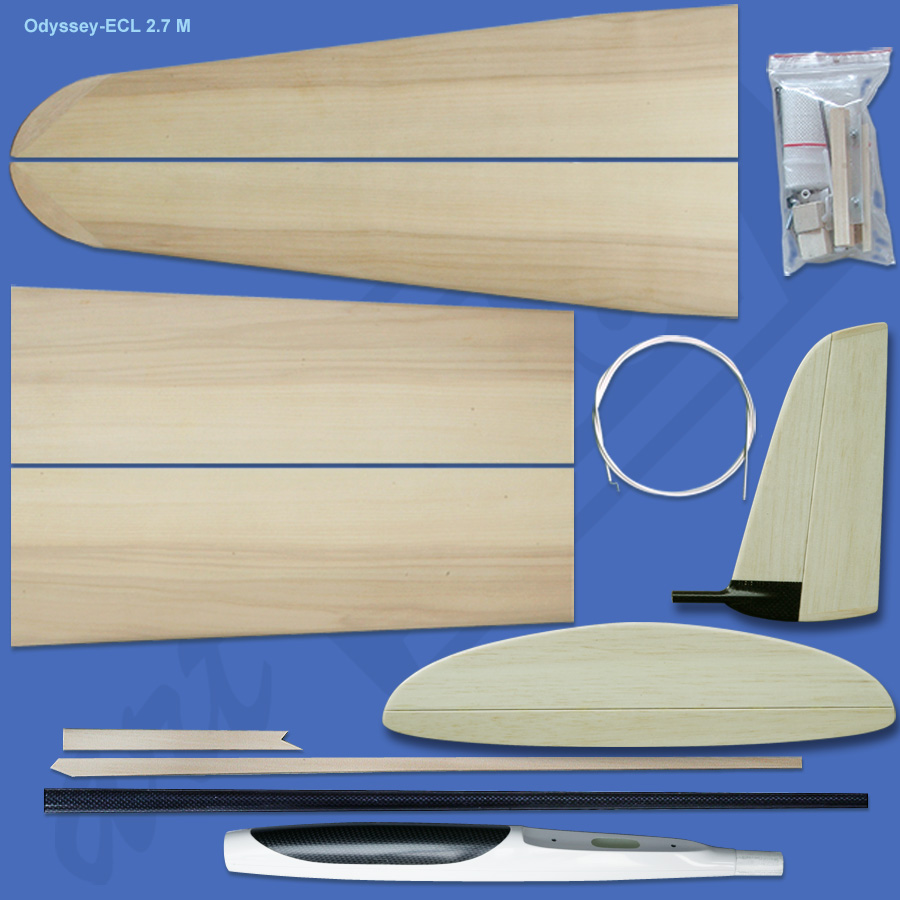

Features:

  • 2.4GHz friendly composite fuselage pod made of few layers of fiber glass with glass roving and carbon fiber reinforcements for extra strength.
  • Removable canopy for rapid access to the radio and drive components.
  • V-shaped wing saddle with molded in nuts for the wing mounting screws.
  • Tapered tail boom made of carbon fiber/glass composite.
  • 3-segments wing with removable wing tips for easy storage and transportation.
  • Wing cores precision cut from white polystyrene foam, and the black poplar veneer bonded to the foam with aircraft industry grade epoxy in high pressure molds for perfect airfoil fidelity and a warp-free wing.
  • internally hinged ailerons and flaps- vertical stabilizer is made of glass/carbon composite
  • horizontal stabilizer with pre-hinged elevator and rudder made from balsa and fully laminated with light weight fiber glass cloth for durability and stiffness.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 2700mm (106.3 in)
Length: 1325mm (52.2 in)

Weight: 900 g (2 lbs)
  • Wingspan: 2700 mm / 106.3 in.
  • Length: ~1325 mm / 52.16 in.
  • Wing area: 39.2 dm² / 607.6 sq.in
  • Wing airfoil: SD7080-modified
  • Glider weight: ~590 g / 20.7 oz.
  • Weight in flight: ~900 g / 31 oz.
