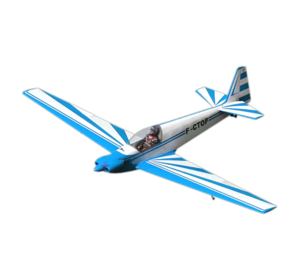

Fournier RF-4 from ECOTOP

Details

TOPMODEL faithfully reproduced René Fournier's mythical "Avion-Planeur" on a 50% scale for a unique flight experience!

Indeed, this RF-4 is not only scale in shapes but its pilotage is extremely close to that of the full size, soft, sweet. This is poetry!

We feel that scale down models are always flying too fast compared to the real ones, which is quite normal. But this Fournier flies at a really realistic speed, reinforced in this by the superb sound of the SAITO flat-twin four-stroke.

Very quickly, one transposes in the cockpit and launches "ears" and other lazy eights that wind up with lubricity. In the dives that last for a long time, you have fun piloting the glide in search of energy to link, in finesse, like the Skyhawks, to a loop or to a barrel roll.

Pictures

Manual

Fournier RF-4


Fournier RF-4

The Fournier RF-4 is a single-seater motor glider designed by René Fournier in 1966. It is an aerobatic version of the Fournier RF-3.



This article is an extract from the Wikipedia article "Fournier RF-4", which is released under the Creative Commons Attribution-Share-Alike License 3.0

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos
(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Fournier RF-4 in particular but at least we know they do distribute ECOTOP.

Where to buy

France
Flash RC
check web site
Ship to: Europe
France
Topmodel FR
check web site
Ship to: France
Canada
Icare RC
check web site
Ship to: Canada

Wingspan: 5630mm (221.7 in)
Length: 3030mm (119.3 in)

Weight: 24500 g (54 lbs)

Scale: 1:2
Wing area: 280dm2
Wing airfoil: NACA 2315-2313
CG location: 230 mm from the leading edge to wing center.

Set Content:

  • All built-up balsa and plywood fuselage, covered with Oracover®, art color scheme completed.
  • 2-part engine cowl molded in fiberglass and painted.
  • Dummy scale engine exhausts.
  • Wing filets molded in fiberglass and painted.
  • Upper stab cover molded in fiberglass and painted.
  • Transparent PVC canopy with side opening vent window, screwed on its metallic tubes framing. Scale side opening and lock mecanism ready.
  • All built-up balsa and plywood wings, covered with Oracover®, art color scheme completed. Extrados scale mechanical airbrakes and ailerons articulated.
  • OD38x1600mm carbon tube wing joiner.
  • Wing-mounted outrigger wheels ready.
  • All built-up balsa and plywood horizontal tail, covered with Oracover®, art color scheme completed. Elevators articulated.
  • All built-up balsa and plywood rudder, covered with Oracover®, art color scheme completed.
  • Carbon mechanically actuated and dampened (2 dampers) main retract gear with OD178mm wheel.
  • Carbon tailwheel assembly with OD55mm wheel delivered complete with steering system.
  • Accessories: ball clevises, steel linkages, double fiberglass control horns, pull-pull rudder cables, 800cc tank, screws, etc.

Variants

066GRF450PM-Red
Fournier RF-4 (White-red)
066GRF450PM-Blue
Fournier RF-4 (White-blue)
