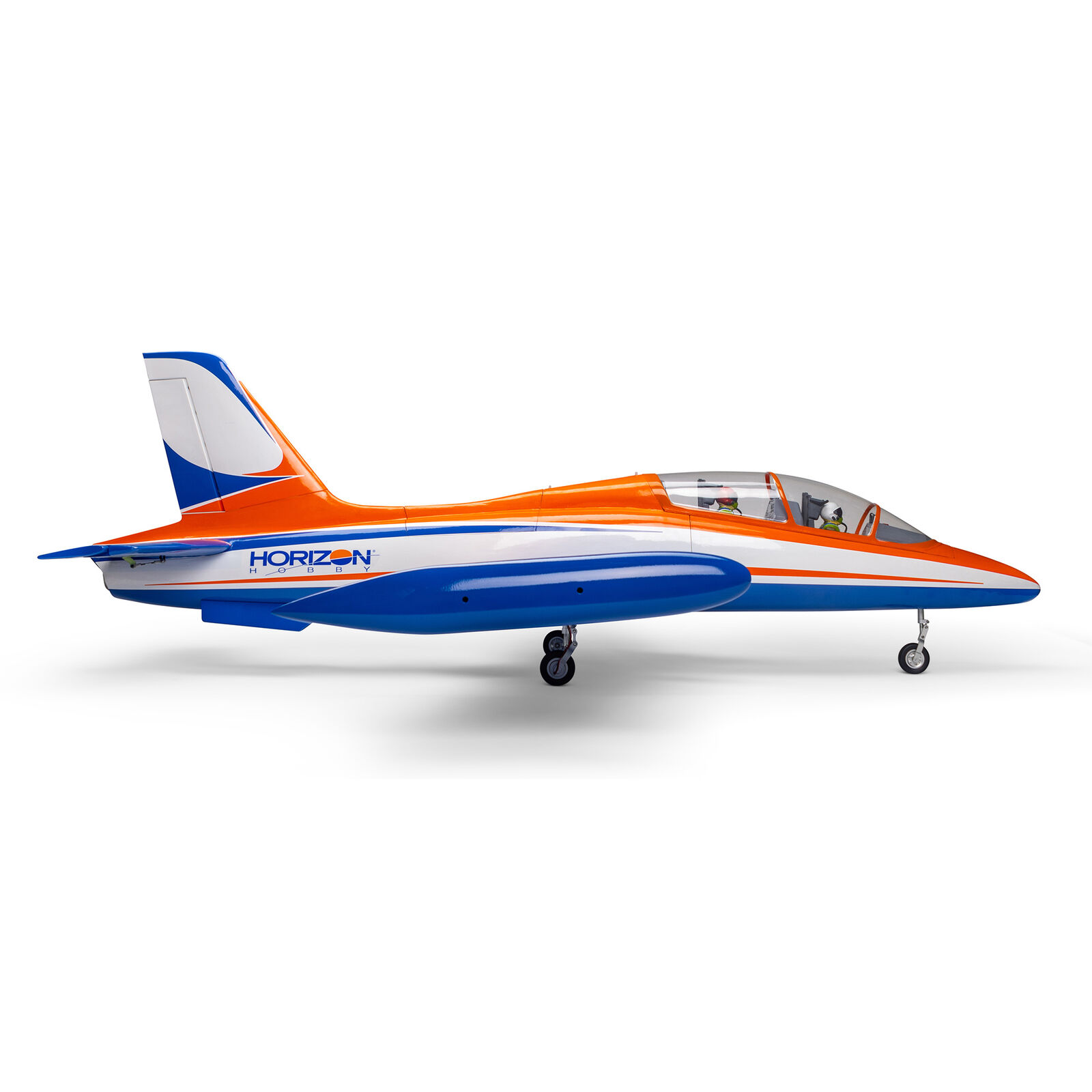

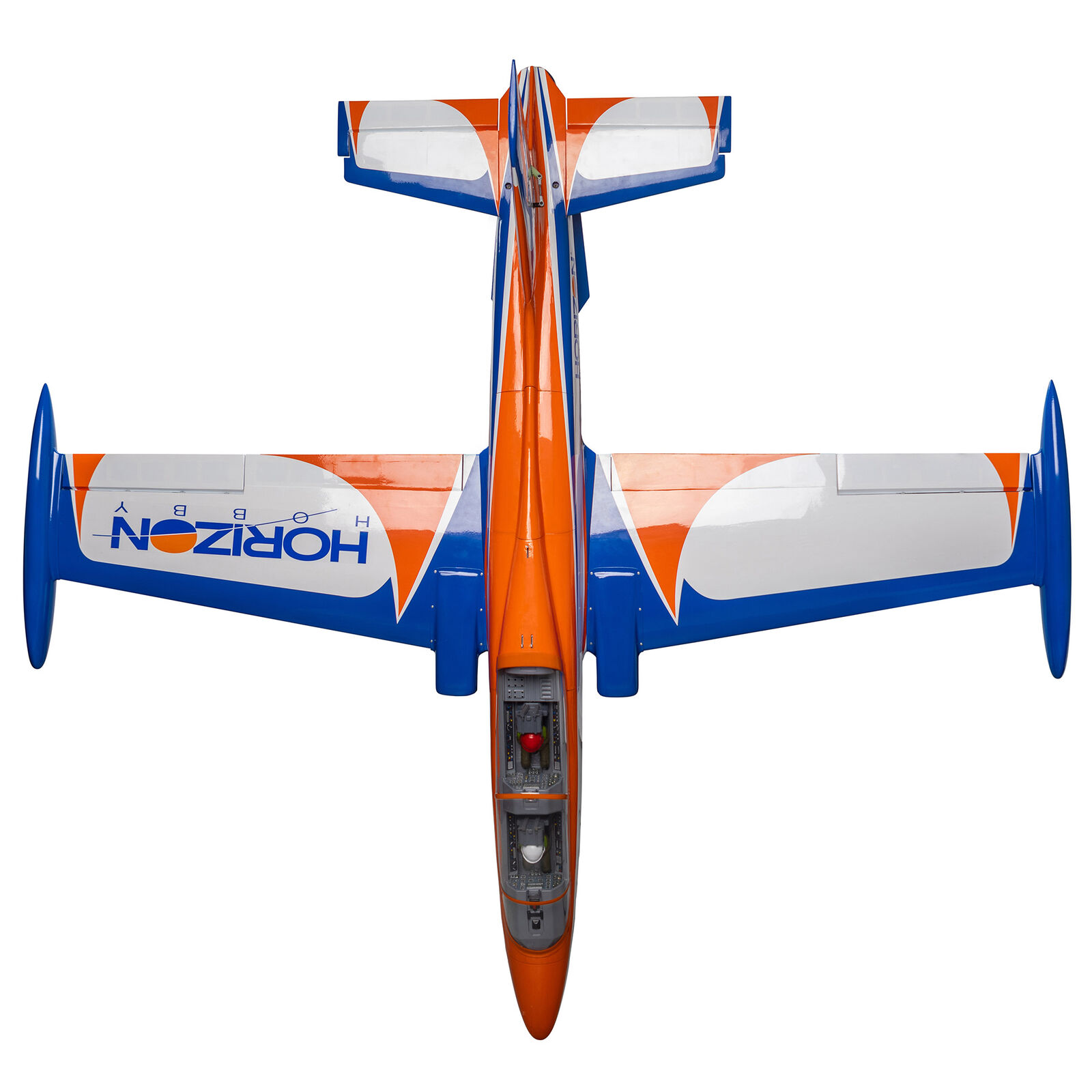

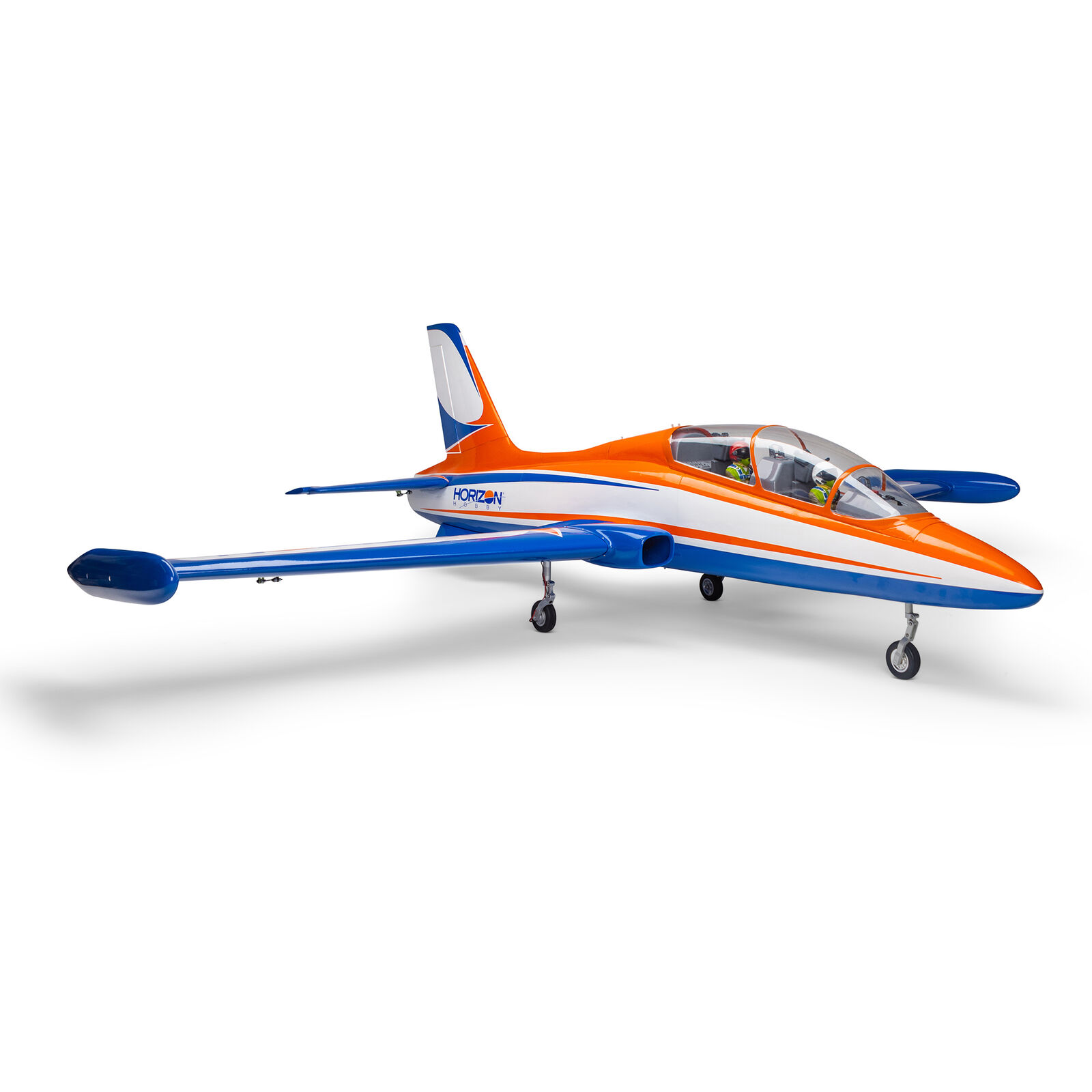

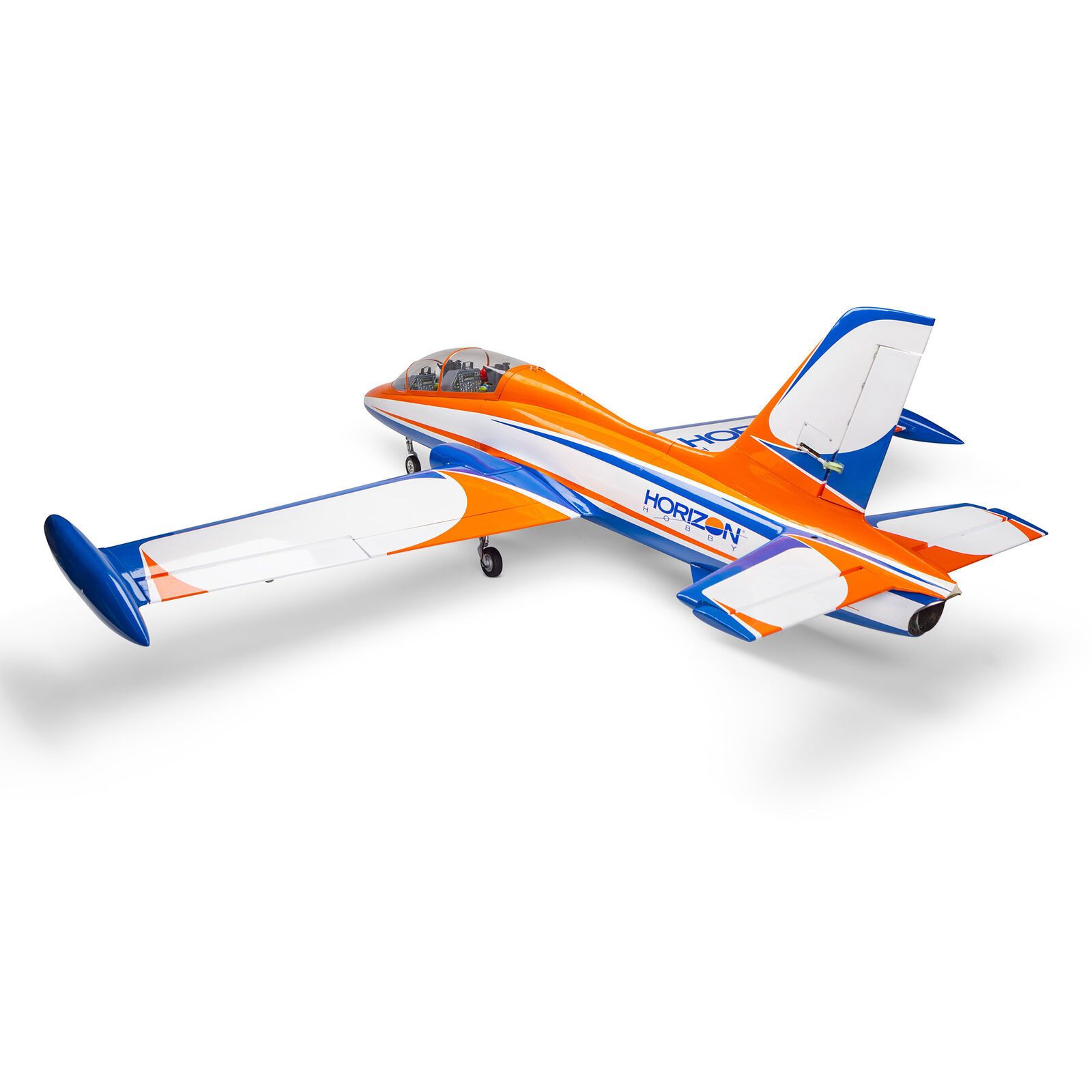

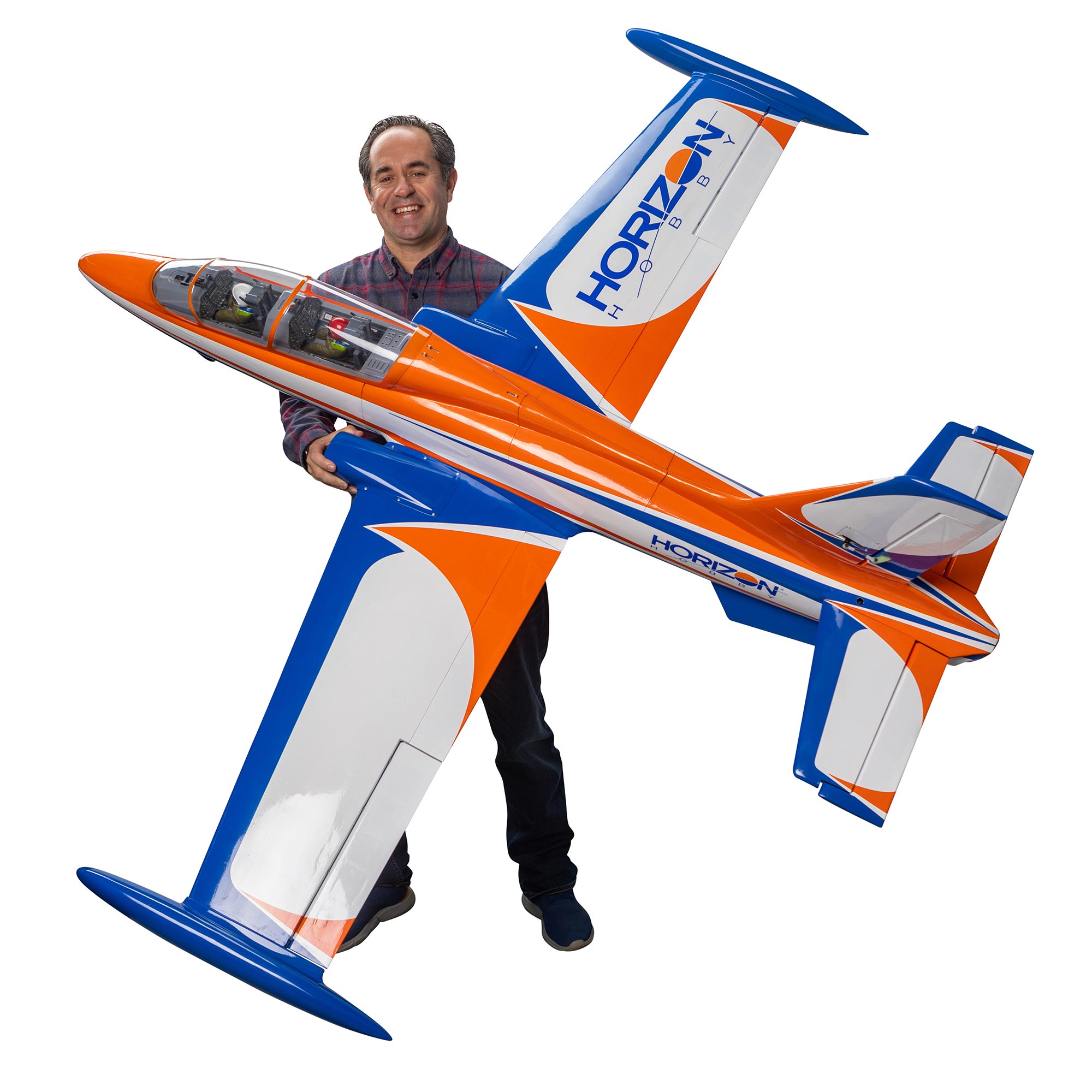

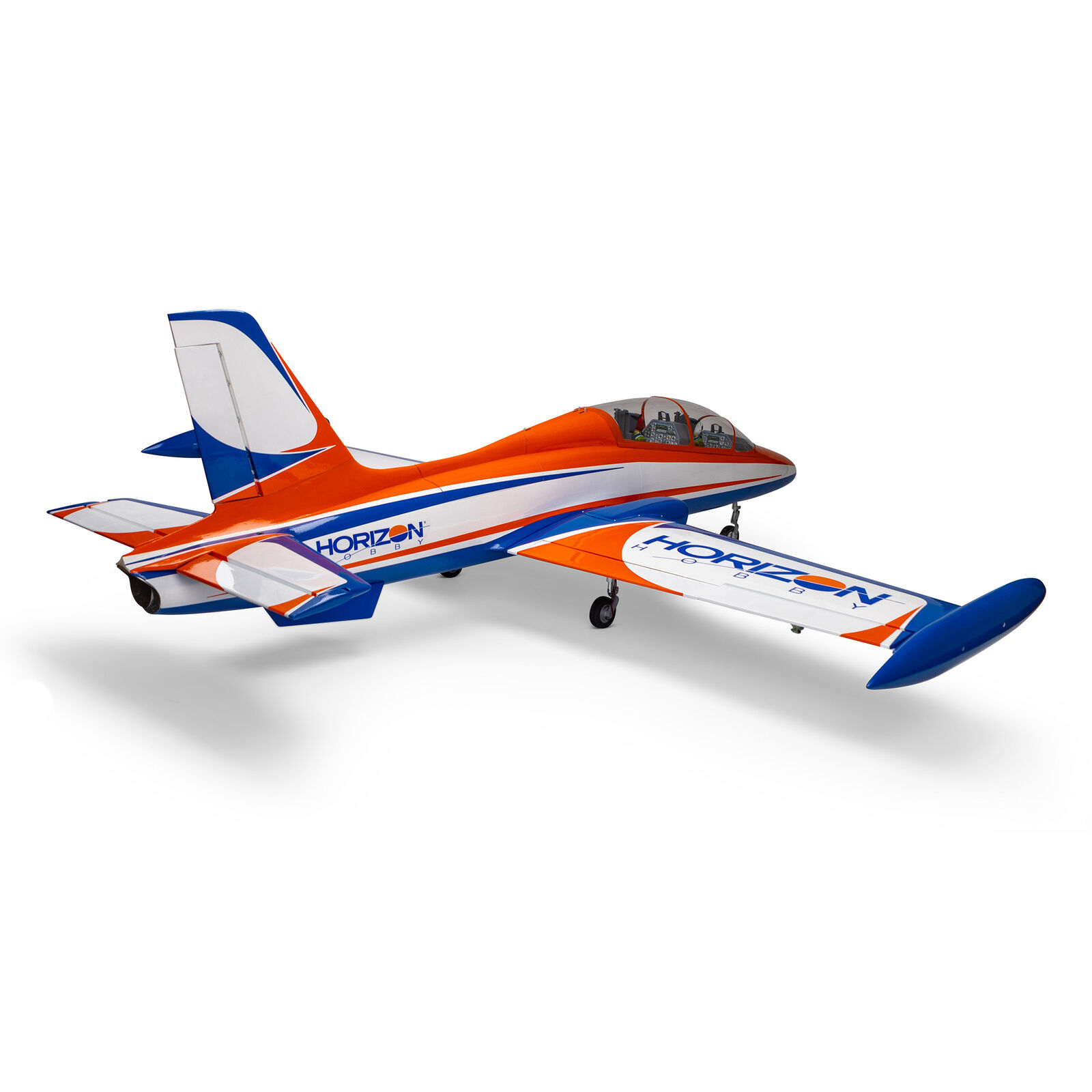

Aermacchi MB-339 60-85N from hangar 9

Details

The first Hangar 9 turbine jet is a perfect way for experienced pilots to move into turbine-powered models. It's also ideal for seasoned jet pilots looking for great value in a well-behaved platform with excellent performance and handling. The full-scale Aermacchi MB-339 was designed and manufactured in the 1970's by Alenia Aermacchi SpA as a military jet trainer and light attack aircraft. This ARF version has been developed to meet the need for an attractive, easy to fly yet fully aerobatic jet model suitable for 60-85N size turbines. With this first-of-its-kind turbine powered jet model completion level, first time jet pilots get performance and flight versatility with low assembly time. Designed to be an attractive, easy to fly yet fully aerobatic jet, it features lightweight, balsa and plywood construction with carbon fiber reinforcements and is finished in genuine UltraCote® film that's long lasting and easy to maintain. Designer and world-class pilot Ali Machinchy created the MB-339 with the right combination of attention to details and flight characteristics that Hangar 9 pilots expect. The Hangar 9 Aermacchi MB-339 60-85N Turbine 84" ARF model delivers an incredible in-flight experience with amazing durability.

Features:

  • Carbon fiber reinforced wood construction provides a light and strong airframe.
  • Original trim scheme provides high-contrast and great visibility.
  • Two-piece, bolt-on fuselage features removable nose section.

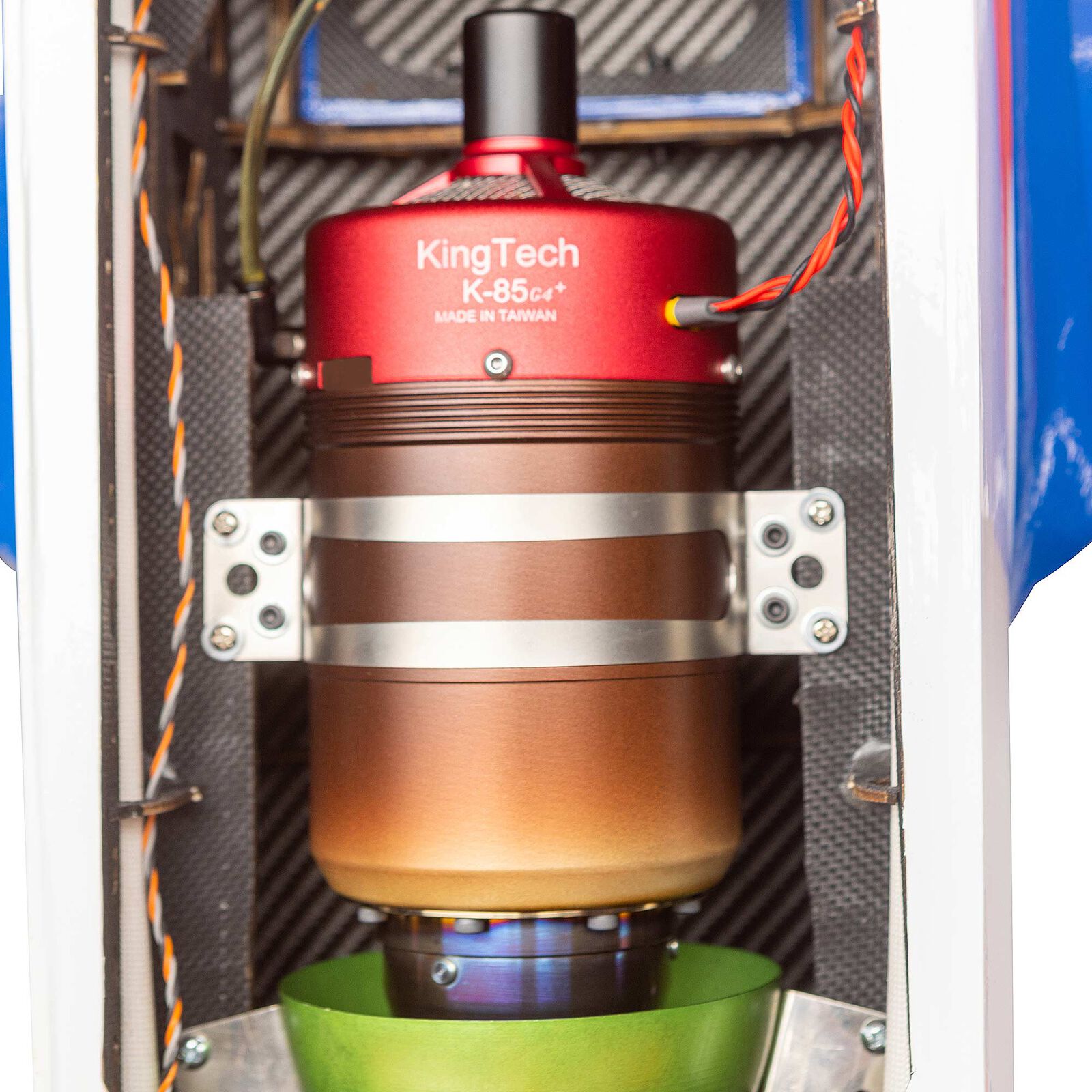

  • Multiple hatches allow easy access to turbine, wing and components
  • Large top-hatch with two sprung latch system offer access to electronics and fuel system

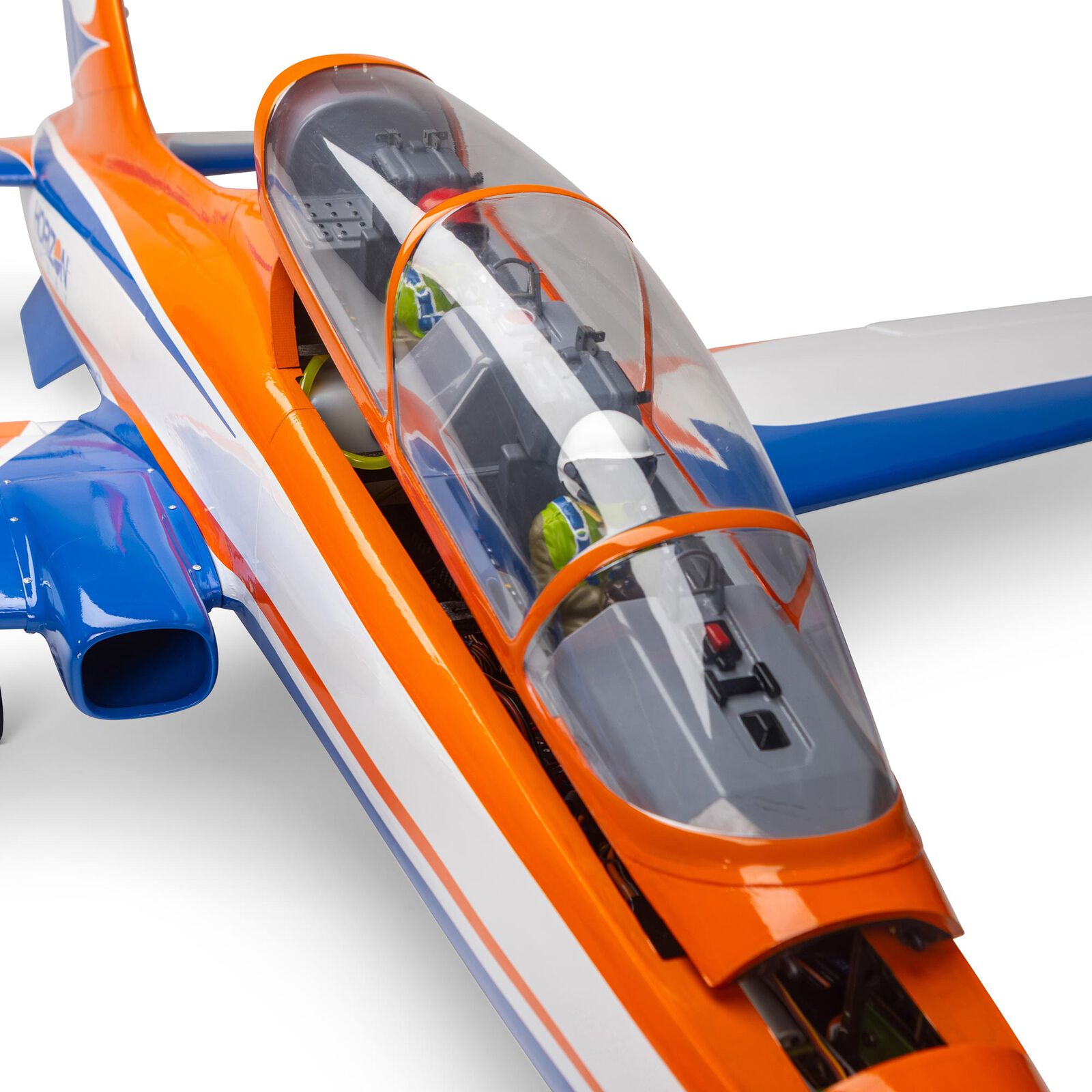

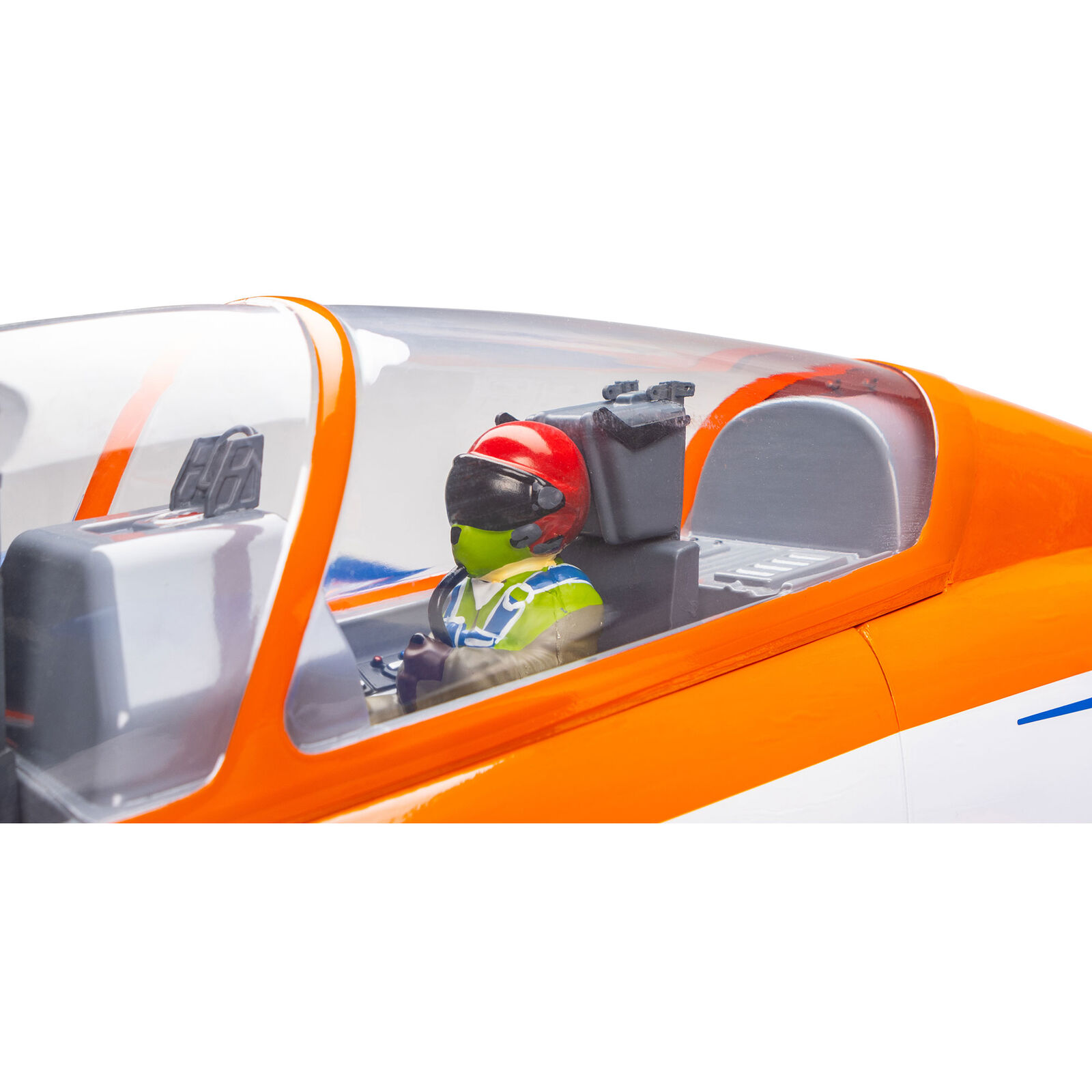

  • Detailed cockpit includes two painted pilot busts, 3d instrument panel and clear canopy

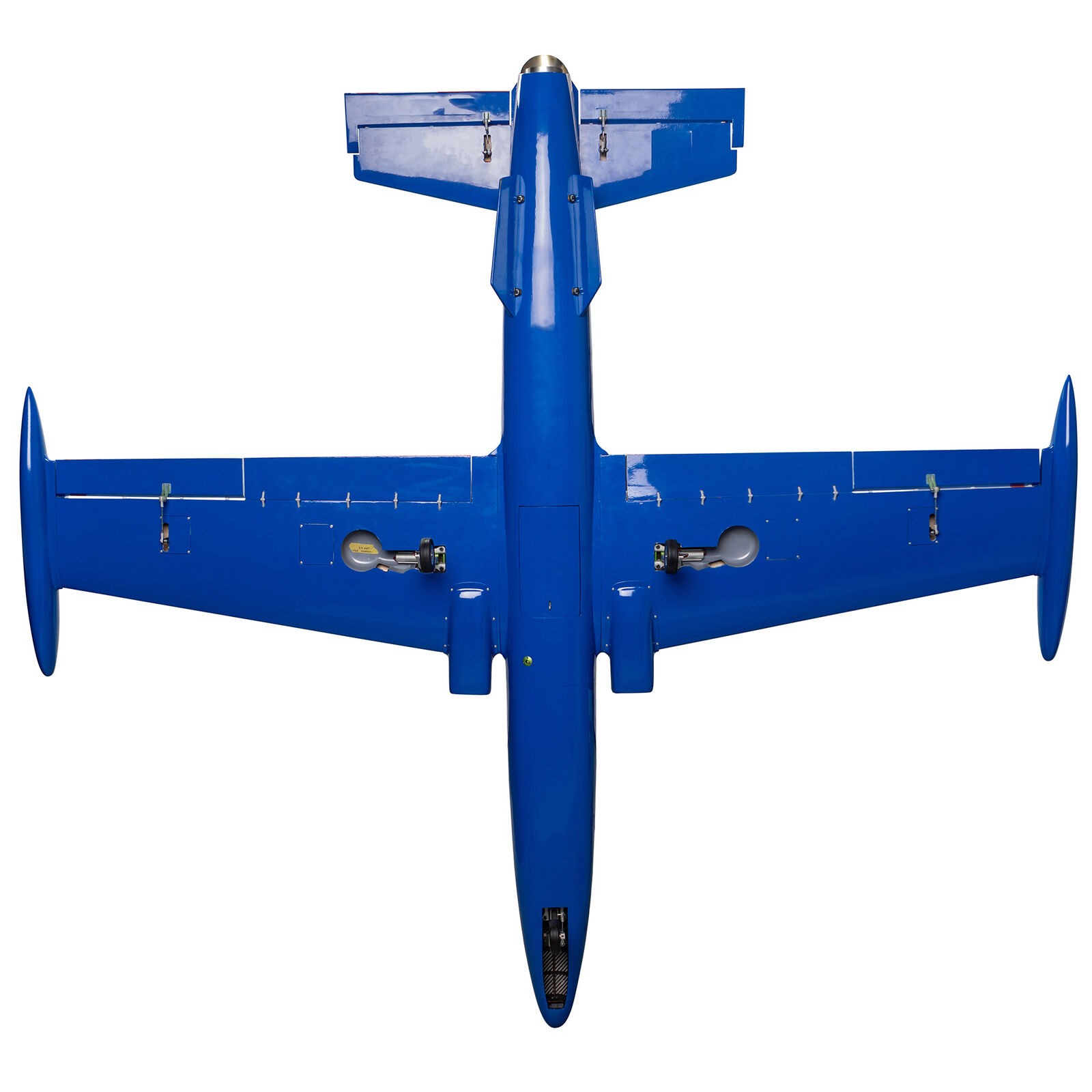

  • Includes electric retract set with trailing link struts, wheels, and electric brakes
  • Two-piece, plug-in wing with carbon tube for easy field assembly, transportation, and storage
  • Dual-wall stainless steel tail pipe included
  • Complete hardware kit includes fuel tank
  • Removable stabilizer for even easier storage and transportation

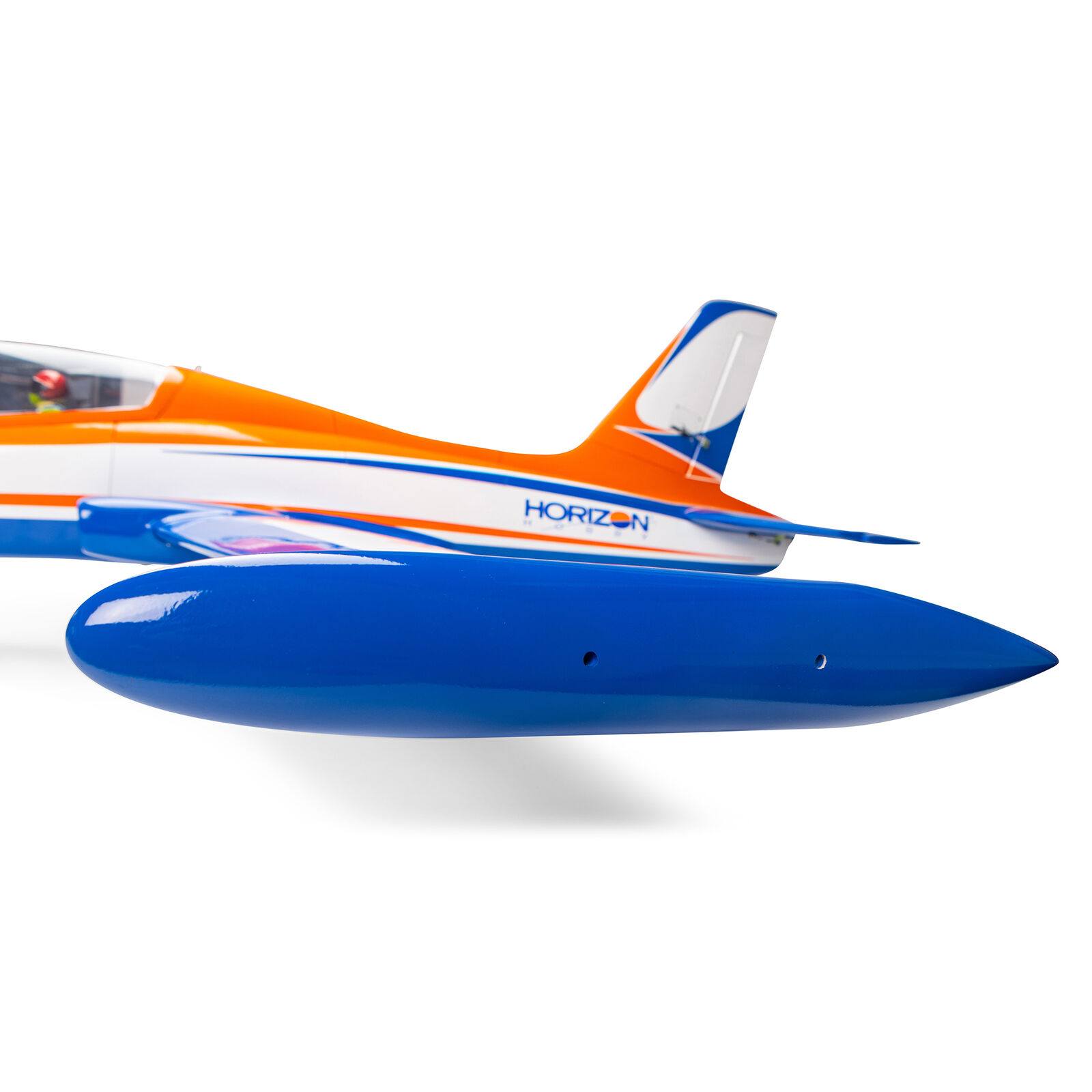

  • Includes optional-use and easy to install/remove tip tanks
  • Genuine UltraCote film covering provides a long-lasting finish

Pictures

Manual

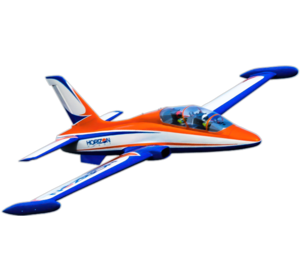

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 2134mm (84 in)
Length: 2007mm (79 in)

Weight: 10430 g (23 lbs)
Wing Area 73.2 dm² (1135 sq in)
Product Weight 10.43 kg (23Lb)
Wing Loading 130 g/dm² (42.63 oz/sq ft)
Minimum Required Radio 8+ Channel
Material Wood
Power Type Turbine
Wingspan 2134 mm (84")
Product Length 2007 mm (79")
