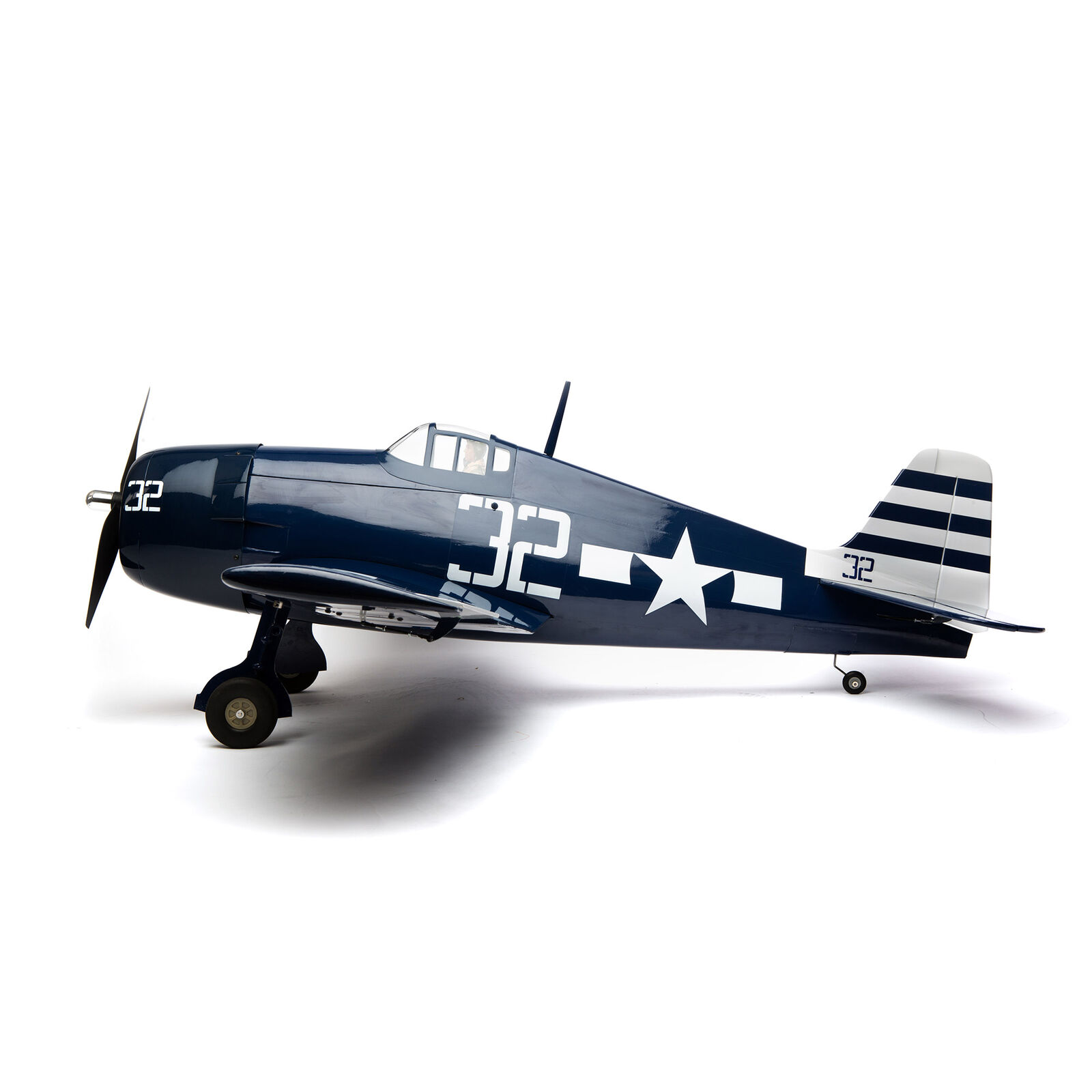

F6F Hellcat from hangar 9

Details

At a dire moment of WWII the U.S. Navy was desperate for a fighter capable of returning the wallop enemy aircraft were serving. Grumman Aircraft answered the call with not just a capable aircraft, but a match that could be produced quickly and in massive numbers. Pilots of the new F6F Hellcat returned fire and then some by downing more foes over the Pacific than any other aircraft. Today, the roar of a Hellcat is an air show treat that embodies the rewards freedom and hard work has to offer.

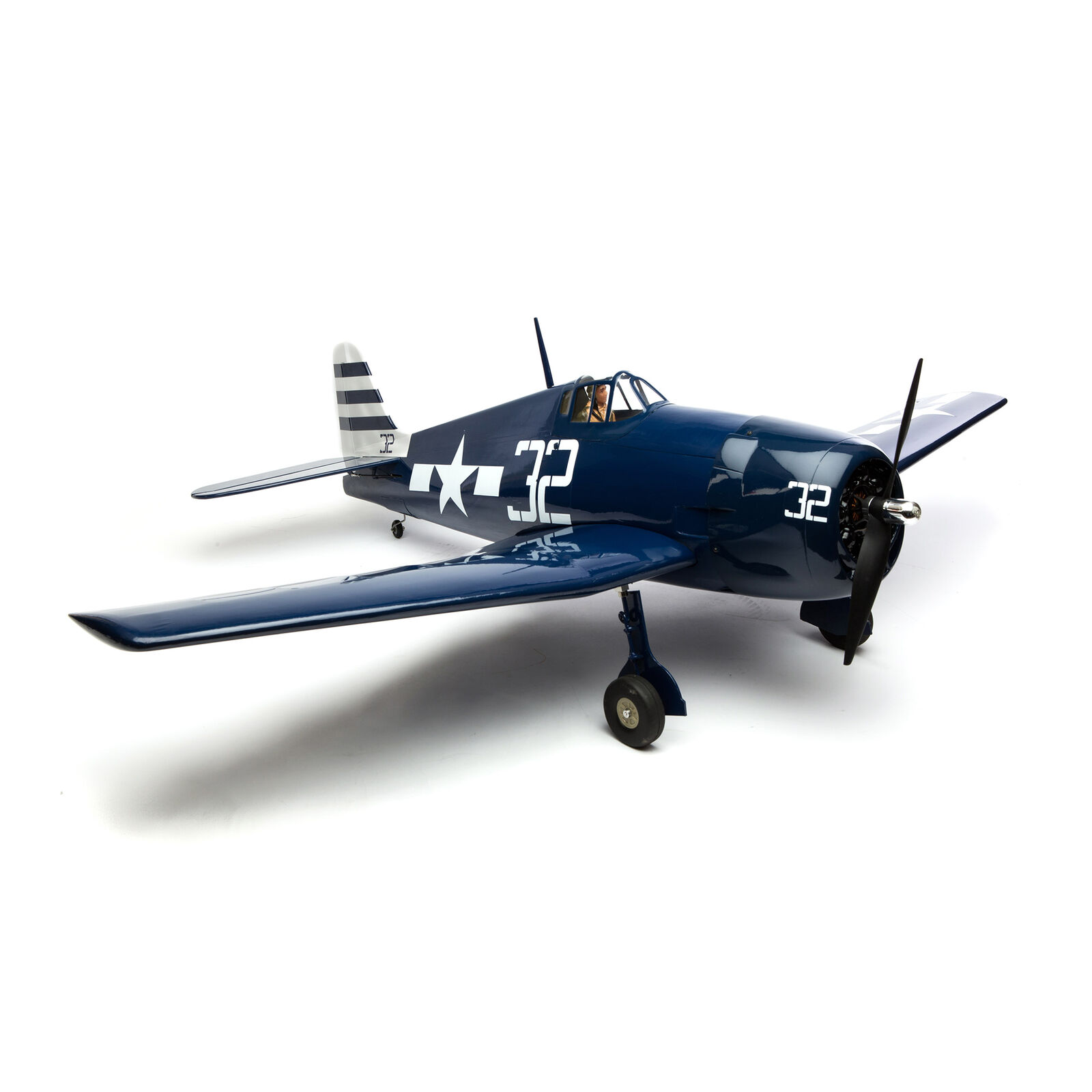

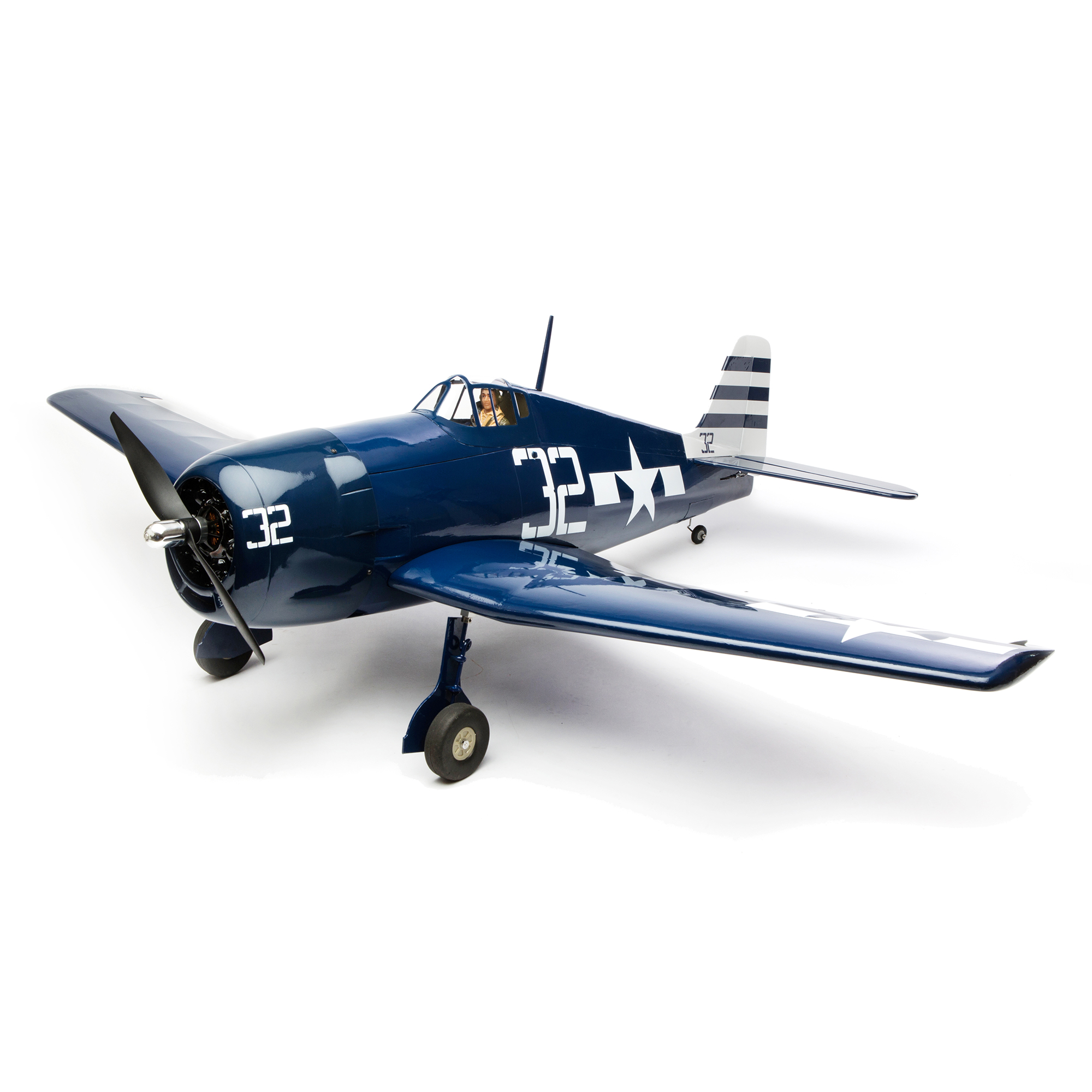

The Hangar 9® F6F Hellcat 15cc Sport Scale ARF is a warbird model designed for legendary fun. Lightweight laser-cut construction combines with quality craftsmanship to deliver a durable, all-wood airframe. The result is an outstanding appearance with great performance and friendly flying manners. Its genuine UltraCote® film covering is professionally finished with a look that’s classic. Standard fixed landing gear feature stability and ruggedness for grass field operation. Plus, functional electric retracts are a drop-in option.

The basic build is simple so that your time at the bench can be brief and enjoyable as possible. The hardware package is complete with everything needed for an internal-combustion or electric power installation. Choose a 15cc gas engine such as the easy-to-use Evolution® 15GX, and get long flights that cost only pennies per flight. Engineered into the fuselage is a large top-hatch that allows convenient access and quick electric flight battery changes. The fiberglass cowling provides enough space to conceal any of the recommended engine or motor recommendations. The two-piece, plug-in wing design includes tool-free assembly in addition to ease of transport and storage.

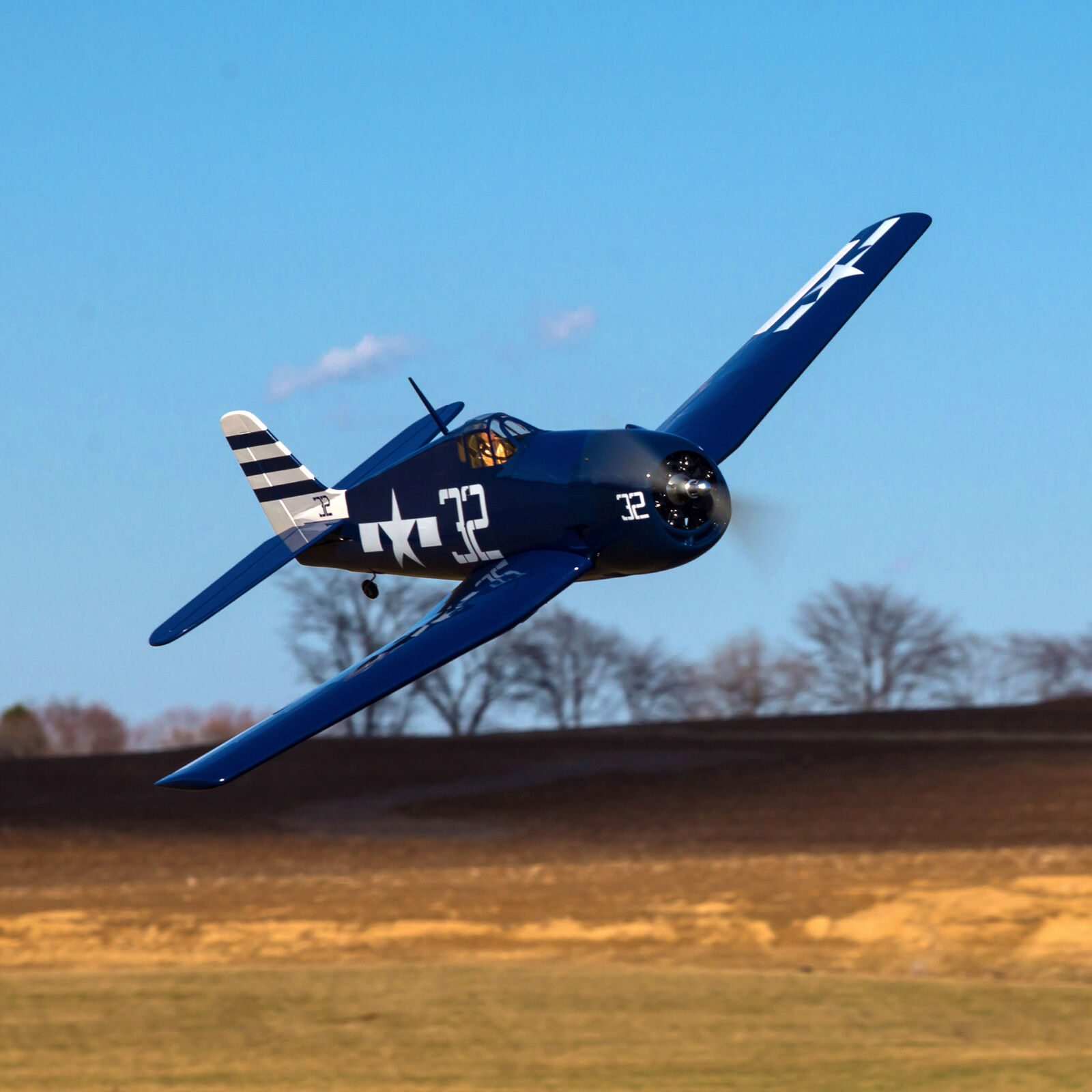

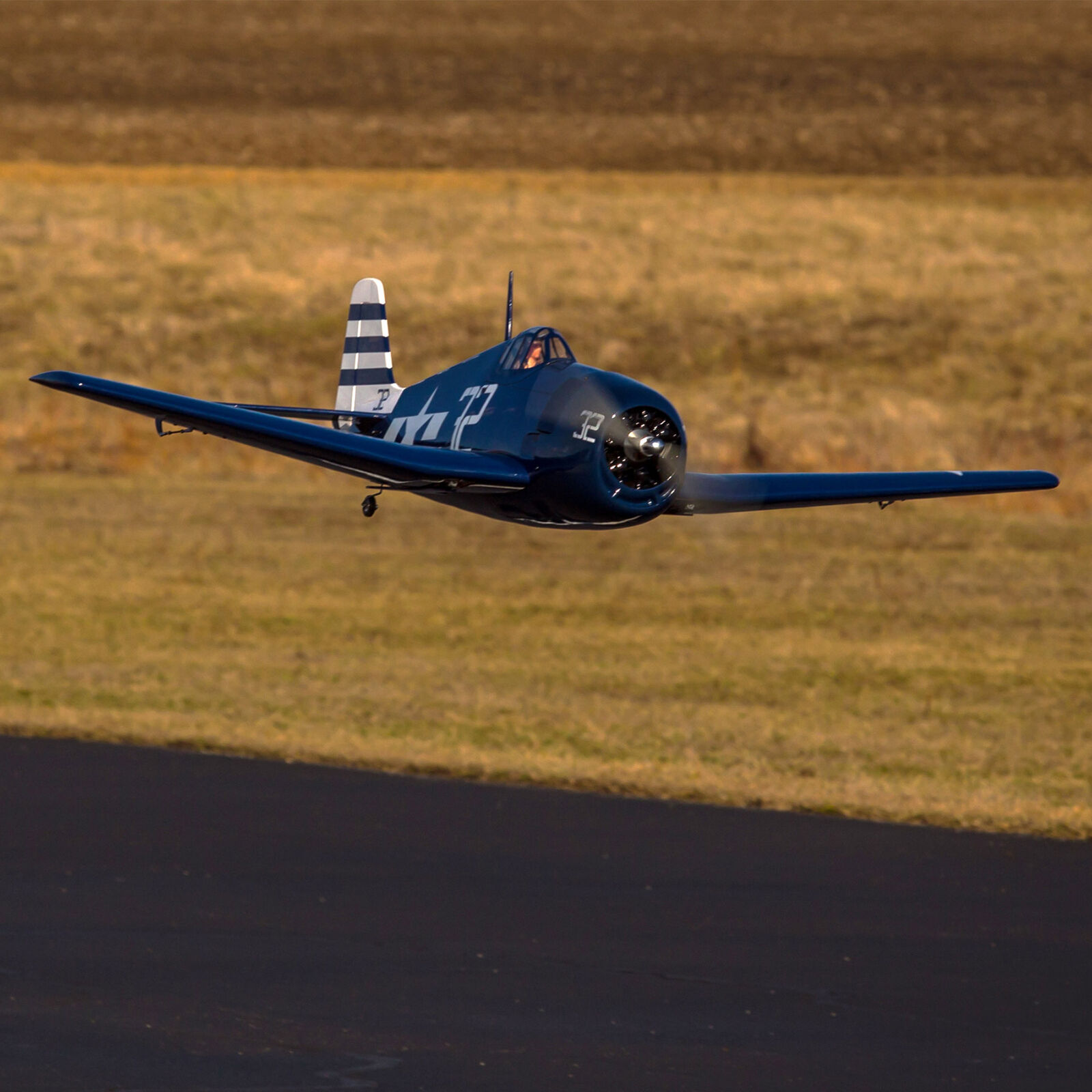

In the air, this Hellcat proves its heritage with maneuverability that’s rock-solid, friendly stall manners and a feel at the controls that will have you wanting more. Whether this F6F Hellcat is your first warbird or a fun addition to a growing fleet, don’t be surprised if a Hangar 9 ARF is all you’ll ever want to fly.

Features:

  • Quality construction that’s lightweight, with laser-cut balsa and plywood
  • Factory-applied, genuine Hangar 9® UltraCote® film covering

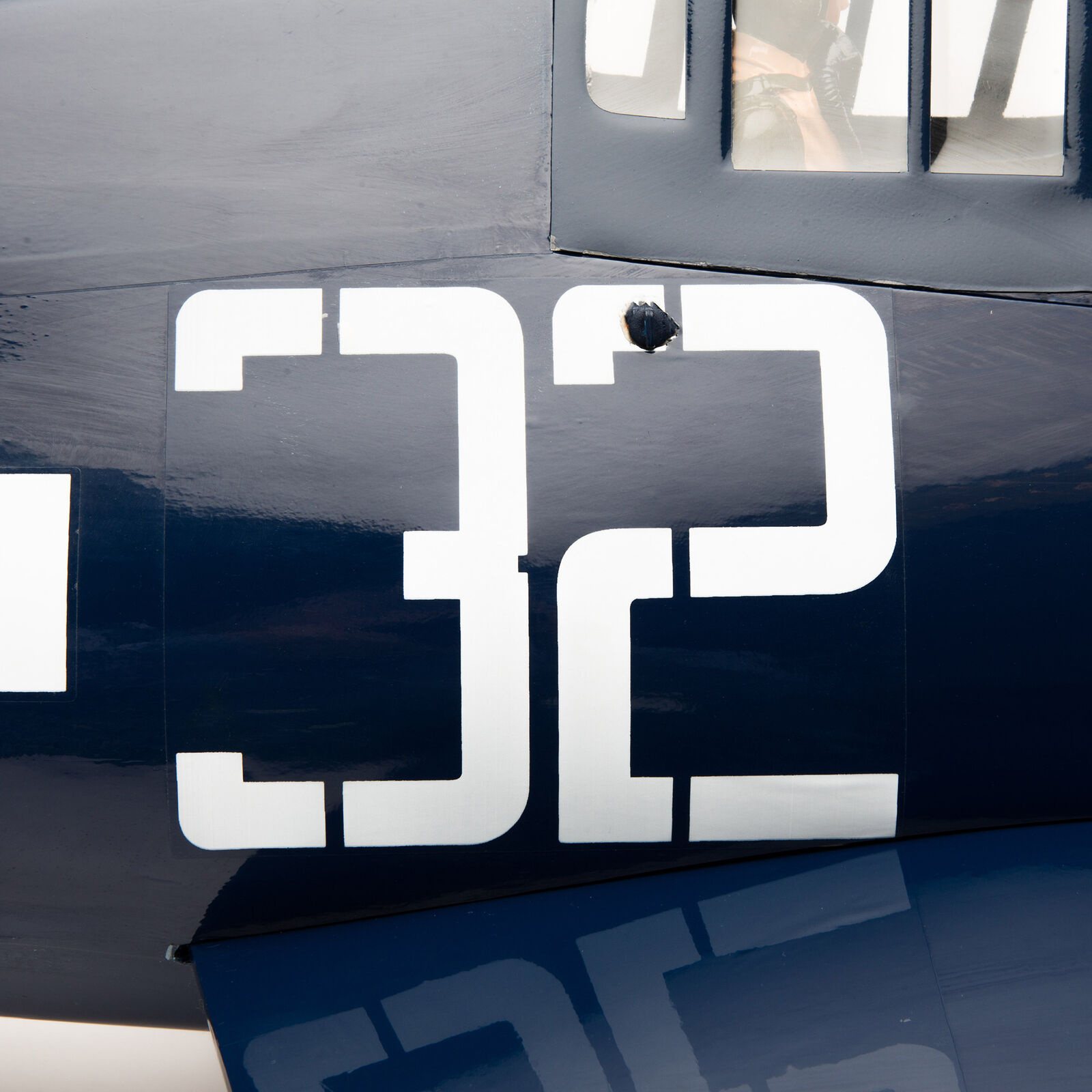

  • Realistic markings and graphics, plus three nose-art decal choices

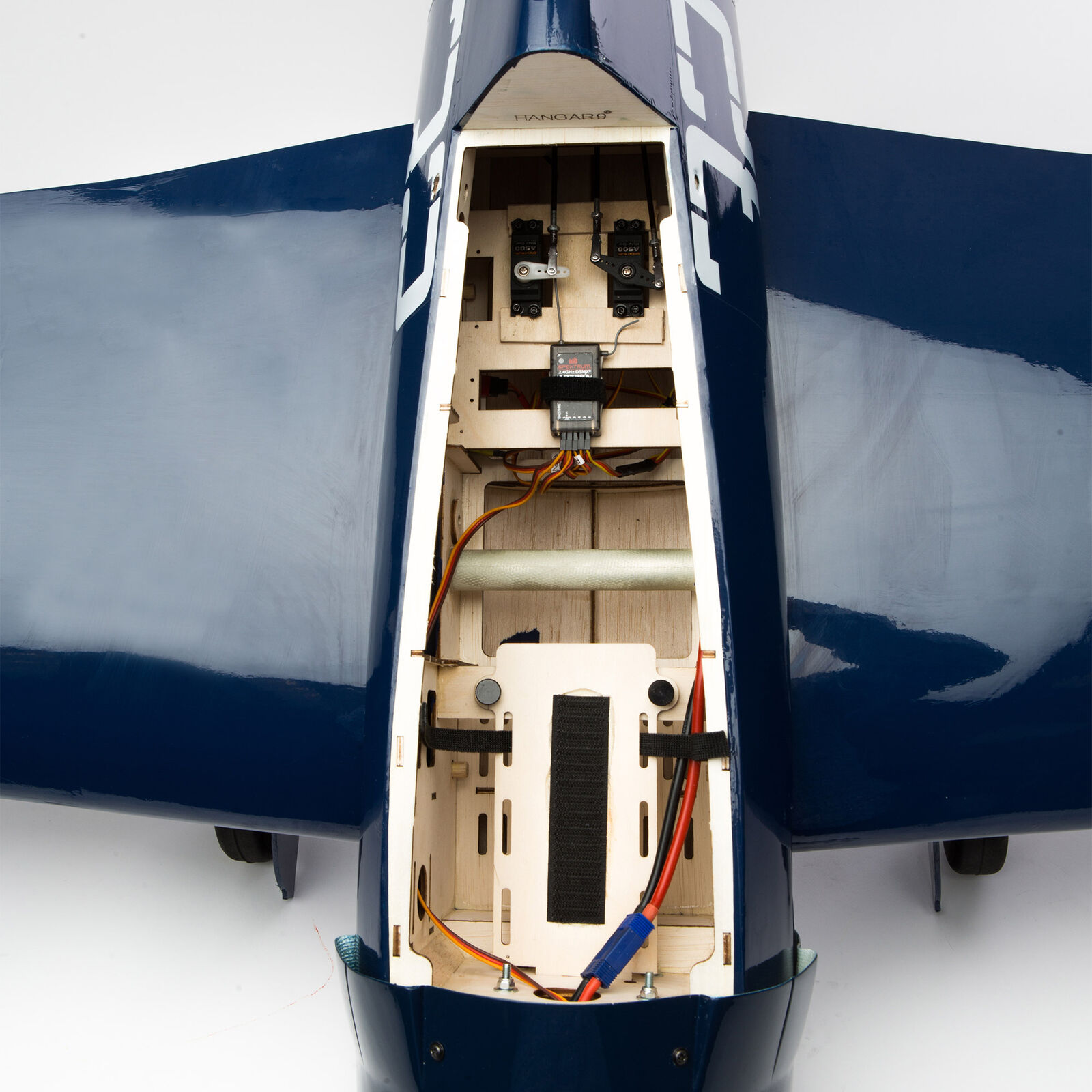

  • Large top-hatch makes access to electronics and batteries convenient
  • Two-piece, plug-in wing with anodized-aluminum tube support
  • Tool-free field assembly for easy transport and storage

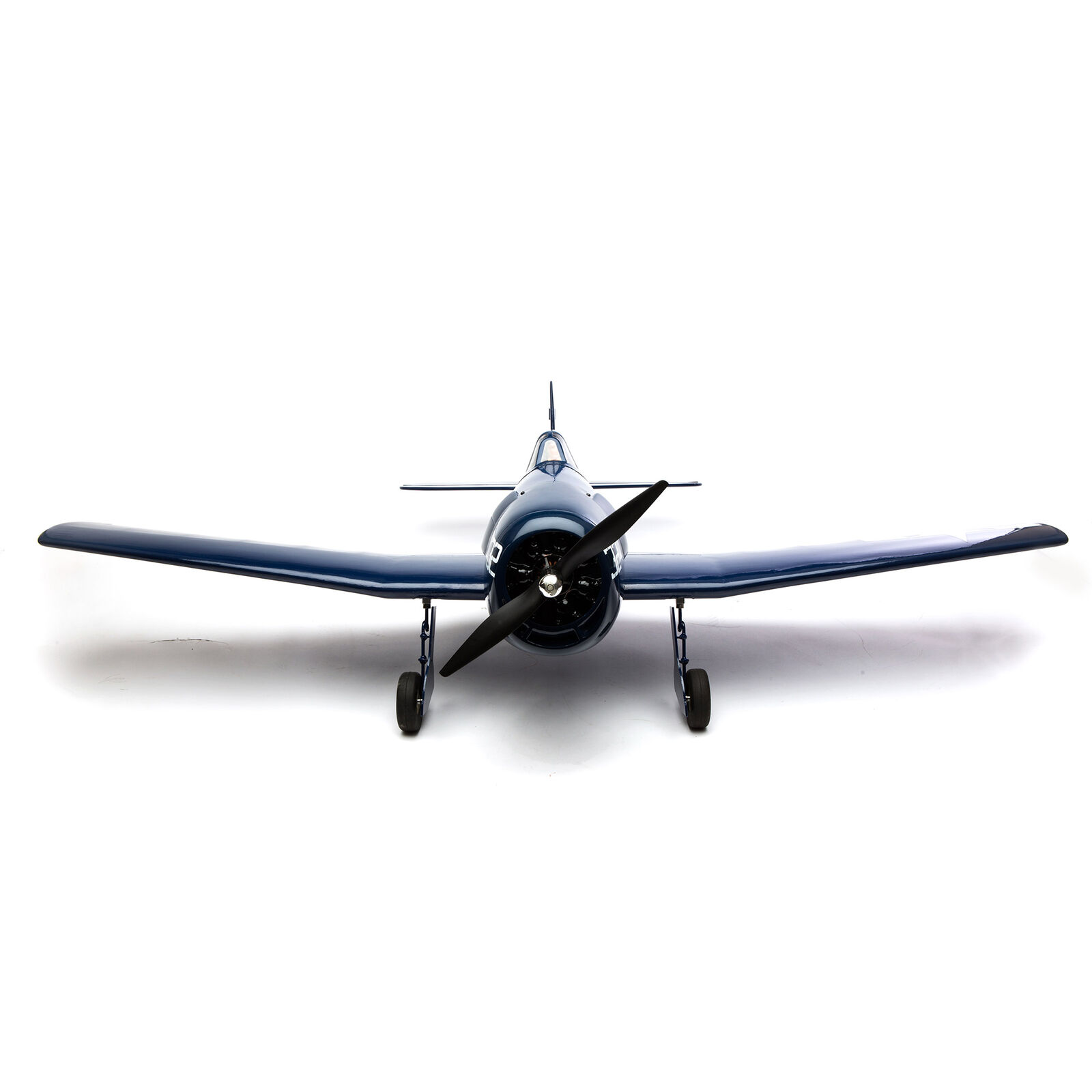

  • Rugged fixed landing gear and four-inch tires included
  • Retract ready—optional E-flite® electric retracts drop right in

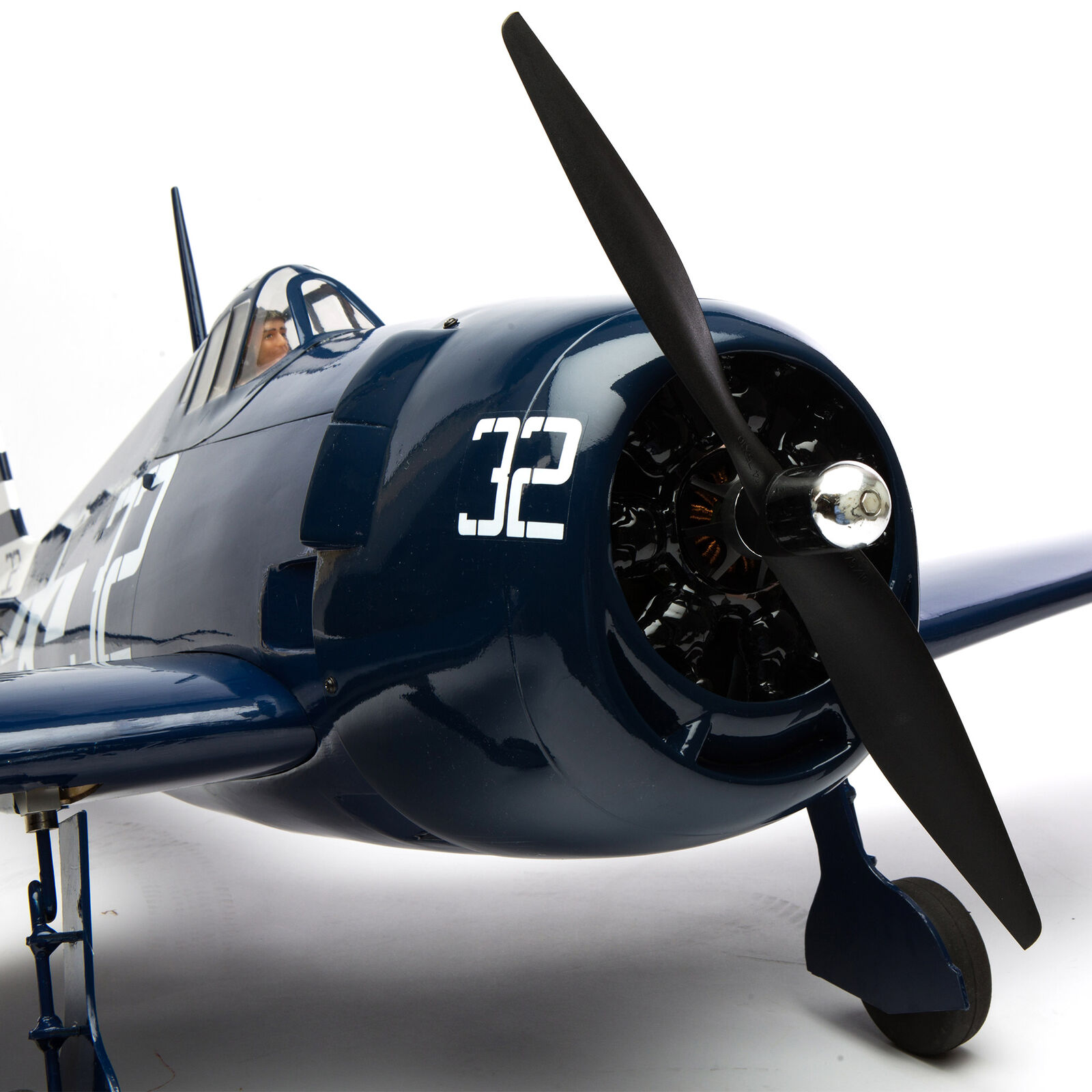

  • Painted fiberglass cowl with simulated engine detail

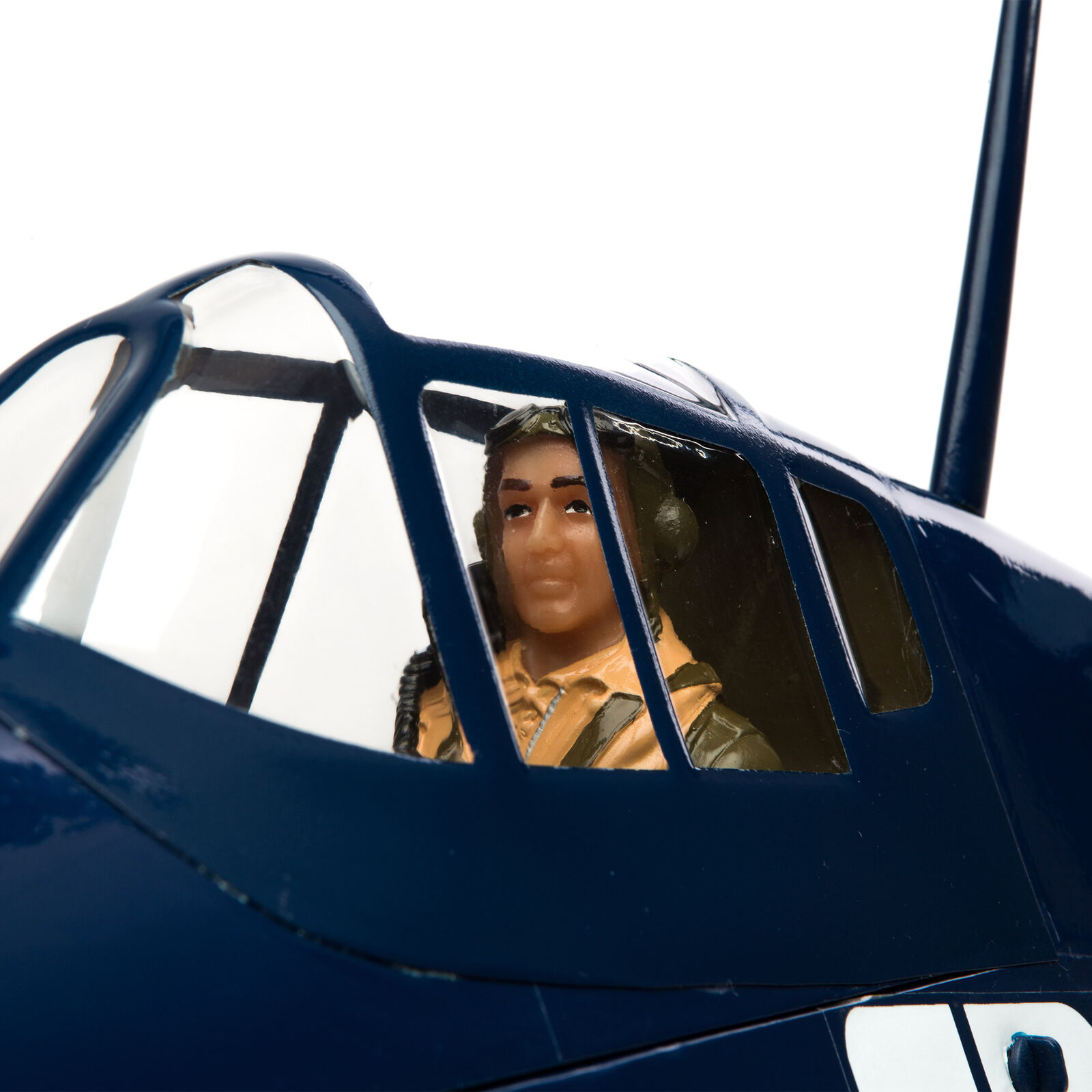

  • Gear doors and cockpit details increase realistic appeal
  • Easy-to-install gas/petrol engine and electric power mounts included
  • Pre-hinged control surfaces help you save on build time
  • Complete hardware kit included

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the F6F Hellcat in particular but at least we know they do distribute hangar 9.

Wingspan: 1630mm (64.2 in)
Length: 1210mm (47.6 in)

Weight: 4540 g (10 lbs)
CG (Center of Gravity) 5" (127mm) behind leading edge of wing at fuselage side
Engine Size 15cc 2-stroke to 21cc 4-stroke gas/petrol (Sold Separately)
Flaps No
Minimum Required Radio 4+ channel, 5+ channel for the retract option
Motor Size 1800W Outrunner (Sold Separately)
Product Length 1210 mm (47.8 in)
Recommended Motor Battery 6S 5000mAh-7000Mah
Retracts Optional
Wing Area 45.1 dm² (698 sq in)
Wingspan 1630 mm (64.0 in)
Weight 4080 g-4540 g (9–10 lbs)
