Fokker D.VII from hangar 9

Details

The German Fokker D.VII is frequently cited as one of the best fighter aircraft of the First World War. But its story of inception is what makes it a supremely interesting subject. During the latter half of 1917, the Allies had regained air superiority over the Western Front with the S.E. 5 and the SPAD fighters. To counter this, the German government invited aircraft manufacturers to submit prototype single-seat fighter designs for evaluation in Berlin in January 1918. The design with the best overall performance would be awarded a production contract. The Fokker D VII was the winner, earning an initial contract for 400 units. The Fokker D.VII was easy to maneuver, strong and agile and as a result was highly respectable by the enemy. The D.VII could "hang on its propeller" and attack upwards while other aircraft would stall and fly away. The performance of the Fokker D.VII was superior to any other aircraft used by the triumphant power. As a result, Germany had to surrender all the airplanes after the end of World War I. A total of 3,300 DVII were produced and over 700 were in service after the war ended.

Hangar 9 brings this Great War legend to life as a remarkable giant-scale ARF with scale details to truly do the legendary Fokker D.VII justice. The model has been expertly built to exacting standards utilizing lightweight balsa and plywood. The result is an ARF model that goes together easily with outstanding appearance and friendly flying manners. Even the most discerning modeler will appreciate the exceptional level of details like molded machine guns, scale pilot figure, cockpit details and 8" scale tires, just to name a few. Shock-absorbing main landing gear takes most of the bounce out of grass strips. Genuine UltraCote covering provides an exterior finish that replicates scale-inspired colors with distinction. The Fokker D.VII is designed to accommodate a variety of 30cc to 60cc 2- or 4-stroke gas engines, or brushless electric outrunner motor. All hardware for the recommended power system options is included so assembly is easy and you can get in the air faster. A large top-hatch makes any maintenance and battery changes simple, while providing easy access to electronic components.

Whether this is your first giant scale World War I aircraft or the perfect complement to your scale collection, you won't find a replica Fokker D.VII that better captures the spirit of this Great War Legend!

The Fokker D.VII 30-60cc ARF is also part of a complete line of top-quality Hangar 9® aircraft. All are engineered and crafted to exacting standards and feature the finest components and materials. Plus, every Hangar 9 product comes with the after-sale service and technical support you need to succeed.

Features:

  • Expertly constructed with lightweight, laser-cut balsa and plywood
  • Two-piece bottom wings with aluminum tube provides easy transport and assembly
  • Ready to install scale replica engine included
  • Sprung wooden tail skid included
  • Genuine shock-absorbing main landing gear with matching paint finish
  • Convenient three-piece top wing simplify aircraft assembly

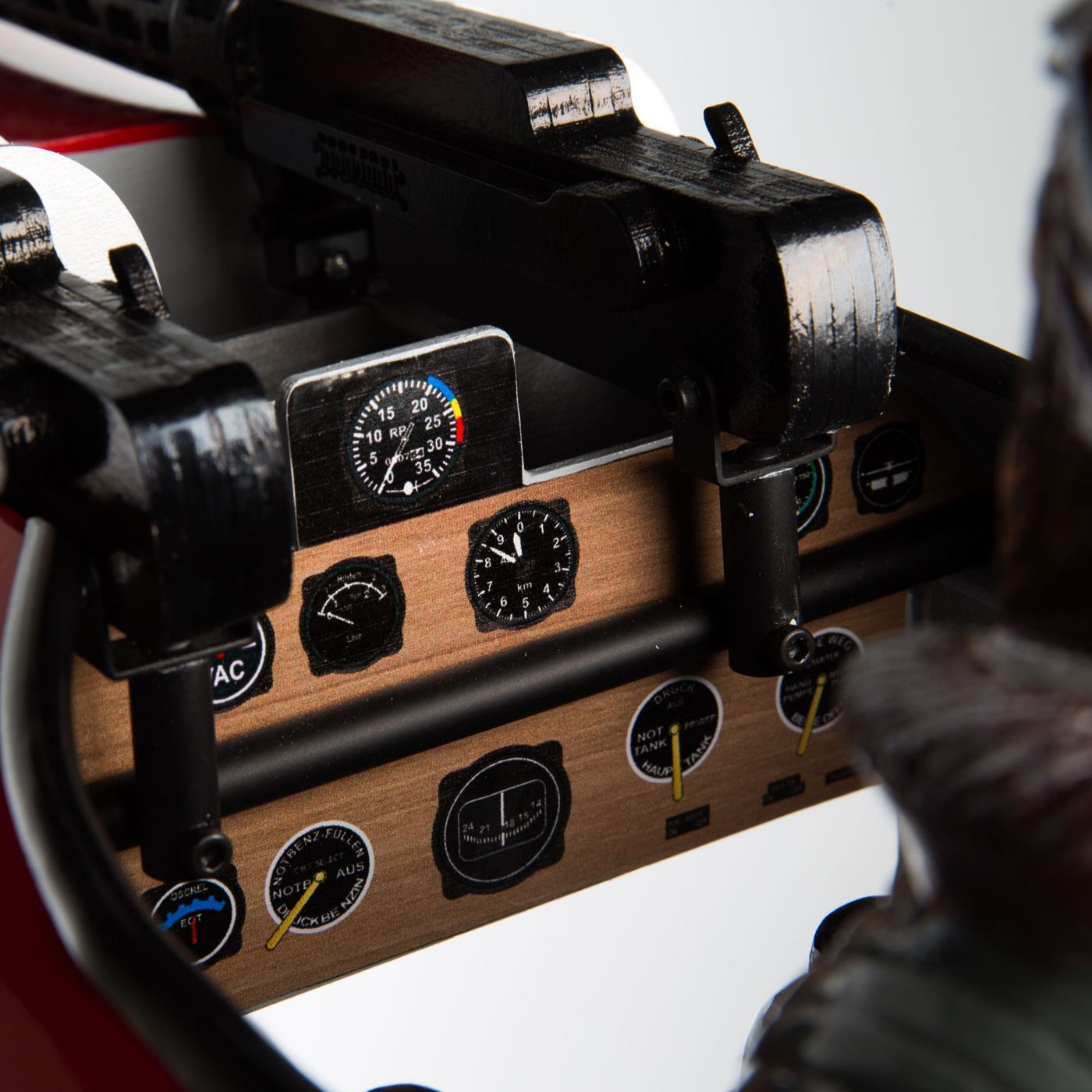

  • Detailed cockpit features a scale pilot and instrument details
  • Machine guns included for added realism and scale looks
  • Large top hatch provides easy access to electronics and flight batteries
  • 8" vintage scale wheels included
  • Functional tail flying wires
  • Matching paint on fiberglass cowl includes molded details
  • Designed to accept gas/petrol engines and electric motors
  • Covered in authentic Hangar 9 UltraCote
  • Complete quality hardware package included

Pictures

Manual

Fokker D.VII


Fokker D.VII

The Fokker D.VII is a German World War I fighter aircraft designed by Reinhold Platz of the Fokker-Flugzeugwerke. Germany produced around 3,300 D.VII aircraft in the second half of 1918. In service with the Luftstreitkräfte, the D.VII quickly proved itself to be a formidable aircraft. The Armistice ending the war specifically required, as the fourth clause of the "Clauses Relating to the Western Front", that Germany was required to surrender all D.VIIs to the Allies. Surviving aircraft saw much service with many countries in the years after World War I.



This article is an extract from the Wikipedia article "Fokker D.VII", which is released under the Creative Commons Attribution-Share-Alike License 3.0

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Fokker D.VII in particular but at least we know they do distribute hangar 9.

Wingspan: 2210mm (87 in)
Length: 1829mm (72 in)

Weight: 13000 g (28.7 lbs)
Airfoil Shape: Semi-symmetrical
Approx. Flying Speed: 70mph
Approximate Assembly Time: 20+ Hours
CG (Center of Gravity): 7" (178mm) behind leading edge of top wing center section
Completion Level: Almost Ready-To-Fly
Control Throw - High (Ailerons): Up 1-9/16" (40mm), Down 1-3/16" (30mm)
Control Throw - High (Elevator): Up 1-31/32" (50mm), Down 1-9/16" (40mm)
Control Throw - High (Rudder): Left/Right 3-1/8" (80mm)
Control Throw - Low (Ailerons): Up 1" (25mm), Down 25/32" (20mm)
Control Throw - Low (Elevator): Up 1-3/8" (35mm), Down 1" (25mm)
Control Throw - Low (Rudder): Left/Right 1/31/32" (50mm)
Engine Size: 2-stroke gas: 30-60cc
Flying Weight: 23 - 28lbs (10.4 - 13kg)
Length: 72" (1829mm)
Material: Laser cut balsa and ply construction
Minimum Required Radio: 4-channel
Minimum Speed Control: 120A
Motor Size: 160-360
Propeller Size: 18-26 gas, 20x10 Electric
Recommended Motor Battery: 10-12S 7000-14000mAh
Recommended Receiver Battery: 2S 7.4V 4000mAh LiPo
Servos: Six required
Spinner Size: Spinner nut
Transmitter Range: Full range
Trimscheme Colors: Red, white and black
Wing Area: 2430 sq in (156.8 sq dm)
Wingspan: 87" (2210mm)
