Joy from High Quality

Details

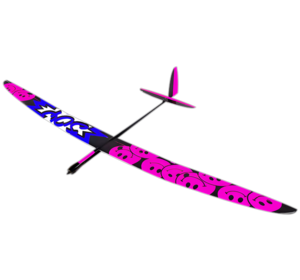

Joy is a brand new 2.5-meter F5J glider released at the end of 2021 by the High-Quality team.

Thanks to its wingspan it combines a performance that can be compared to the 4m ships but at the same time plays a part as an entry-level F5J competition model.

Our tests found that Joy can perform on a similar level to the bigger wingspan models in the hands of a skilled pilot. And since the Joy is smaller in size it can be assembled at only 650g AUW in the light layup.

The core of this design is a combination of the low-drag fuselage, AG-series airfoil wing, quality materials, and the experience of the team behind it.

Joy is available in Regular or Light carbon layups, and also in Fiberglass. The fuselage and tails are always carbon-skinned for saving weight and adding stiffness.

The glider kit includes an accessory pack that contains control horns, servo frames, pull-cables, cable crimps, bolts, torsions, CNC machined firewall, pushrods, and wing harness pigtails. The other part of the harness comes pre-installed in the wing, so you just plug in your servos after installation and cover them with provided CF patches.

Features:

  • Lightweight airframe including an NPX-foam core wing. Can build as light as 615g.
  • Low drag fuselage with two gear access hatches – a traditional in front and an extra one under the wing.
  • Single-piece fuselage that is both light and strong and will fit up to 28mm diameter motor in front.
  • High aspect ratio polyhedral wing that has great performance in the weak thermals and on high speeds while returning from the downwind.
  • Ballast enclaves in both wings allow adding weight to your glider when needed. The wing breaks downs into 2 halves and holds in place with sticky tape.
  • Pull-cable & torsion spring installation for tail controls for less weight on the tail.
  • Fully removable tails. The model breaks down to a 1.30m long box for transportation or storage.

Description from FlightPoint

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Joy in particular but at least we know they do distribute High Quality.

Wingspan: 2495mm (98.2 in)
Length: 1256mm (49.4 in)

Weight: unknown
  • Length: 1256 mm
  • Wingspan: 2495 mm
  • Wing Area: 39.6 dm²
  • Wing Airfoil: AG series mod
  • Horizontal Stabilizer Area: 4.38 dm²
  • Horizontal Stabilizer Airfoil: HT series
  • Vertical Stabilizer Area: 3.3 dm²
  • Vertical Stabilizer Airfoil: HT Series
  • Control Surfaces: Ailerons, Flaps, Rudder, Elevator

Recommended Gears:

  • 32mm diameter spinner
  • CF folding prop
  • 28mm dia outrunner
  • 2x KST X08/A08 for tails
  • 4x KST X08H/A08H for wings
  • 7ch Rx

Build Instruction
