L-39 from HSDjets

Details

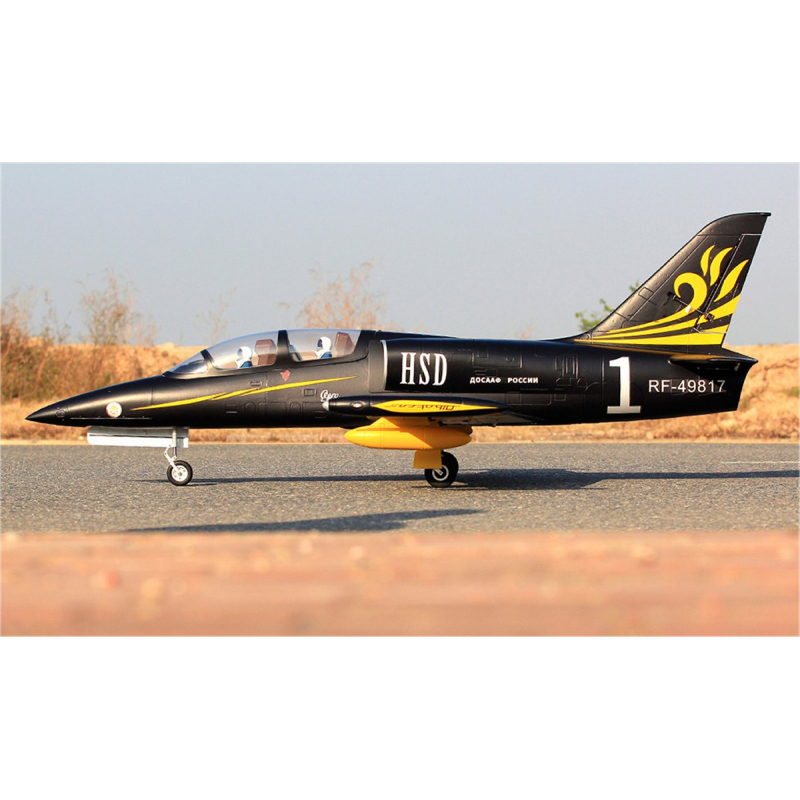

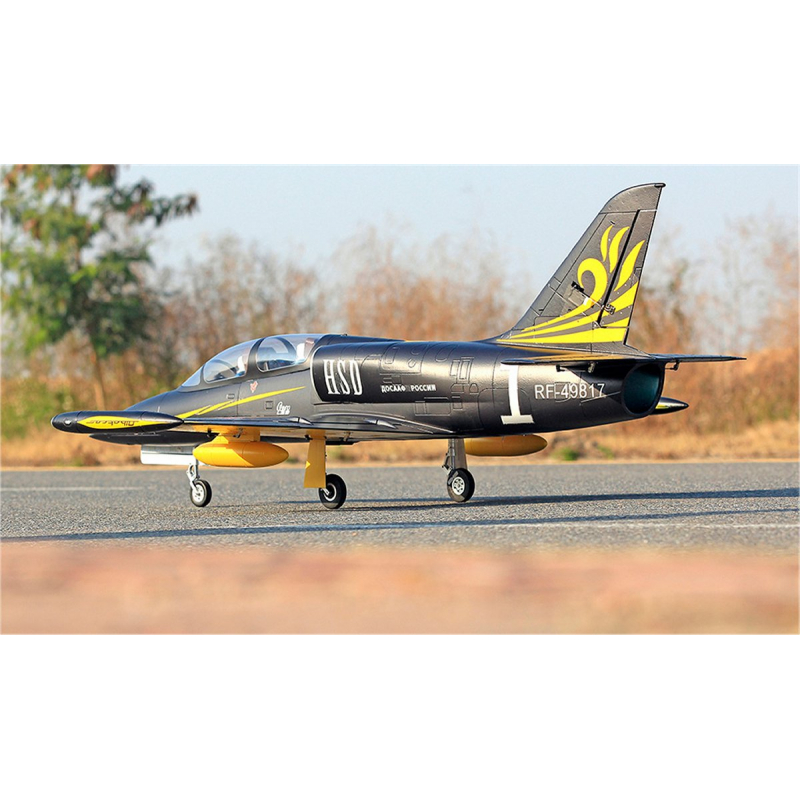

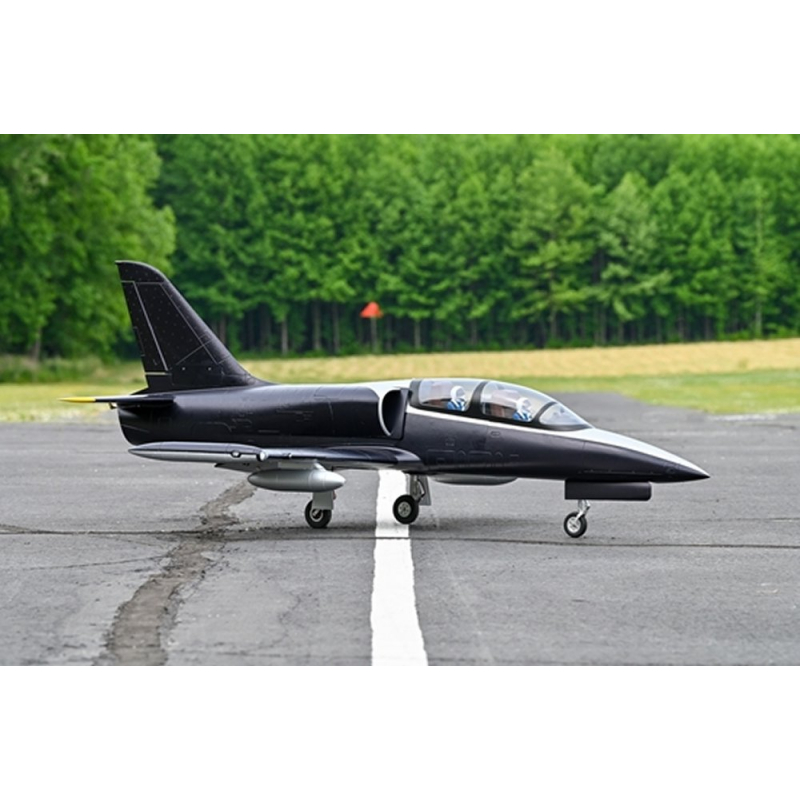

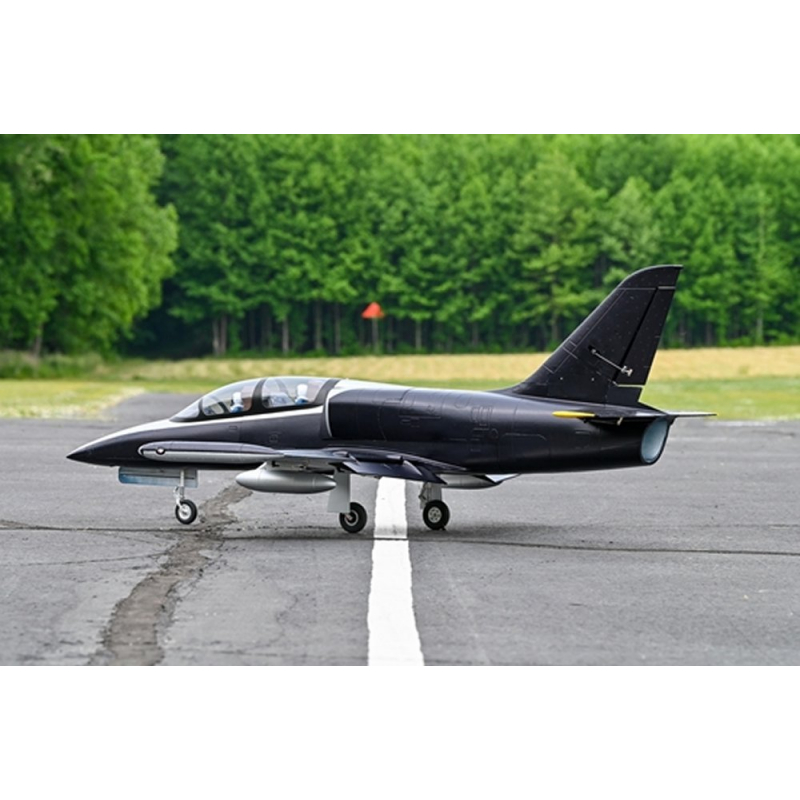

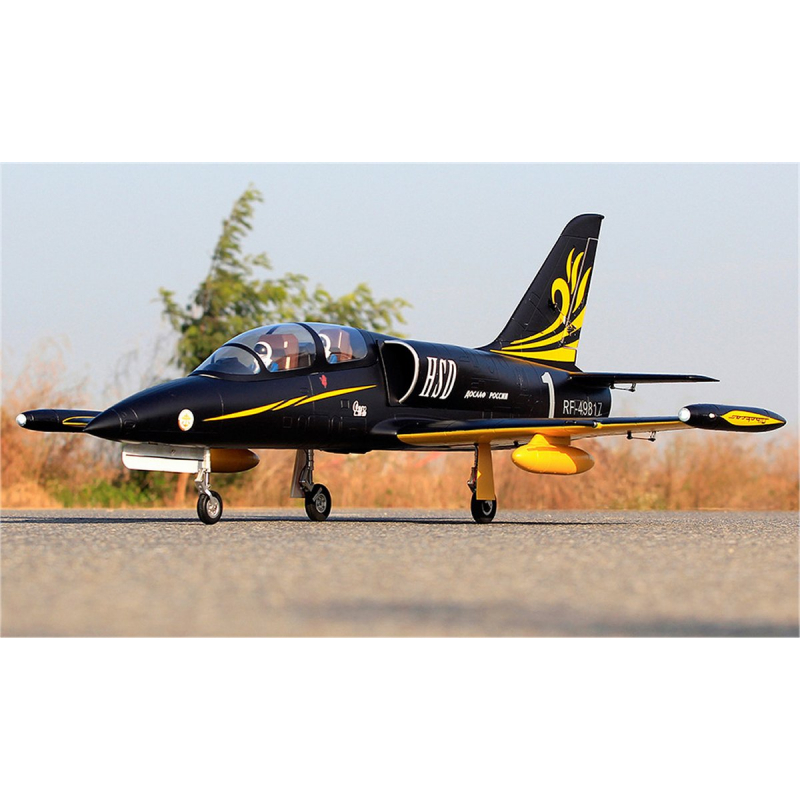

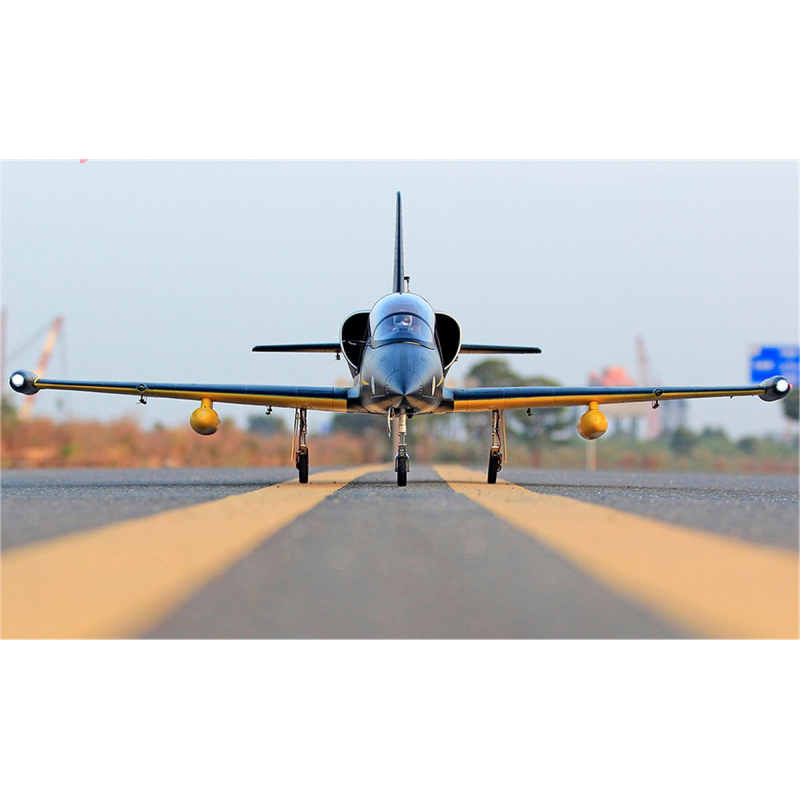

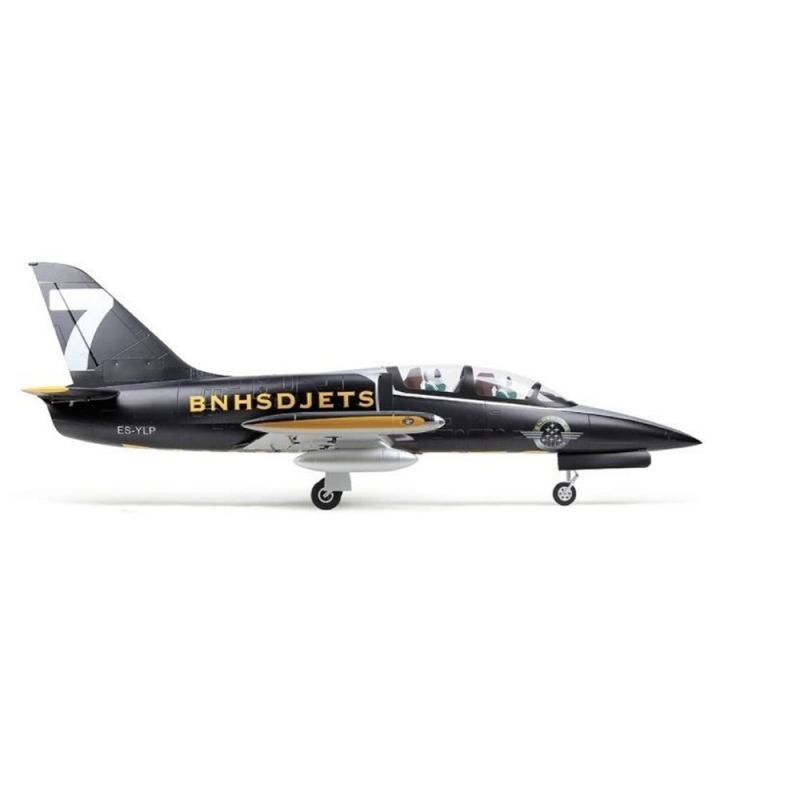

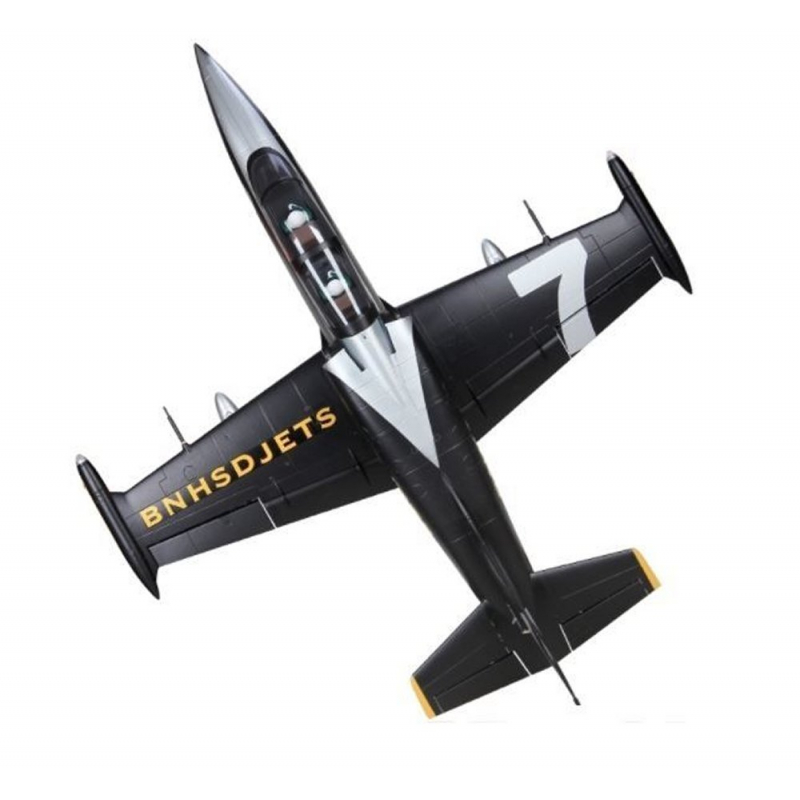

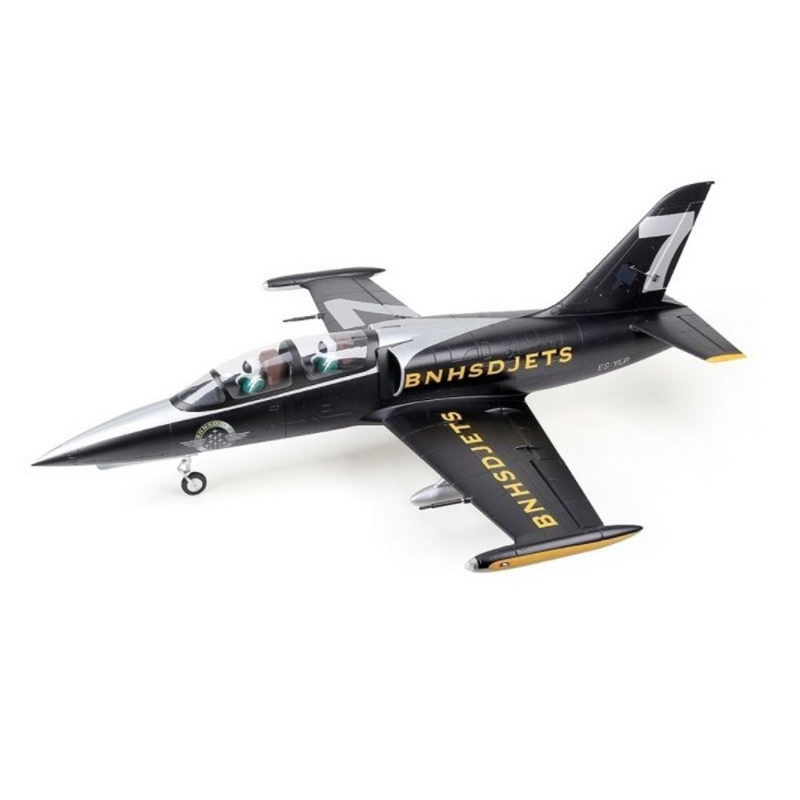

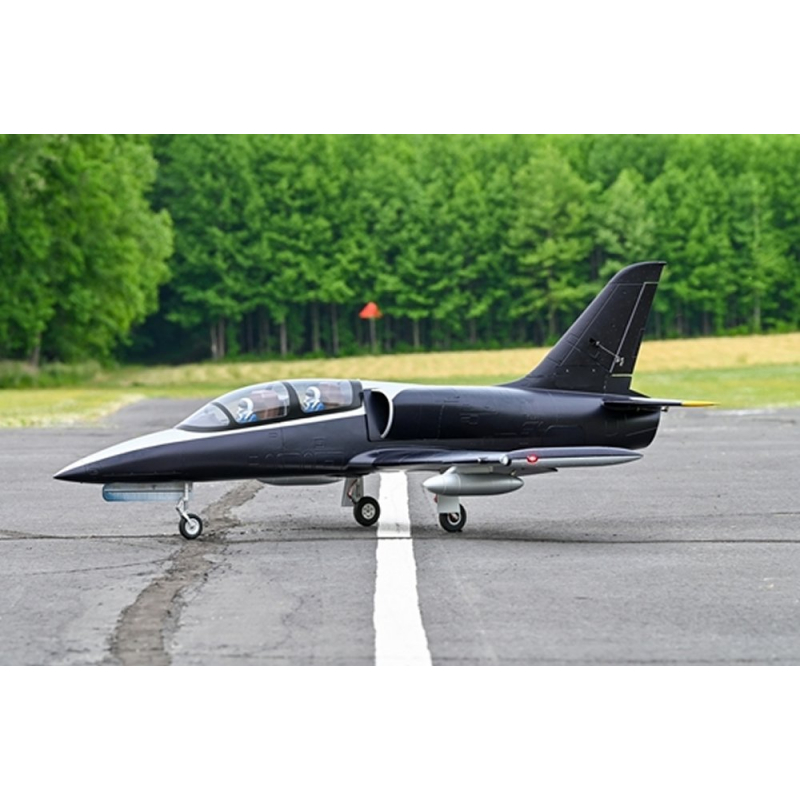

The Breitling HSD L-39 is a high quality reproduction of the full size model equipped with a 120mm 10 blade EDF turbine, a Hobbywing 5268 motor, a Hobbywing 160A controller and digital metal servos.

Features:

  • Solid EPO foam reinforced with carbon fiber
  • Powerful EDF120mm turbine with Hobbywing 5268 motor
  • Equipped with a Hobbywing 160A HV controller
  • MFC-2085 control system to reduce wiring complexity
  • Fully equipped with digital metal servos
  • Specific socket system integrated in the fuselage to facilitate and secure the attachment of the vertical stabilizer and wings

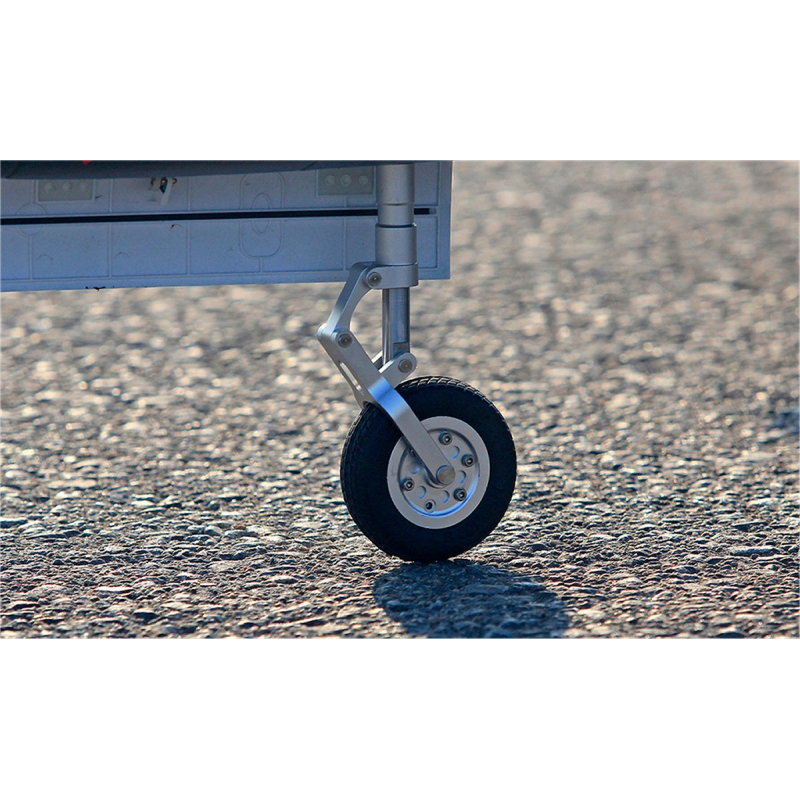

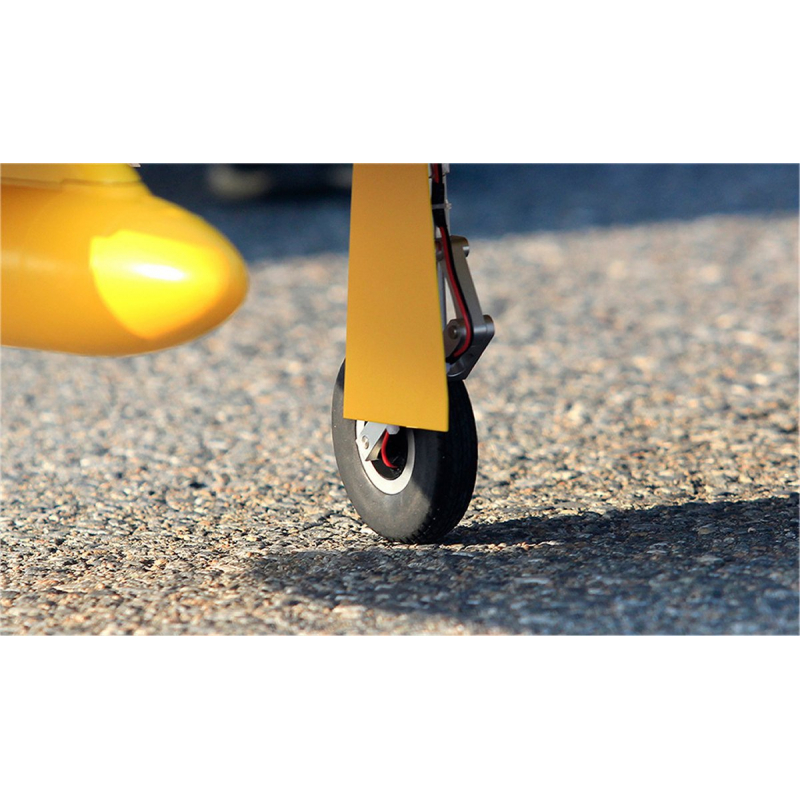

  • Functional electric retractable landing gear and model
  • Full set of LED lights for landing and navigation
  • Thermoformed packaging for perfect protection of the model

Pictures

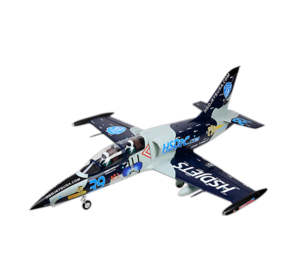

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos
(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the L-39 in particular but at least we know they do distribute HSDjets.

Where to buy

USA
RC Jet Werx
check web site
Ship to: USA
USA
Banana Hobby
check web site
Ship to: Worldwide
France
miniplanes
check web site
Ship to: France
Germany
FINAL-Modellbau
check web site
Ship to: Worldwide
France
Turbines RC
check web site
Ship to: Worldwide
United Kingdom
tjd Models
check web site
Ship to: United Kingdom

Wingspan: 1665mm (65.6 in)
Length: 1916mm (75.4 in)

Weight: 8300 g (18.3 lbs)
  • Wingspan: 1665mm / 65.6in
  • Length: 1916mm / 75.4in
  • Wing loading: 154.9g/dm2
  • Wing area: 53.6dm2
  • Weight in flight order : 8.3kg (18.3 lb) in 12s (2x6s)
  • EDF: 120mm 10 blades
  • Motor: Hobbywing 5268-KV640
  • Controller: Hobbywing 160A HV
  • Servos: 7x25g 7.4V metal with cord and 6x12g 7.4V metal with cord
  • Radio: 8 channels
  • Recommended battery for MFC-2085 system: 2x Li-Po 2S (7.4V) 2200~5200mAh
  • Recommended battery for EDF: 2x Li-Po 6S (22.2V) 5200mAh 45c
  • Cruising speed: about 150-180 km/h

Variants

L39BR
L-39 (Black Gold)
L39BC
L-39 (Blue Camo)
