BOB57 O3 from iFlight

Details

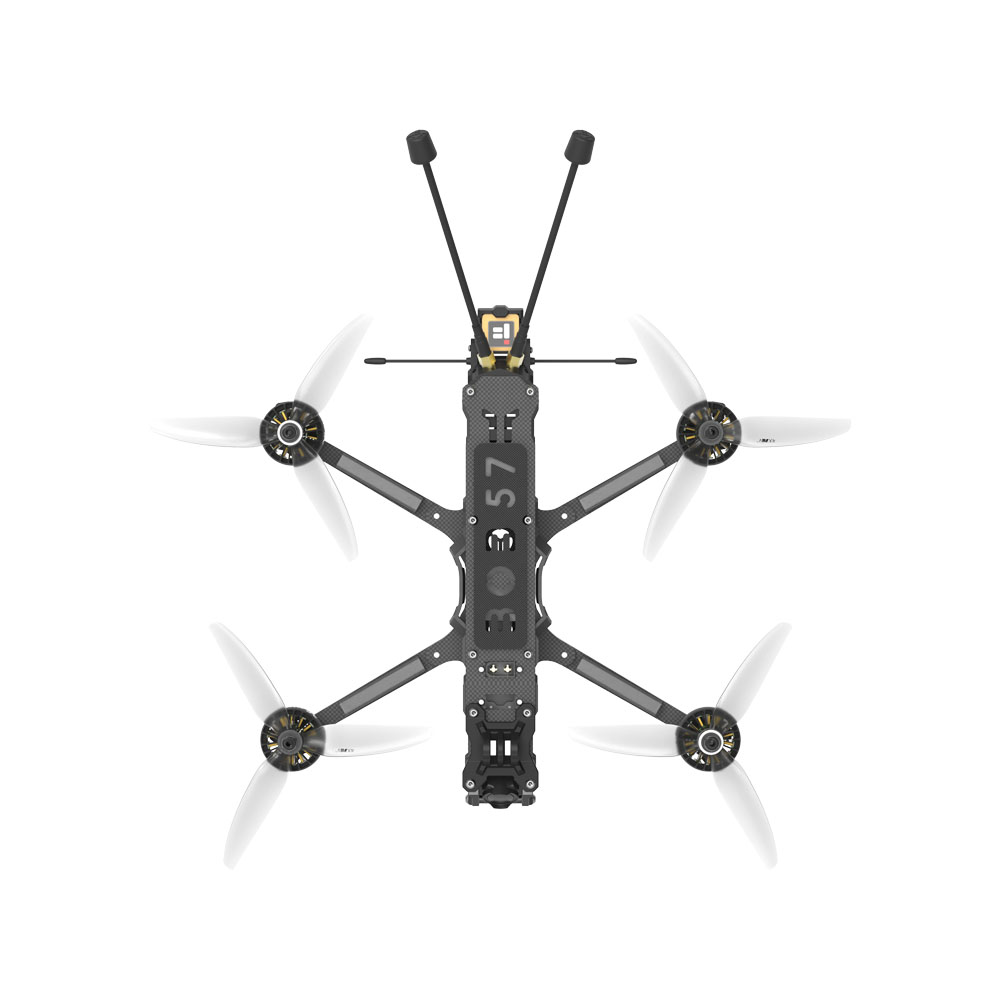

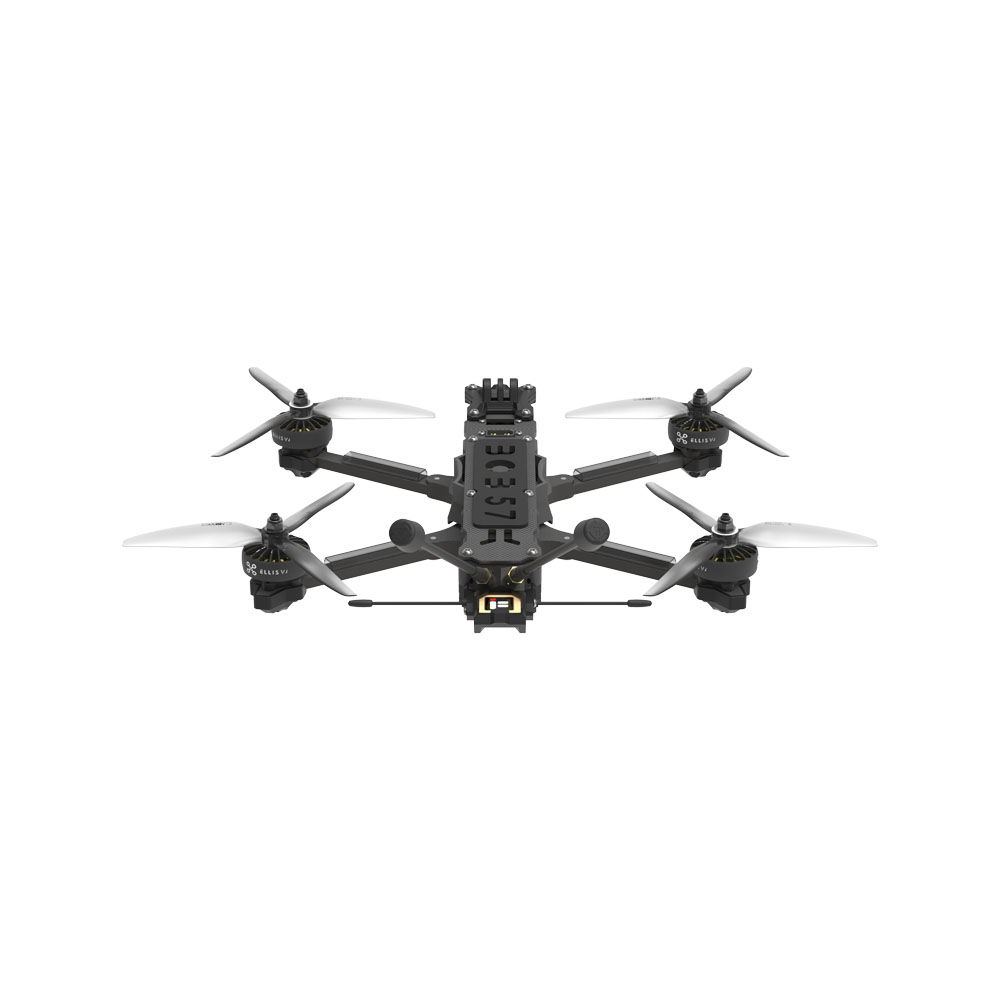

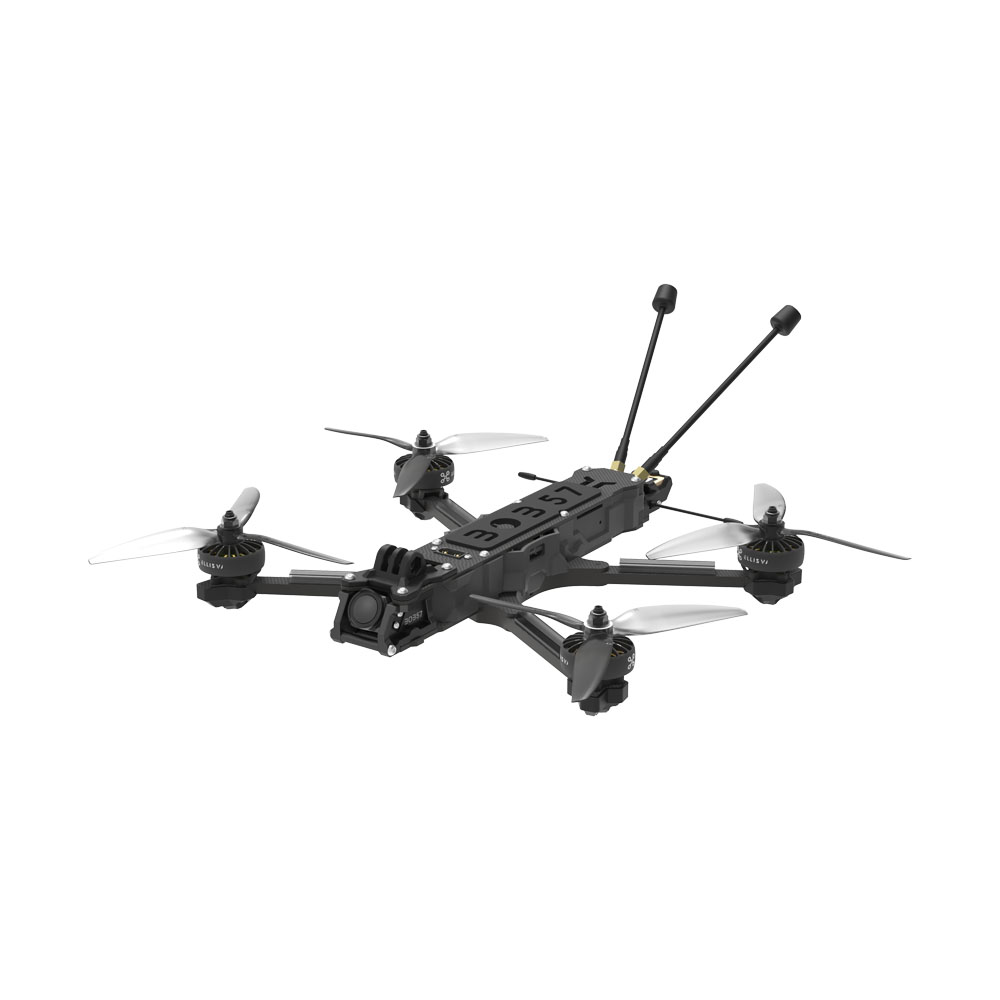

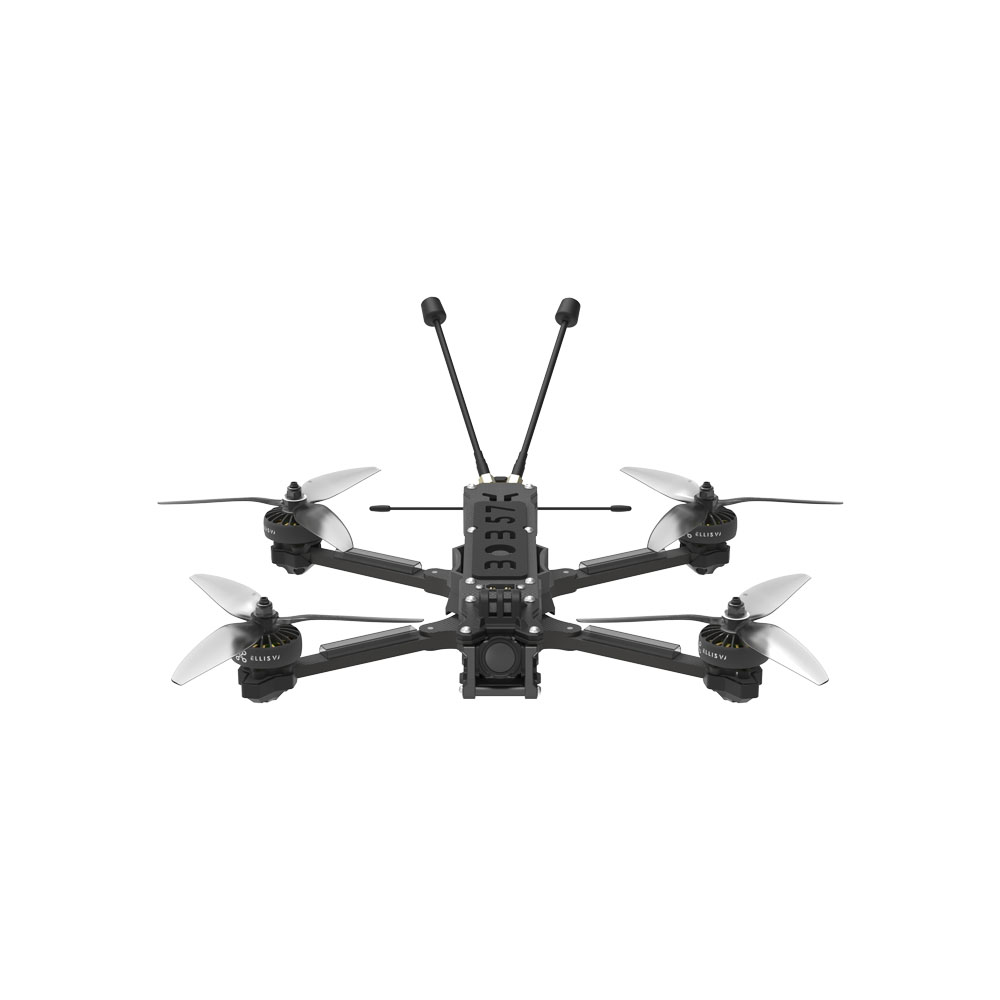

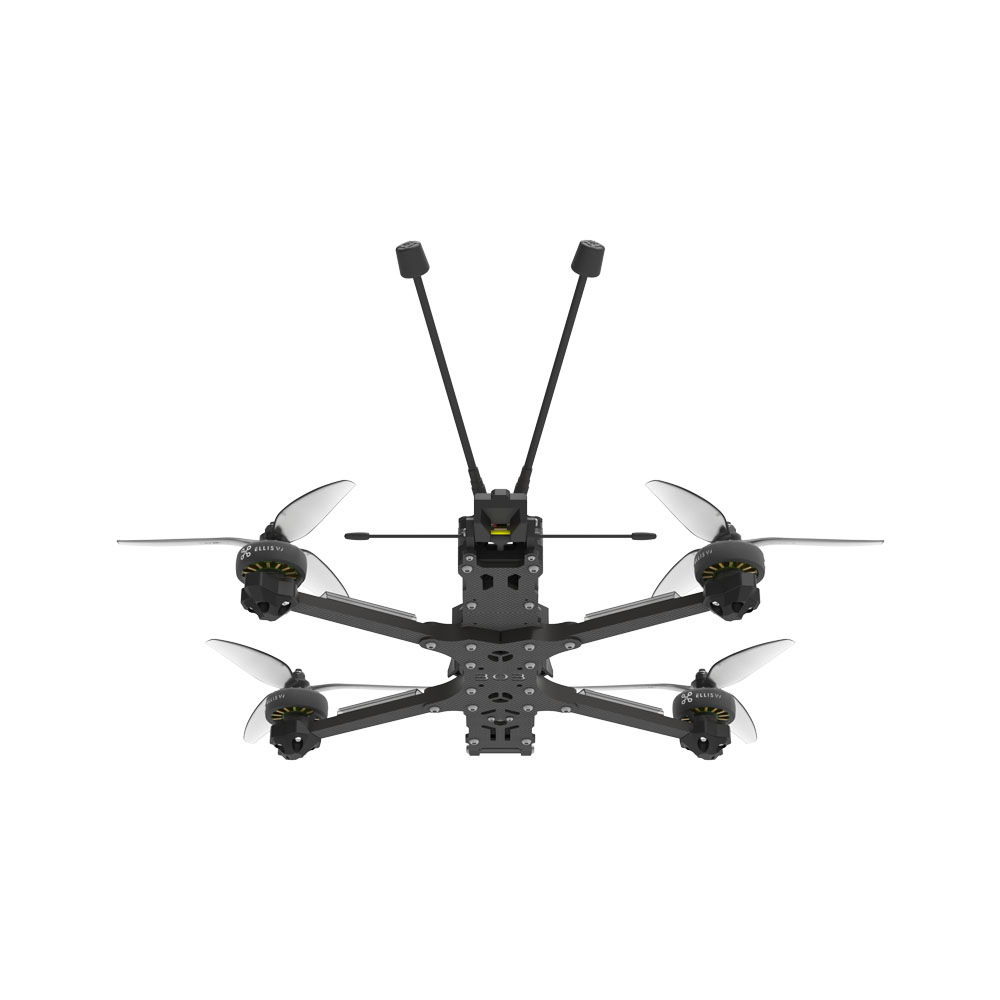

The iFlight BOB57 is a long-range HD drone that was designed in collaboration with pilot & videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights.

Features:

  • Hybrid motor design optimized for  that can be used with both bi-blade and tri-blade 6" propellers
  • High-end GPS is used to minimize the risk of failure during proximity flights
  • Long backbone with enough space up to fit 3000mAh 6S batteries
  • Solid antenna mount for less ocillations when using long antennas
  • H-shaped frame with robust middle section for less props in view
  • Gladiator shell protects from dust and water droplets
  • ESCs with built-in spike absorber for more reliability
  • Built in BEC to directly power a GoPro camera
  • 9-minute flight time with 3000mAh 6S Lipo
  • Front-mounting XT-60

Pictures

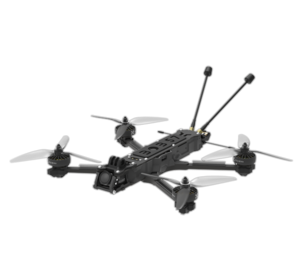

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the BOB57 O3 in particular but at least we know they do distribute iFlight.

Wingspan: 180mm (7.1 in)
Length: 180mm (7.1 in)

Weight: 620 g (1.4 lbs)
  • FC: BLITZ F722
  • ESC: BLITZ E55 55A 4-IN-1 ESC
  • Video Transmission: DJI O3 Air Unit
  • Frame: 278mm wheelbase
  • Motor: XING2 2506 motors
  • Prop: Nazgul 6 inch propellers
  • Takeoff Weight: Approx. 620 g
  • Dimensions (L×W×H): 180×180×80 mm
  • Diagonal Distance: 245mm
  • Max Speed: 130 Km/h (Manual Mode)
  • Maximum Takeoff Altitude: 5000 m
  • Max Hover Time: Approx. 8 mins
  • Max Flight Distance: 5 km
  • Max Wind Speed Resistance: 130 Km/H (Level 4)
  • Operating Temperature Range: -10° to 40° C (14° to 104° F)
  • Antennas: 1 Antenna
  • GNSS: GPS +GALELEO
