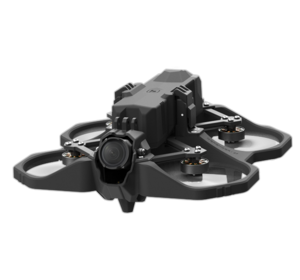

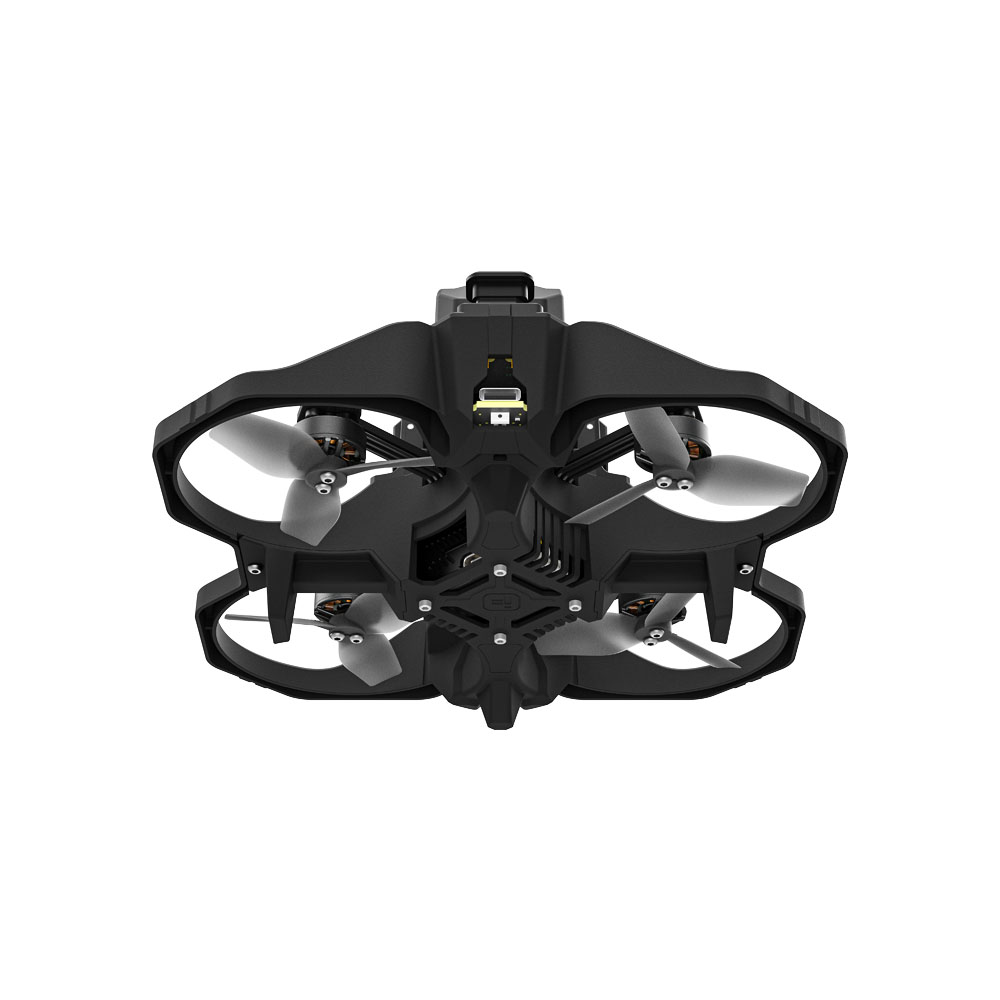

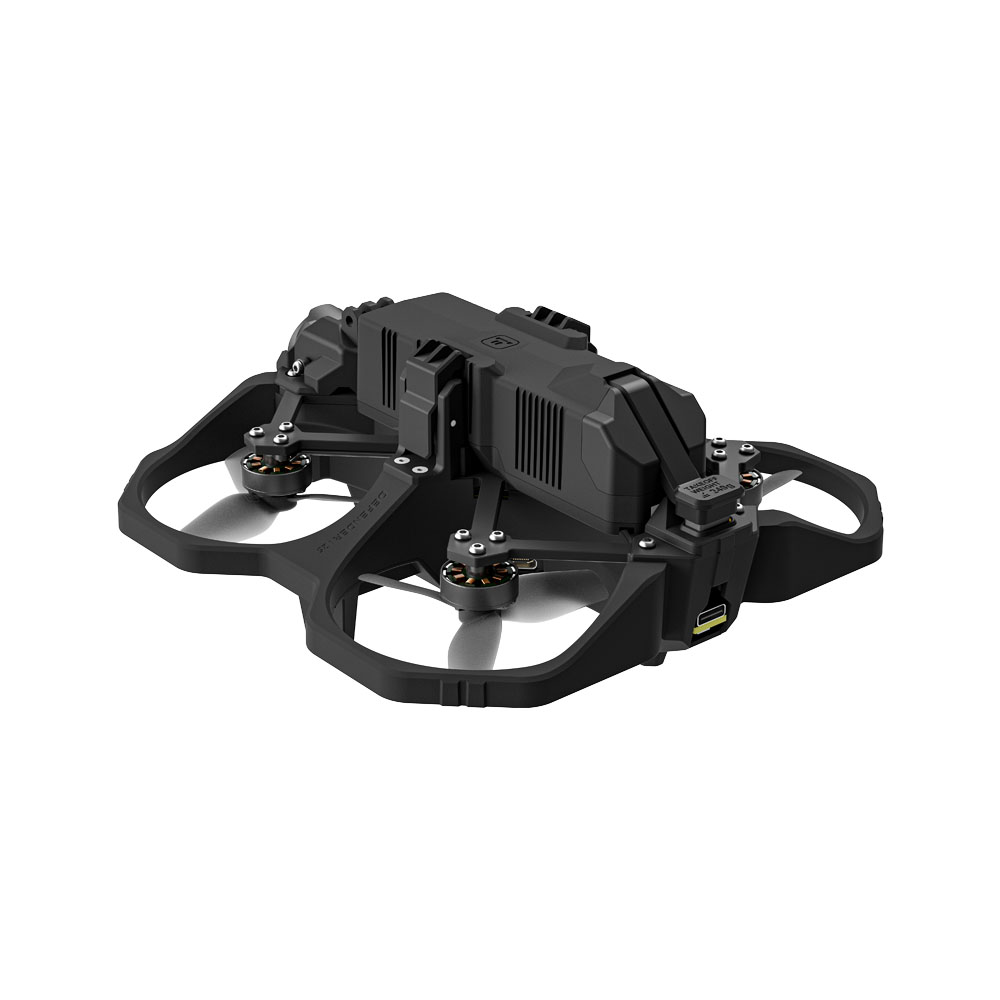

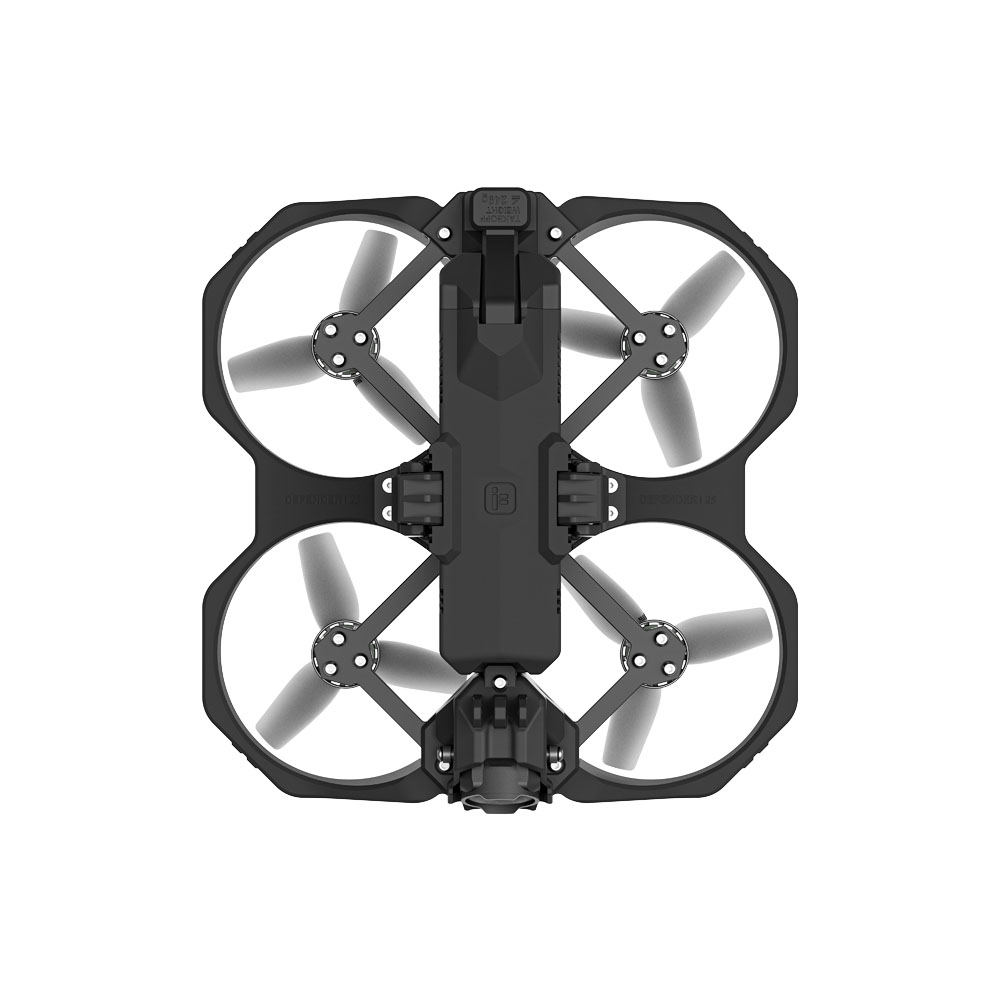

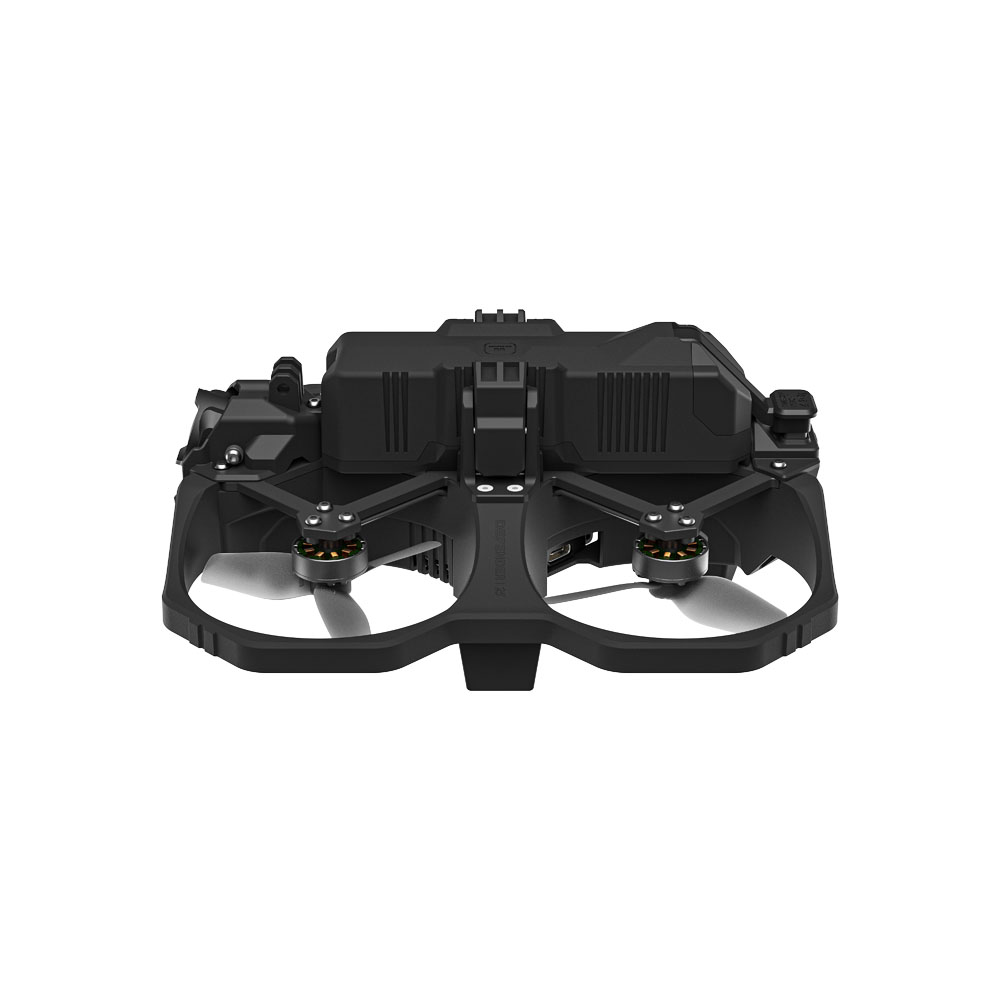

Defender 25 from iFlight

Details

After 2 years with the very successful ProTek series, iFlight continues to strive for a better flying experience and performance with the next upcoming innovative step. Let’s meet the Defender25.

Features:

  • Ultralight & Free to Fly
    At sub 249g weight, our Defender25 doesn't require registration in most countries. The compact and lightweight design also makes it easy to carry and store. It will be your best travel buddy to redefine your FPV adventure.
  • Small But Mighty
    The built-in 2.5inch propeller guards were designed to fly bold. You’ll experience a complete new creative freedom to fly whenever and wherever. The durable injection molded frame does not only prevent damage to your motors or propellers, but also protects the environment of small flight errors.
  • 4K Stabilized Video with 155°Ultra-Wide Angle
    Equipped with the latest tech from DJI, the O3 Air Unit HD transmission system. The Defender25 supports 4K video and shoots up to 155°super-wide FOV footage for stunning visuals. In addition, D-Cinelike color mode provides more creative freedom for color grading, allowing you to edit and adjust your footage. (Source DJI)
    We’ve also added a special vibration-damped camera mount to keep your raw footage as smooth as possible, as well as ensure good Gyro Data for the in-built or in-post camera stabilization.

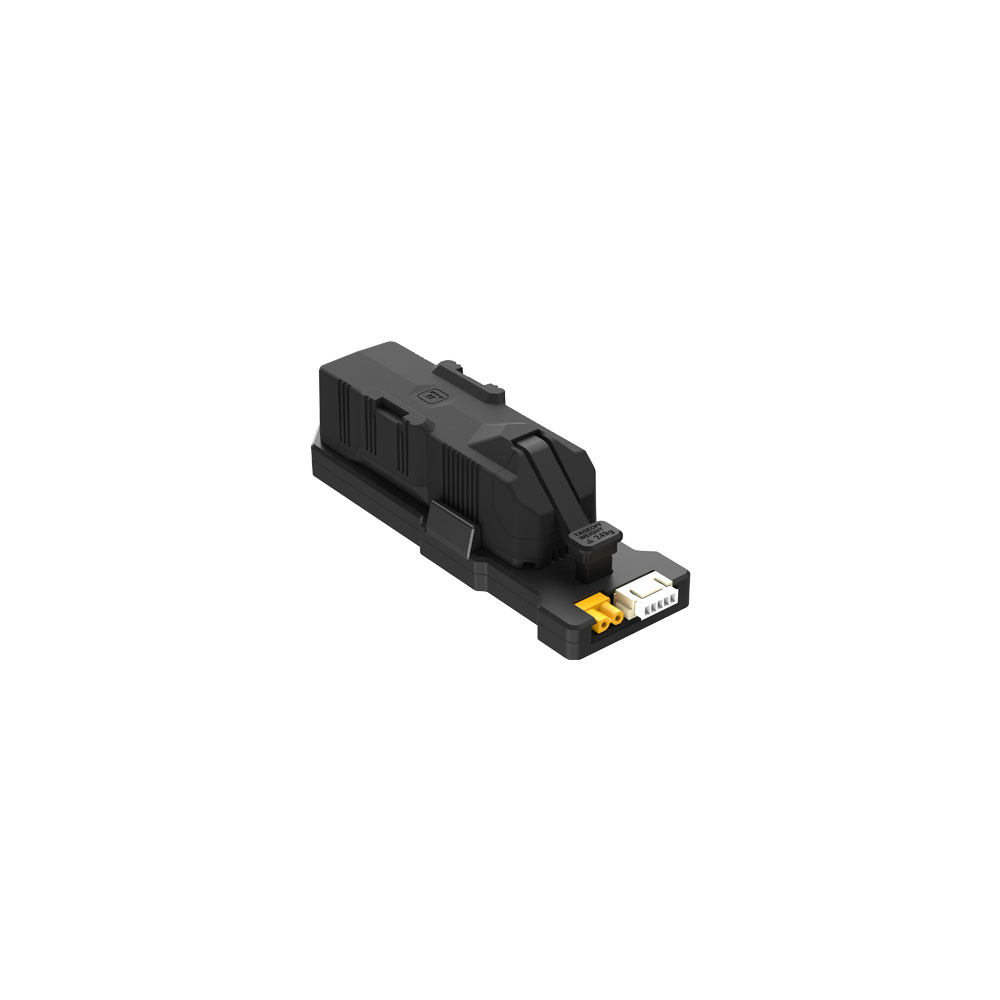

  • Crash Protected Quick-Release Battery
    New innovative quick-release battery and charging adapter to make everything as easy as it can be. The Defender25 comes with a stock 4S 550mAh. An Endurance 900mAh battery is optional.
  • Inbuilt high-performance Video and Receiver antennas
  • Optimized Landing Gear for Take-off in Complex Environment

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Defender 25 in particular but at least we know they do distribute iFlight.

Wingspan: 155mm (6.1 in)
Length: 158mm (6.2 in)

Weight: 249 g (8.8 oz)
  • Flight Electronics: BLITZ D25 F7 AIO
  • Video Transmission: DJI O3 Air Unit
  • Frame: 112±2mm
  • Motor: Defender25 1404
  • Prop: Defender25 2525 props (2.5 inch)
  • Weight of the Aircraft: 180g
  • Takeoff Weight incl. 550mAh battery: ≤249g
  • Takeoff Weight incl. 900mAh battery: ≤280g
  • Dimensions (L×W×H):158x155x69mm
  • Max Ascent Speed: 6 m/s (Normal Mode, Sport Mode)
  • Max Descent Speed: 6 m/s (Normal Mode, Sport Mode)
  • Max Speed: 100Km/H (Manual Mode)
  • Maximum Takeoff Altitude: 200 m
  • Max Hover Time: Approx. 6 mins(with 550mAh battery), 10mins(with 900mAh battery)
  • Max Flight Distance: 2-3 km
  • Max Wind Speed Resistance: 80 Km/H (Level 5)
  • Operating Temperature Range: -10° to 40° C (14° to 104° F)
  • Transmission Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm
  • Antennas: Dual Antennas
  • GNSS: N/A
