Nazgul5 from iFlight

Details

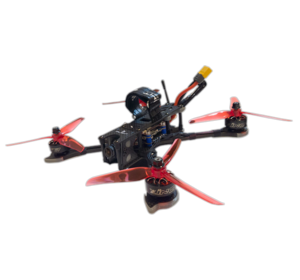

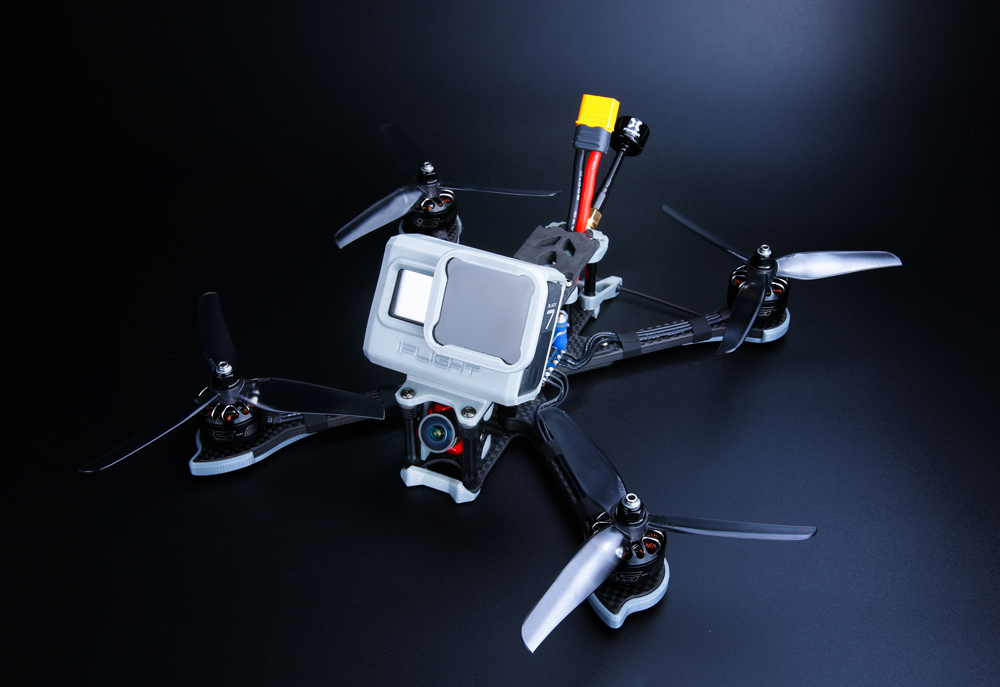

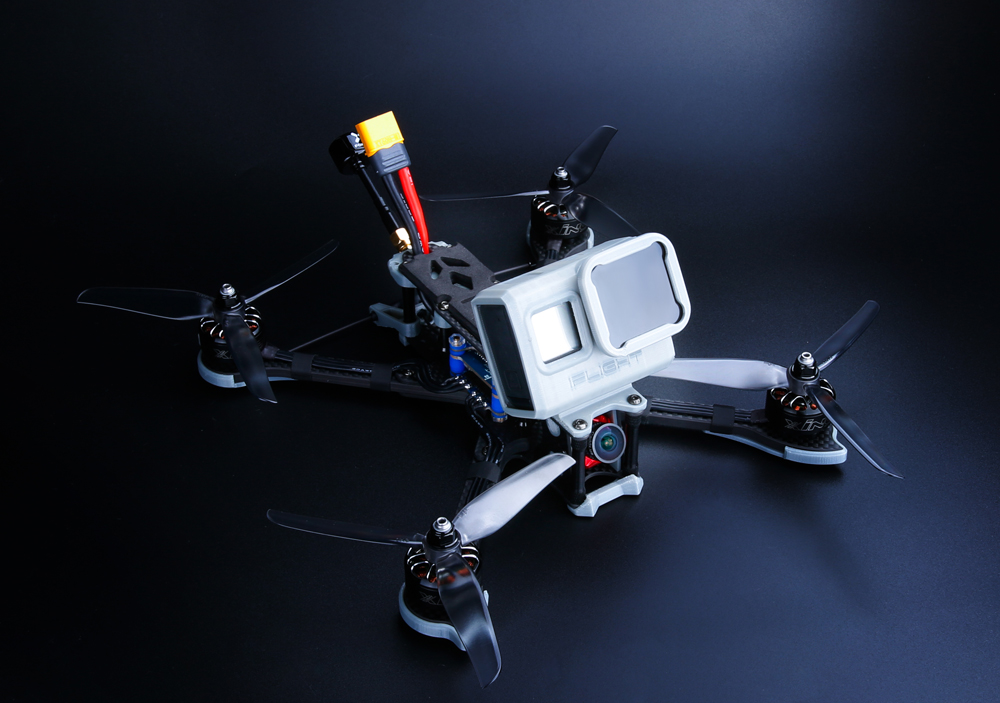

Introducing the Nazgul5 from iFlight. The Nazgul5 is a 5" size BNF (Bind-and-Fly) quadcopter that comes fully built with everything you need to have an amazing flight experience! Just add a battery and a compatible radio and you are ready to take to the skies.
 Made with high-quality carbon fiber weave gives the frame a great deal of sturdiness and TPU insertsdesigntoshock absorbing of FPV camera. Beginners and veterans alike will love flying the Nazgul.

Features:

  • Full 3K Carbon Fiber airframe
  • Easy arm swaps - swap arms by removing only 1 screw!
  • Equipped with XING-E motors and NAZGUL 5140 props
  • 5" version fits popular 5.1" style propellers
  • Popular True-X configuration
  • Motorguard on the end of the arms to protect the motor during a crash

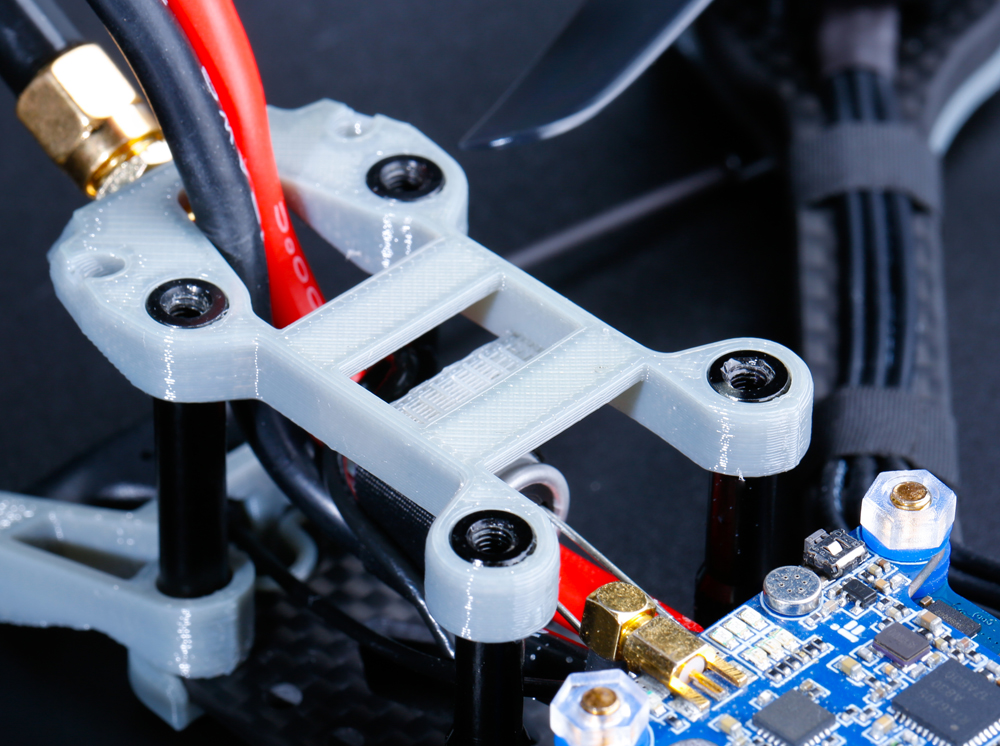

  •  Fits both 30.5x and 20x stacks

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Nazgul5 in particular but at least we know they do distribute iFlight.

Where to buy

USA
getfpv
check web site
Ship to: USA
Australia
Next FPV
check web site
Ship to: Australia

Wingspan: 227mm (8.9 in)
Length: 227mm (8.9 in)

Weight: 362 g (12.8 oz)


Voltage Version: 1700KV @ 6S
Wheelbase: 227mm
Weight: 362g (Without Battery)

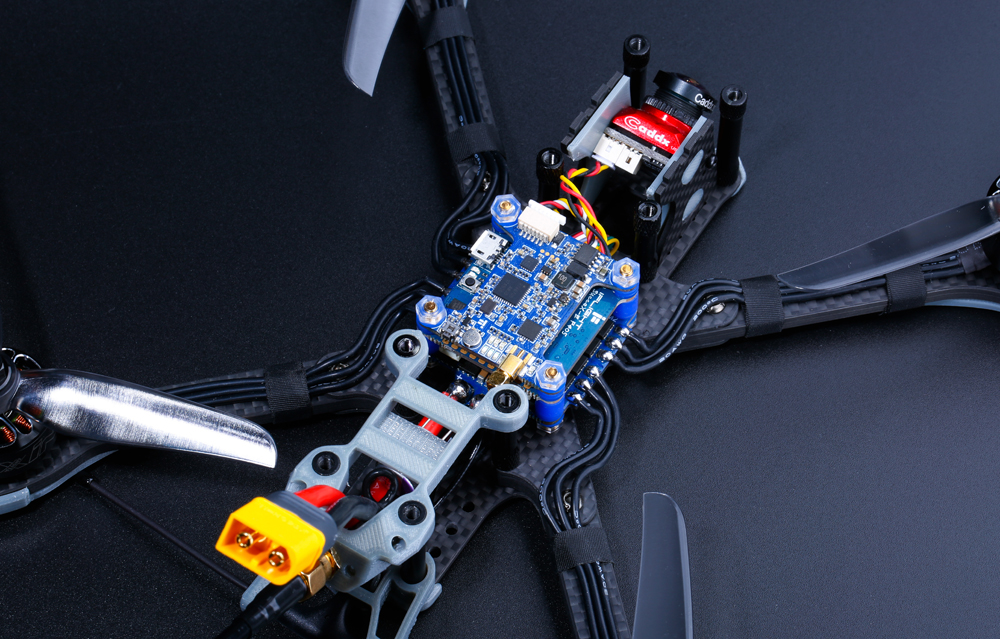

Main Flight Controller: SucceX-E F4 (BETAFLIGHTF4 Firmware)
ESC:45A 2-6S BLheli_S DShot600 4In1 ESC
Motor: XING-E 2207 1700KV
Propeller: IFLIGHT NAZGUL 5140 3-Blade Prop
Receiver: FrSky XM+ Receiver/FrSky R-XSR Receiver  Optional ( Only BNF Version)

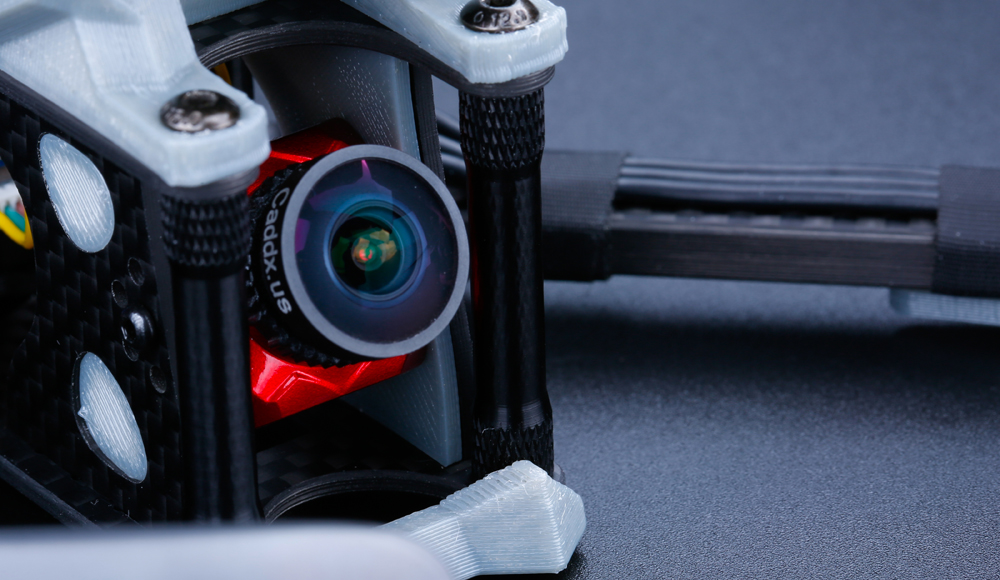

Camera: Caddx Ratel Camera
FPV Transmitter: 0/25/600mW Adjustable frequency 48CH with IRC protocol
Recommended Battery: 1300-1800mAh 6S (all version are Not Include battery)

Variants

nazgul5
Nazgul5 (Black)
