Explorer Q from NAN Models

Details

Brand new high perfomance F5J competition glider. First of the Explorer range with a 4 piece wing (centre panel is in 2 pieces and two versions of the centre panel and two versions of the wing tips are available – 3.5 m, 3.7 m, 3.8 m and 4 m). The airfoil is modified form of the prevoius versions of the Explorer. The fuse is in 3 parts.  X and V tail version are available. This makes it much easier to transport, because you can fit 3 Q models in a box 33x33x135. The servos for the tail are extremely easy to install in the rear end of the fuse. Ballast is to be put  in tubes inside the wing and is easily removed.  Model is suitable for experienced modelers and competitors and is suitable to all weather conditions (depending on the verison).

Features:

  • Carbon fuselage
  • Fully molded composite wing panels
  • Fully molded composite tail
  • Full accessory pack

Pictures

Radio icons

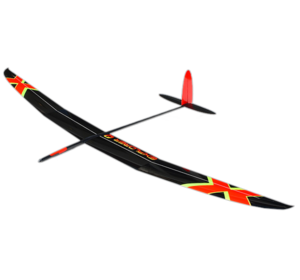

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 4000mm (157.5 in)
Length: 1753mm (69 in)

Weight: 880 g (1.9 lbs)
  • Wingspan:  157.5 in (4000 mm)
  • Wing Area:  1344 sq.in (86.7dm²)
  • Airfoil:  NAN F3J
  • Length:  69 in (1753 mm)
  • Weight:  33 oz (880 g) empty
  • Motor type:  NeuMotor 1102/3.5Y/5.8 (P22)
  • Battery config:  3s LiPo
  • Specification:  Tail Area: 137 sq.in. (8.8 dm²)
  • Maximum Current:  50 amps
  • Tail options:  V-tail, X-tail

Recommended equipments

  • Motor: NeuMotor 1102/3.5Y/5.8 (P22)
  • ESC: CC Phoenix EDGE Lite 50 Brushless Speed Controller
  • Battery: Tattu Battery 850mAh 3S 75C Lipo
  • Spinner: GM 30/6mm Spinner
  • Propeller: GM 15x8 Prop.
