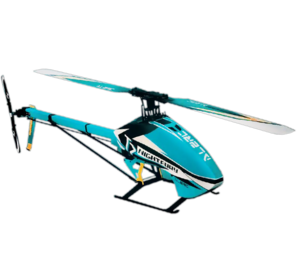

Night-Fury T7 from ALZ RC

Details

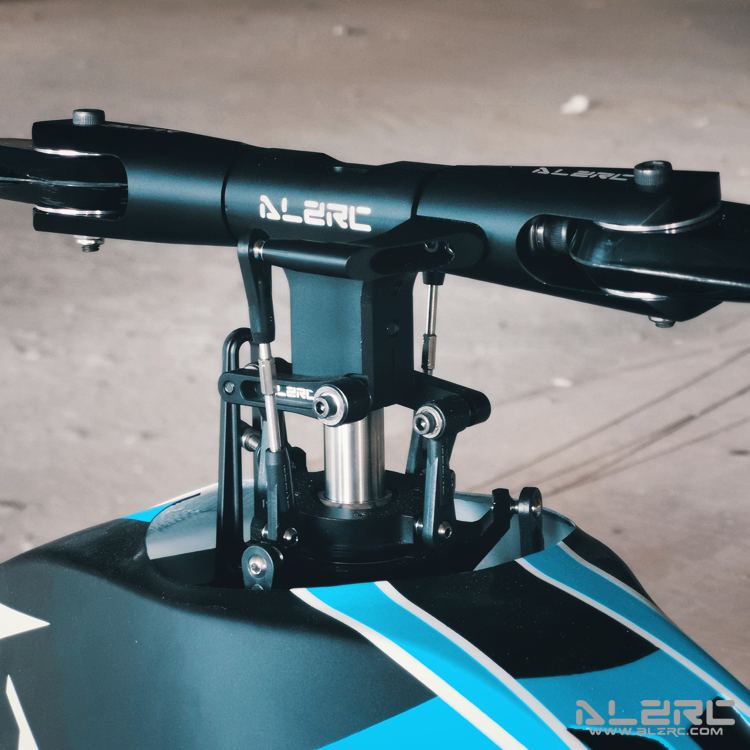

  • FBL Rotor System: Apply FBL rotor set. 7075 high strength aviation aluminum work with precision CNC machining, plus the matte black surface, which enhance texture and highlight the noble sense of this helicopter. Ф10mm spindle shaft, high carbon steel precision grinding, M6x12mm high strength hex lock screw, increasing safety for violence flight.
  • Two-way Adjustable: Linkage Rod Equipped with hex pros and cons linkage rod with covering the swashplate and main rotor linkage rod group which easy to adjust quickly and accurately. Choose a special adjusting wrench will make it easier.
  • Zero Gap And Double Bearing Swashplate: 7075 high strength aviation aluminum precision machining swashplate with high-end double bearings, make the flight action more accurate and delicate. Anti-Rotation Bracket using 3 bearings design, give it not only more smooth and less wear but also with minimal gap.
  • 6mm Diam. Linkage Ball Design: 6mm diam. stainless steel linkage ball with larger contact area which give more resistance to extreme conditions, make control more accurate, also strengthened the wear-resisting degree for violence flight.
  • 3K Pure Carbon Fiber Frame: All carbon fiber parts adopt 3k high quality matte pure carbon fiber plate, engraving process with straight grain typesetting, which maximizes the torsional resistance. All of this significantly improved rigidity of the whole fuselage.
  • Unibody Main Shaft Mount: Main shaft mount with unibody design, made by 7075 high strength aviation aluminum in one piece. Concentricity and strength with perfect match. Ф15mm main shaft made by high carbon steel with precision grinding, make fly freely and accurately.
  • Unibody Motor Mount: Unibody motor mount equip with Ф10×Ф22x6mm EZO bearing which provide steady support for motor gear, at the same time clearance in between gears adjusted by hand to be quick, accurate and convenient. The optimized design increases the heat dissipation area of the motor and supports the motors of various output shaft lengths.
  • Shaped Tail Boom Design: The tail boom is designed with a square top and a round bottom, which can be combined with the locking method of the tail boom mount to lock the boom more effectively and reduce the displacement of the boom in flight.
  • Unibody Tail Gear Box Se Belt Idler Quick-release System: The tail gear box unibody design ensures it with perfect conditions in extreme environments. Tail gear box belt idler, use high strength screws fix make it easy to install.
  • Fiberglass Painted Canopy: Equipped with a new design of streamlined glass fiber paint canopy, the new formula of glass fiber raw material, not easy to crack off the paint, super light weight, but strong and durable.
  •

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Night-Fury T7 in particular but at least we know they do distribute ALZ RC.

Wingspan: 1578mm (62.1 in)
Length: 1578mm (62.1 in)

Weight: 2850 g (6.3 lbs)
  • Main Rotor Diameter: 1578mm (700mm)
  • Main Blade Length: 700mm~730mm
  • Tail Rotor Diameter: 300mm (105mm)
  • Tail Blade Length: 105mm~115mm
  • Main shaft Diameter: 15mm
  • Spindle Shaft Diameter: 10mm
  • Tail rotor shaft Diameter: 6mm
  • Tail rotor spindle shaft Diameter: 5mm
  • Weight: 2850g (Including blades, without battery and electronic equipment)
  • Motor Size: Maximum diameter 65mm、Maximum hight 65mm
  • Motor Shaft: 6mm
  • Battery Compartment: 70x75x320mm
  • Servo Size: Standard 40mm width
  • Main Rotor Ratio: 1:10 (Motor Pinion 11T)
  • Tail Rotor Ratio: 1:4.7 (Tail Pinion20T)
