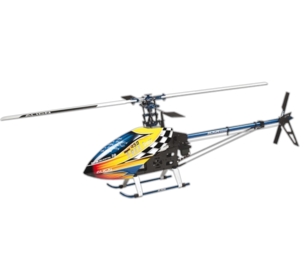

T-REX 450 Pro V2 from Align

Details

This is the Align T-Rex 450 Pro V2 3GX Flybarless Super Combo Helicopter Kit. This kit includes one Align 450MX 3400kV motor, RCE-BL35X Brushless ESC, three Align DS410 digital servos, one DS520 digital servo, 325D carbon fiber rotor blades, and the awesome Align 3GX flybarless system.

Features:

  • Incorporating the next generation 3GX flybarless system, with enhanced pirouetting compensating routine, and optimized stability for smaller helicopters. Together these features enable smaller helicopters to have control feel that resembles its flybar counterpart.
  • Improved low wind resistance specialized flybarless rotor head assembly, with reduced distance between rotor head and frame, effectively lowering the CG for better 3D performance.
  • Improved side frame design, with dedicated 3GX mounting location. 3GX can be placed in between frames, or behind anti-rotation guide, resulting in clean wire management and improved aesthetics.
  • Unibody main shaft and servo mount, with modified side frame connecting points, simplifying servo replacement and improving ease of maintenance.
  • Brand new MX series high efficiency brushless motor, with heat sink style casing and built in cooling fan, effectively increase heat dissipation during operation, improving power output.
  • Integrated battery / ESC mount, allowing adjustment based on battery dimension for optimal CG of the helicopter. Additionally the number of screws has been reduced to minimize assembly and maintenance time.
  • High efficiency tail shaft drive design, dramatically reduce power loss associated with belt driven system, and at the same time increase power output.
  • Vertical rudder servo mount design moving the CG closer to center, improving agility during 3D maneuvers.
  • Unique opposing weighted tail blade grips effectively increase rudder and gyro performance, for superior tail locking and higher precision.
  • New aerodynamic canopy with paint scheme resembling the T-Rex 600E Pro, perfectly matched to the helicopter frame to create aesthetic perfection.

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.


Wingspan: 710mm (28 in)
Length: 635mm (25 in)

Weight: 640 g (1.4 lbs)
  • Length: 635mm
  • Height: 230mm
  • Main Rotor Diameter: 710mm
  • Tail Rotor Diameter: 158mm
  • Motor Drive Gear: 15T
  • Main Drive Gear: 150T
  • Autorotation Tail Drive Gear: 106T
  • Tail Drive Gear: 25T
  • Drive Gear Ratio: 1:10:4.24
  • Weight (w/no power system): 530g
  • Flying Weight: Approx. 640g

Variants

TRX450PROV2
T-REX 450 Pro V2 (Yellow Blue Red)
