Sensor from CN Models

Details

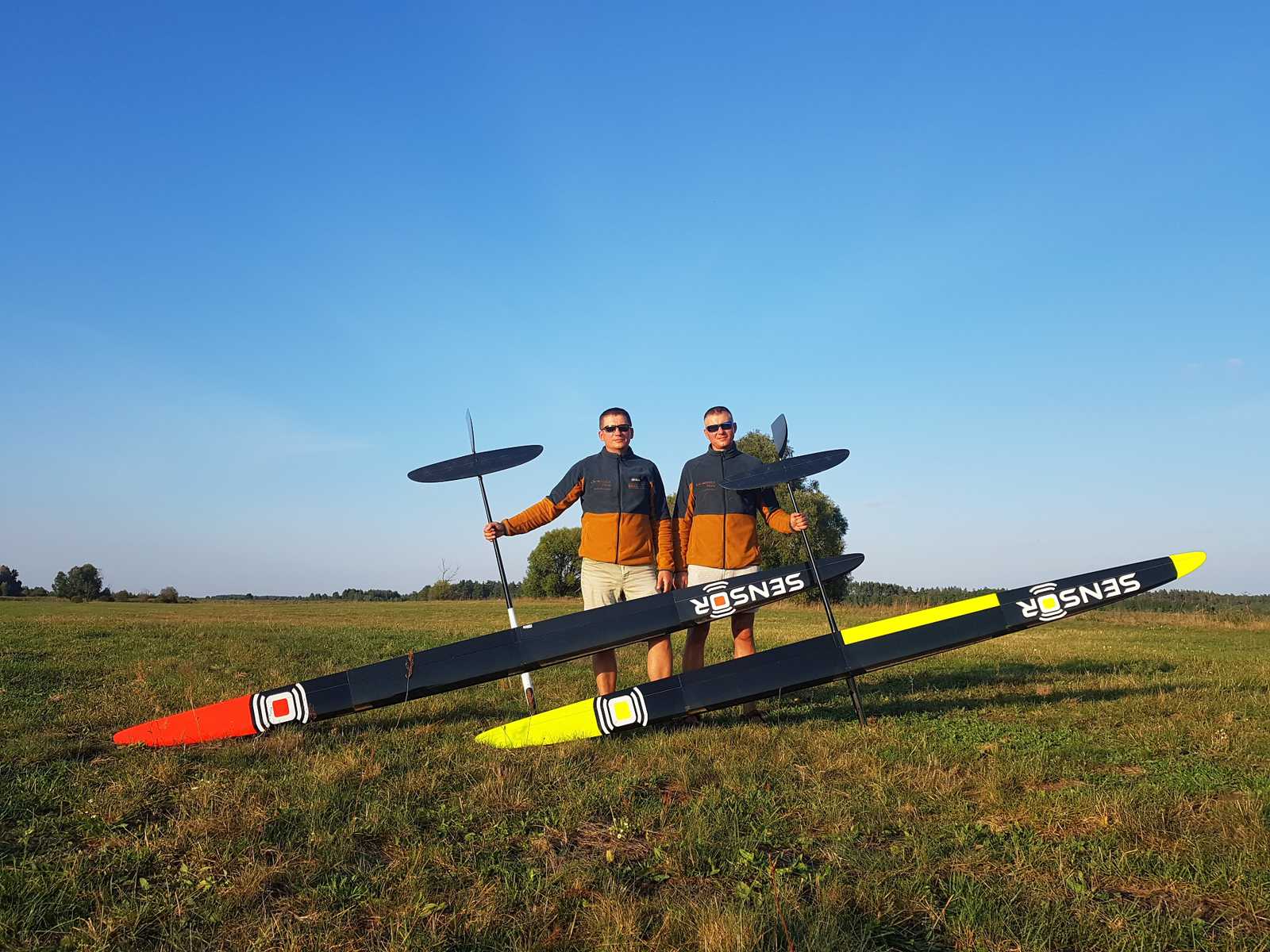

The Sensor F5J glider is a novelty of 2021, which is the result of fruitful cooperation between CN-Models and Aer-O-Tech. Thanks to the original profiles from Aer-O-Tech, it was possible to achieve outstanding flight characteristics. Sensor F5J is a model that combined the best technical solutions in the F5J class, but at the same time it became closer to the free-fly models in gliding. It can be easily operated by both a professional and a novice in all weather conditions.

Profiles from Aer-O-Tech allow the Sensor to fly well both in calm and strong winds. The manufacturing technology with a solid core made it possible to get very rigid, but at the same time very light model. Thanks to its unique design, the model is easy to assemble and disassemble, as well as very easy to transport, since the maximum length of its longest part is 112 cm.

Pictures

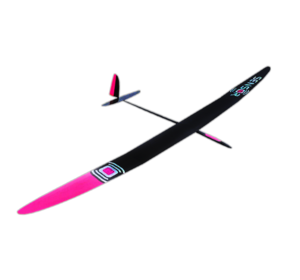

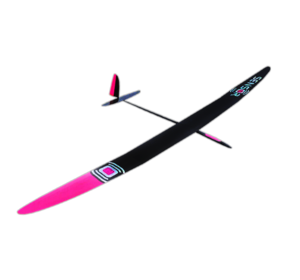

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Sensor in particular but at least we know they do distribute CN Models.

Where to buy

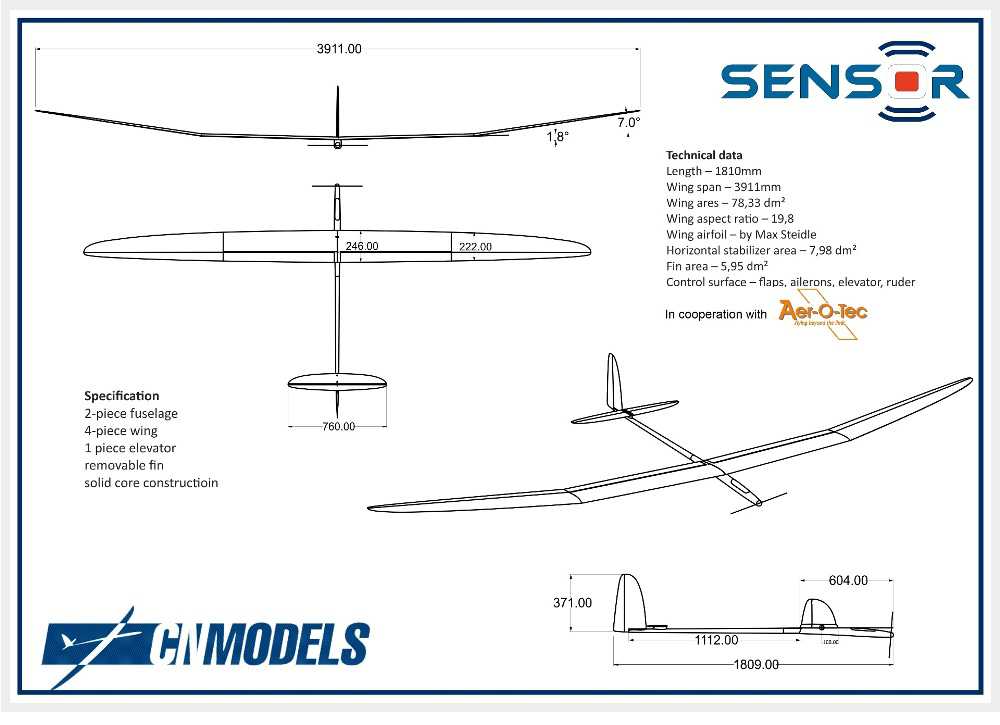

Wingspan: 3911mm (154 in)
Length: 1810mm (71.3 in)

Weight: 1350 g (3 lbs)
Length 1810 mm (71,25")
Wing span 3911 mm (153,98")
Wing area 78,33 sq dm
Wing airfoils original by Aer-O-Tec
Horizontal stabilizer area  7.98 sq dm
Vertical stabilizer area 5,95 sq dm
Control surfaces ailerons, flaps, elevator, rudder





Sensor Light Sensor Normal Sensor Windy
NT model weight* 858 gr (30,27 oz) 956 gr ( 33,72 oz)  1049 gr ( 37,00 oz)
Model flight weight** 1220 gr (43,03 oz) 1350 gr (47,62 oz)  1500 gr ( 52,91 oz)
Wing loading 14,14 grdm²  15,64 grdm²  17,38 grdm²



 CG=105 mm Left  aileron Flap Right  aileron Elevator Ruder
Speed -1,8 -1,8 -1,8 0 0
Cruise 0 0 0 0 0
Thermal   slider slider slider
  0÷5 0÷5 0÷5
Cruise Full Up Elevator 3 3 3 -6 0
Cruise Full Down Elevator 0 0 0 15 0
Cruise Full Left Aileron -18 0 8 0 -6
Cruise Full Right Aileron 8 0 -18 0 6
Full Flaps 30 80 30 10 0
Left Rudder       0 -20
Right Rudder       0 20

Variants

SENSOR-P
Sensor (Black)
