Details

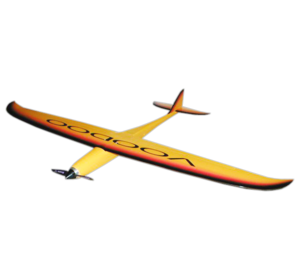

The Voodoo is beautifully constructed, with an absolutely outstanding finish, attention to detail, and quality of design. The Voodoo is also blazingly fast, with its strong high aspect ratio wing, short nose (allowing heavier motors), large battery compartment, and excellent aerodynamic design.
The Voodoo flies exactly where you point it and is a very good first racer. With a hot setup the model can easily reach 260 Km/hr (160 mph) or more.

The perfectly molded glass fuselage has carbon reinforcement and the firewall, fin, and tailplane already fitted. The firewall already has the motor mounting holes drilled (on a 16mm PCD) and the ready-hinged elevator has the horn molded in, with a ball link fitted.
The flawless molded wing has a carbon spar, with gap sealed ailerons, and aileron torque rods installed. These have the balls secured on the end of the arms, to engage in the supplied control rod hardware, and ensure a totally slop free and geometrically correct linkage to the two aileron servos. This allows the ailerons to be drooped for landing, allowing the model to be landed easily at a reasonably low speed. The wing skin is a very rigid glass/balsa/glass sandwich with a substantial carbon spar.

The Voodoo is supplied with very high quality accessories including superb pushrods with ball links, and a clever mount for the elevator servo to easily facilitate installation in the rear of the fuselage. The only work required is fitting the motor and RC. The only gluing required is attaching the aileron servos. The racer can be completed in one or two lazy evenings.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Voodoo in particular but at least we know they do distribute miro urban.

Wingspan: 840mm (33.1 in)
Length: 550mm (21.7 in)

Weight: 400 g (14.1 oz)
Wingspan 0.84 m 33.1 in
Wing area 7.0 dm2 109 sq in
Length 55 cm 21.7 in
Flying weight from 400 g 14.1 oz
Wing loading 57.1 g/dm 18.7 oz/sq ft
Aspect ratio 10.1
Wing airfoil 7.5% proprietary
Dihedral
Spinner Diameter 30 mm
Centre of Gravity 38-41 mm from wing leading edge
Controls Aileron, elevator, throttle
