HP60 from NCFM

Details

The HP60 is not just a scaled-up version of it's little brother. Instead of an overall embiggening of the planform we spanned the 48" Halfpipe templates to 60" resulting in ahigher aspect wing with even less sweep at the trailing edge.

The HP60 comes with a monster tapered carbon spar system (aka golf club shafts) coupled with a beefy custom pre-angled 15" spar joiner made from T6-6061 aluminum and with a 5" steel center... it is very likely one will never be broken. All combined this is THE most torsionally rigid EPP wing we have ever felt pre covering and with excellent weight distribution. Depending on your intended use and building techniques it can only get stiffer. While not shown in the below pics the wings also come with pre-cored chambers for the provided lead balance weight (8) 35 gram 1" slugs.

NCFM spent quite a bit of time redesigning the tail mount system. The old molded version was prone to breakage of the carbon boom and we received repeated complaints about the cost of replacing the boom. So the decision was made that the best solution for the tailmount was to use a beefed-up version of the Coroplast system used on the Halfpipe. The HP60 Coroplast mount is bigger and thicker and balsa Fin stock has been stepped-up to 3/16" versus the 1/8" on the littler HP. (As addressed in the manual DS guys may want to reduce the fin planform area by about 30-50% and potentially go split-fin as with the Blutos given the opposing flight loads; the stock tail config is more intended for heavy frontside loads).

This plane is intended strictly for medium to heavy air. If you only fly little pink "girly hills" please opt for another bird. In light conditions on smaller slopes you CAN get this plane to flick if pushed too hard on a turn in meager lift. It is simply the nature of a higher wing loading design balanced with a slightly swept LE to keep nose weight/mass distribution at the absolute minimum. In bigger air on bigger slopes this plane honestly rocks. It will grip and bite turns beautifully with great energy--you just need a bit more air than the 48" version. Note: As with all of our aircraft the HP60 is not intended as a first glider

Features:

  • Incredible stability & energy retention
  • Phenomenal speed range
  • Beautiful turns… slammed or carved
  • Effortless inverted flight
  • Highly responsive
  • Great light lift performance
  • Will “speck out” in thermals
  • Very durable

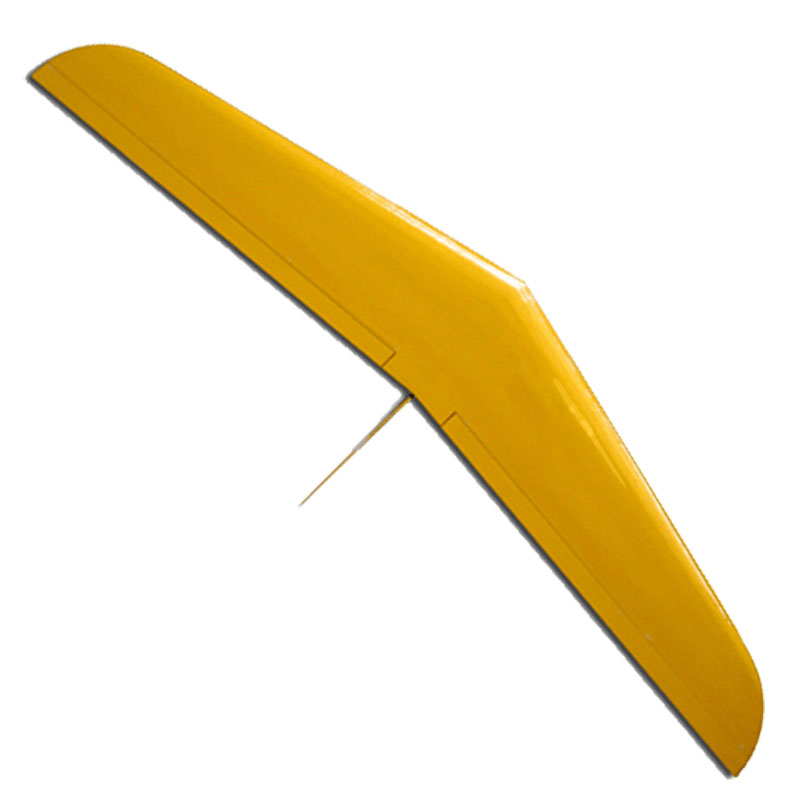

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the HP60 in particular but at least we know they do distribute NCFM.

Wingspan: 1524mm (60 in)
Length: unknown

Weight: 1191 g (2.6 lbs)

Span: 1524 mm
Wing Area: 33.87 dm2
Typical Flying Weight: 1191 g (Unballasted)
Control Channels: Two (2)
Transmitter: Digital proportional
Receiver: Mini
Servos: Micro
Battery: Small

Kit Includes:

  • High-load carbon fiber wing spar system
  • 1.9lb Precision-cut & sanded EPP foam wing cores
  • 1.9lb EPP fuselage core with fiberglass longeron
  • Quality balsa elevon material (weight-matched)
  • Basswood drag spars
  • Basswood drag spar joiner
  • All control horns and linkages
  • Comprehensive DVD manual with detailed graphics

You Need:

  • Typical EPP construction tools and materials (knives, glues, tape, etc.)
  • Heat shrink covering
  • A 4 channel Digital Computer Transmitter: with Delta mixing, End-point Adjustments and Dual Rates
  • A Mini Receiver : Max dimension 45 x 32 x 12 mm (1-3/4″ x 1-1/4″ x 1/2″)
  • Two (2) Micro Servos / similar to Hitec HS85MG or KST DS145MG
  • One Small Battery Pack: 700 mah capacity Min.
