Nanofly16 from Sub250

Details

1s Nanofly16 1.6 Micro Quad is very quiet, and suitable for both indoors and outdoors. Currently available in 2 versions: ELRS 2.4G, TBS 915 Mhz.
The design concept of Nanofly 16 quad is lightweight, small in size, has good hand feels, and is suitable for a variety of flight scenarios FPV traversing aircraft. Obviously, it exceeded the design specifications. We designed a 1.5mm carbon fiber body with a 3D-printed upper shell for the Nanofly 16. The fuselage has high strength and is very crash-resistant. We did a lot of tests and selected the Ant lens with better effect, which has a better imaging effect and less wide-angle distortion. We developed a 0803-19000KV strong magnetic motor with 40mm propellers, it has strong power and smooth throttle, which is very suitable for flying freestyle.

Nanofly16 has an ultra-light body weight with the latest 1S 380mAh high-voltage battery. The take-off weight of a drone is only 38.0g, and the flight time is 4.5 minutes. Equipped with a 3D printed battery holder, it is convenient and quick to replace the battery.

The most important thing is that Nanofly16 is very quiet to fly, like a dragonfly, you can both fly it at home and freestyle in the yard and even set up a few gantries for racing practice. Trust me, you'll love this small, portable, and quiet mini FPV drone after you fly it.

Features:

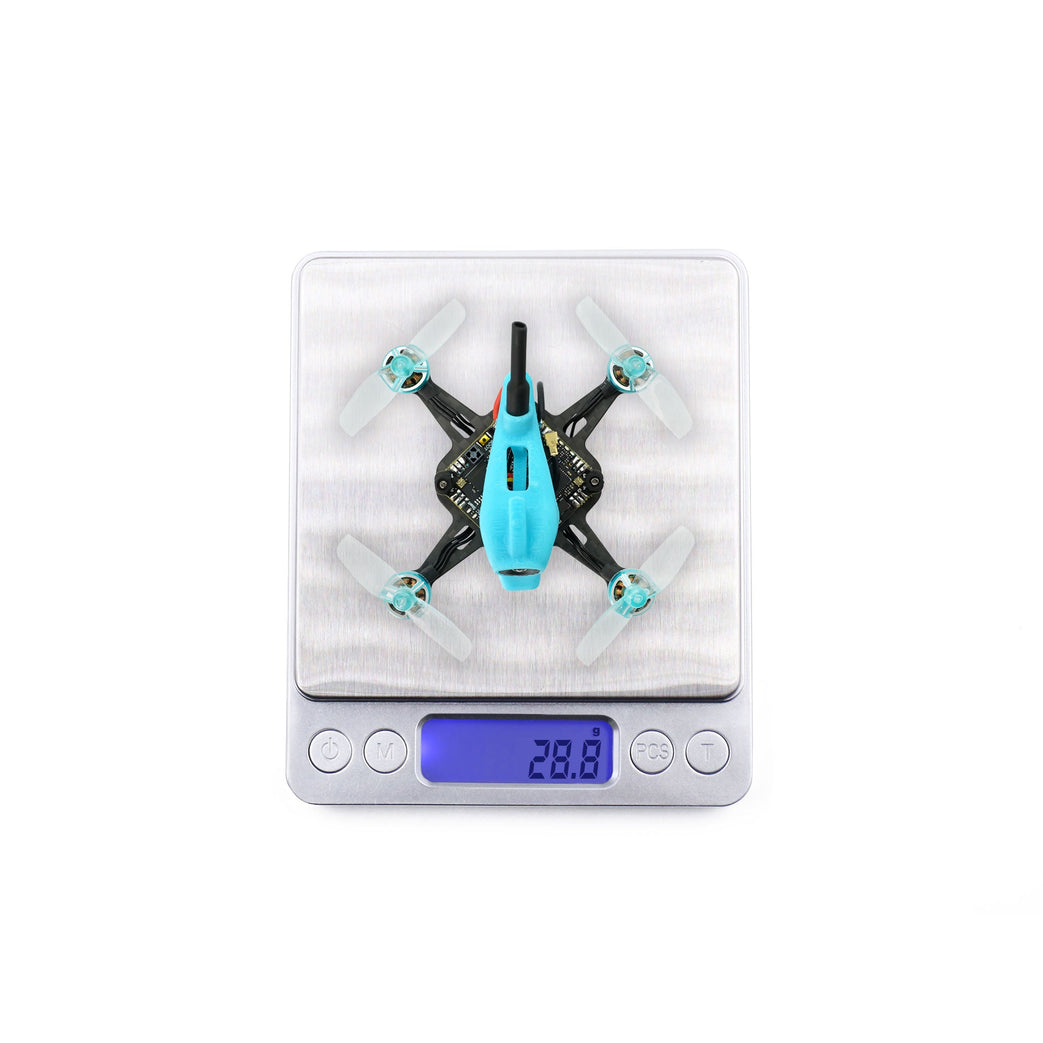

  • 1.6-inch tiny size & lightweight, just 28.0g
  • Includes a full set of high-quality 3D printed parts for a superior flying experience
  • It is equipped with a new F411-1S AIO/250mW/ELR Flight controller. Reliable & stable and easy to use.
  • Ant camera with high-quality image. Clear and clean.
  • With a new 1S 380mAh battery with plenty of power output(not include)
  • The latest light 0803 - 19000KV motor is matched with 40 mm-2 propellers proving maximum power and efficiency
  • It is quiet, like a dragonfly,suitable for both indoors and outdoors.
  • Suitable for both freestyle and racing.

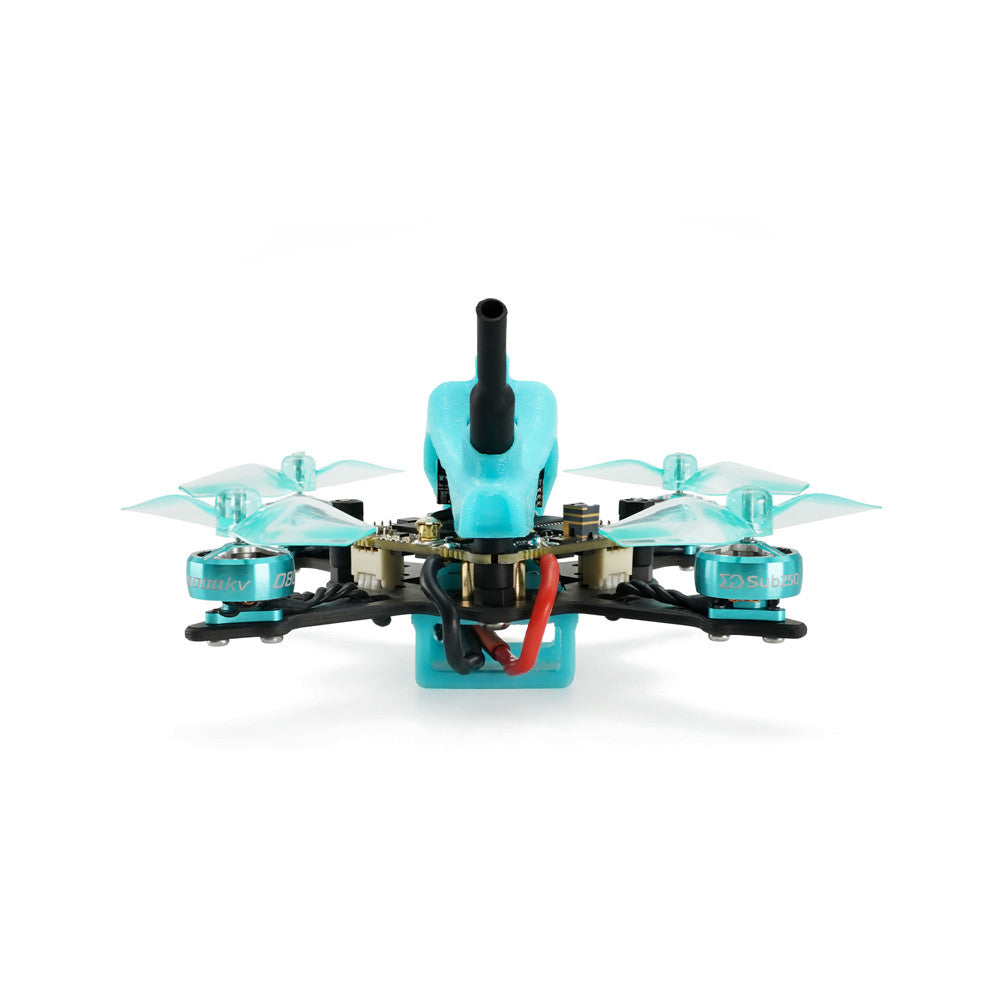

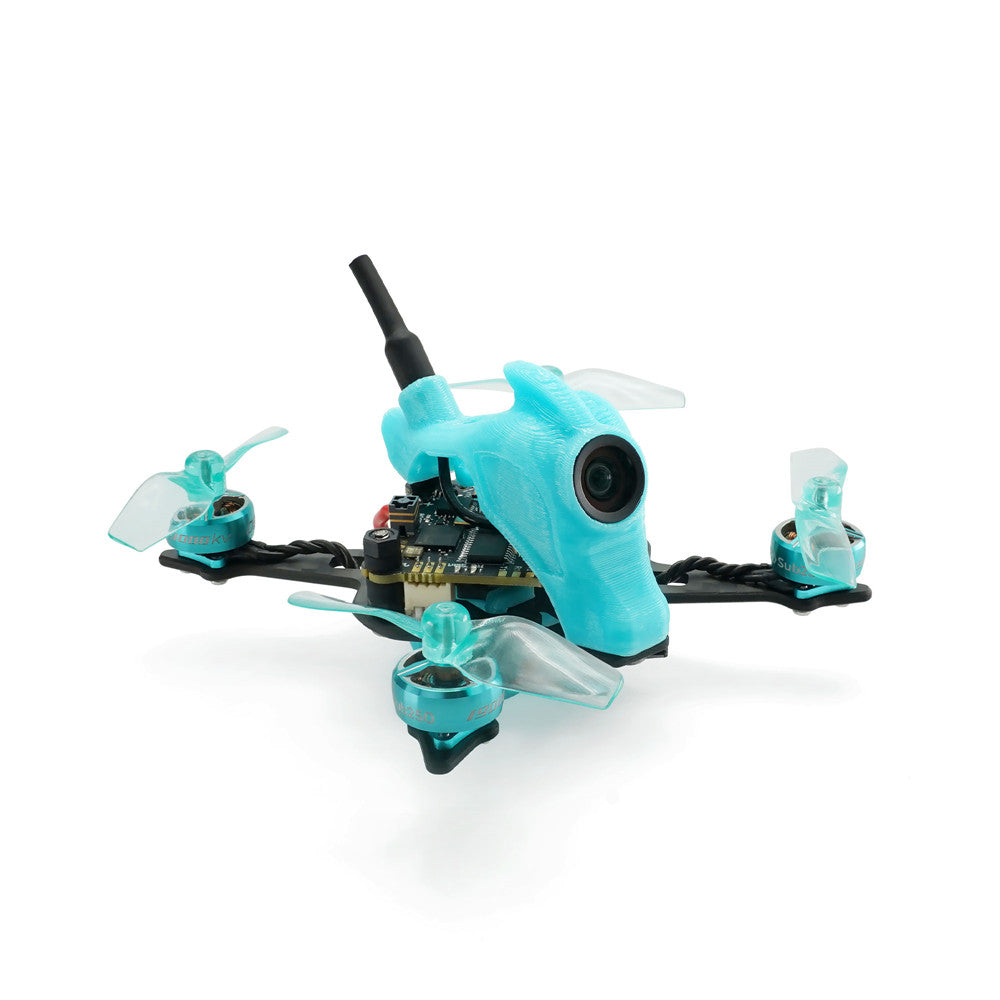

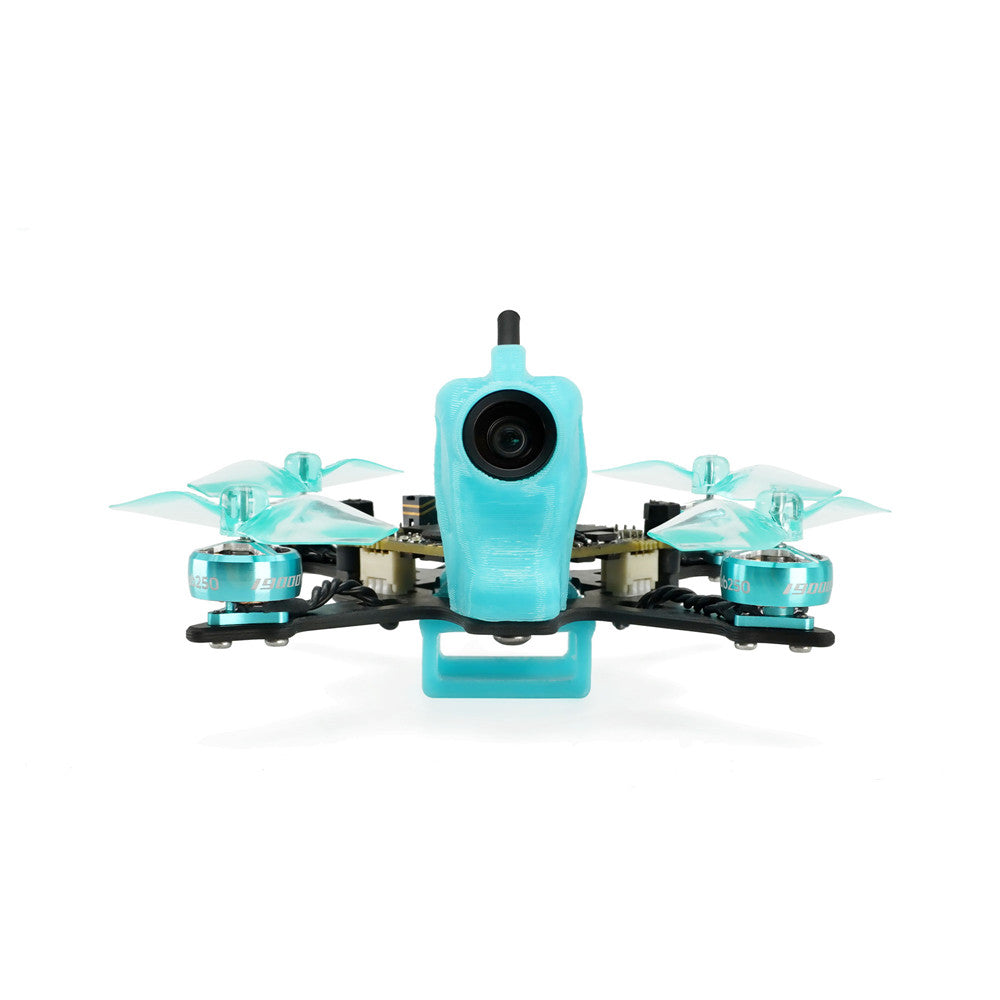

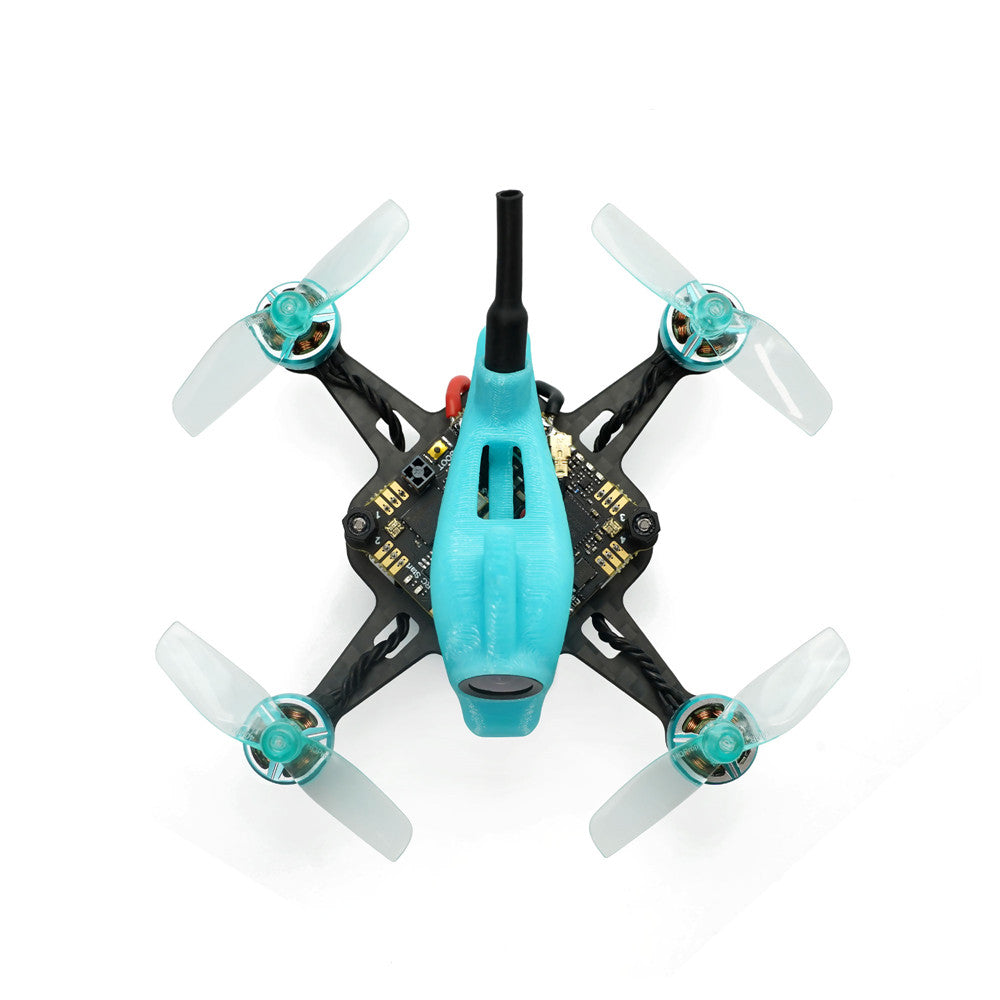

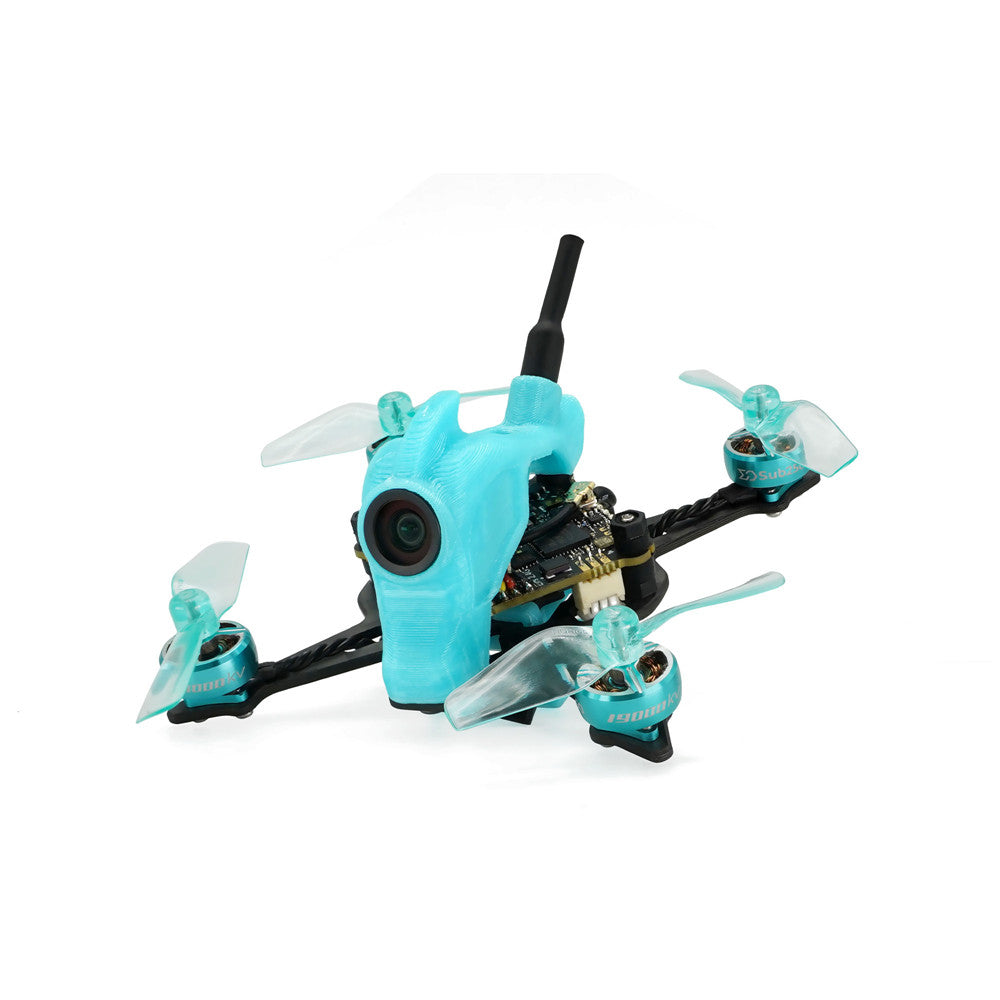

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Nanofly16 in particular but at least we know they do distribute Sub250.

Where to buy

Hong-Kong
Banggood
check web site
Ship to: International
China
Makerfire
check web site
Ship to: Worldwide

Wingspan: 77mm (3 in)
Length: 77mm (3 in)

Weight: 28 g (1 oz)
  • Frame: NF16
  • Wheelbase size: 77mm
  • Arm thickness: 1.5mm
  • Motor: M1 0803-19000KV
  • Weight:28.0g (ELRS)
  • Camera: Ant
  • MCU:STM32F411
  • IMU: ICM20689(SPI)
  • ESC: BLheli_S 4IN1 5A ESC
  • VTX: VTX 5.8G 250mW
  • Propeller: HQ 40mm-2
  • OSD: BetaFlight OSD w/AT7456E chip
  • Antenna: UFL 5.8G stick VTX antenna
  • Flight Controller: F411-1S AIO/250mW/ELRS
  • Receiver Version: ELRS 2.4G TBS 915 Mhz
  • Battery: Recommend 380mAh 1S 90C LiHV battery(Not include)
  • Flight Time: 4 minutes and 45 seconds flight time with Sub250 latest 1S 380 mAh!

Package Included:

  • 1 x Nanofly16
  • 4 x HQ 40mm-2 propellers
  • 1 x 3D printed battery holder
  • 1 x Phillips-head screwdriver

Variants

NF16
Nanofly16 (Black Blue)
