XLPower 550 from XLPower

Details

The XLPower 550 Electric Helicopter Kit provides pilots with an excellent blend of features: Low disc loading (light weight helicopter design), low cost, & great value! Paired with a set of Zeal Carbon Fiber Blades, Carbon Fiber Tail Blades, and an XL Power 4020 series motor, pilots looking to step into a new size helicopter will be hard pressed to find this level of fun to price ratio!

XL Power design features formidable elements such as: HPS (High Precision Head System), 10mm Main Shaft, 8mm Spindle Shaft, Aluminum frame stiffeners, direct to swash servo design, lightweight high visibility canopy, dampened tail rotor system, single pieces tail case unit, and a downward rake that tilts the helicopter 2.5 degrees to decrease the event of a tail strike under landing or other maneuvers.

Features

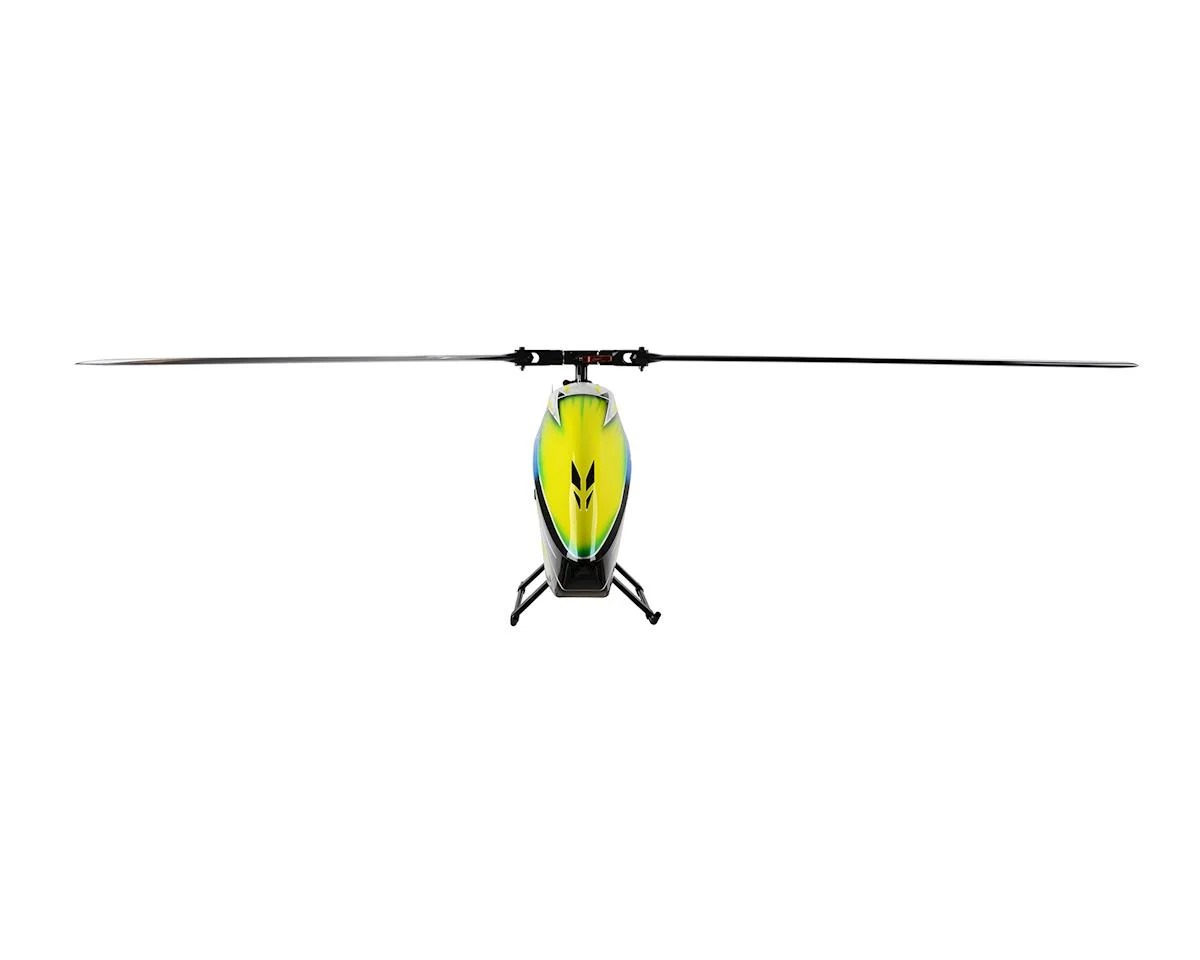

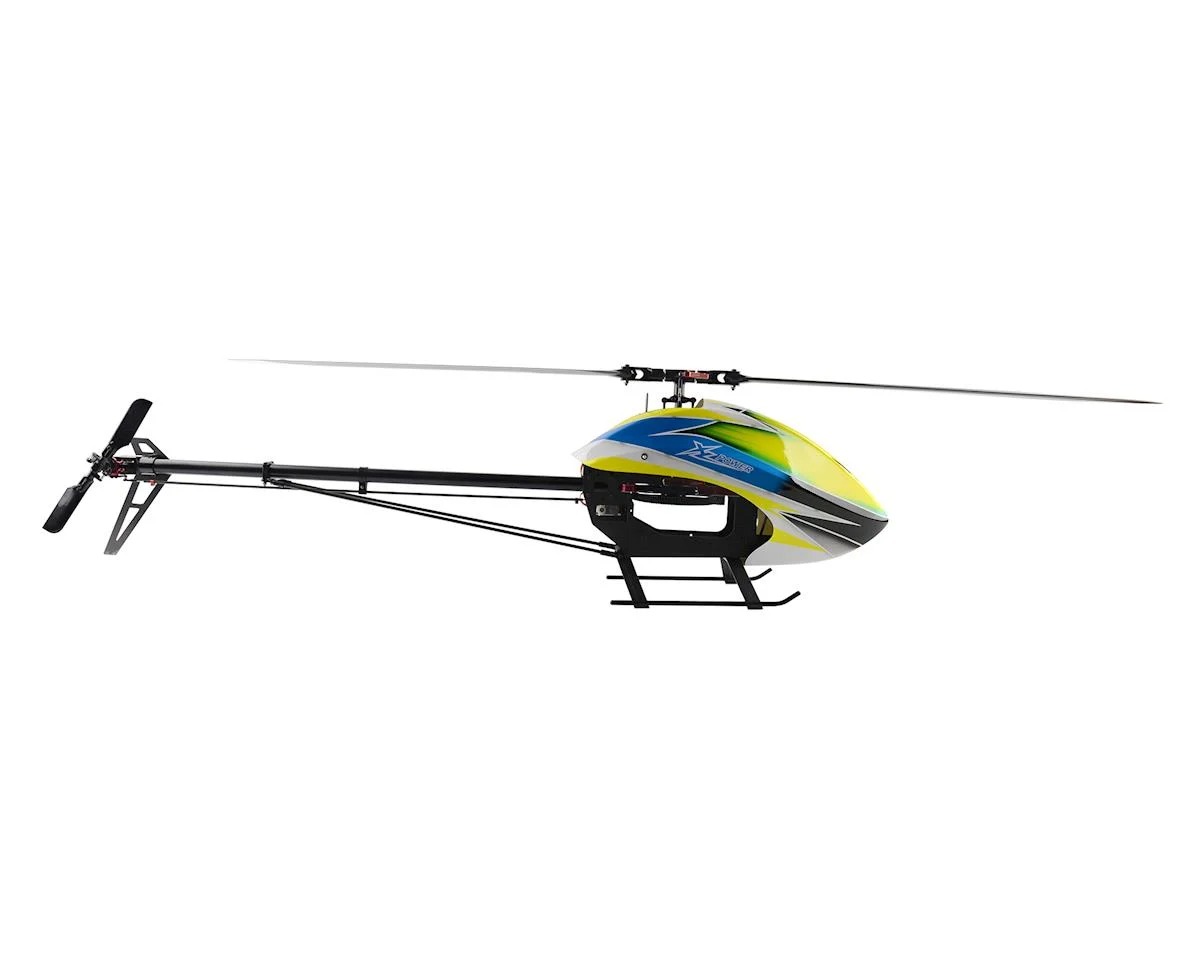

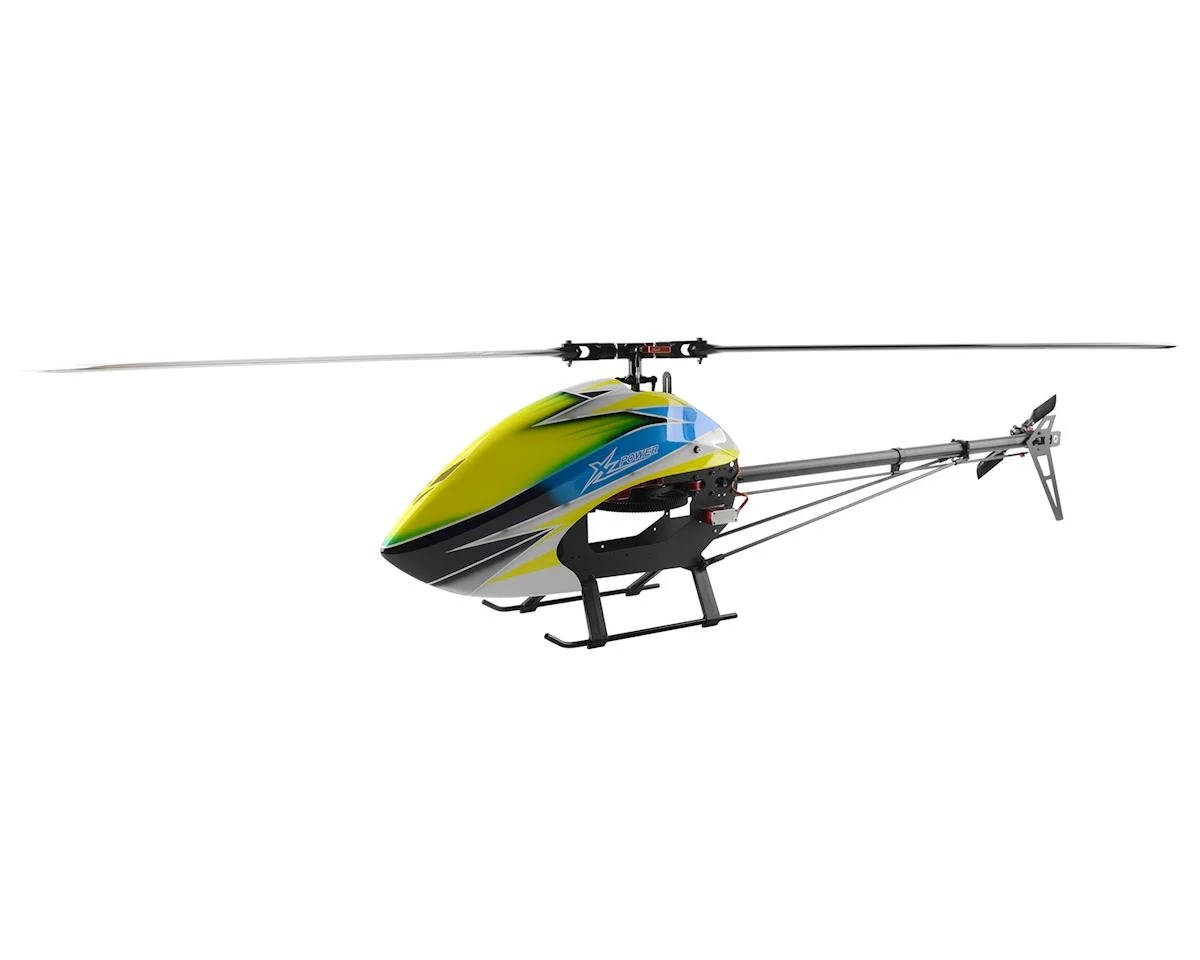

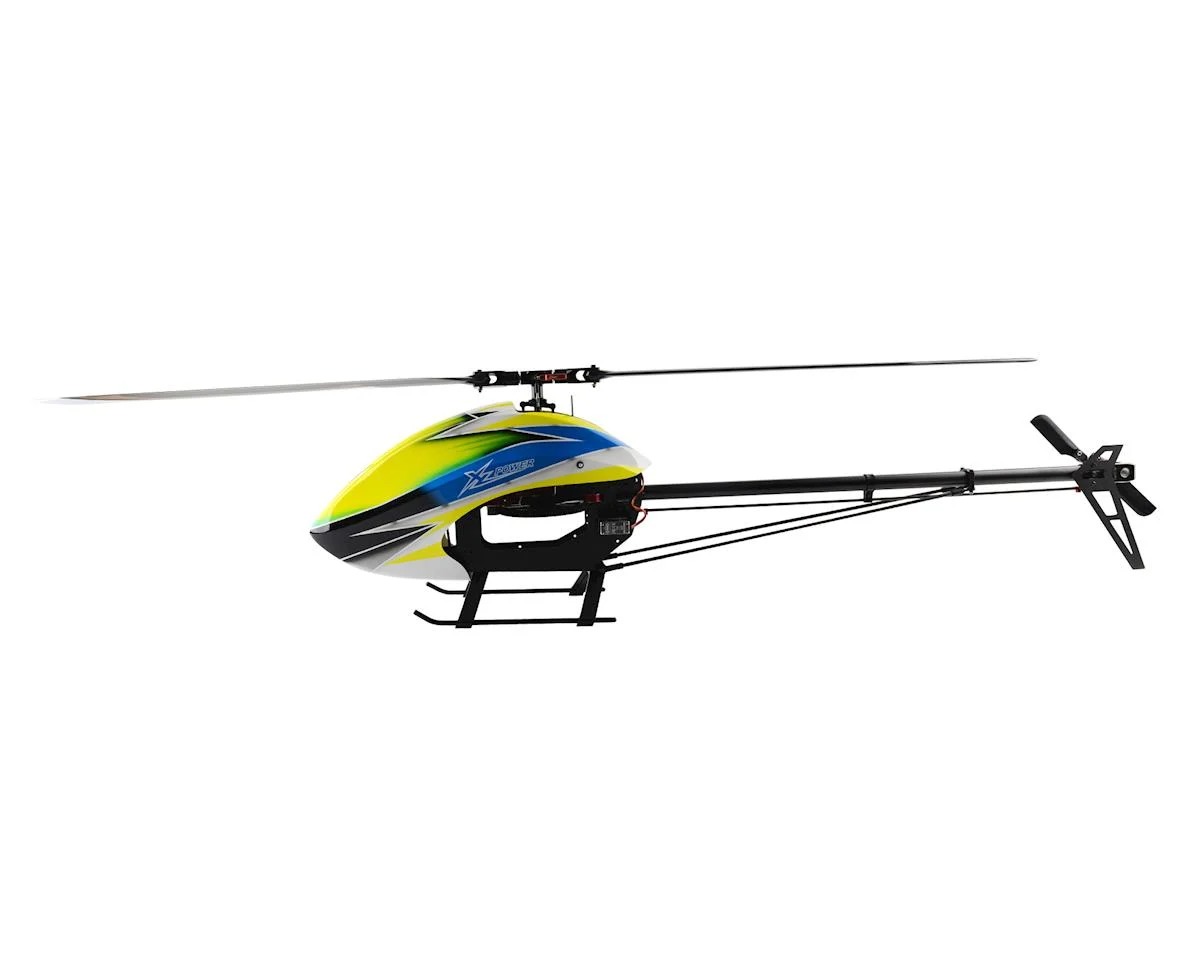

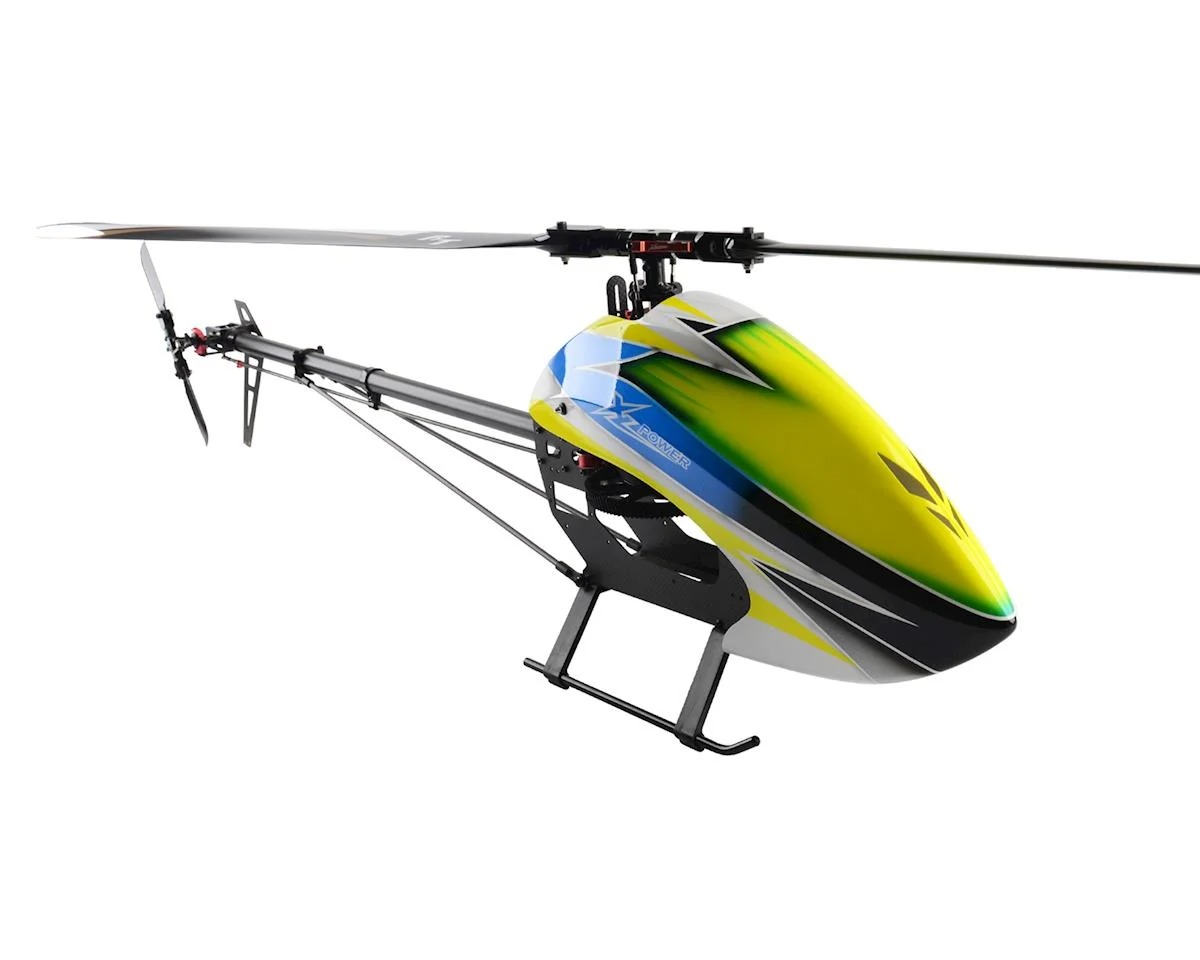

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the XLPower 550 in particular but at least we know they do distribute XLPower.

Wingspan: 570mm (22.4 in)
Length: 1080mm (42.5 in)

Weight: 2800 g (6.2 lbs)
  • Length: 1080mm
  • Height: 310mm
  • Width: 160mm
  • Main blade size: 430mm - 570mm
  • Tail blade size: 72mm - 86mm
  • Motor pinion: 12t included;13t optional
  • Helical CNC Main gear: 106t
  • Tail pinion: 13T
  • Autorotation Gear: 60T
  • Main to Tail Gear Ratio: 4.615
  • RTF weight: 2500g-2800g
  • Main Shaft Diameter: 10mm
  • Feathering Shaft Diameter: 8mm
  • Tail Boom Diameter: 20mm
  • Max Battery Size: 220mm*48mm*55mm (6S)
