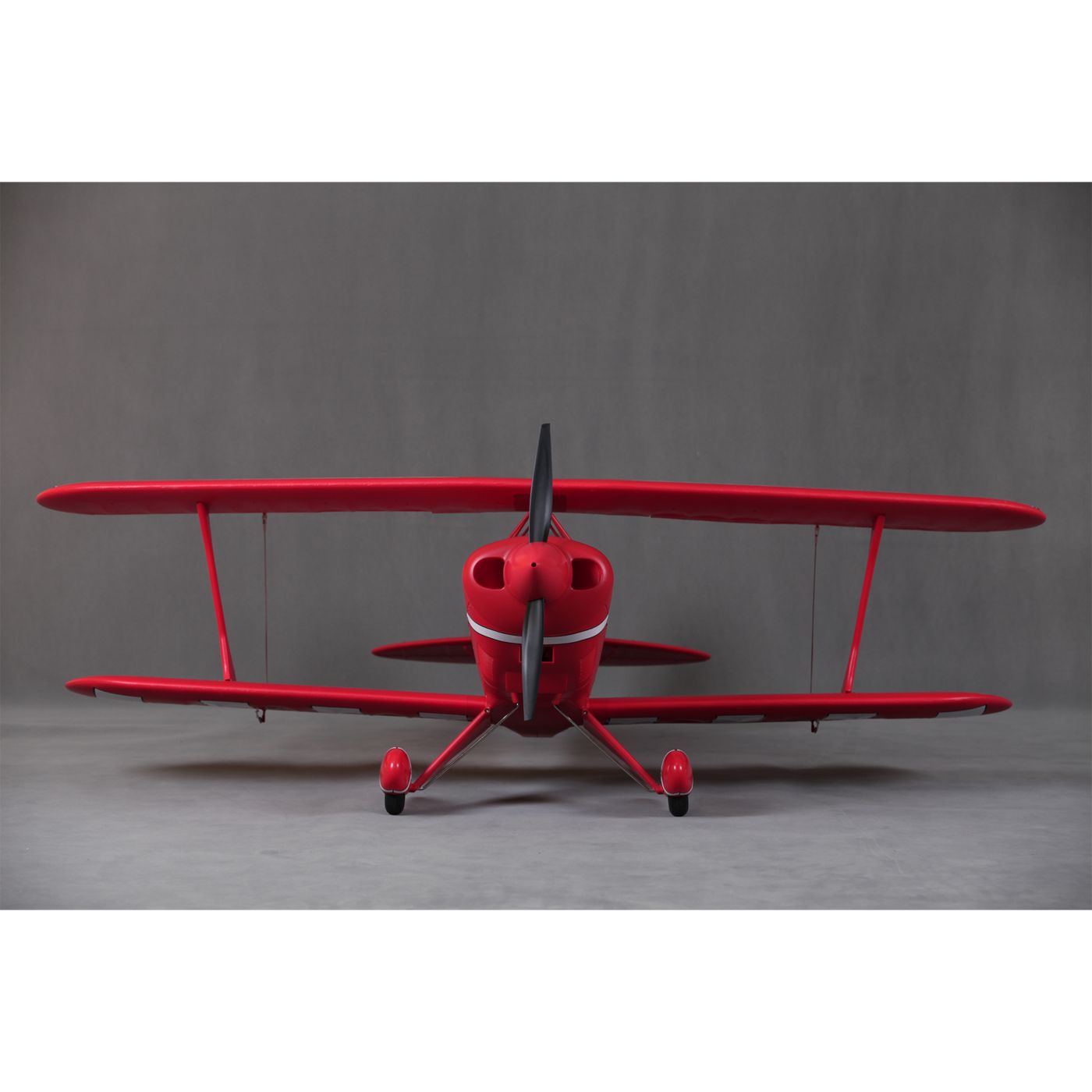

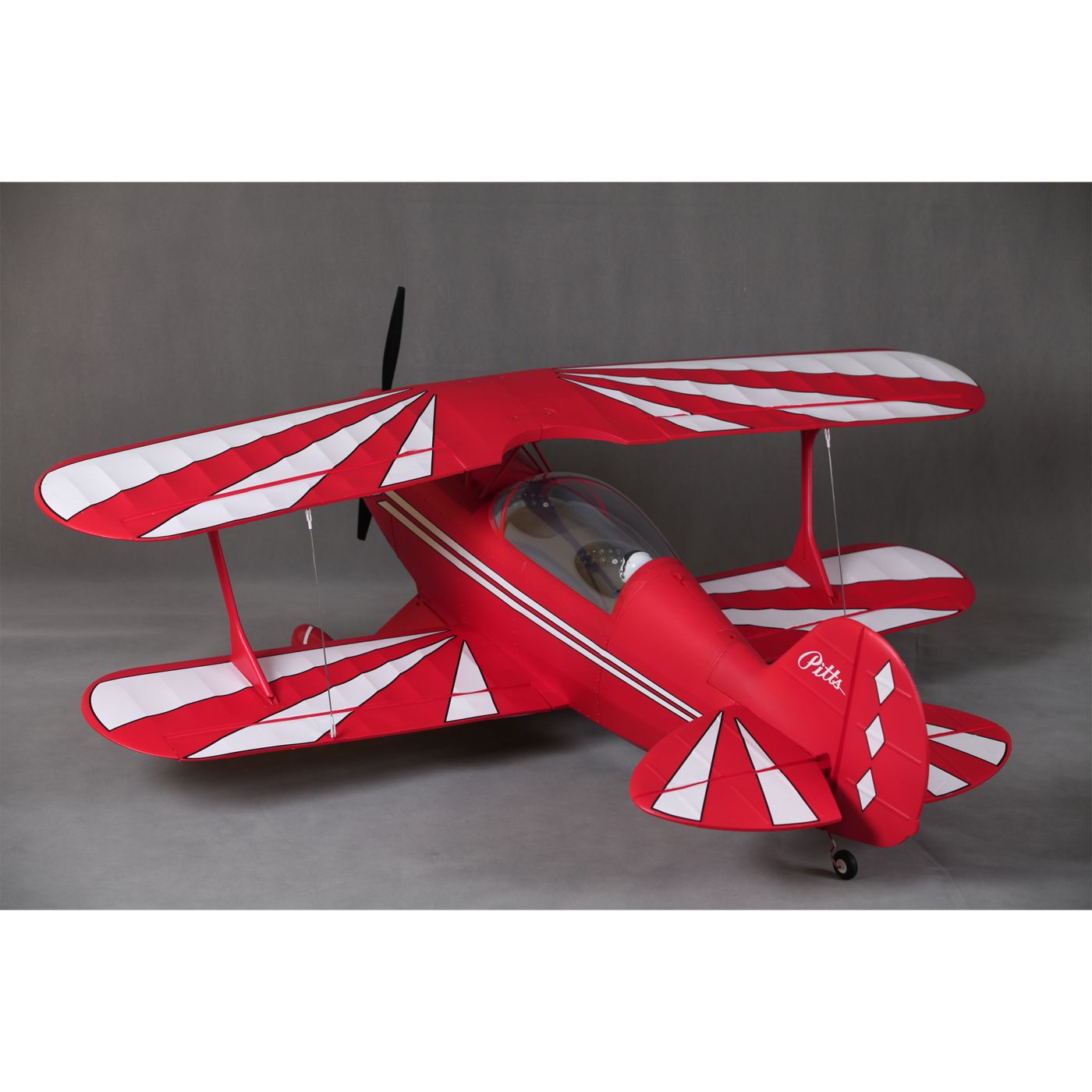

Pitts V2 from fms

Details

The Pitts Special is a light aerobatic biplane designed by Curtis Pitts. It has accumulated many competitions wins since its first flight in 1944. The Pitts biplanes dominated world aerobatic competition in the 1960s and 1970s and, even today, remain a potent competition aircraft in the lower categories.

Built upon the successful V1 Pitts biplane, FMS is proud to announce the brand-new Pitts V2. Redesigned with a massive 1400mm wingspan, the Pitts V2 is constructed of lightweight and robust EPO foam material. Proprietary connector plugs built into the wing structure means that the wings can be attached to and detached from the fuselage using just a few screws. The slide-fit wing struts are just as simple, slide them on in just a few seconds and the wing is securely braced!

An oversized battery bay accommodates most 6S packs with ease- giving the pilot ample power to attempt all aerobatic maneuvers. Hobbywing 50A ESC provides bulletproof performance!

While ensuring that the Pitts Special is faithfully recreated, FMS has worked hard to minimize its profit margins in the hopes that pilots who love the Pitts V2 will find it affordable.

Features

  • 4258 brushless motor, 50A Hobbywing-sourced ESC, 17g servos
  • Realistic trim scheme, rivets, panel lines and pilot figure
  • Screw-together assembly greatly reduces assembly time
  • Oversized battery compartment for larger, more powerful 6S packs
  • Robust and durable EPO construction

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Pitts V2 in particular but at least we know they do distribute fms.

Wingspan: 1400mm (55.1 in)
Length: 1298mm (51.1 in)

Weight: 3500 g (7.7 lbs)
CG (Center of Gravity): 6.1 - 6.5" (155 - 165mm) back from leading edge of wing at fuselage side
Charger: Sold separately
Completion Level: Plug-N-Play
Landing Gear: Fixed main LG with steerable tail wheel
Length: 51.1 in (1298 mm)
Material: EPO foam
Minimum Required Radio: 6-channel
Minimum Speed Control: 50A with 5A BEC included
Motor Size: 4258
Propeller Size: 15x9
Recommended Motor Battery: 22.2V 4000mAh 35C
Servos: Four 17g
Wing Area: 748.5 sq in (48.3 sq dm)
Wing Loading: 0.15 oz-sq in (72.5 g-sq dm)
Wingspan: 55.1 in (1400 mm)

Variants

FMM126P
Pitts V2 (Red)
EnglishFrenchGermanItalianPortugueseRussianSpanish
4,067 models
(48,804 icons in the database)
ASK FOR A NEW MODEL TO BE ADDED

Although I do my best to complete this library, you may not find the model you are looking for.

In this case, do not hesitate to ask me to add it : You're not bothering me. Please be patient, depending on my workload, I may take a few days to work on your model and gather information.

I'm sometime asked to add a non flying model to this library but unfortunately, it's not the focus of this website

Ask for a new model

RANDOMIZER
CineLog25
UMX Gee Bee R-2
Sector 5 V3

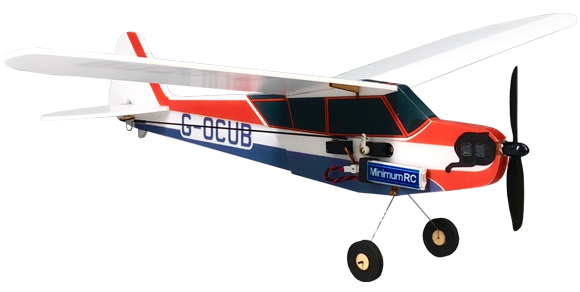

Piper Cub J-3
