Tiger 30cc from hangar 9

Details

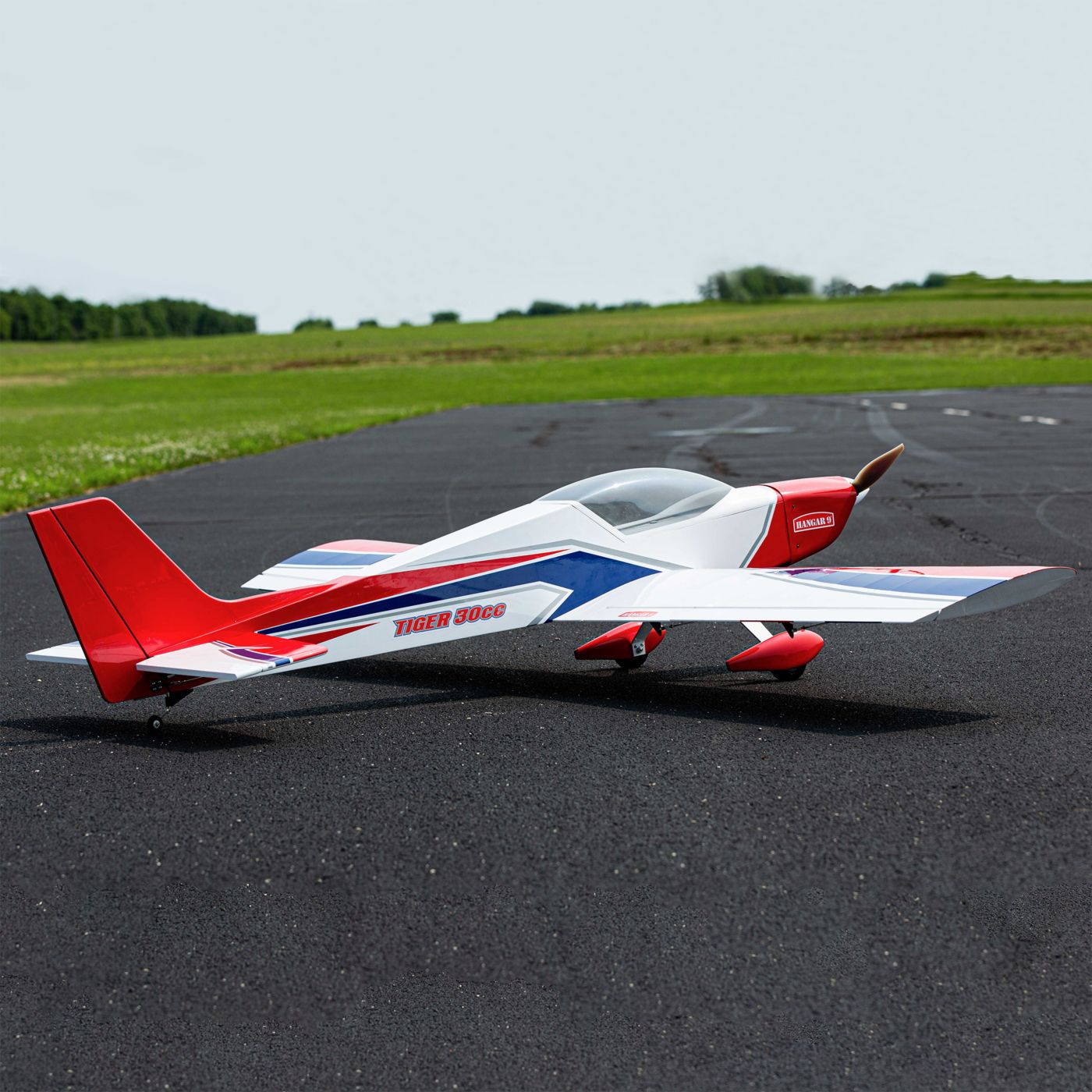

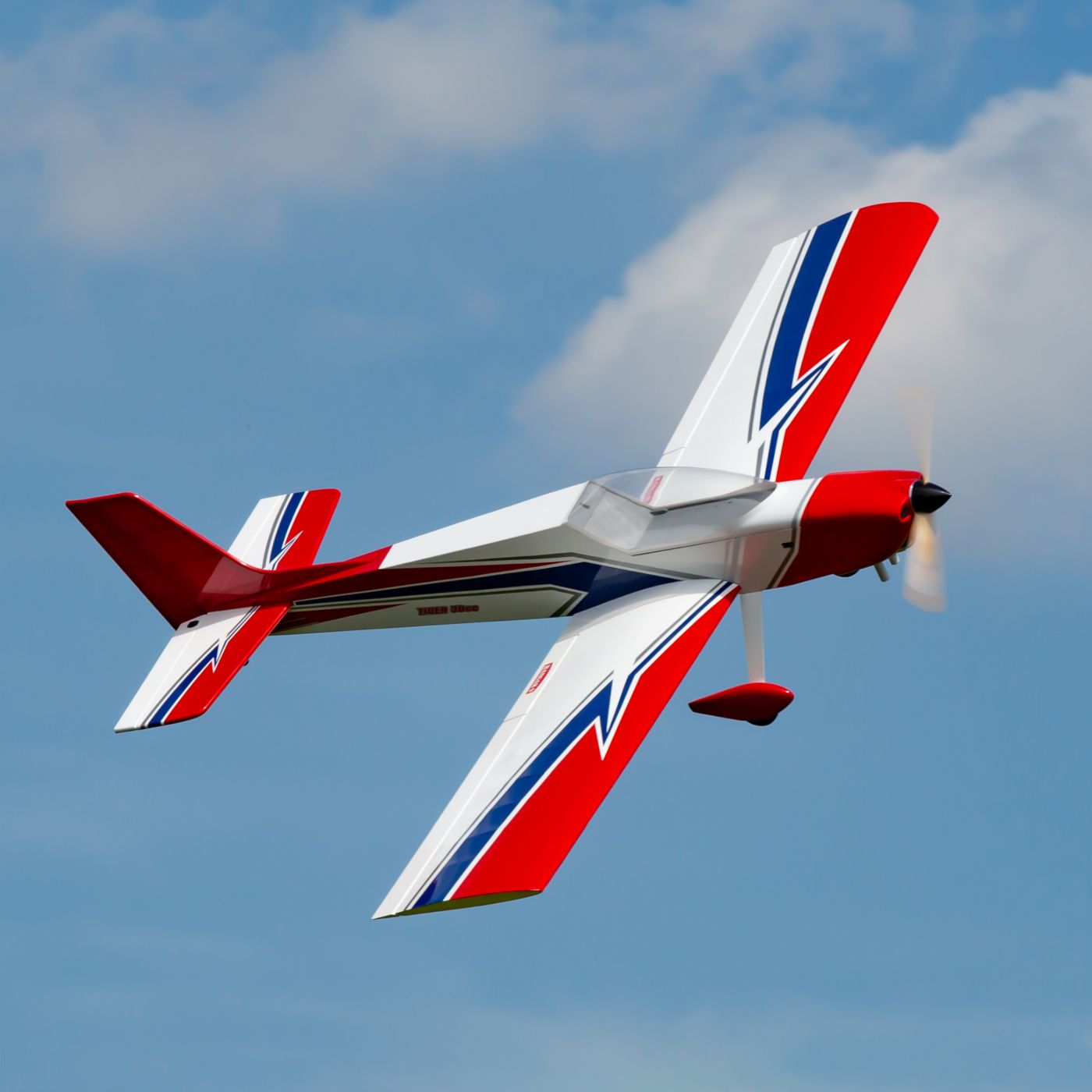

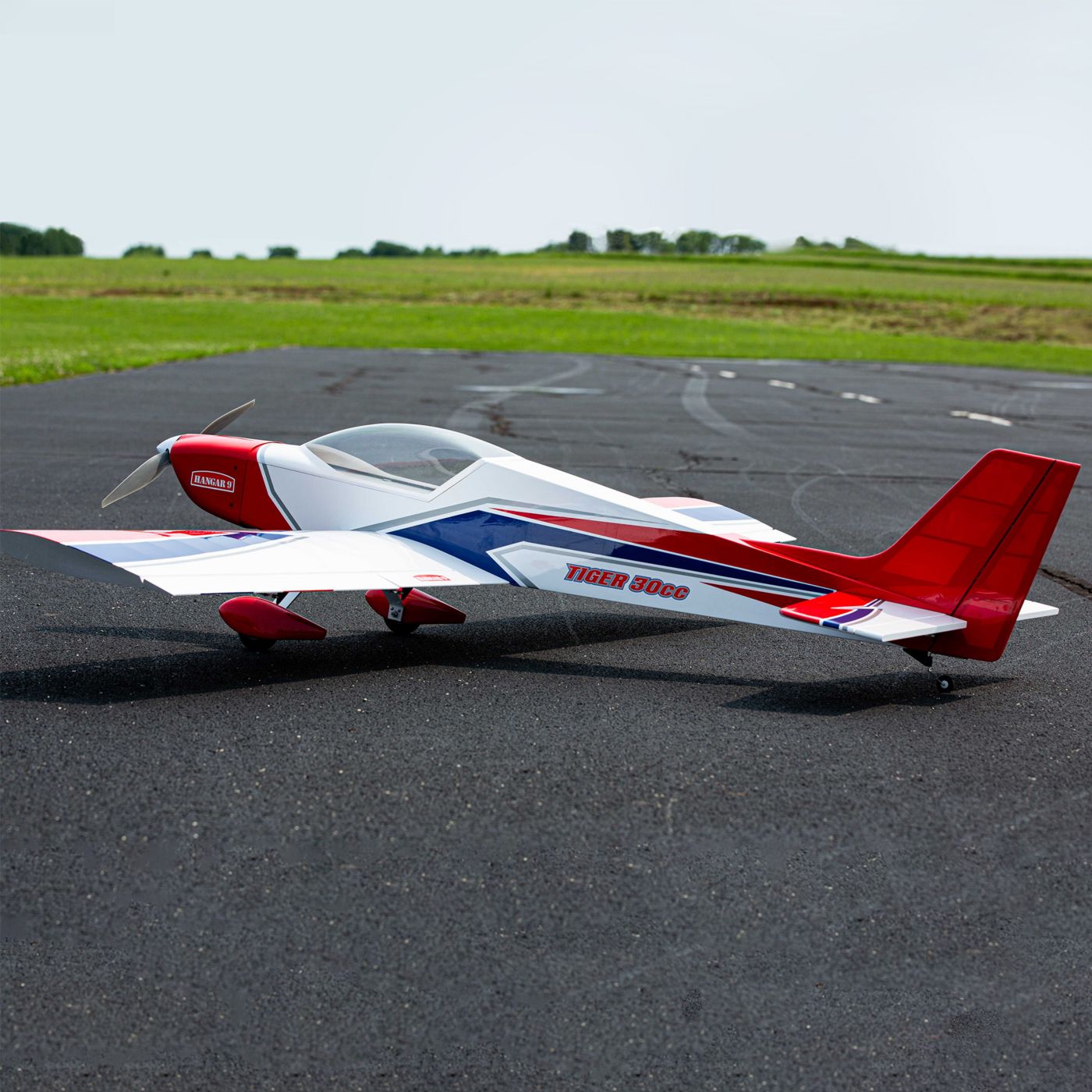

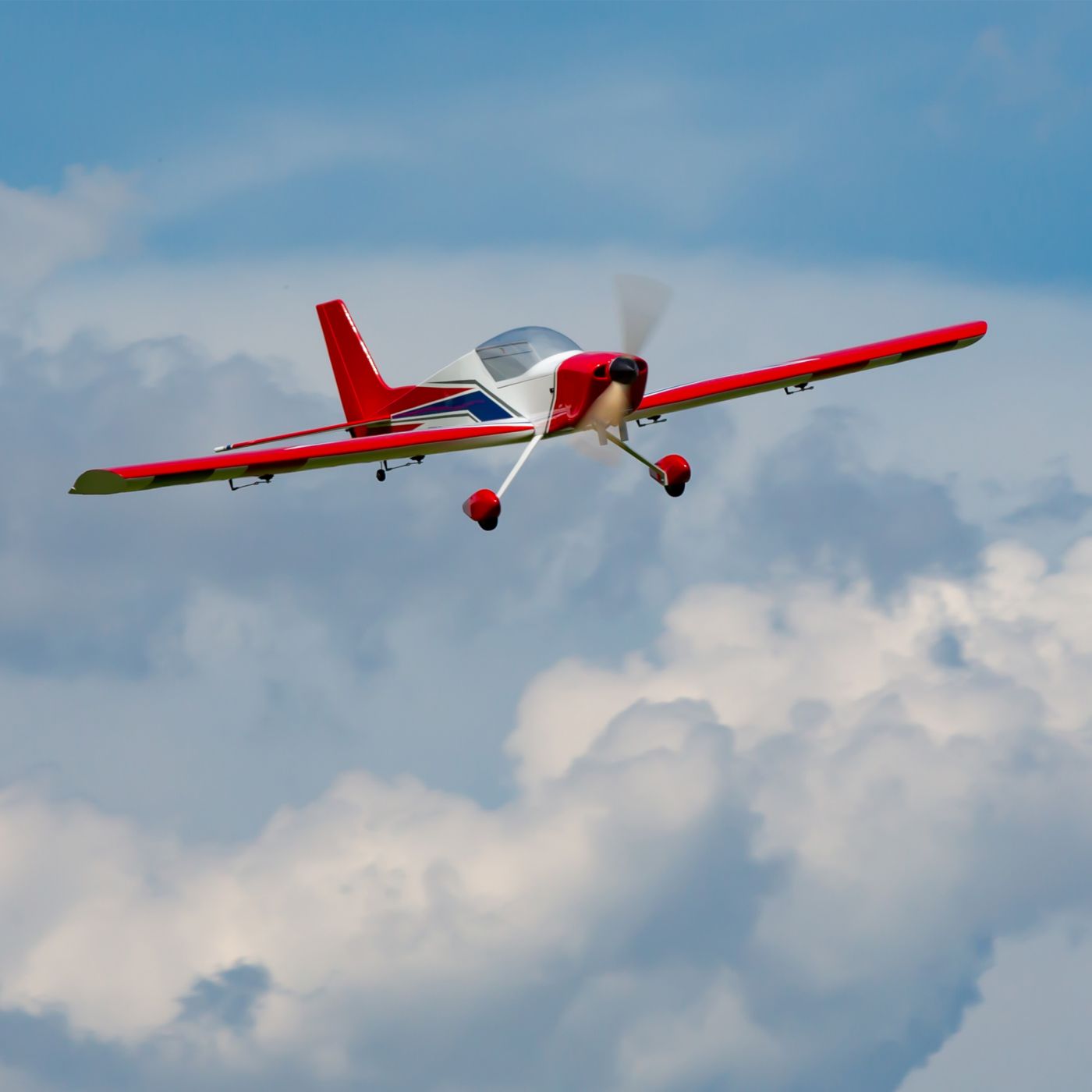

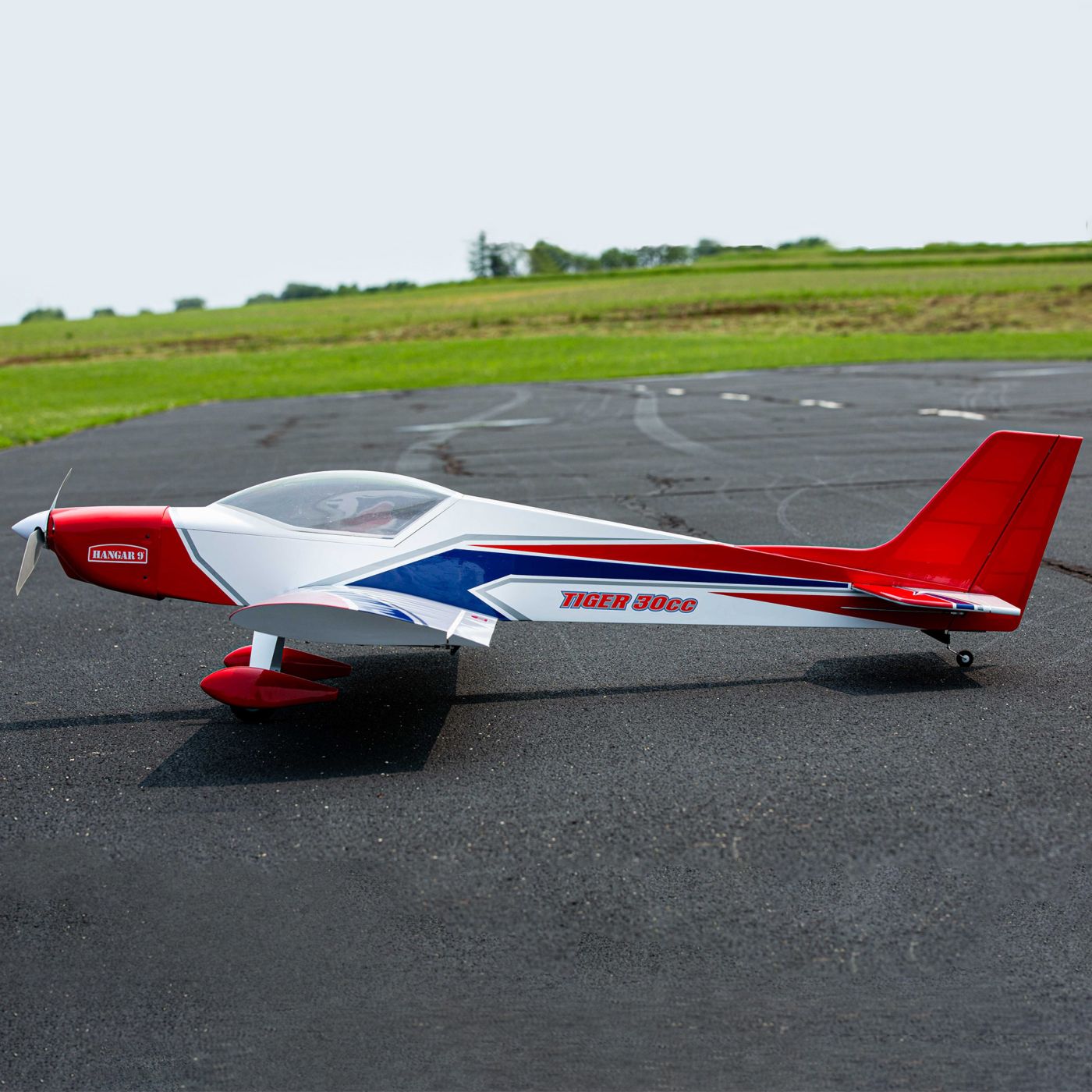

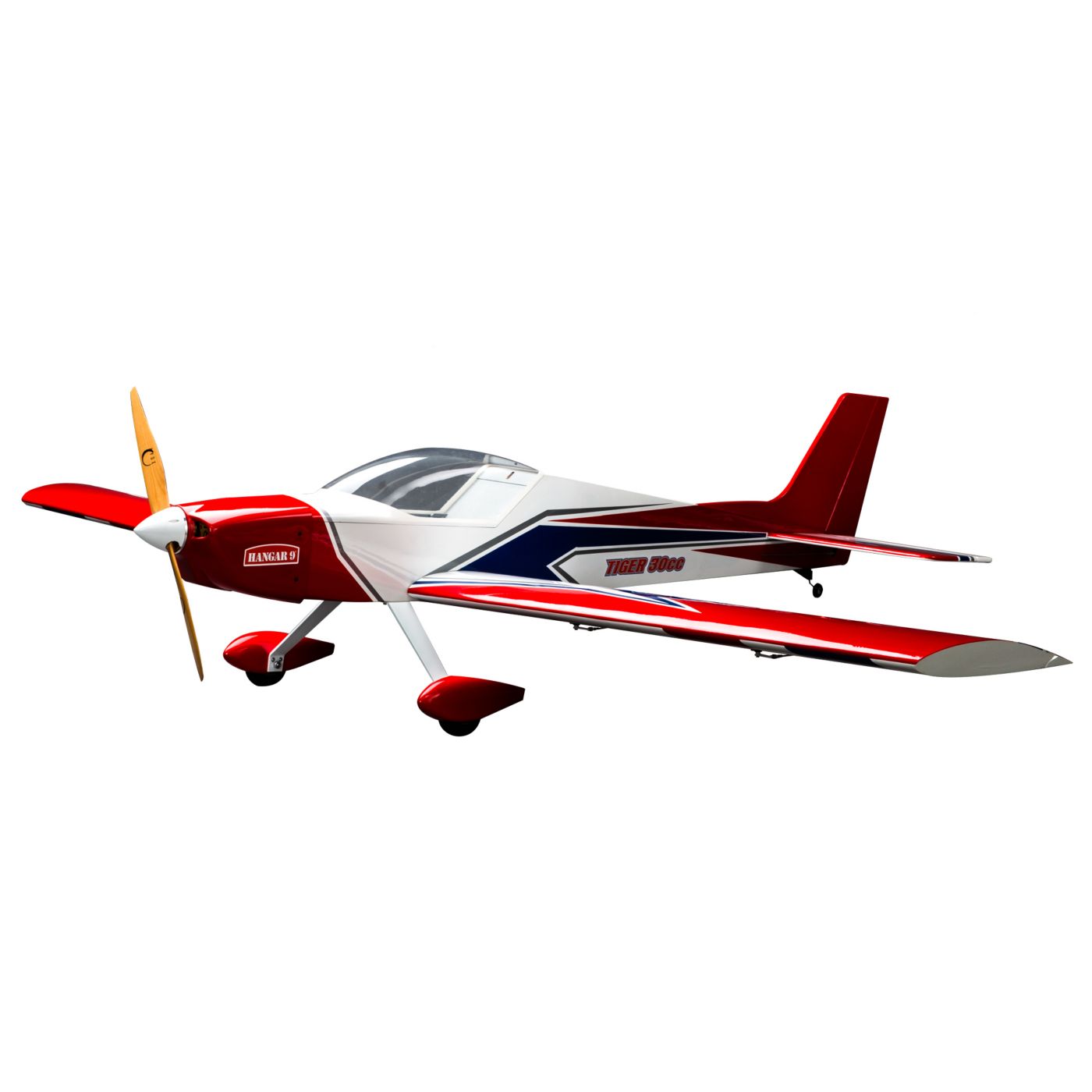

For the balsa enthusiast, the new Hangar 9® Tiger 30cc delivers the classic looks and performance of the popular Tiger series in a larger 30cc platform for common gas engines and electric power systems. Taking its cues from the Tigers of old, this sport plane is streamlined with a complete fiberglass cowl requiring no additional work to get ready for the runway. A smart red, white, and blue color scheme highlights the modern sport plane's looks with nods to its rich past.

Bigger than the Tigers of yesterday, it only needs a 30cc-class gas/petrol engine to deliver outstanding performance. Lightweight design, combined with high-grade balsa and plywood construction, is used with laser accuracy to provide everything you could want in a giant scale sport model. The large canopy hatch provides easy access to radio gear, batteries and fuel system while the pre-hinge control surfaces save you time when building. The bolt-on two-piece wings provide easy transportation and handling. If you're looking for a big sport airplane with ties to the radio control flying past and can do it all with a modern flair, the Tiger 30cc airplane is for you.

The Tiger 30cc ARF is part of the complete line of top-quality Hangar 9® aircraft and accessories. All are engineered and crafted to exacting standards and feature the finest components and materials. Plus, every Hangar 9 product comes with the after-sale service and technical support you need to succeed.

Features

  • Lightweight balsa and plywood construction for a strong and lightweight airframe

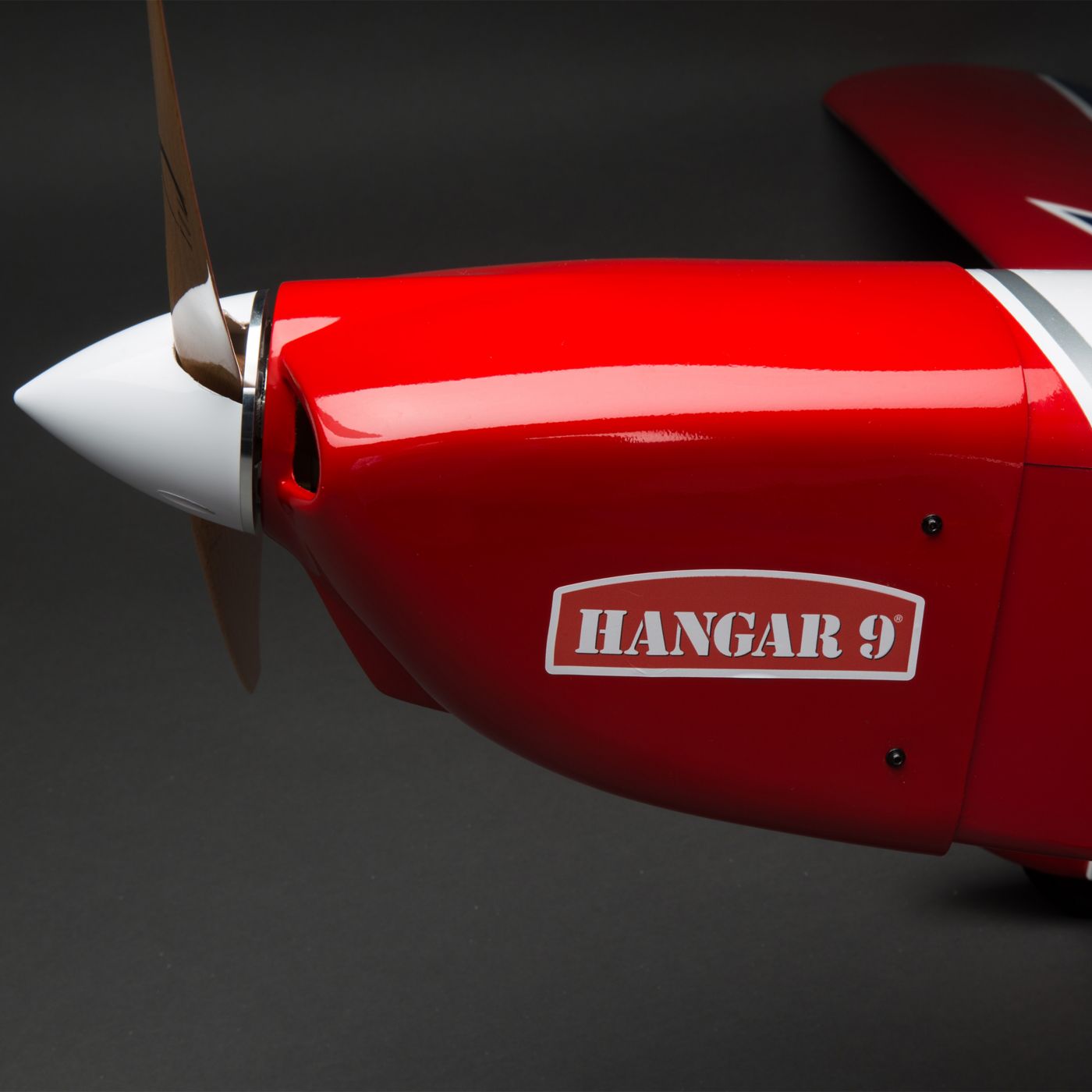

  • Fiberglass cowl requires no finishing by the customer
  • One-piece painted aluminum landing gear attaches to fuselage
  • Finished fiberglass wheel pants matches the covering perfectly
  • Large canopy hatch provides easy access to radio gear, batteries and fuel system
  • Bolt-on two-piece wings for easy transportation and handling
  • Steerable tail wheel
  • Taildragger gear configuration
  • Clear canopy
  • Full-span ailerons with option for functional flaps
  • Pre-hinge control surfaces help you save on build time
  • Included decal sheet allows you to customize the look of your aircraft
  • Complete hardware package included
  • Designed to accept gas/petrol engines and electric motors

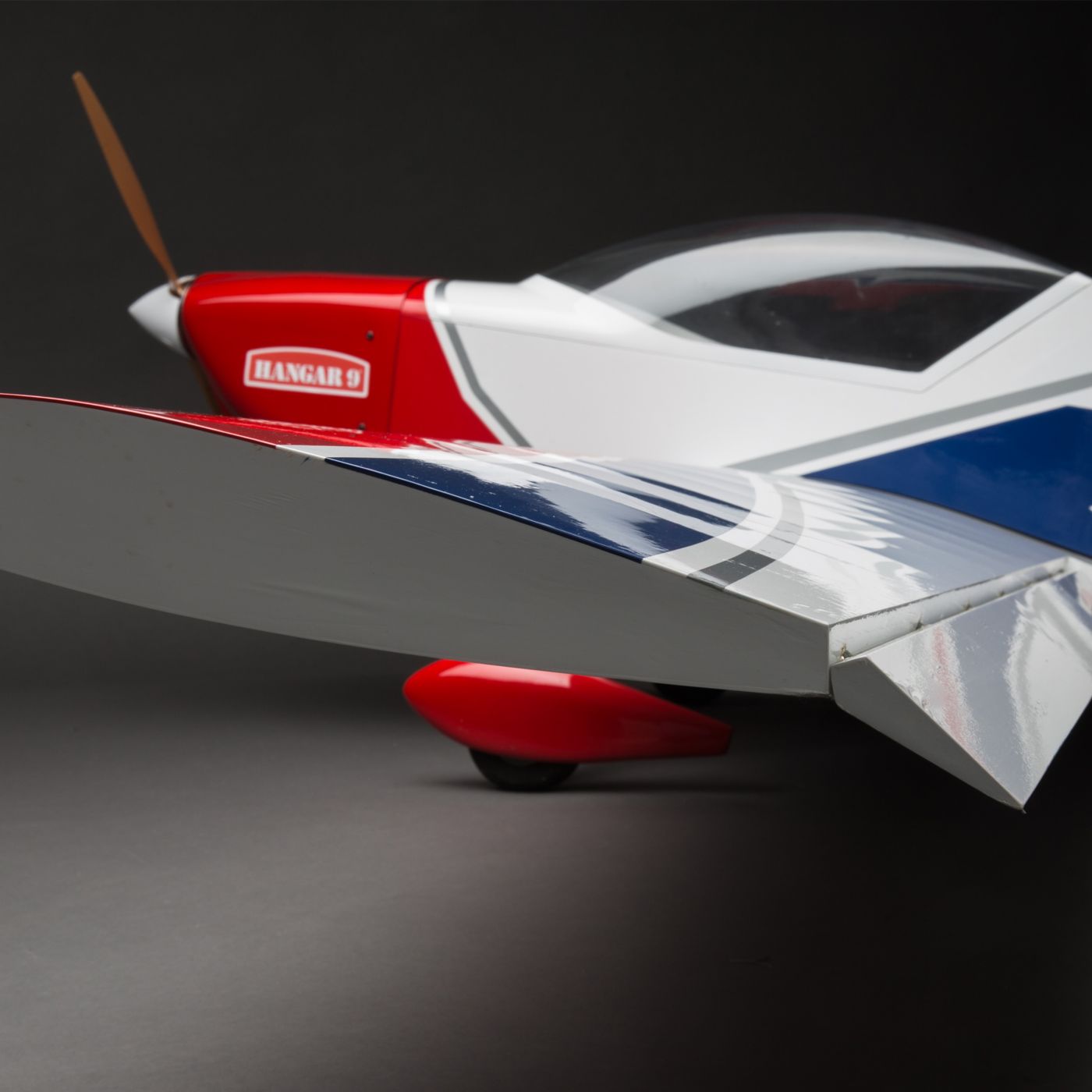

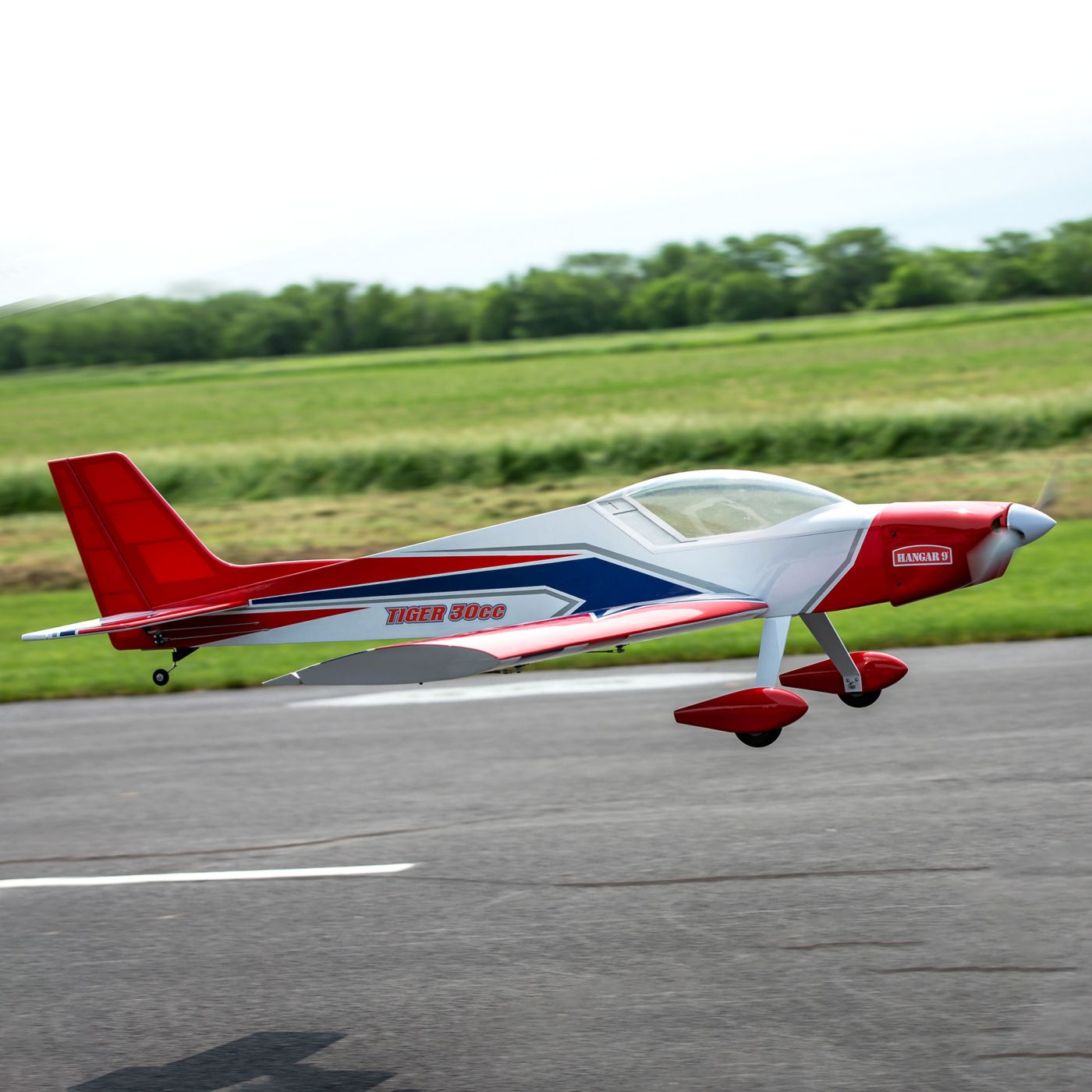

Pictures

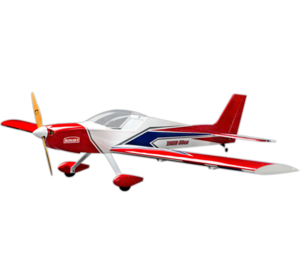

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Tiger 30cc in particular but at least we know they do distribute hangar 9.

Wingspan: 2280mm (89.8 in)
Length: 1980mm (78 in)

Weight: 8160 g (18 lbs)
Airfoil Shape: Semi-symmetrical
Approximate Assembly Time: 15-20 Hours
CG (Center of Gravity): 3.5 - 5" (89 - 127mm) measured from leading edge of wing at fuselage side
Charger: Sold separately
Completion Level: Almost Ready-To-Fly
Control Throw (Flaps): 1" (25.4mm) down for take off, 1-3/4" (44.4mm) for landing
Control Throw - High (Ailerons): Up 2" (50.8mm), Down 1-3/4" (44.4mm)
Control Throw - High (Elevator): Up and Down 3/4" (17.8mm)
Control Throw - High (Rudder): Left and Right 2" (50.8mm)
Control Throw - Low (Ailerons): Up 1-1/2" (38.1mm), Down 1/1/4" (32mm)
Control Throw - Low (Elevator): Up and Down 1/2" (12.7mm)
Control Throw - Low (Rudder): Left and Right 1" (25.4mm)
Engine Size: 1.8 cu in (30cc)
Expo (Ailerons): High 20%, Low 15%
Expo (Elevator): High 20%, Low 15%
Expo (Rudder): High 15%, Low 10%
Flaps: Optional
Flying Weight: 16 - 18lbs (7.25 - 8.16kg)
Landing Gear: Fixed main with steerable tail wheel
Length: 78" (1.98m)
Material: Balsa and ply
Minimum Required Radio: 6-channel
Minimum Speed Control: 90A
Motor Size: 160 - 180 brushless outrunner
Propeller Size: 16 - 18"
Recommended Motor Battery: Two 6S 5000mAh LiPo
Recommended Receiver Battery: 2S 7.4V, at least 2000mAh
Servos: Eight high torque/high speed servos required
Spinner Size: 3" (76.2mm) (sold separately)
Transmitter Range: Full range
Trim Scheme Colors: Red, White, Sapphire Blue and Aluminum
Wing Area: 1417.5 sq in (91.45 sq dm)
Wing Loading: 26 - 29 oz/sq ft (79.34 - 88.49 g/sq dm)
Wing Tube Length: 15" (381mm)
Wing Tube OD: 1.125" (30mm)
Wingspan: 90" (2.28m)

Needed to complete

For Gas Engine or Electric Motor Setup

  • (1) Full-range, 6+ channel radio system
  • (5-8) Standard High-Torque Servos
  • (5-8) 9-18 Inch Heavy Duty Servo Extensions
  • (1) Battery for receiver
  • (1) 3 inch spinner
  • Tools and adhesives (see manual for complete list)

For Gas Setup

  • (1) DLE-35RA or similarly sized 30cc 2 or 4 stroke gas engine
  • (1) Battery for electronic ignition
  • (1) 18x10 Wood Propeller
  • Gas tubing and fuel filler

For Electric Setup

  • (1) 160-180 Brushless Outrunner Motor
  • (1) 90-Amp+ Electronic Speed Control
  • (2) 6S 22.2V 5000-7000mAh LiPo Batteries
  • (1) 18x10 Electric Propeller
