Falke 1800 from Kavan

Details

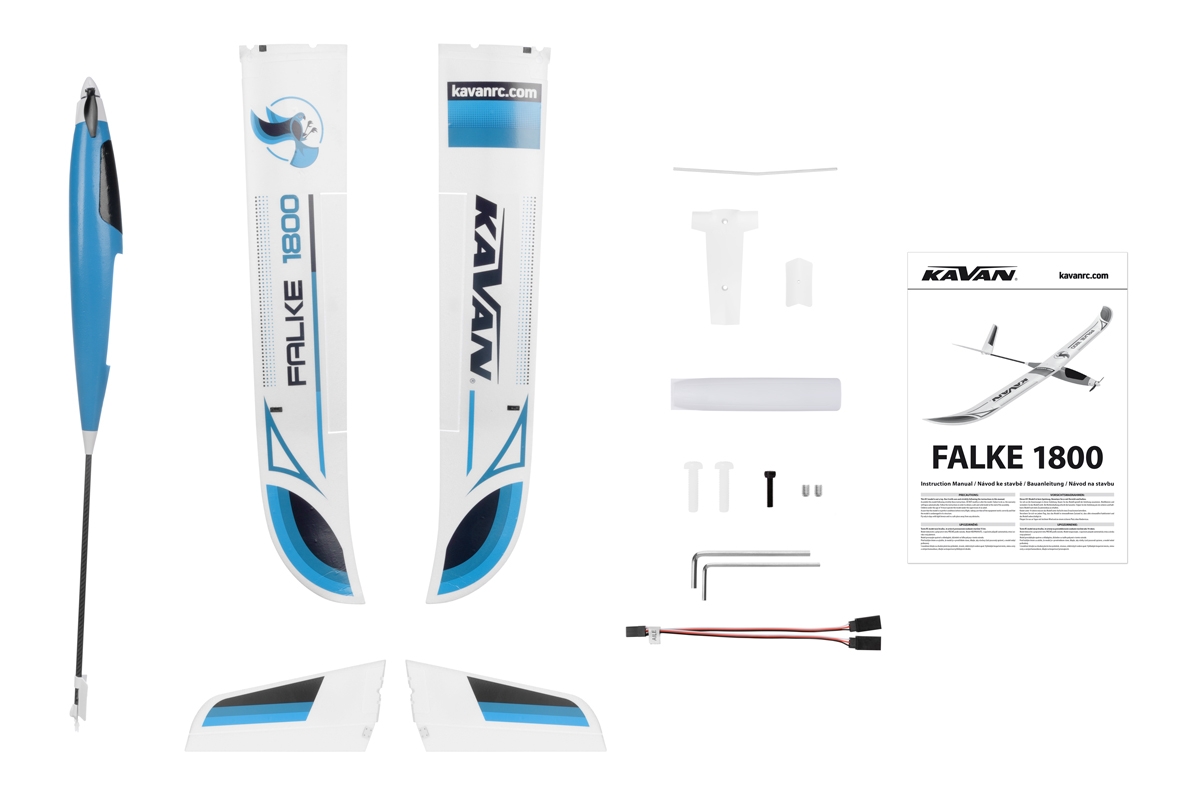

The EPO foam fuselage with a sleek carbon tail boom comes with the KAVAN C2714-1450 brushless motor, 7x6” folding propeller and KAVAR R-20B ESC featuring a BEC stabilizer. The detachable canopy is secured with a magnetic lock. The cockpit compartment offers a lot of space for your receiver and flight pack. The elevator and rudder servos are installed under the wing controlling the V-tail by a pair of push rods.

The two-piece EPO wing with a steel joiner is reinforced by carbon spars; the wing is secured with two plastic bolts to the fuselage. The ailerons are controlled by two servos installed in the wing driven with short wire push rods.

The EPO V-tail is detachable; secured with a plastic bolt to the fuselage for easy transport/storage.

FALKE 1800 is powered by the KAVAN C2714-1450 brushless motor with the KAVAN R-20B 20A ESC.

You will need an 11.1 V 1200–1600mAh flight pack (at least 20C) to fly your FALKE 1800.

You will need at least a 4-channel RC set to control your FALKE 1800; even a non-computer radio featuring the V-tail mixer would work as the aileron servos are controlled by a single channel (linked via a Y-cable). At least 6-channel computer radio will work best; independent aileron servo control and airbrake mixing (by extending ailerons simultaneously up) will help you to enjoy your FALKE 1800 to the fullest. Fortunately, even entry-level/budget-friendly radios like Radiolink AT9S or AT10II, Futaba T6K or T10J feature all the necessary mixes today. In this case, you will have to replace the aileron Y-cable installed in the kit with two 15–30 cm extension cables. The instruction manual contains a thoroughly tested set-up table to help you set up the FALKE 1800 easily.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1800mm (70.9 in)
Length: 1150mm (45.3 in)

Weight: 710 g (1.6 lbs)
Wingspan 1800 mm
Length 1150 mm
Weigh 660 - 710 g
Wing surface 27 dm²
Controlled functions S,V,K(2),M
