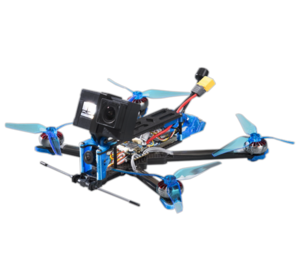

Chimera5 LR from iFlight

Details

Introducing our first ultra-light Long Range 5 inch BNF for every terrain and beyond. Our newest SucceX-E mini F7 hardware on board coupled with our XING 2005 motors. If our iFlight Chimera4 is too small and light to fight against stronger winds, here you go. Get flight times above 25min using at least Li-On 4S 3000mAh packs. Go crazy and strap a Li-On 4S pack on and go even further, depending on capacity and weight!

GPS Rescue ready for easy recovery in case of signal loss, or even if you've been surfing those mountains and suddenly can't find the way back home. Betaflight OSD pre-setup GPS elements will show you the way! Custom iFlight 150mm LR antenna for best signal coverage even at long distances.

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Chimera5 LR in particular but at least we know they do distribute iFlight.

Where to buy

USA
getfpv
check web site
Ship to: USA

Wingspan: 219mm (8.6 in)
Length: 219mm (8.6 in)

Weight: unknown

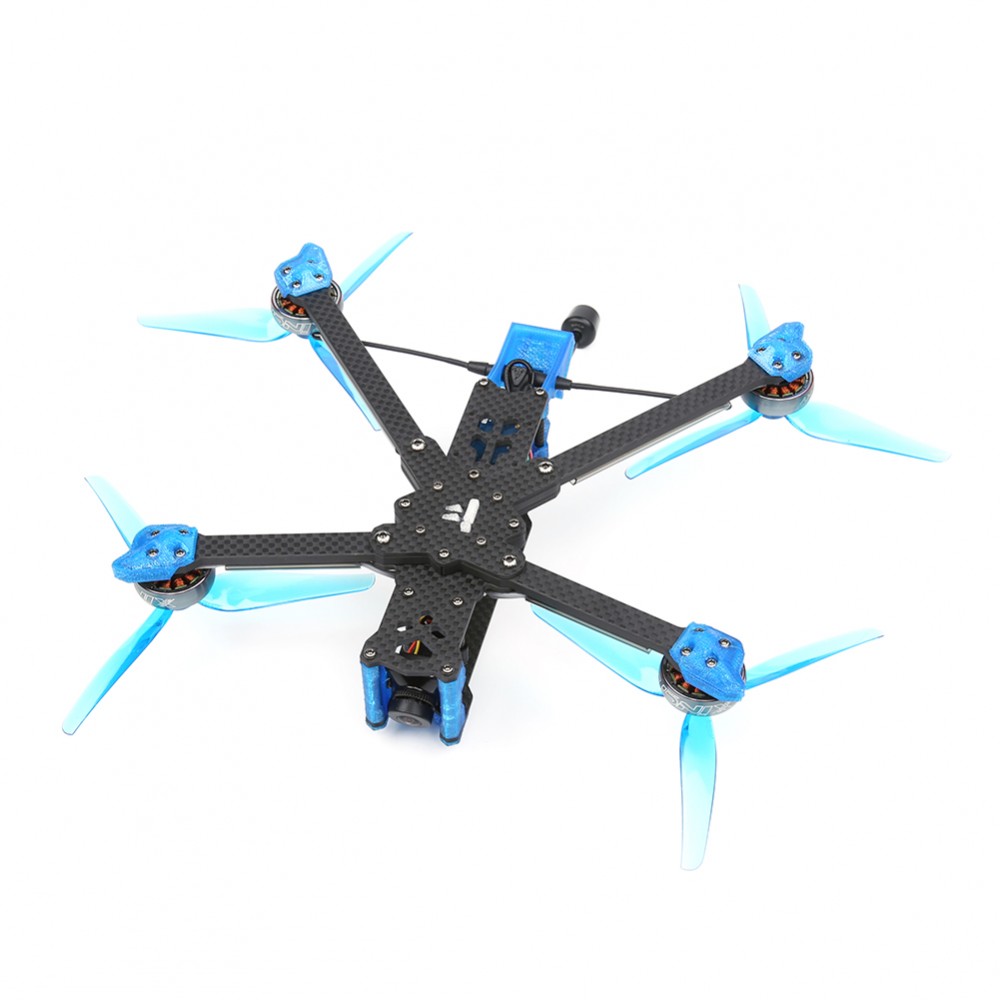

FRAME // :Chimera5

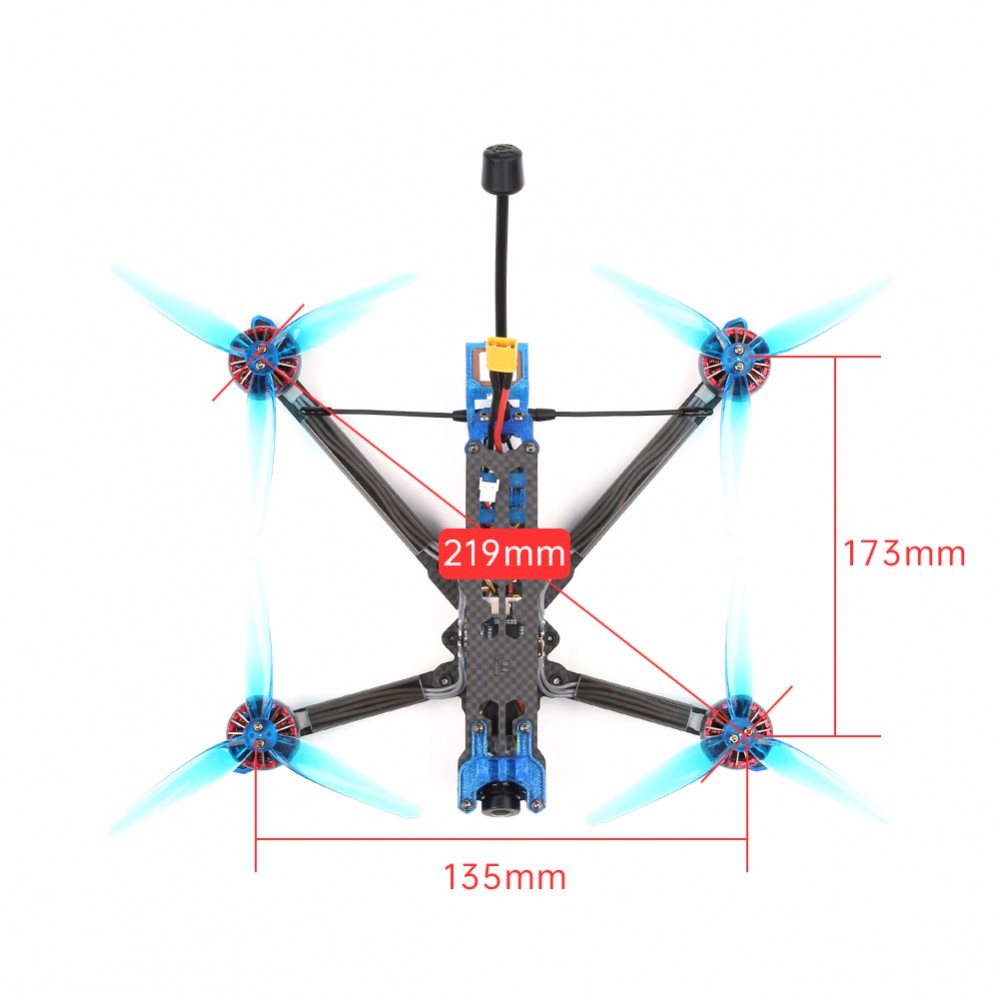

  • Wheelbase: 219mm
  • Main body dimension: 135*173mm

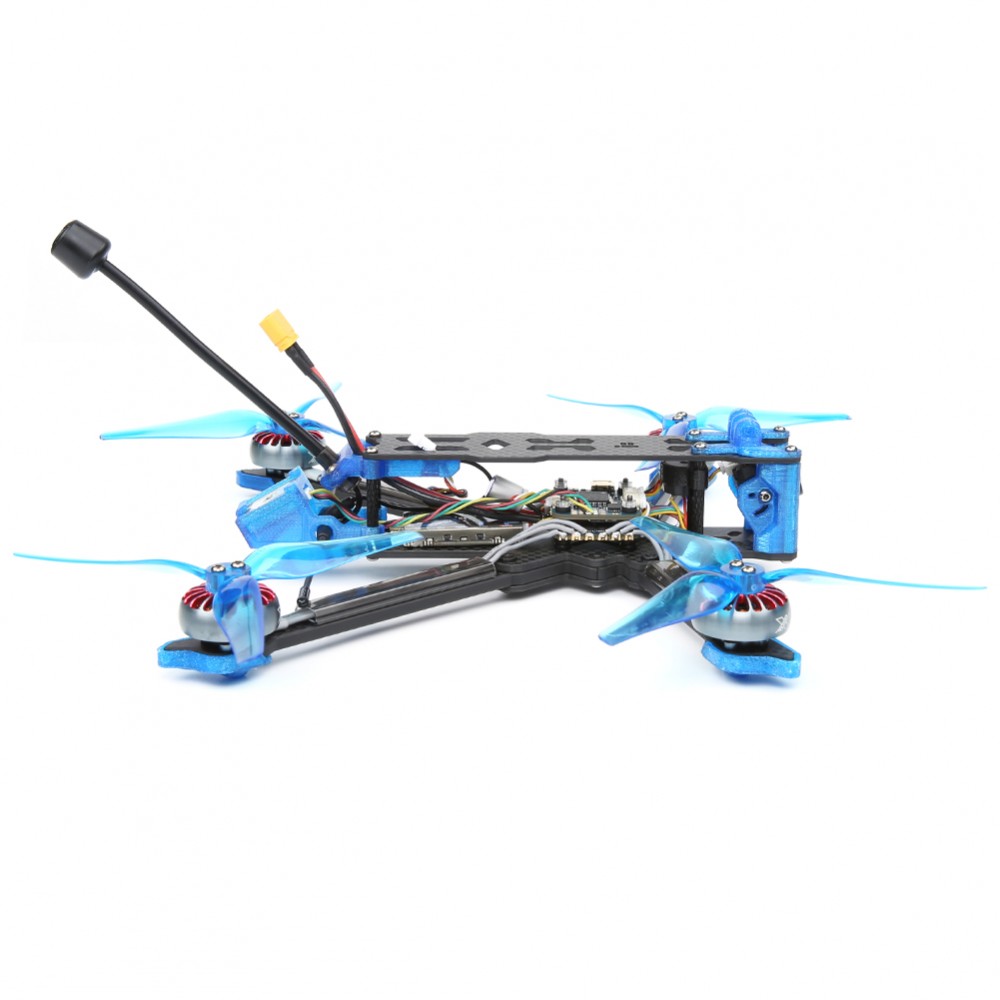

  • Bottom to top distance: 28mm
  • Arm thickness: 4mm
  • Bottom plate thickness: 2mm
  • Top plate thickness: 2mm
  • Middle Plate thickness: 2.5mm
  • TPU Camera plate
  • FC: 25.5*25.5mm/20*20mm
  • FPV Cam: 19mm Micro / 20mm

ELECTRONICS // SucceX-E mini F7 Stack (35A 4-in-1 ESC)

Specification:

  • MCU:  STM32F22RET6 216 MHz
  • Gyro: MPU6000
  • Blackbox: 8MB
  • BEC output: 5V 2.5A
  • Barometer: BMP280(I2C)
  • Connector: Micro-USB
  • OSD: IFLIGHT OSD (AT7456E)
  • FC Firmware:IFLIGHT_SUCCEX_E_F7 4.2.0
  • Mounting pattern: 20*20mm φ3 mounting
  • Dimensions: 27*27mm
  • Weight: 4.9g

ESC // SucceX-E Mini 35A

Specification:

  • MCU: BB21 F16G
  • Current Sensor: Yes
  • Input: 2-6S LIPO
  • Current scale: 200
  • Constant: 35A / Burst: 40A
  • BLHeli: BLHeliS
  • Telemetry: no
  • Target: G-H-30
  • Mounting pattern: 20*20mm/Φ3mm
  • Dimensions: 31*30mm (including the power pads)

VTX // SucceX Force 5.8GHz 800mW VTX Adjustable

Specification:

  • Input voltage: 7V~36V (@12V/[email protected])
  • Video standard: NTSC /PAL
  • Output voltage/ Max current: 5V 1A
  • Power levels: PIT/25mW/100mW/400mW/800mW
  • Power draw @12V input current: [email protected] MODE, [email protected], [email protected][email protected], [email protected]
  • Channels: 48 (including Raceband)
  • Small size: 36*36*3mm
  • Mounting pattern: 30.5x30.5 (4x M3)
  • Lightweight: 7.5g (excluding antenna)
  • VTX telemetry: IRC Tramp
  • Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
  • All our VTX tables can also be found here: LINK
  • IRC Tramp VTX table values: 25/25mW, 100/100mW, 400/400mW, 600/800mW

Chimera5 DC Analog BNF Included Components and Parts

  • Prebuilt and tested Quadcopter
  • 1x Chimera5 DC Frame
  • 1x RaceCam R1 Mini 1200TVL 2.1mm 19*19
  • 1x Albatross RHCP mmcx 90° antenna
  • 2sets x Nazgul 5030 inch 3-blades (Set of 4 - Color may vary)

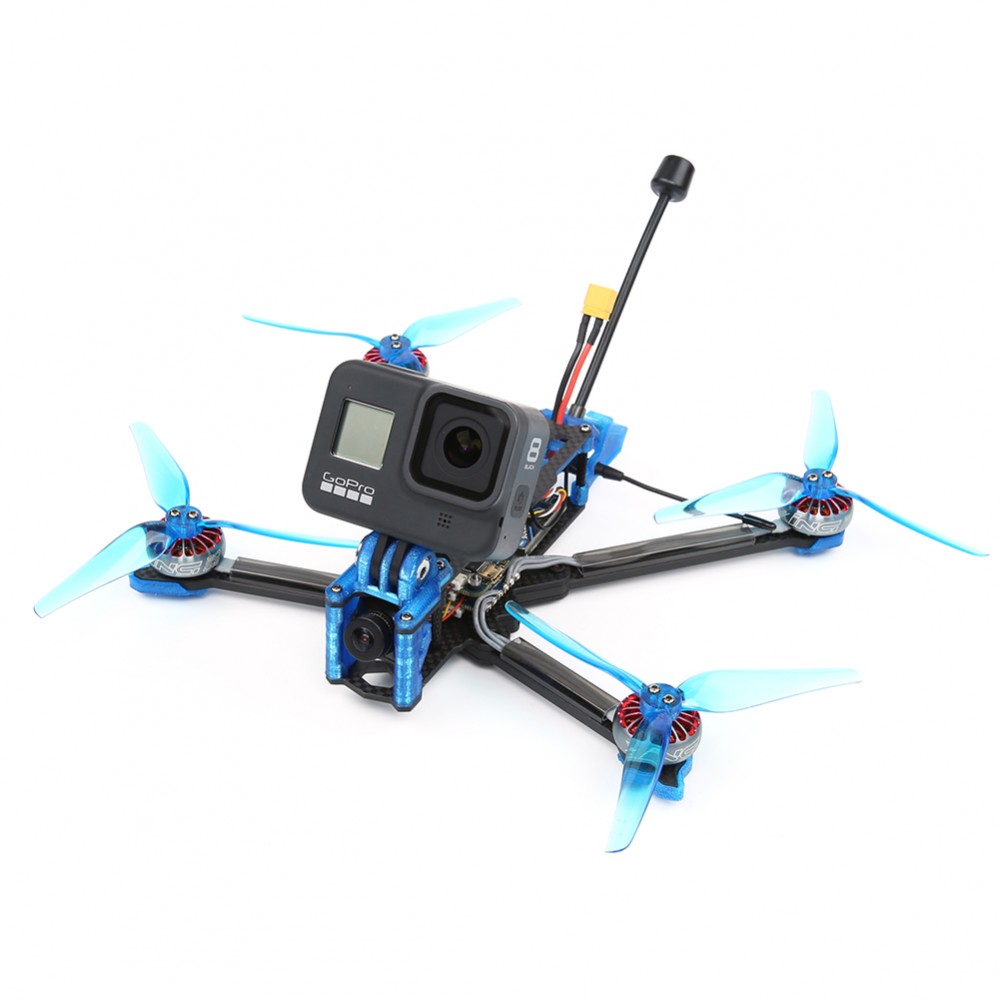

  • 1x naked GoPro TPU base mount (installed)
  • 1x full GoPro TPU base mount
  • 1x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
  • 1x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)

Variants

L009620
Chimera5 LR (Black Blue)
