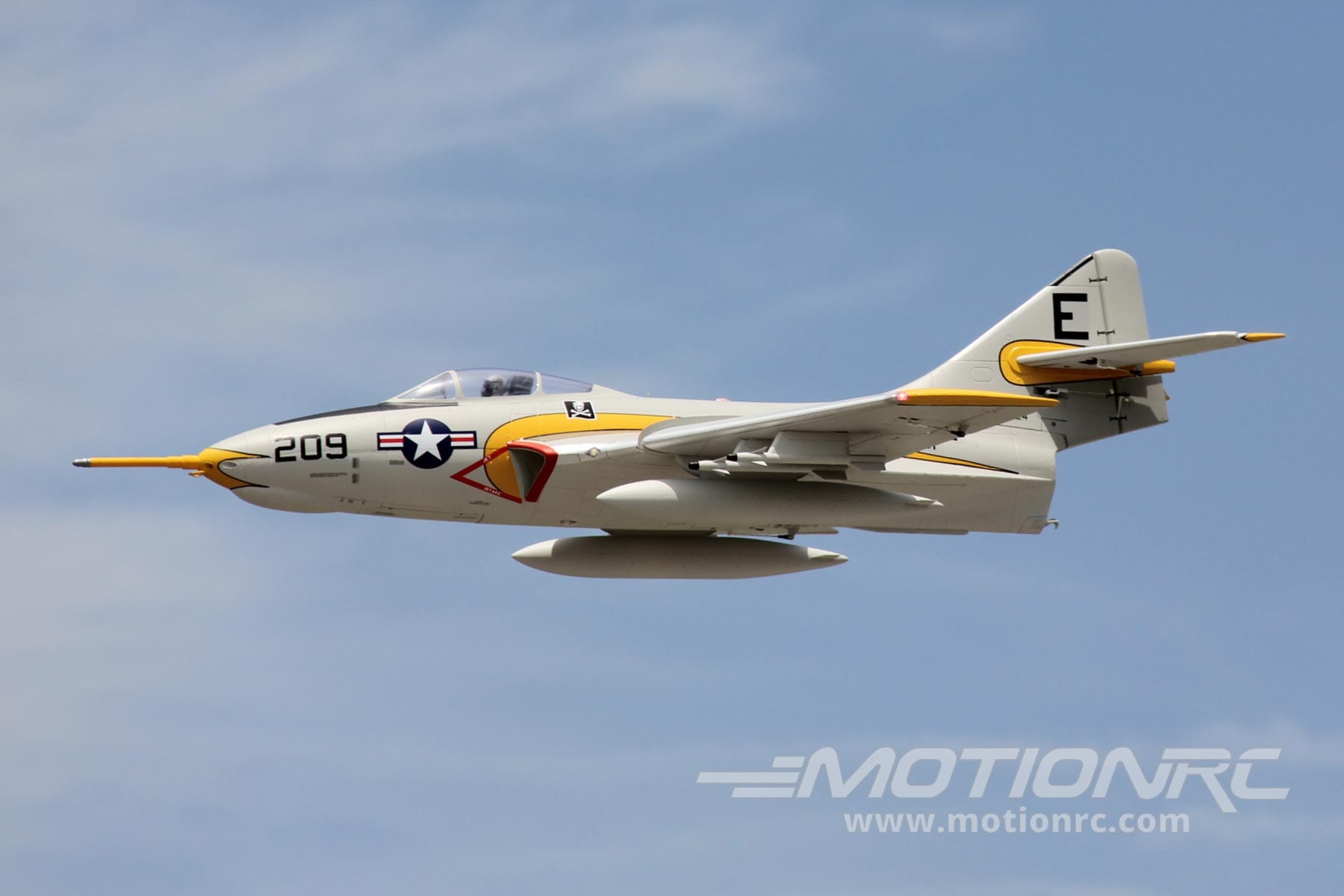

F9F-8 Cougar Super Scale 80mm from Freewing Model

Details

The Grumman F9F/F-9 Cougar is a carrier-based fighter aircraft for the United States Navy and United States Marine Corps. Based on Grumman's earlier F9F Panther, the Cougar replaced the Panther's straight wing with a more modern swept wing. Thrust was also increased with the installation of a newer, more powerful engine.

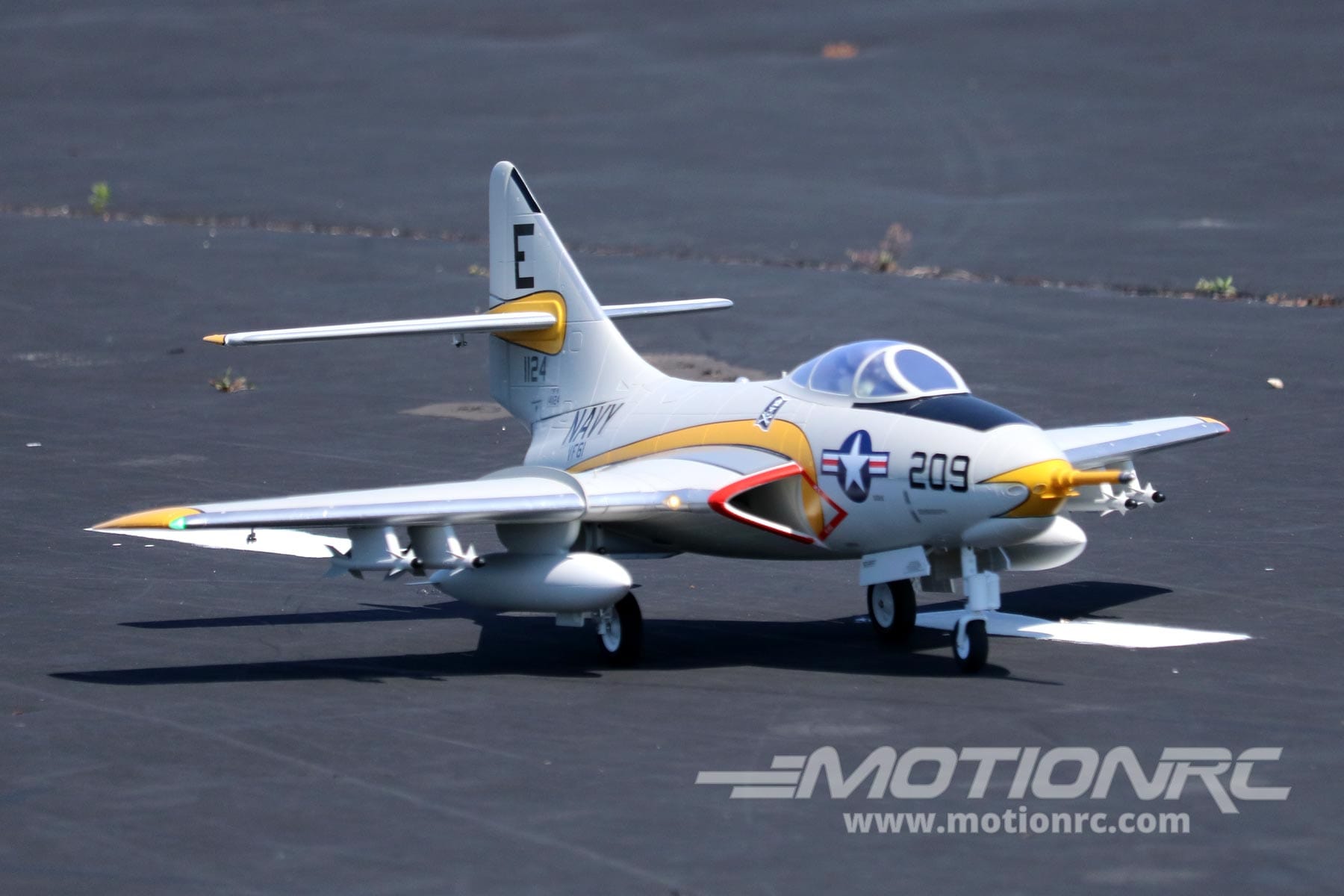

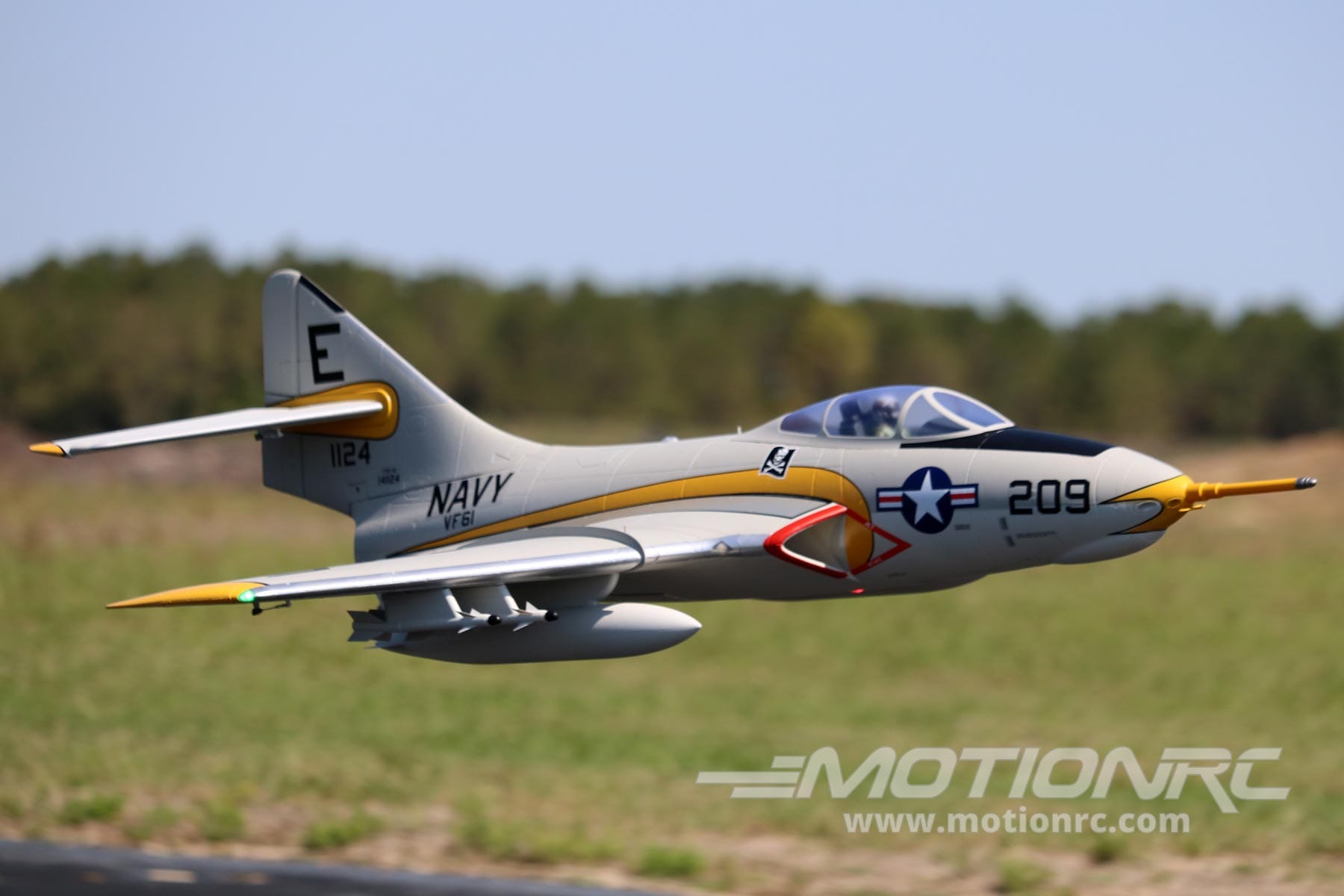

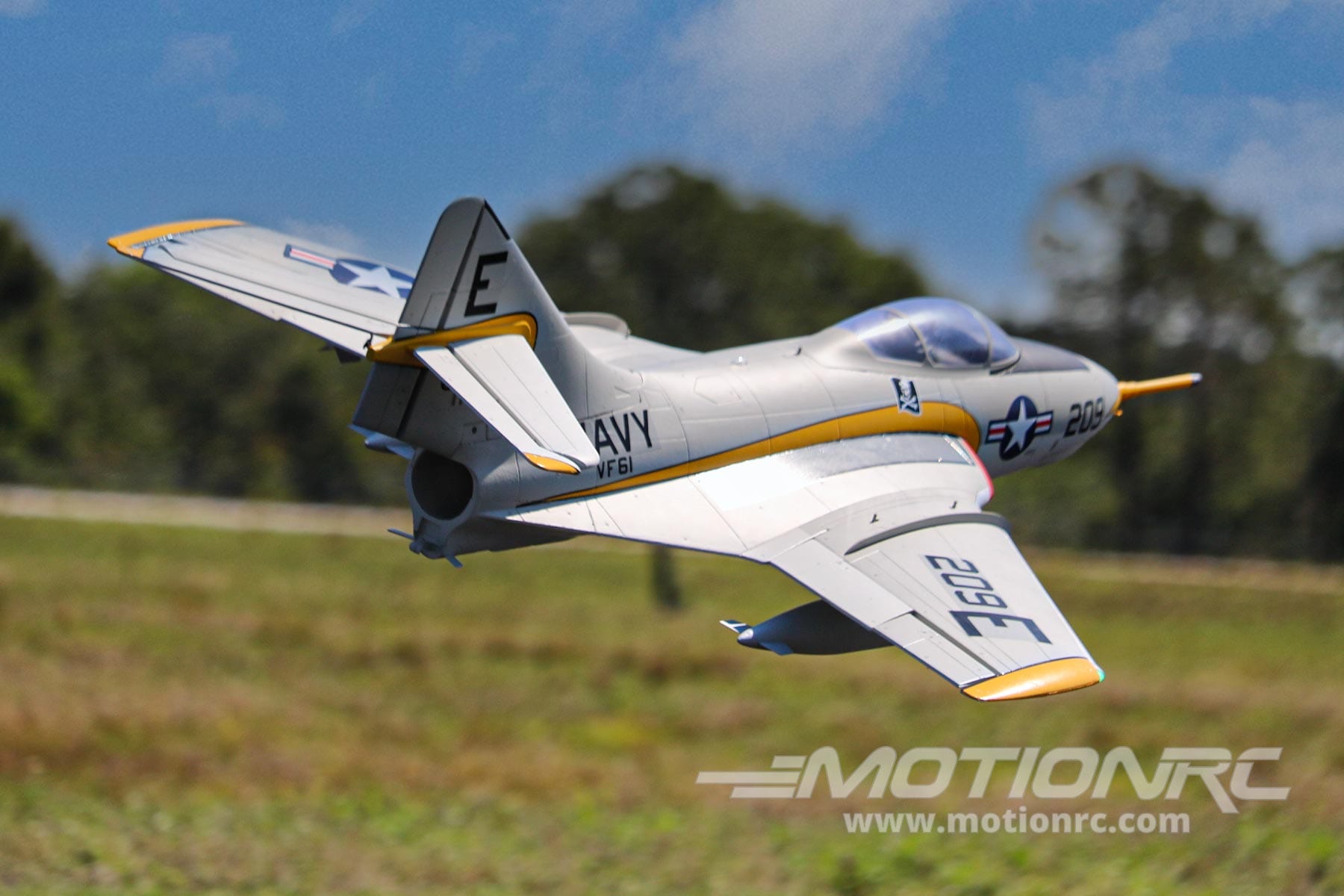

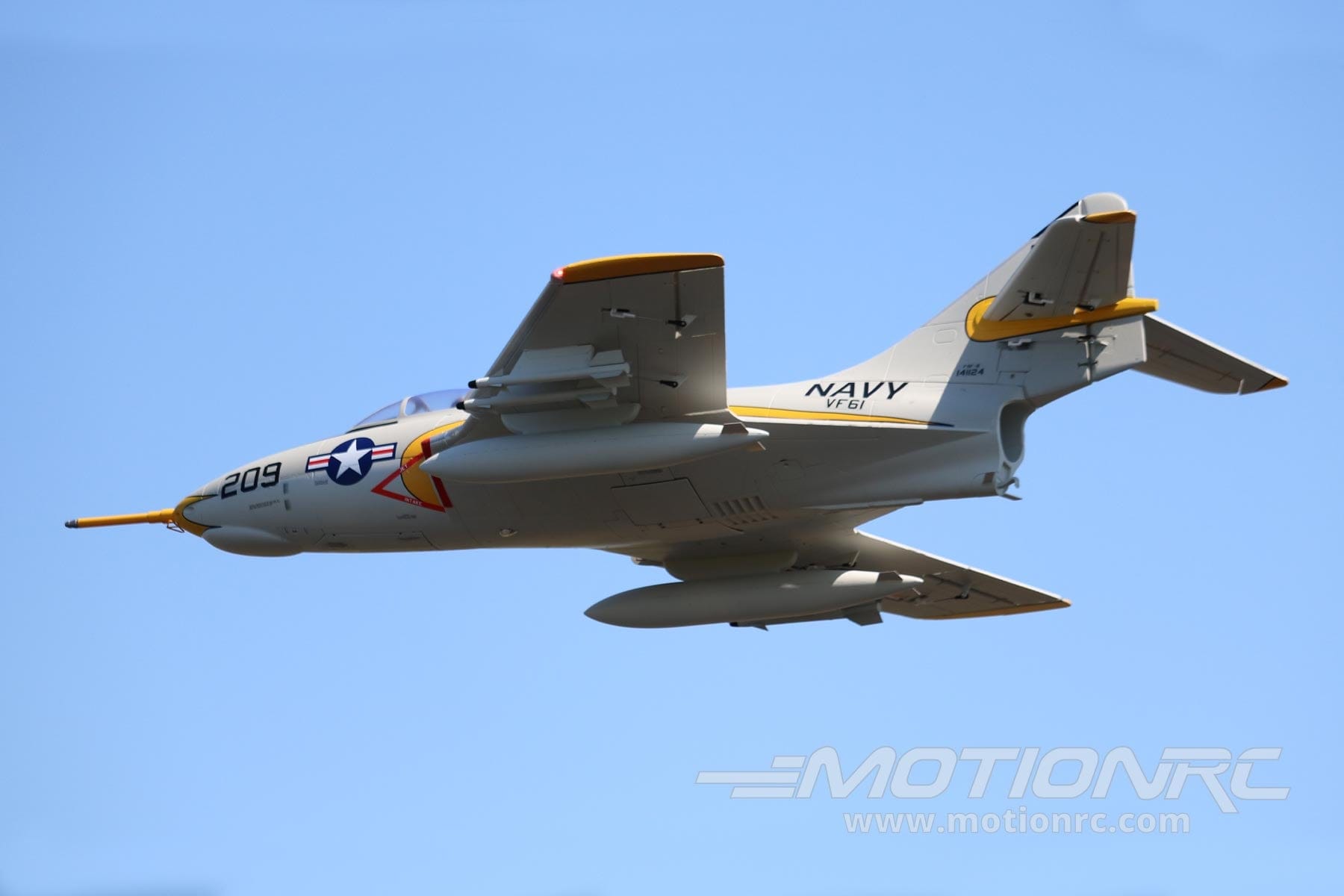

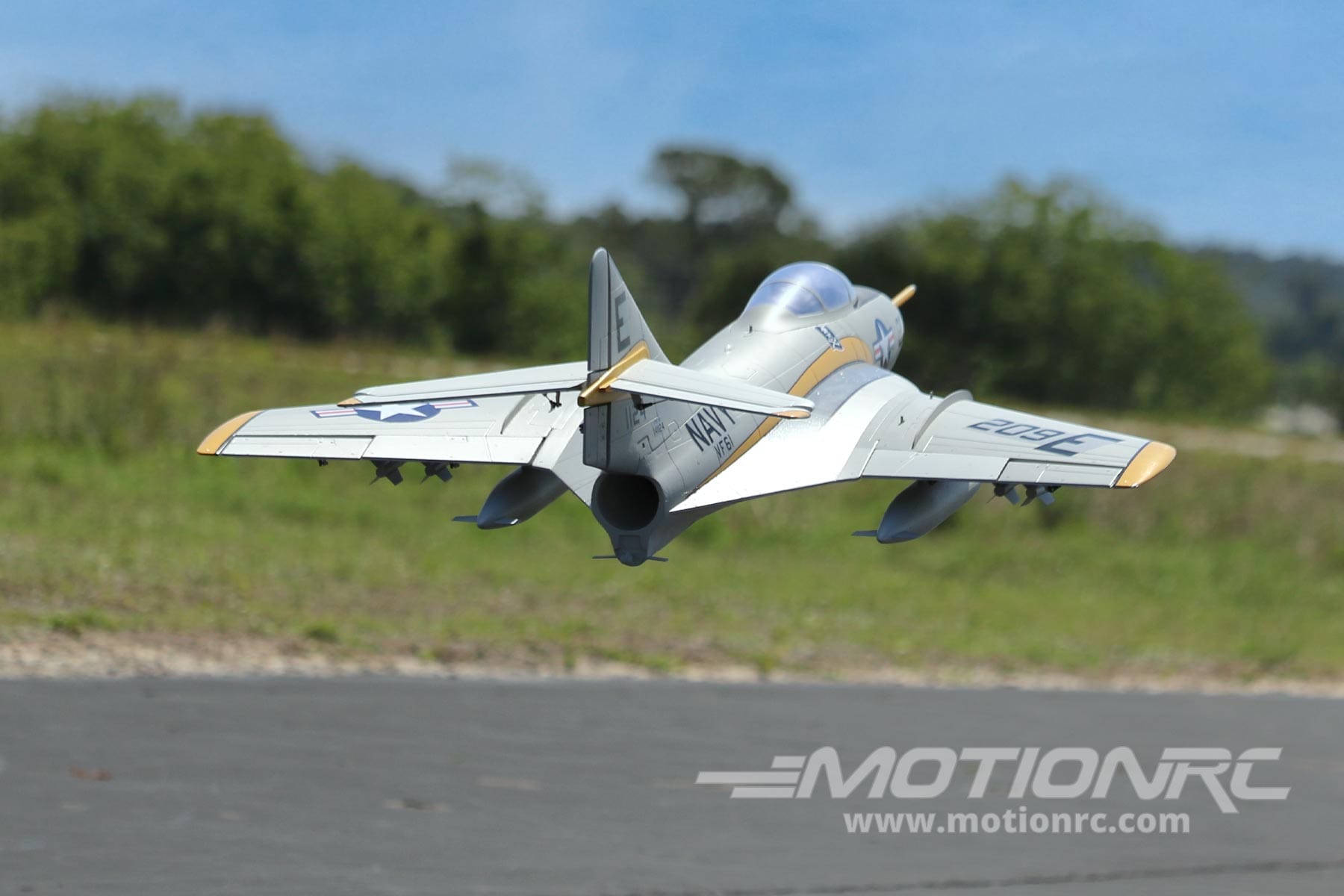

The Freewing F9F-8 Cougar is a next-gen 80mm EDF jet loaded with amenities and details normally reserved for 90mm class jets. This ARF PLUS version of the Cougar includes ultra-scale CNC landing gear, quick disconnect wings, 10 metal gear servos and a scale LED light package all coming together for a terrific new generation 80mm EDF jet brought to you by Freewing and Motion RC.

Features:

  • Quick-Install/Release wings make assembly at the field quick and easy

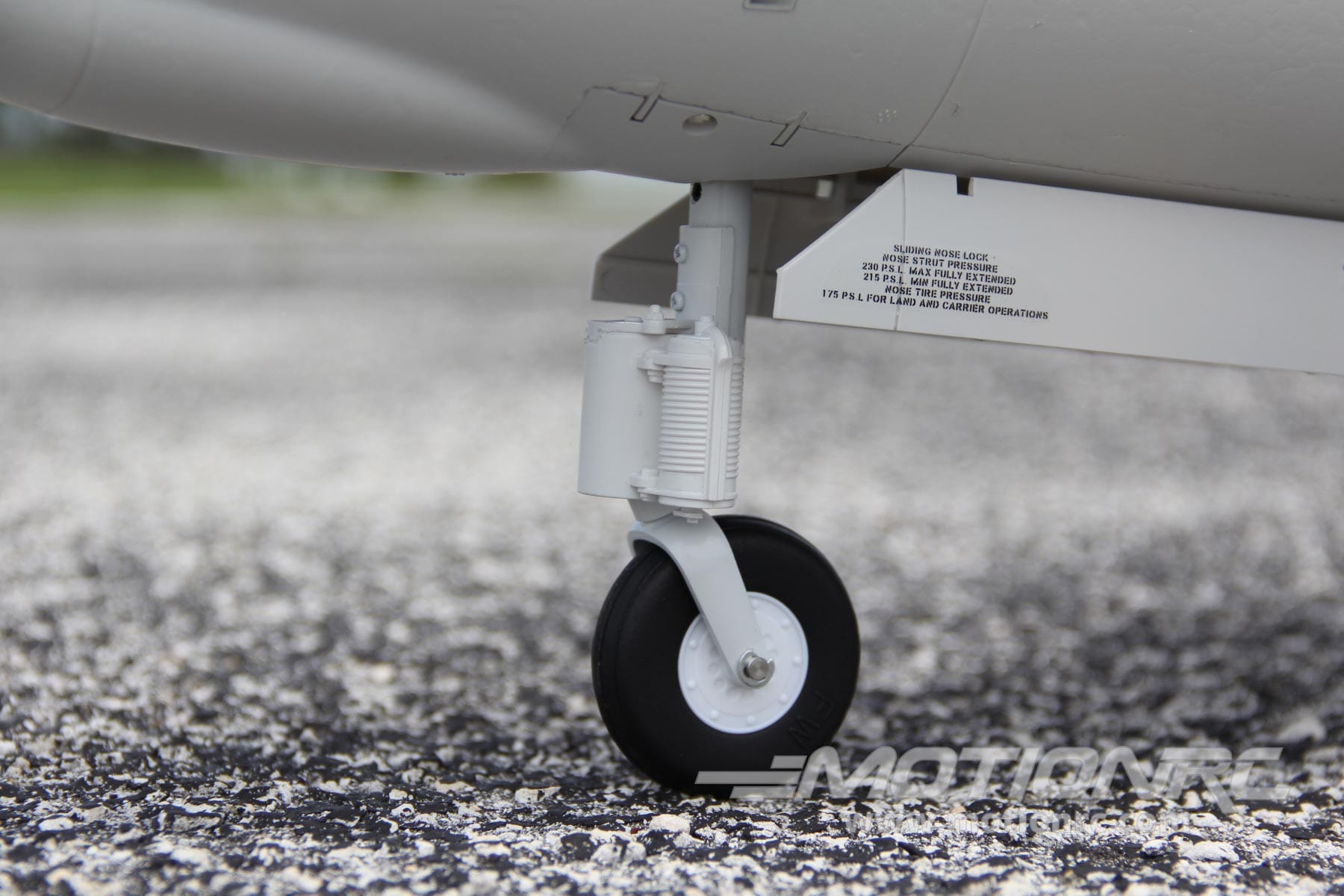

  • New, super-scale CNC-machined and painted landing gear (First 80mm jet with ultra scale landing gear)
  • 90mm detail level in an 80mm jet - Highly scale details are included on this 80mm jet that are normally reserved for 90mm jets
  • Fully enclosed servo operated landing gear doors
  • 10 metal gear servos (the most of any 80mm jet)

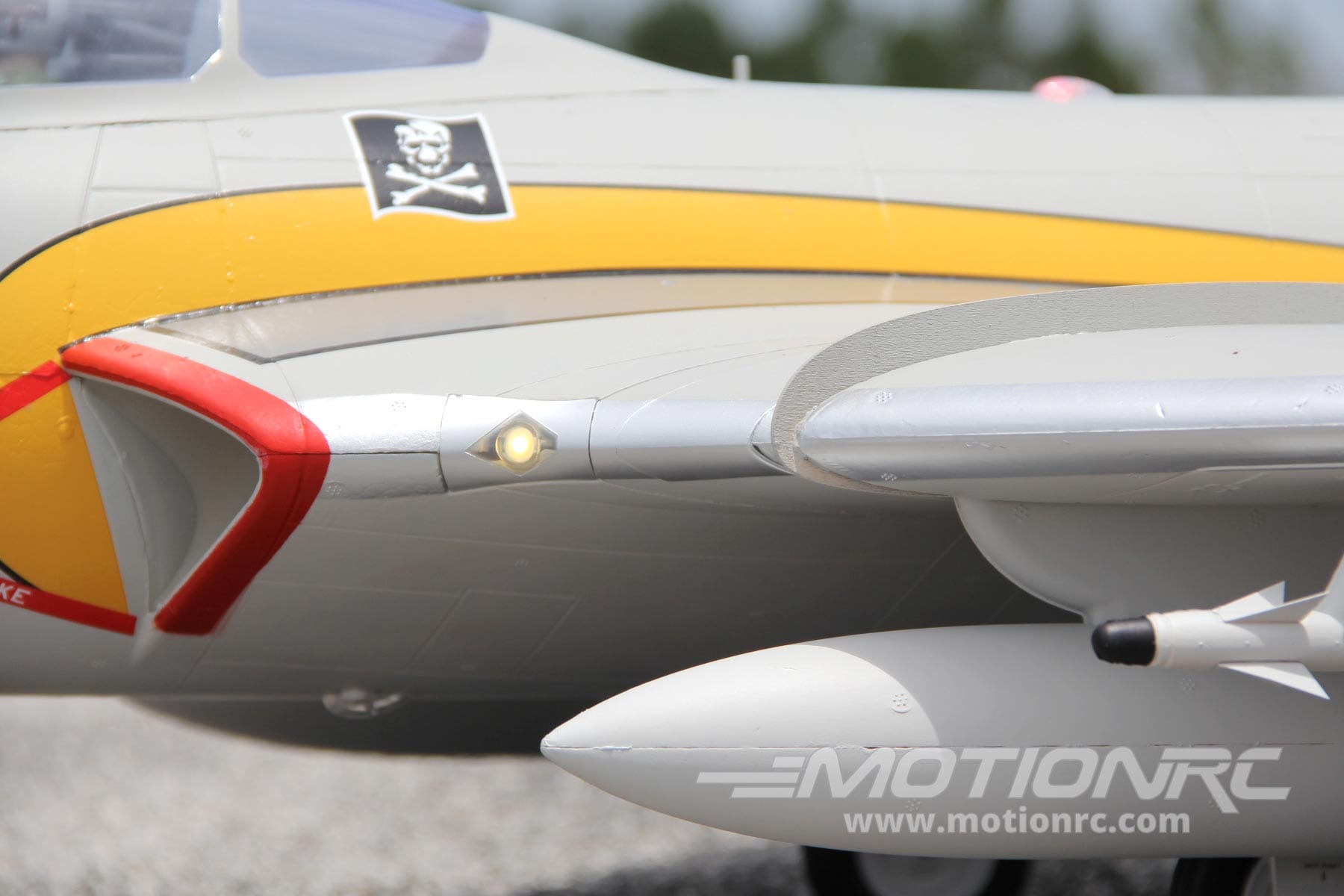

  • 6 scale LED lights with LED light controller

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1050mm (41.3 in)
Length: 1436mm (56.5 in)

Weight: 3242 g (7.1 lbs)
Scale 1/10
Wingspan 1050mm / 41.3in
Length 1436mm / 56.5in
Flying Weight ~3242g / 114.4oz
CG (Center of Gravity) 106mm from the leading edge of the wing's root
Power System 3658-2150Kv Brushless Inrunner Motor (required)
Electronic Speed Control 100A ESC with EC5 Connector (required)
Propeller / EDF 80mm EDF with 12-Blade Fan (required)
Servos
  • 9g digital metal gear standard with 200mm lead : right gear door, left flap, right flap - MD31093-200
  • 9g digital metal gear reverse with 200mm lead : left gear door - MD31093R-200
  • 9g digital hybrid metal gear standard with 300mm lead : left aileron, right aileron, rudder - MD31093-300
  • 9g digital hybrid metal gear standard with 400mm lead : left elevator, nose gear steering - MD31093-400
  • 9g digital hybrid metal gear reverse with 400mm lead : right elevator - MD31093R-400
Landing Gear Super-scale CNC-machined and painted landing gear
Required Battery 6S 22.2V 4000-6000mAh LiPo with EC5 Connector
Material EPO Foam
EnglishFrenchGermanItalianPortugueseRussianSpanish
4,638 models
(55,656 icons in the database)
ASK FOR A NEW MODEL TO BE ADDED

Although I do my best to complete this library, you may not find the model you are looking for.

In this case, do not hesitate to ask me to add it : You're not bothering me. Please be patient, depending on my workload, I may take a few days to work on your model and gather information.

I'm sometime asked to add a non flying model to this library but unfortunately, it's not the focus of this website

Ask for a new model

RANDOMIZER
Cessna 182 Skylane
Wingnetic
Eagle 1

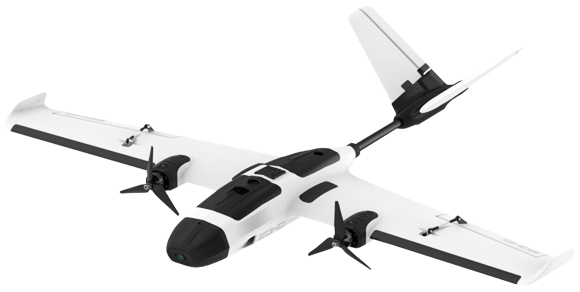

ALTUS_2404
